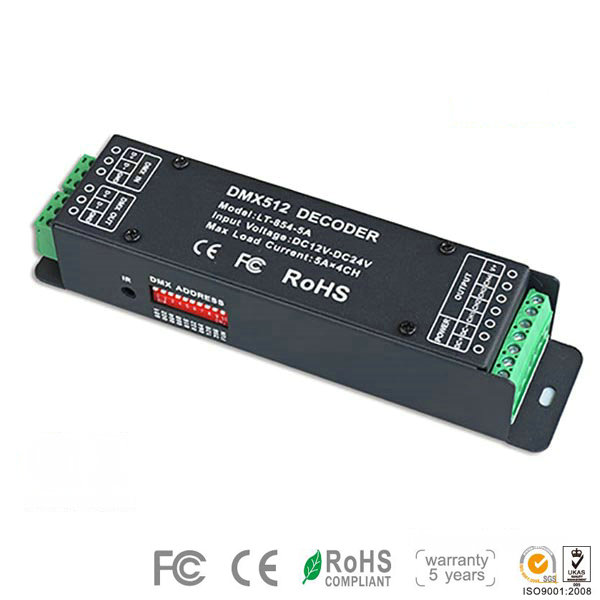

4CH CV DMX Decoder LT-854-5A

4CH CV DMX Decoder LT-854-5A

Model: LT-854-5A


Free Shipping Worldwide On Order Over $199
Qty: -+
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    LT-854-5A DMX-PWM Decoder Works to convert universal DMX512 digital signal to PWM signal, which controlled by DMX512 console, with 8bit gray scale output per channel. Realize 0-100% brightness and various changing effect. And can control single color, two color, RGB, RGBA, RGBW, RGBW LED lights.


    Input signal:   DMX512

    Power Supply Chosen:   CV LED power supply

    Input Voltage:   DC12V~24V

    Max Current Load:   5A*4CH  Max 20A

    Max Output Power:   240W/480W/(12V/24V)

    Output Gray Scale:   256 Levels/CH

    Frame Rate:   Max 850 Frame/Seconds

    DMX512 Socket:   Green Terminal

    Working Temperature:   -30℃~65℃

    Dimension:   L175×W42×H33mm

    Package Size:   L178×W46×H40mm

    Weight(G.W.):   310g


    Products Specifications

    DMX LED Controller         LT-854-5A

    4CH CV DMX Decoder LT-854-5A

    4CH CV DMX Decoder LT-854-5A
