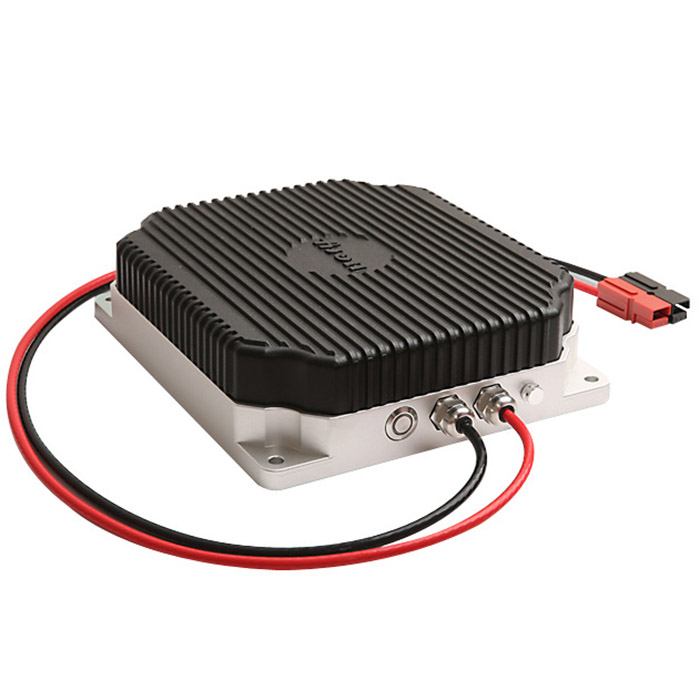

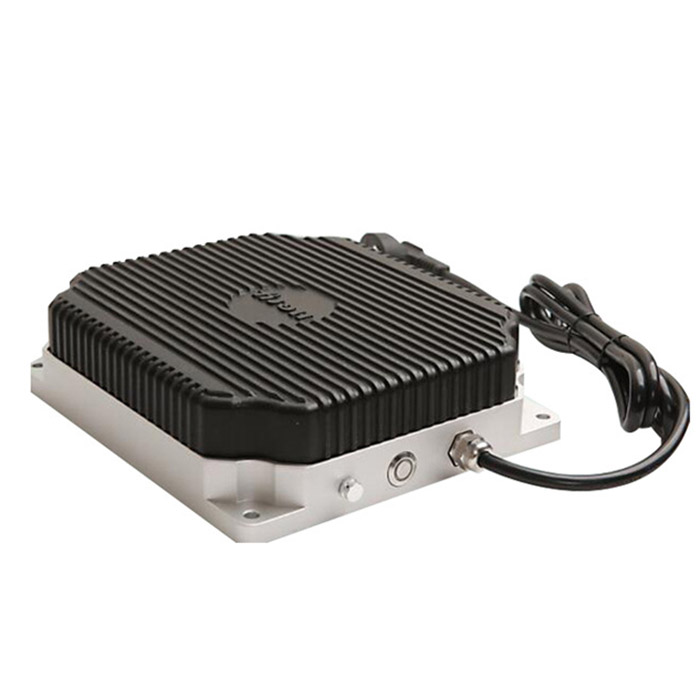

LYC1000 Wireless Charger, High-power AGV Golf Cart/Robot and Other Non-contact Power Supply
LYC1000 is a high performance wireless charger product developed by our company. It is suitable for providing non-contact charging for various mobile robots or devices such as AGV, AGC, RGV, electric forklift, golf cart and hotel service robot., To achieve complete automation of the battery charging process, easy to use, easy maintenance. The use of adaptive control technology to overcome the charging distance and load changes on the system performance, high control accuracy, for lithium batteries, lead-acid batteries, nickel-metal hydride batteries and super capacitors to provide accurate and reliable charging, to protect and extend battery life.
LYC1000 output power 1kW, efficiency is better than 92%, electromagnetic radiation intensity to meet the "electromagnetic environment control limits (GB 8702-2014)" requirements, safety, green and energy saving. The key components of this product are all imported components, and after rigorous testing machine to ensure long-term stable operation.
Features
1. contactless charge, high efficiency, long life, can achieve the charging time fragmentation;
2. original core structure design, leakage of small, low radiation;
3. original multi-loop resonant design, low loss, transmission frequency bandwidth;
4. original multi-loop adaptive control algorithm to ensure that the system is always in the best working condition;
5. independent research and development of the 2.4GHz frequency hopping communication algorithm, the data transmission delay is small, anti-interference ability;
6. independent research and development of the distance sensing and location confirmation algorithm, effectively eliminate the charging error;
7. multiple overload protection design, to ensure that equipment operation is stable and reliable;
8. Transformer and control circuit integration structure, save space, easy installation;
9. fully sealed design, waterproof, dust proof, anti-oil, adapt to a variety of harsh working environment.
Technical parameters
Input voltage: AC220V ± 15%, single phase 50Hz
Input current: 6.5A (max)
Output voltage: 12.0V ~ 30.0V (adjustable, factory setting 28.8V)
Output current: 10 ~ 35A (adjustable, factory setting 35A)
Regulating accuracy: ± 0.3%
Steady flow accuracy: ± 1.0%
Voltage ripple: ≤0.3%
Power efficiency: ≥92%
Charging distance: air gap length: 15 ± 10mm
X axis deviation: ± 20mm
Y axis deviation: ± 10mm
Charging frequency: 30 ~ 50kHz (self-tuning)
data transmission: work frequency band: 2.400 ~ 2.485GHz

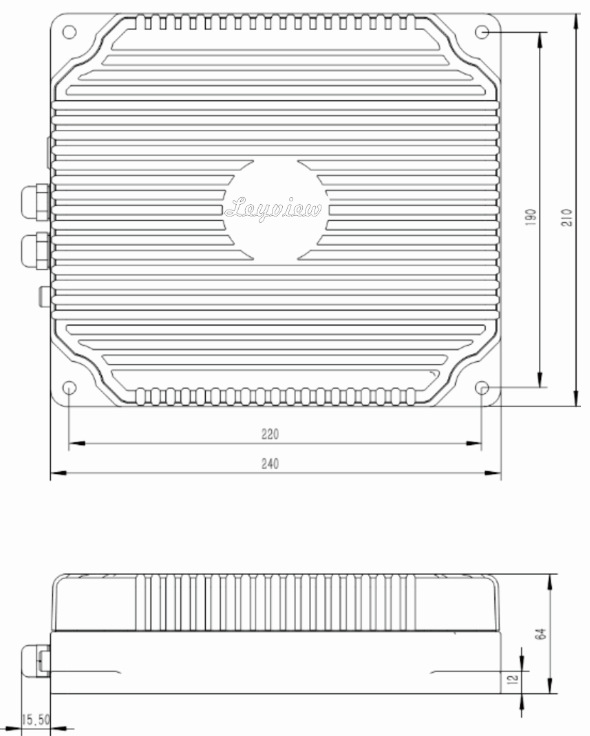

Dimensions
Features
LYC-1000T power terminal indication function:
(1) After normal power-on or pressing the reset button, the red indicator light often turns "on" for 1 second, and enters the standby state, and the red indicator light enters the slow flashing state;
(2) When the power receiving terminal is in place and the communication is normal, the coupling degree detection phase is performed, and the blue indicator light enters the normally "on" state;
(3) After the coupling degree test passes, the blue indicator light enters a fast flashing state, indicating that it has entered the normal charging state;
(4) After charging, the indicator light on the power supply is in standby state, and the red indicator light enters the slow flashing state;
LYC-1000R receiving end indication function:
(1) After the battery is normally connected or the reset button is pressed, the red indicator light often turns "on" for 1 second, and enters the standby state, the indicator does not indicate that it is often "off" state;
(2) When the power receiving terminal reaches the charging position, the robot gives a charging signal (active high), and the green indicator light enters a slow flashing state;
(3) After normal charging, the green indicator light on the receiving end flashes quickly;
(4) If the power receiving end is locked due to a fault or the position is not correct, the red indicator light on the power receiving end enters a fast flashing state;
(5) After charging is completed, the indicator light on the power receiving end is off.
Method of operation
Power on operation

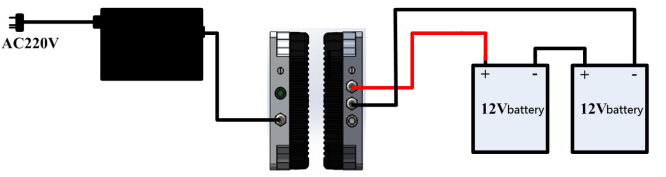

(1) Connect the power plug of the power supply terminal to the single-phase 220V power socket. The specific wiring diagram is shown in Figure 3;
(2) Turn on the input power switch, and the power indicator is as described in "LYC-1000T Power End Indication Function";
(3) After the power receiving end is connected to the battery, the power indicator is as described in "LYC-1000R power receiving end indication function".
Note: The red is connected to the positive electrode of the battery, which is "+", and the black is connected to the negative electrode of the battery, which is "-".

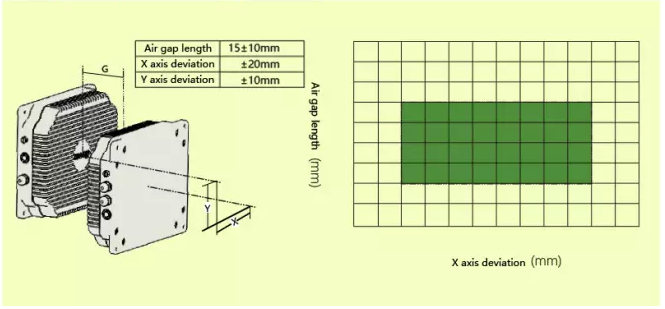

(1) After the power receiving terminal of LYC-1000R is close to the power terminal of LYC-1000T, it can realize the intelligent control of charging immediately and stopping immediately. The specific instructions are described in 5 (Function Introduction). The power receiving terminal and power terminal of LYC1000R The charging position range is shown in the figure.

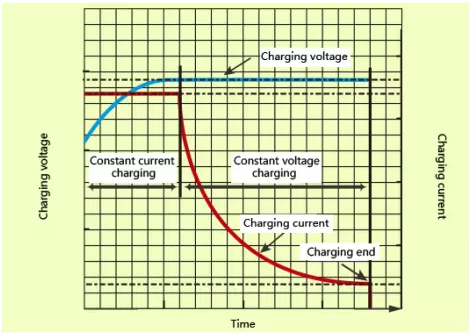

Charging curve
