MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor

Model: GST220A12
MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor
  • MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor

Select Specifications:

Select UL-Listed:

$88.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$88.98
10-29
$87.20
30-49
$84.53
50+
$80.97
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    GST220A12 input voltage 85-264VAC; output voltage is DC12V, output current is 15A, total power is 180W, suitable for DC12V LED light.

    In order to avoid power load, we usually support LED strips or other LED lights with power less than 80% of the rated power, so please choose a suitable LED power supply according to the actual LED power adaptor.



    NOTE:

    This item is power adapter (transformer) of AC -DC Low Voltage for 12V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.

    Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.



    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO warranty



    GST220A12 PDF



    Features

    Universal AC input / Full range

    Global certificates

    3 pole AC inlet IEC320-C14,Class I power unit

    No load power consumption< 0.15W

    Energy efficiency Level  VI

    Comply with EISA 2007/DoE,NRCan,Korea K-MEPS,

    AU/NZ MEPS,EU ErP and CoC Version 5

    Protections: Short circuit / Overload / Over voltage/Over temperature

    Fully enclosed plastic case

    -30~+70°C wide range working temperature

    LED indicator for power on

    Built-in active PFC function

    3 years warranty




    Product Specification

    Primary Output Voltage:   12VDC

    Output Current:   15A

    Maximum Output Power:   180W

    AC Power Cord:   INCLUDED, RECOMMEND 38050

    Family:   GST160

    Input Voltage:   85 to 264VAC

    Input Frequency:   47 to 63

    Maximum Input Current:   4A/115VAC, 2A/230VAC

    Output Connector Type:   DIN Male

    Output Connector Diameters:   4-pin DIN

    Number of Outputs:   1

    Product Type:   AC to DC Power Supply

    Agency Approvals:   UL/CUL/TUV/BSMI/CCC/FCC/CE

    Efficiency:   90%

    Minimum Isolation Voltage:   3000

    Operating Temperature-Min (Cel):   -30

    Operating Temperature-Max (Cel):   70

    Length:   8.27in

    Width:   3.35in

    Height:   1.81in

    Product Note:    Level VI

    Color:   Black

    Type:   Auto Switching

    Style:   Desktop Adapter



    Product List

    1* GST220A12 LED power adaptor

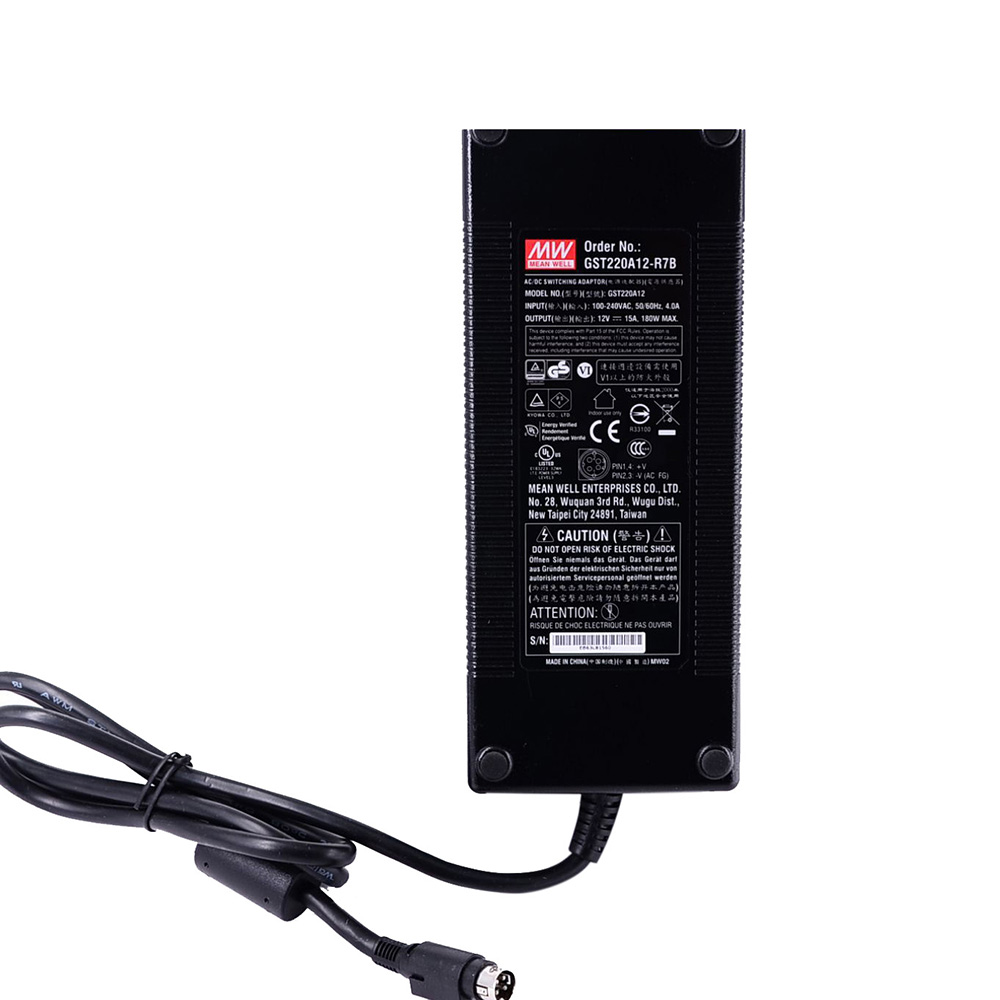

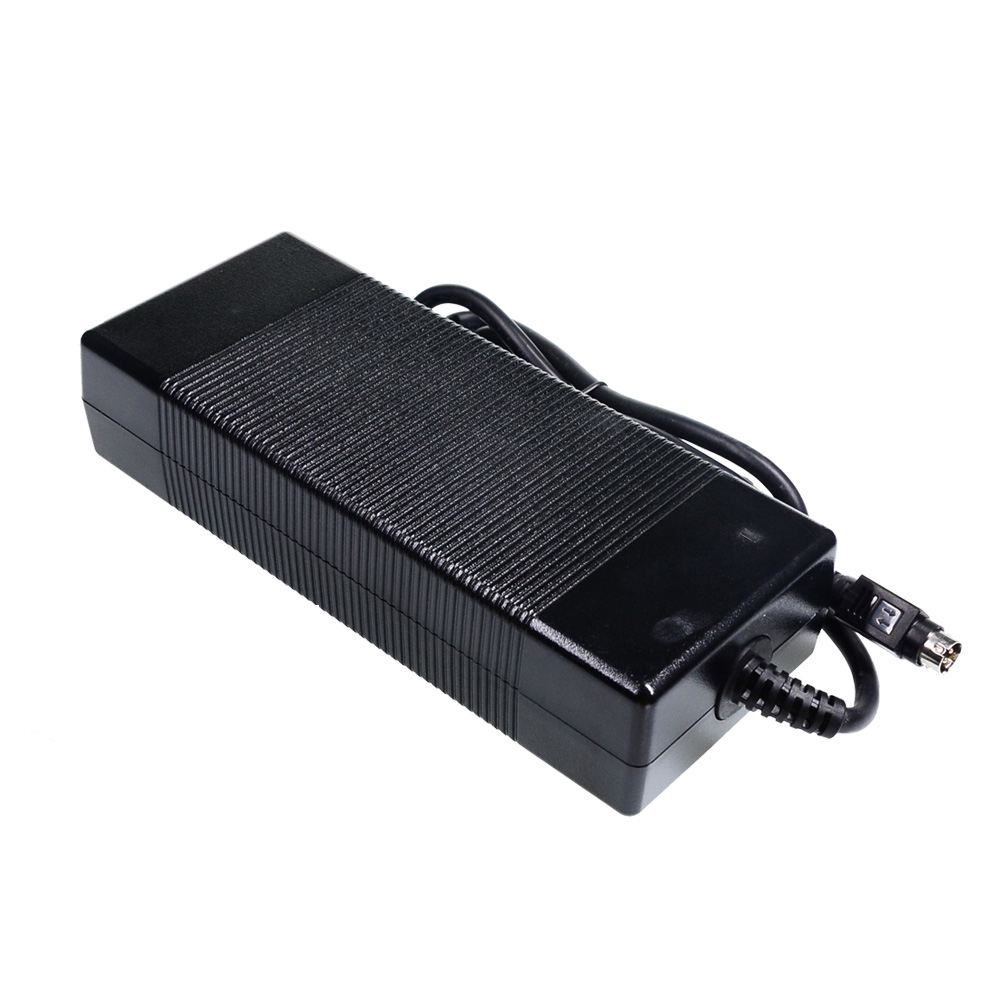

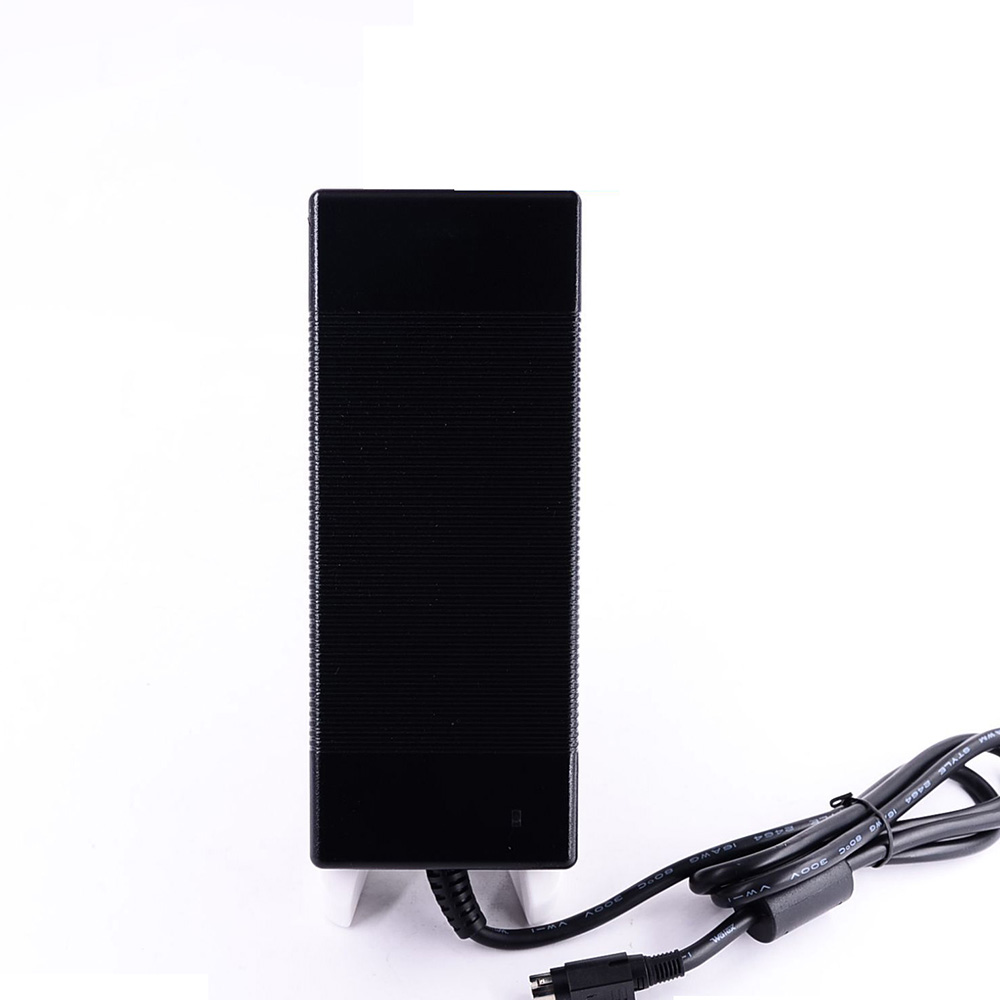

    MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    MeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power AdaptorMeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power AdaptorMeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power AdaptorMeanWell DC12V 15A 180W GST220A12 AC To DC Reliable Green Industrial LED Power Adaptor
