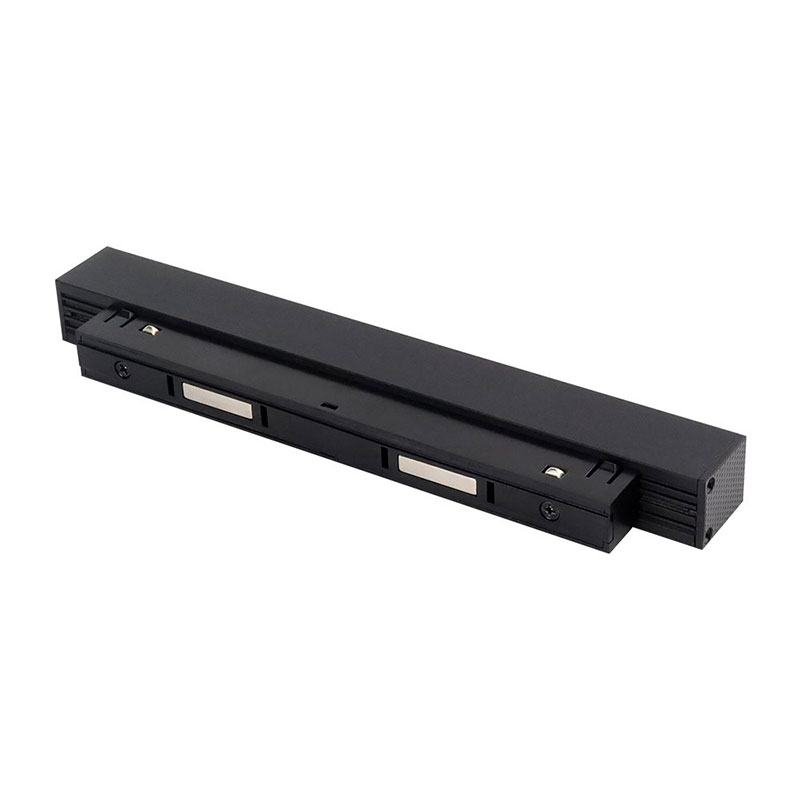

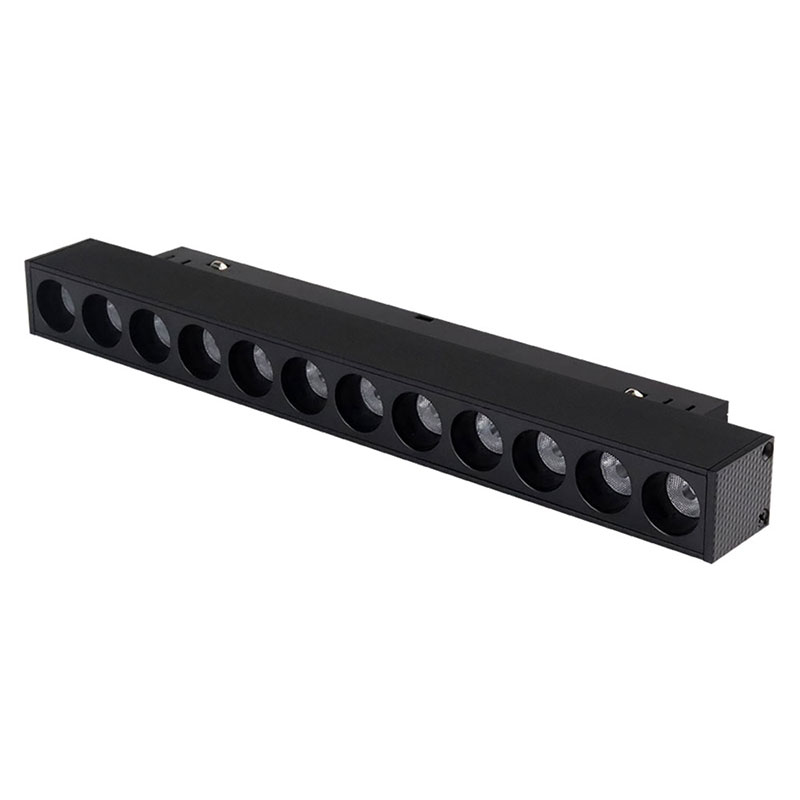

MG5-06N-RF DC48V 6W 24° RGB+CCT Magnetic Grille Light (2.4GHz)
This Mi-light magnetic light MG5-06N-RF product adopt the widely used 2.4GHz wireless technology with the features of low power consumption, long signal transmitting and strong anti-interference, etc. It has auto-transmitting and auto-synchronizing function. Widely used on the controlling of hotel lighting and home lighting.
-
16 Millions of colors to choose
-
Color temperature adjustable
-
Dim brightness / Saturation
-
Multiple dynamic modes
-
2.4G RF wireless transmission technology
-
DMX512 controllable (DMX512 LED transmitter FUTD01 is needed)
-

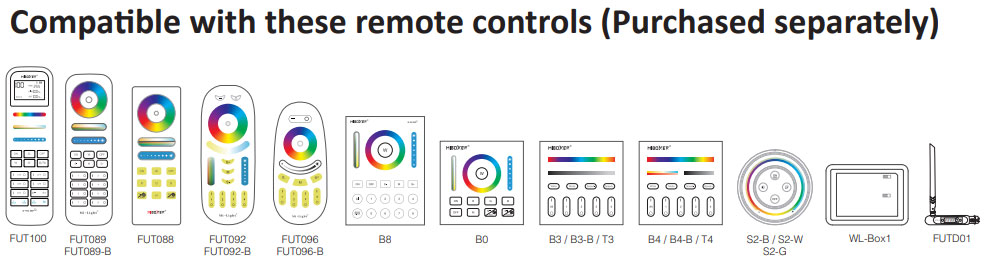

Remote control Control distance 25m
-
Smartphone app control (2.4GHz gateway WL-Box1 is needed)
-
Support third party voice control (2.4GHz gateway WLBox1 is needed)
-
Signal transmitting & Modes synchronization
-
“Do not disturb” function (widely used in areas which have power failure frequently to save energy)
MG5-06N-RF Maunal
Standards and Certifications
Product Parameters
| Product Name: | 6W RGB CCT LED Linear Magnetic Light (2.4GHz) |
| Model No.: | MG5-06N-RF |
| Input Voltage: | DC48V |
| Power: | 6W |
| IP Rate: | Non-waterproof |
| CRI: | >80 |
| Color Temperature: | 2700K~6500K |
| Luminous Flux: | 440LM |
| Luminous Efficiency: | 65LM/W |
| Beam Angle: | 24° |
| Communication Protocol: | 2.4GHz |
| Control Distance: |
25m |
| Working Temperature: | -10~40°C |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
