Special Price: $6.98
Check this mini black or silver aluminum channel with 8.1mm/0.32in inner width, suitable for 8mm 2110/3014 led strip lights. One 1m LED strip channel contains a 1m led aluminum channel, a PC led diffuser cover, one end cap without hole, one end cap with wire hole, and two mounting clips. Aluminum profiles for led strip lighting act as an LED light diffuser, smooth led light output, and achieve good heat dissipation effects. It also plays a role in led strip protection from dust and external damage. Differernt led light diffusers emit differernt led lighting effect for your LED project. Woe provide PC opal microprism diffuser, PC semi-clear diffuser, and black PC diffuser. Choose a right led channel aluminum color, silver or black, to suit your decoration style.
Endcap without hole to protect the led tape light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led controller to power or control the led strip lighting. With mounting clips, the led aluminum channels can be easily mounted in walls, furniture, or other indoor led linear lighting projects.
Note:
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
Product Specification
| Material | 6063-T5 Aluminum Alloy |

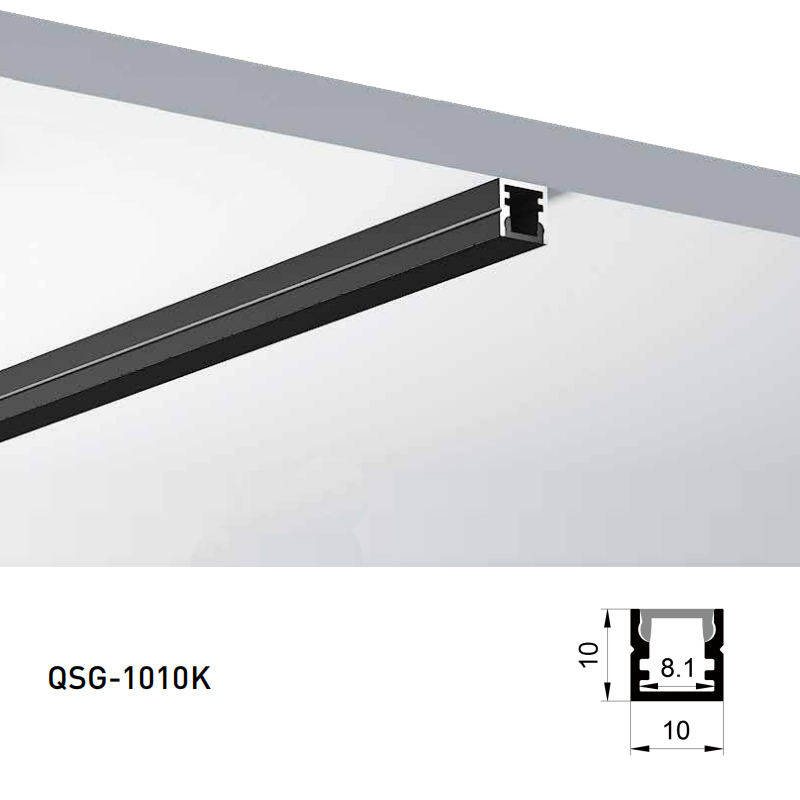

| Model | QSG-1010K (MS-1010/MS-YGD-1010-71 / ZE-LXJ-1010) |

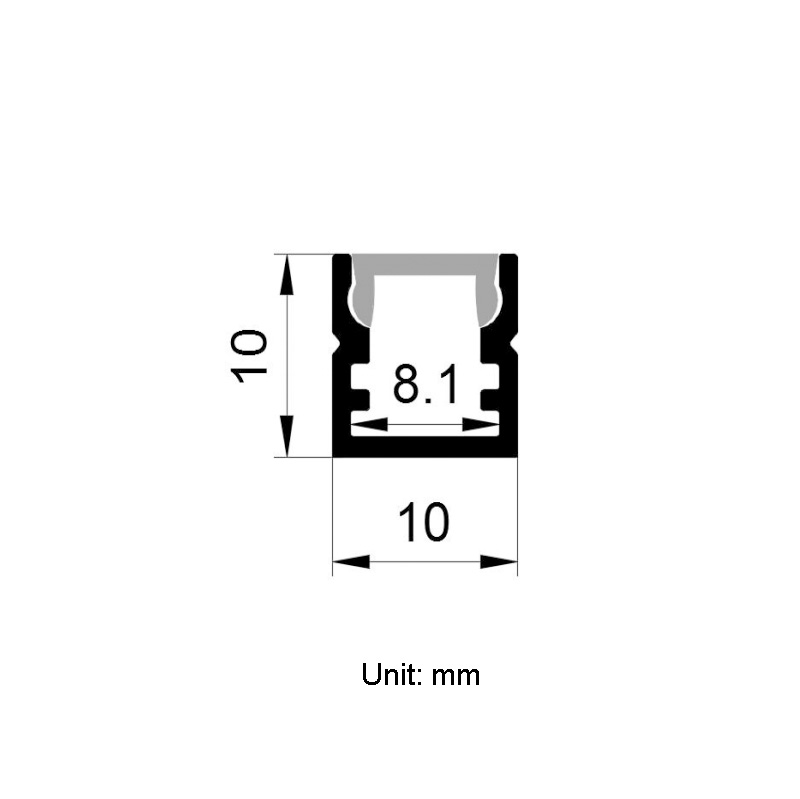

| Channel Size | W10mm(0.39in)*H10mm(0.39in) |
| Inner Width | 8.1mm(0.32in) |

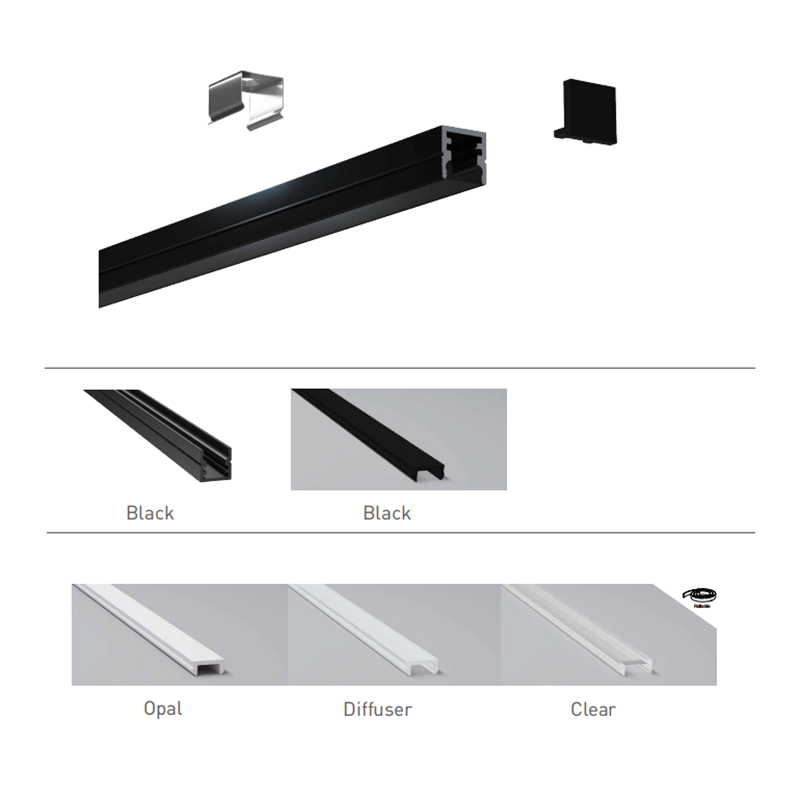

| Aluminum Color | Silver /Black |
| LED Diffuser | PC opal diffuser /PC semi-clear diffuser /Black PC diffuser |
| Length | 1m(3.28ft) /2m(6.56ft) |

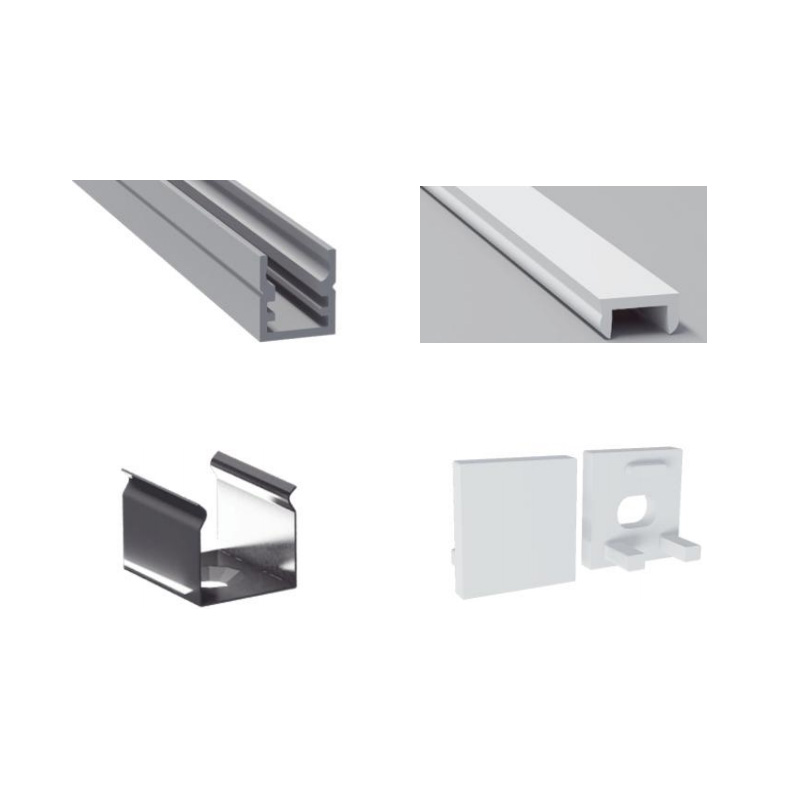

| Accessory | End cap without hole, end cap with wire hole, mounting clips |
| Installation | Surface Mounted |
| Apply to | 5mm/8mm 5050/2216/3014/2110/5630/5730 thin led strip lights |
