Mini LED Light Diffuser Channel Aluminum For 8mm LED Strip Lights
Related Products
Mini LED Light Diffuser...
$8.98
2110SMD 224LEDs Tunable...
$46.98
High CRI 95 SMD2110...
$22.98
High CRI 95 SMD2110...
$66.98 $46.9830% off
High CRI 95 SMD2110...
$12.98
High CRI 95 2110SMD...
$54.98 $37.9831% off
High CRI 95 SMD2110...
$42.98 $32.9823% off-
Special Price: $8.98

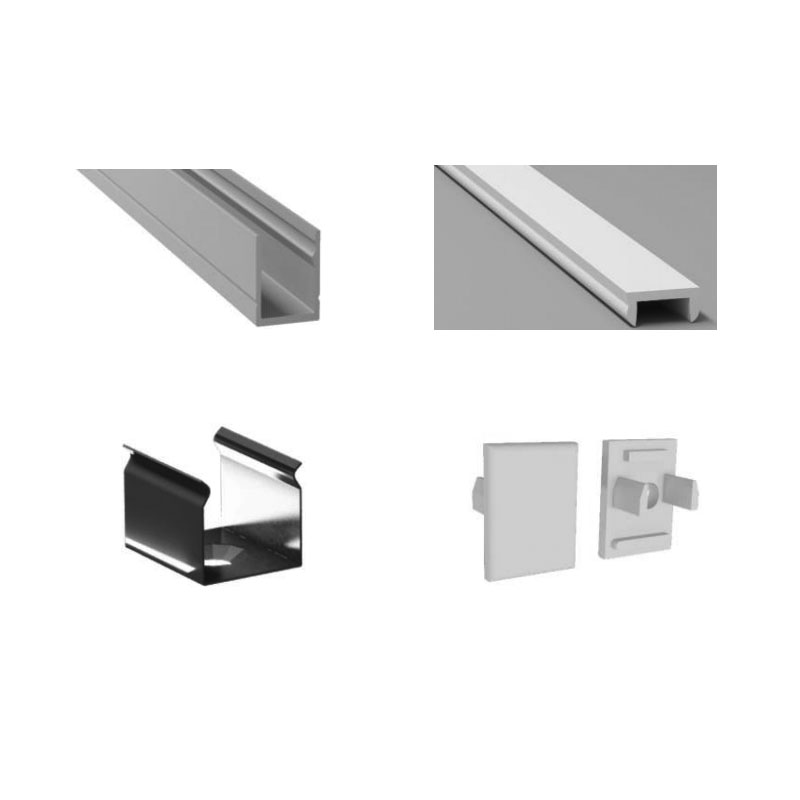

This mini aluminum channel with 8mm inner width, is suitable for 2110/3014 led strip lights. Aluminum profiles for led strip lighting act as an LED light diffuser, smooth led light output, and achieve good heat dissipation effects. It also plays a role in led strip protection from dust and external damage. One 1m LED strip diffuser channel contains a 1m led aluminum channel, a PC led diffuser cover, one end cap without hole, one end cap with wire hole, and two mounting clips. Differernt led light strip diffusers emit differernt led lighting effect for your LED project. Right led channel color will be more suitable for your decoration style, silver aluminum profile. Endcap without hole to protect the led tape light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led controller to power or control the led strip lighting. With mounting clips, the led aluminum channels can be easily mounted in walls, furniture, or other indoor led linear lighting projects.
Note:
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
Product Specification
| Material | 6063-T5 Aluminum Alloy |
| Model | QSG-1012 |

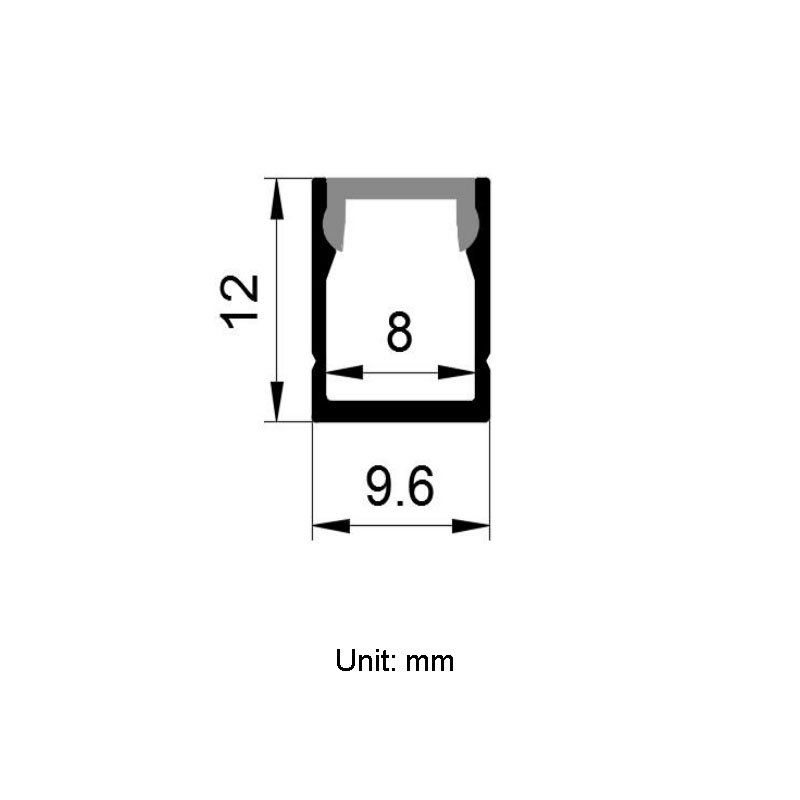

| Channel Size | W9.6mm(0.38in)*H12mm(0.47in) |
| Inner Width | 8mm(0.31in) |
| Aluminum Color | Silver |
| LED Diffuser | PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser |
| Length | 1m(3.28ft) /2m(6.56ft) |
| Accessory | End cap without hole, end cap with wire hole, mounting clips |
| Waterproof | Non-waterproof(Indoor use) |
| Apply to | 8mm 5050/2216/3014/2110/5630/5730 flexible led strip lights |
| Installation | Surface Mounted |
Applications - Ultimate Guide to LED Aluminum Channel
-
Residential lighting: wardrobe, cabinet, kitchen, ffurniture, etc.
-
Commercial lighting: office/supermarket/shopping Mall
-
Indoor illumination
-
Stores shelf LED lighting
-
Heat sink and physical protection to the LEDs
-
Interior light design (stairs / storage / floor)
-
Exhibition boot LED lighting
-
Backlight or supplementary lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
