Special Price: $62.98

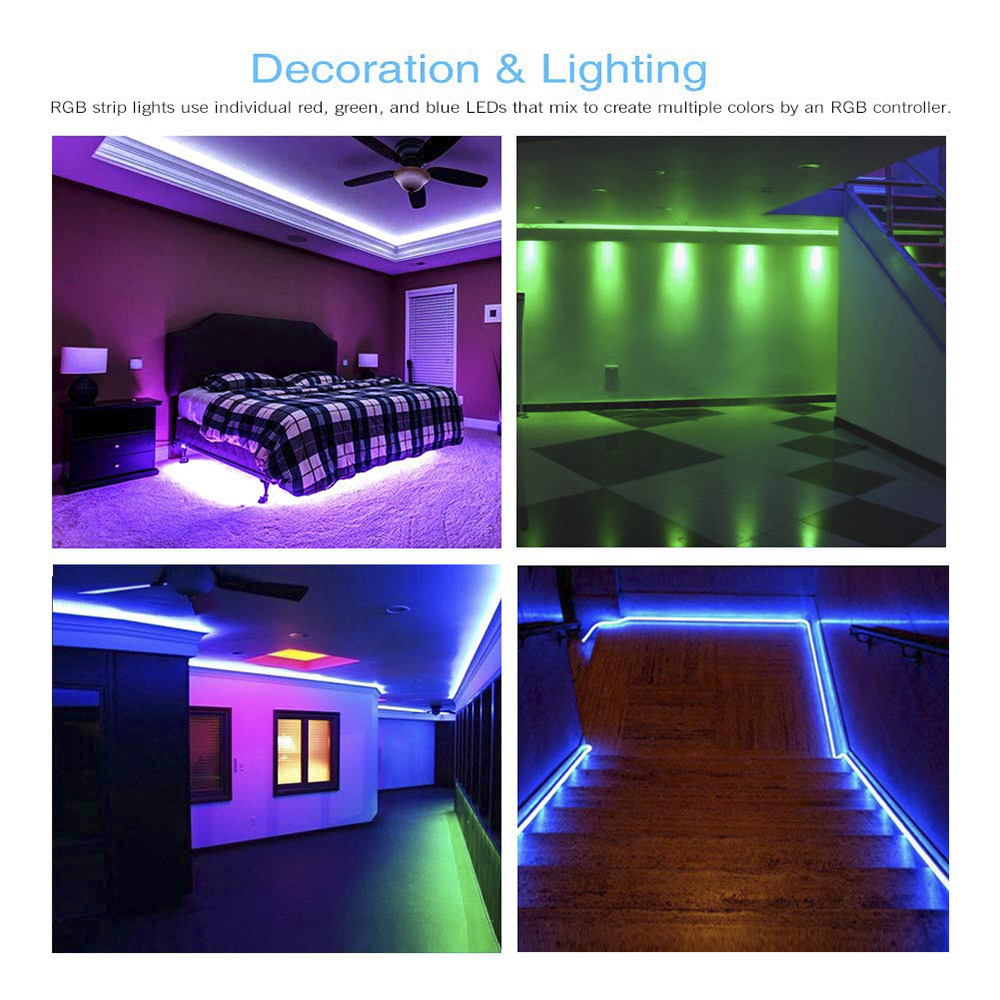

LED color changing RGB light strips use 3-in-1 RGB LEDs, which can display a variety of static colors and dynamic color effects through the control of the RGB controller. You can use mobile APP, remote control, or voice control to change the light colors, brightness, and color modes. It is the best item to use lights to create an entertainment atmosphere or mood lighting. This multi color RGB led strip uses 12V/24V safe low voltage and needs to be driven by a 12V/24V LED power supply.
-
RGB LED Chip 3in1 packaged in the SMD5050 component, multiple RGB colors change
-
DC12V/24V input voltage, safety and stability
-
10mm wide for 12V RGB light strip, 12mm wide for 24V RGB led strip
-
IP20/IP65/IP67/IP68 waterproof ratings for indoor and outdoor lighting
-
High-quality 3M tape on the back, easy to install
12V RGB LED Strip vs 24V RGB LED Strip:

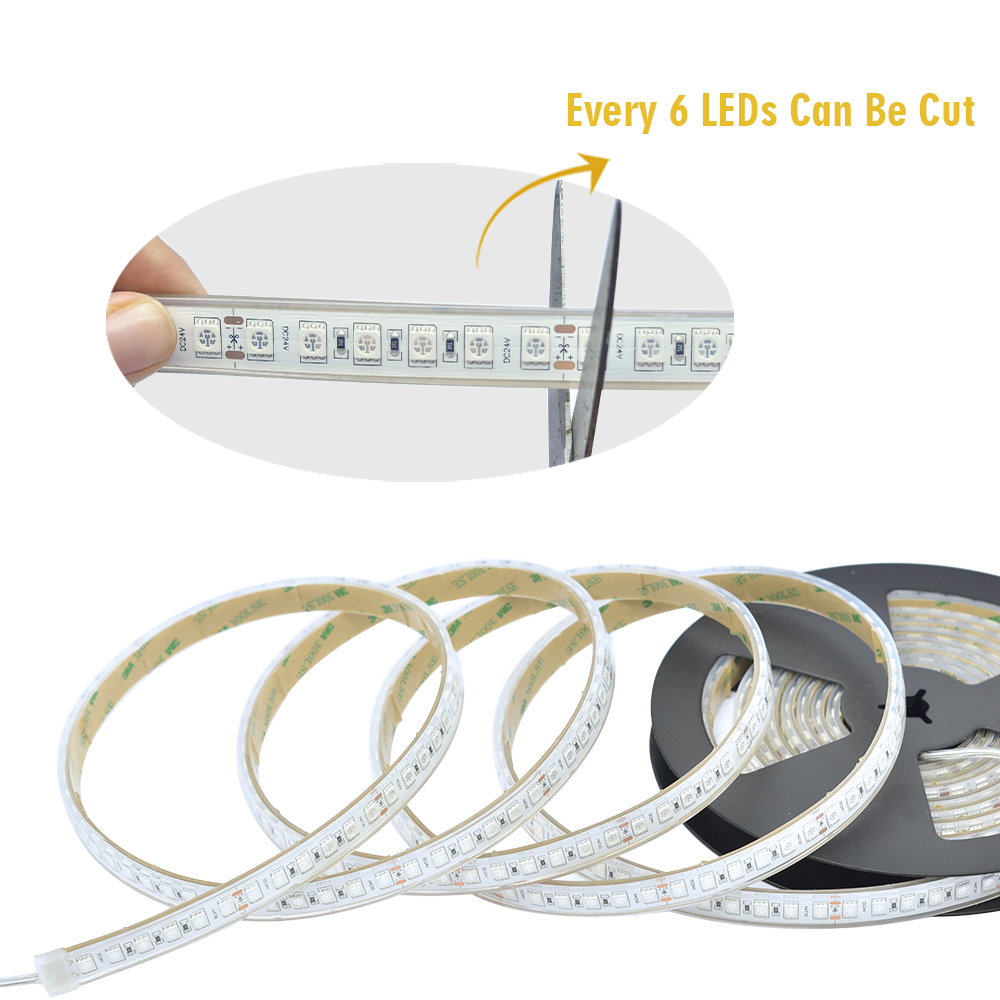

DC12V: 3LEDs cuttable, the min-cut size is 31mm, 5m no voltage drop, more than 5m requires a power supply at both ends

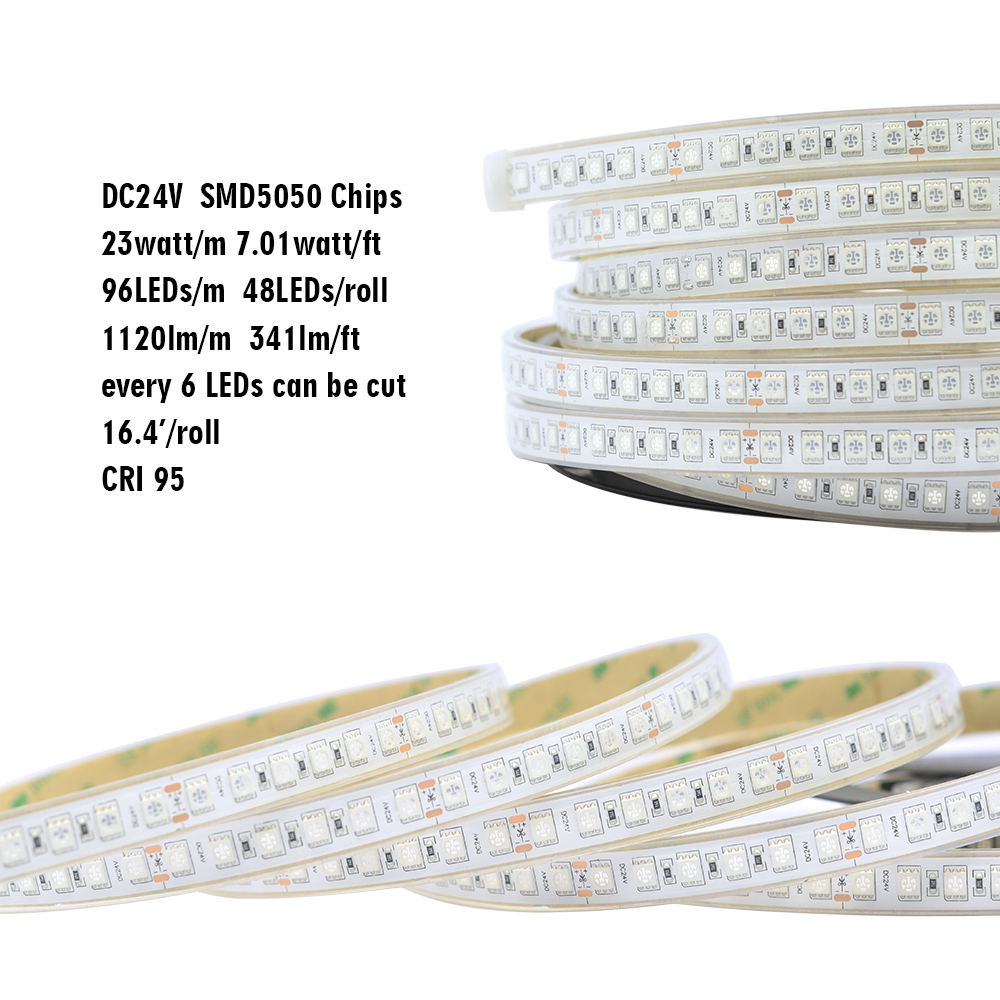

DC24V: 6LEDs cuttable, the min-cut size is 62.5mm, 10m no voltage drop, more than 10m requires a power supply at both ends
Standards and Certifications
LED Strip Type: | SMD5050 RGB 480LEDs/16.4ft |
LED Chip: | Epistar Chip |
Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
Light Color: | RGB Color |
Dimension: | 16.4ft/roll, every 3/6 PCS LED can be cut |
LED Quantity: | 96 LEDs per 1meter (3.28 ft) |
Lifespan: | 50,000+hours |

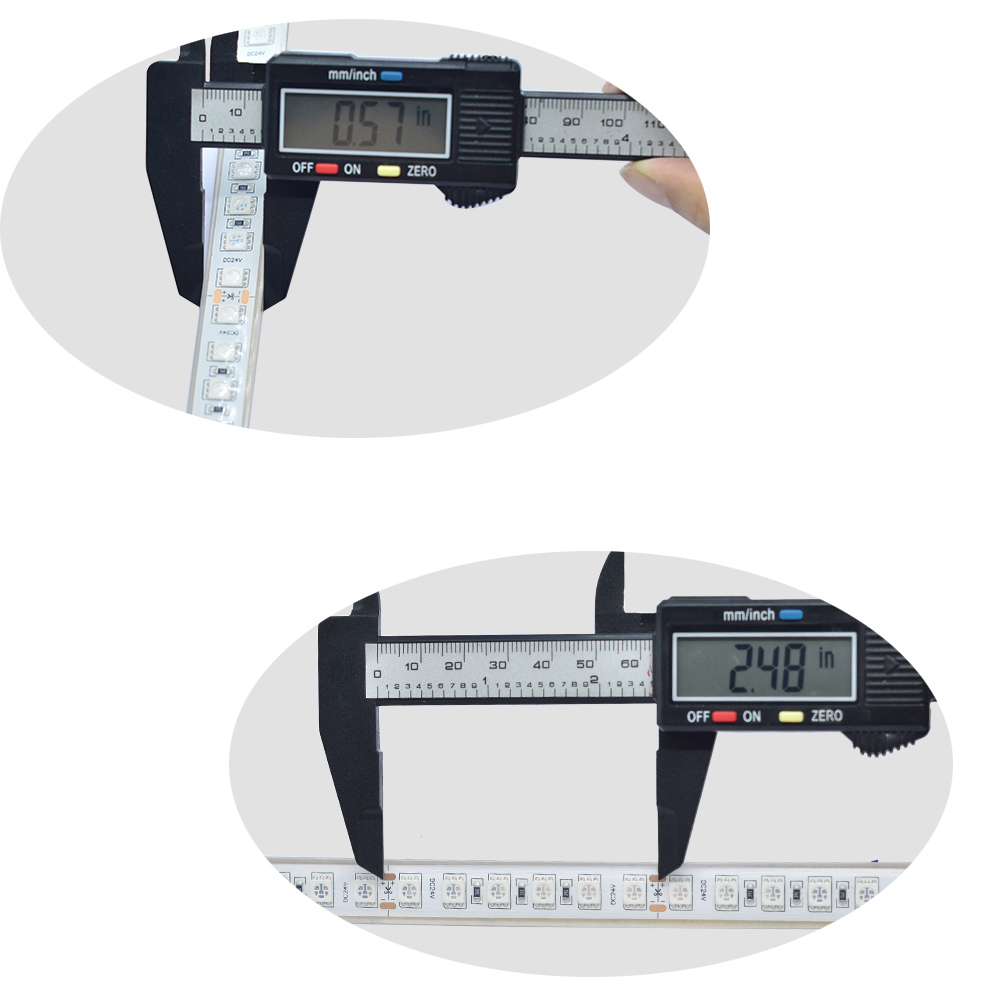

Strip Width: | 10mm/0.39in -12V, 12mm/0.47in - 24V |
Input Voltage(V): | 12/24 VDC |
Working Power: | 115W /16.4ft Max |
Lumen Per LED: | 24~26Lumen 10920lm Max /16.4ft |
Wavelength NM(RGBY): | 2000-2500mc |
Beam Pattern: | 120 degree |
Waterproof Rating: | Non-waterproof IP20, waterproof IP65 IP67 IP68 |
How To Wire RGB LED Strip Lights?
1. RGB led strip wiring diagram:

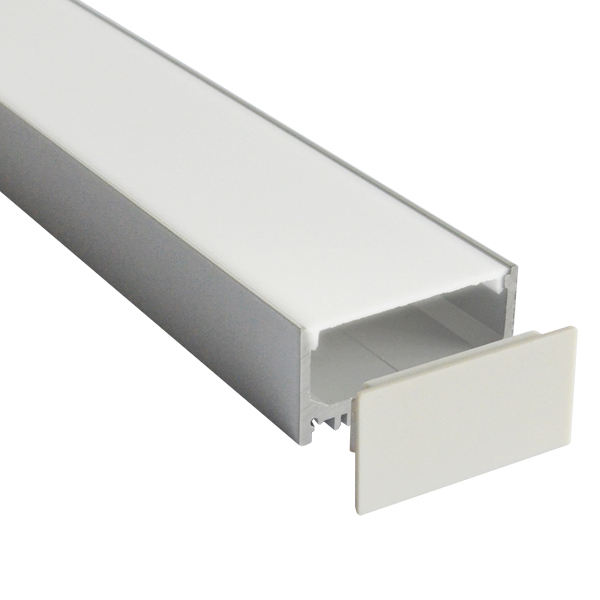

2. LED light strip accessories: RGB light led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
