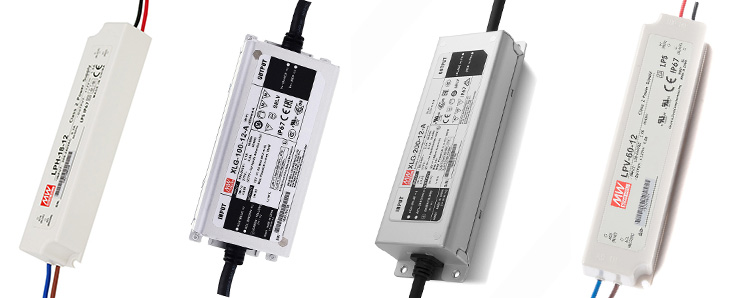

MW UL-Listed IP67 Power Supply

Meanwell 12V waterproof power supplies are designed for outdoor lighting and indoor wet lighting projects. These IP67 12V led power supplies feature a ruggedized enclosure and waterproof design to protect the internal circuitry from water and moisture.

When choosing a Meanwell outdoor 12V DC power supply (available in 18W to 600W), make sure you understand the power requirements needed for your 12V LED lights and other special requirements to ensure safe, stable operation of your project.

How to calculate power for led strip lights?


LPH-18-12 18Watt AC180~264V Input Mean Well High-efficacy Waterproof Constant Voltage DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:LPH-18-12

LPH-18-12 18Watt AC180~264V Input Mean Well High-efficacy Waterproof Constant Voltage DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage: DC12V
  • Current Rating:1.5A
  • Current range:0-1.5A
  • Rated power:18W
  • Frequency Range: 47 ~ 63Hz
  • Efficiency:77%
Various Options In Stock
$13.98
Note: The AC input voltage of this LED power supply is 180~264VAC   Main features 180~264VAC AC input voltage Fully enclosed plastic shell, in line with IP67 protection standard With short circuit protection/overload protection/overvoltage protection/overheat protection International safety certification: TUV/CB/CE Constant pressure working mode Class II input, no shell grounding...
LPV-20-12 20Watt AC90~264V Input Mean Well High-efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:LPV-20-12

LPV-20-12 20Watt AC90~264V Input Mean Well High-efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC output voltage:12V
  • Rated output current:1.7A
  • Output current range:0~1.7A
  • Output power:20.4W
  • Efficiency:76%
Various Options In Stock
$15.98
Main features Global universal full range AC input voltage Fully enclosed plastic shell, in line with IP67 protection standard With short circuit protection / overload protection / over voltage protection International safety certification: UL/CE Constant pressure working mode Class II input, no shell grounding terminal Can withstand 300VAC surge input for 5 seconds UL1310 Class 2 power supply...
LPV-35-12 36Watt AC90~264V Input Mean Well High-efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:LPV-35-12

LPV-35-12 36Watt AC90~264V Input Mean Well High-efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage:DC12V
  • Rated current:3A
  • Rated power:36W
  • Current range:0-3A
  • Efficiency:84%
Various Options In Stock
$21.98
The biggest difference between LPV-35-12 and LPV-35-24 is the voltage, so their rated current is also different. The rated current of 12V is 3A, but the rated current of 24V is 1.5A. At the same time, the power supply efficiency of 24V is higher than that of 12V, and the heat dissipation capacity is stronger.   Main features Constant voltage design Universal AC input/ Full range Withstand...
LPV-60-12 60Watt AC90~264V Input Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:LPV-60-12

LPV-60-12 60Watt AC90~264V Input Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage:DC12V
  • Rated current:5A
  • Current range:0-5A
  • Rated power:60W
  • Efficiency:83%
  • Input voltage:90~264VAC
Various Options In Stock
$24.98
The main material used in MEAN WELL LPV series is ultra-thin plastic shell, and the waterproof grade can reach IP67. The LP series LED driver has 300VAC surge input for 5 seconds, which can effectively avoid short circuit, load and other safety problems. It is suitable for Economical LED lighting and mobile sign applications. The input voltage is AC90-264V. This power supply is designed for...
LPV-100-12 100Watt AC90~264V Input Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:LPV-100-12

LPV-100-12 100Watt AC90~264V Input Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage:DC12V
  • Rated current:8.5A
  • Current range:0-8.5A
  • Rated power:100W
  • Efficiency:85%
  • Waterproof Rating:IP67
Various Options In Stock
$35.98
The main material used in the MEAN WELL LPV series is ultra-thin plastic, and the waterproof rating can reach IP67. The LP series LED driver has 300VAC surge input for 5 seconds, which can effectively avoid short circuit, load, and other safety problems. It is suitable for economical LED lighting and mobile sign applications. The input voltage is AC90-264V. This power supply is designed for...
LPV-150-12 120Watt AC110V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:LPV-150-12

LPV-150-12 120Watt AC110V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage:DC12V
  • Rated current:10A
  • Current range:0-10A
  • Rated power:120W
  • Efficiency:87%
  • Input voltage:90~132VAC
Various Options In Stock
$54.98
The main material used in the MEAN WELL LPV series is ultra-thin plastic, and the waterproof rating can reach IP67. The LP series LED driver has 300VAC surge input for 5 seconds, which can effectively avoid short circuit, load, and other safety problems. It is suitable for economical LED lighting and mobile sign applications. The input voltage is 90~132VAC. This power supply is designed for...
XLG-75-12-A 60Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:XLG-75-12-A

XLG-75-12-A 60Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage:DC12V
  • Rated current:5A
  • Current range:0-5A
  • Rated power:60W
  • Efficiency:89%
  • Input voltage:100~305VAC
Various Options In Stock
$38.98
Having received wide anticipation from the market after the launch of the XLG-25/50 series (25/50W), the XLG-75/100 series (75/100W) is now officially unveiled. With the constant power mode design and other advantages, it is believed the launch of the XLG-75/100 series not only meets customers’ demand for medium wattage but further facilitates the various LED light sources design and...
XLG-100-12-A 96Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:XLG-100-12-A

XLG-100-12-A 96Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage:DC12V
  • Rated current:8A
  • Current range:0-8A
  • Rated power:96W
  • Efficiency:92%
  • Input voltage:100~305VAC
Various Options In Stock
$40.98
Having received wide anticipation from the market after the launch of the XLG-25/50 series (25/50W), the XLG-75/100 series (75/100W) is now officially unveiled. With the constant power mode design and other advantages, it is believed the launch of the XLG-75/100 series not only meets customers’ demand for medium wattage but further facilitates the various LED light sources design and...
XLG-150-12-A 150Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
Review stars(0)
Model:XLG-150-12-A

XLG-150-12-A 150Watt AC100-305V Input Voltage Mean Well High-Efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply

  • DC voltage:DC12V
  • Rated current:12.5A
  • Current range:0-12.5A
  • Rated power:150W
  • Efficiency:91.5%
  • Input voltage:100~305VAC
Various Options In Stock
$44.98
XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode.XLG-150 operates from 1 00~305VAC and offers models with different rated current ranging between 700mA and 12500mA.Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40C ~+90°C case temperature under free air convection. The design of metal housing and IP67...
XLG-200-12-A 192Watt AC100-305V Input Voltage Mean Well Waterproof DC12V UL-Listed LED Power Supply
Review stars(0)
Model:XLG-200-12-A

XLG-200-12-A 192Watt AC100-305V Input Voltage Mean Well Waterproof DC12V UL-Listed LED Power Supply

  • DC voltage:DC12V
  • Rated current:16A
  • Current range:0-16A
  • Rated power:192W
  • Efficiency:92%
  • Input voltage:100~305VAC
Various Options In Stock
$54.98
XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency of up to 94 %, with the fanless design, the entire series is able to operate tor - 40°C~+90°C case temperature under free air convection. The design of metal housing and...
HLG-320H-12B 320W UL Listed 12V Power Supply - Meanwell Power Supply - IP67 Waterproof
Review stars(0)
Model:HLG-320H-12B

HLG-320H-12B 320W UL Listed 12V Power Supply - Meanwell Power Supply - IP67 Waterproof

  • Voltage: DC12V
  • Rated Power: 264W
  • Current Range: 6-12V
  • Rated Currect: 22A
Various Options In Stock
$133.98
HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and contant current output. HLG-320H operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The...
HLG-600H-12B AC90-305V Input Voltage Mean Well Waterproof DC12V 480Watt UL-Listed LED Power Supply
Review stars(0)
Model:HLG-600H-12B

HLG-600H-12B AC90-305V Input Voltage Mean Well Waterproof DC12V 480Watt UL-Listed LED Power Supply

  • DC Voltage:DC12V
  • Rated Current:40A
  • Output Voltage:6-12V
  • Current Range:20-40A
  • Rated Power:480W
  • Efficiency:92%
  • Input Voltage:90~305VAC
  • Frequency Range:47-63Hz
Various Options In Stock
$259.98
Product Feature Constant Voltage + Constant Current mode output Metal housing with class 1 design Standby power consumption <0.5W at remote off IP67 / IP65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) Typical lifetime > 62000 hours 7 years warranty   HLG-600H-12B    Applications LED...
