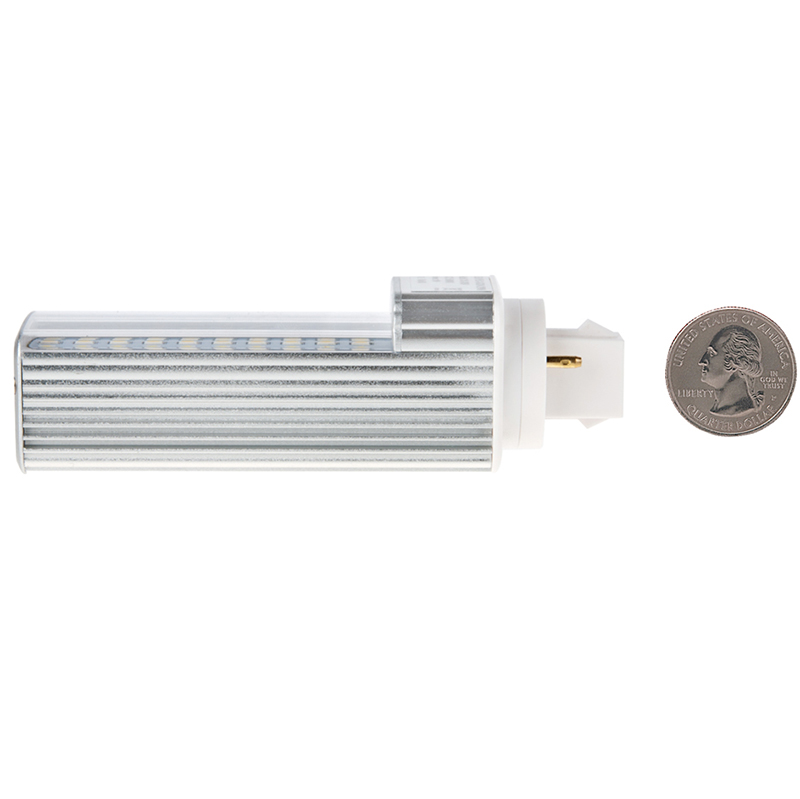

PLC Lamp GX24D 2-Pin LED Bulb, 8 Watts, 18W Equivalent, AC85-265V
Description
Input voltage is 85-265V AC
Power consumption is 8 Watts
Uses 40 pcs SMD 2835 LEDs
Luminous flux up to 750 lumens maximum
Nearly equivalent to standard 18W halogen/incandescent bulb
Optional colors are cool white, daylight white, and warm white
120-degree wide beam floodlight
Not dimmable
1.38-inch diameter x 4.49-inch total length
For use in recessed downlights, surface-mounted downlights, recessed cans, table lamps, desk lamps, portables, pendant lamps, ceiling fixtures, wall washers or wall sconces etc.
The package includes 1 pc bulb
Please remove/bypass the ballast, which is not required
Standards and Certifications
Specifications
Wattage: 8W
Fluorescent Equivalent: 18W
Voltage: AC 85-265V
Bulb Base: GX24D 2-Pin
Bulb Shape: PLC Lamp
Luminous Flux: 750lm ±10%
Beam Angle: 120 Degree
Dimmable: No
LED Brand: Epistar
LED Type: 2835 SMD LEDs
LED Quantity: 40 pcs
LED Color(s): Warm White / Daylight White / Cool White
CCT or Wavelength: 3000K / 5000K / 6000K
Color Rendering Index: 80
Diameter: 35mm (1.38 in.)
Length (M.O.L.): 114mm (4.49 in.)
RoHS Compliant: Yes
LED Lifetime: 40,000 hours
Lens Type: Clear
