RF RGBW Control System

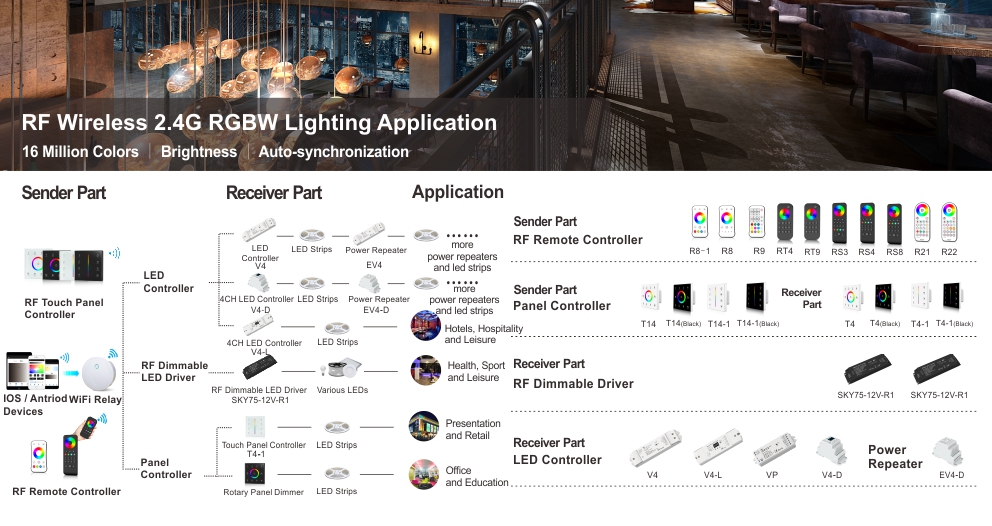

Skydance wireless RGBW series includes 4 channels controller, remote control, panel controllers&remote and dimmable LED driver. Through product different collocation to achieve light on/off control, brightness adjustment, static color, dynamic effect,group partition, scene, timing, sensor and other intelligent control functions.

1. The RGBW (4 channel) controller can be matched with all remote controls (including hand-held remote, panel remote, desktop remoteof dimming, CCT, RGB, RGBW and RGB+CCT).

2. Adopt 2.4G wireless technology, the remote control distance is 30 meters, the controller has the cascade function, through the signal forwarding between the controllers can reach hundreds of meters of control distance.

3. One controller can be matched with up to 10 remote controls. A controller can match in the same remote control of different zones, to achieve flexible grouping function.

4. A remote control can control single or multiple zones, each zone can be matched with an infinite number of controllers.

5. All controllers on the same zone are automatically synchronized.

6. Multiple RGB/RGBW(2 and 1) remote controls are common to RGB and RGBW controllers.

7. The RGBW series includes 4 channel constant voltage controller, 4 channel constant current controller, RGBW remote control, RGBW panel, RGBW constant voltage dimmable LED driver, WiFi-RF converter and 4 channel power repeater, etc.

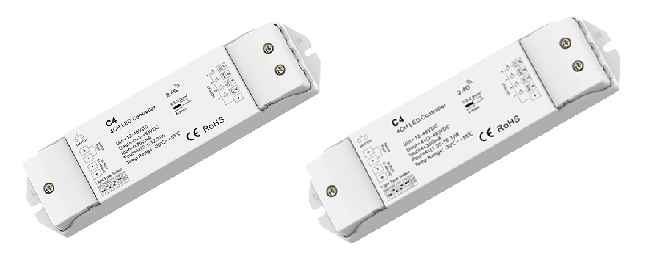

1. Set as RGBW controller by DIP switch.

2. DC12/24/36/48V power input, 4 channels PWM constant current output.

3. 350/700mA output, other currents (150-1200mA) need to be customized.

4. PWM achieve 4096 levels flicker-less dimming.

5. Wireless 2.4G, remote control distance is 30 meters, with cascade function, achieve hundreds of meters of control distance.

6. Can accept 1-10 remote control, achieve partition control through remote control.

7. With remote control, panel, WiFi-RF converter, etc., constitute the lighting control system.

8. Built in 10 dynamic mode, include jump or gradual change style.

9. Connect with external push switch to achieve on/off and 0-100% dimming function.

10. Short circuit / Reverse polarity protection.

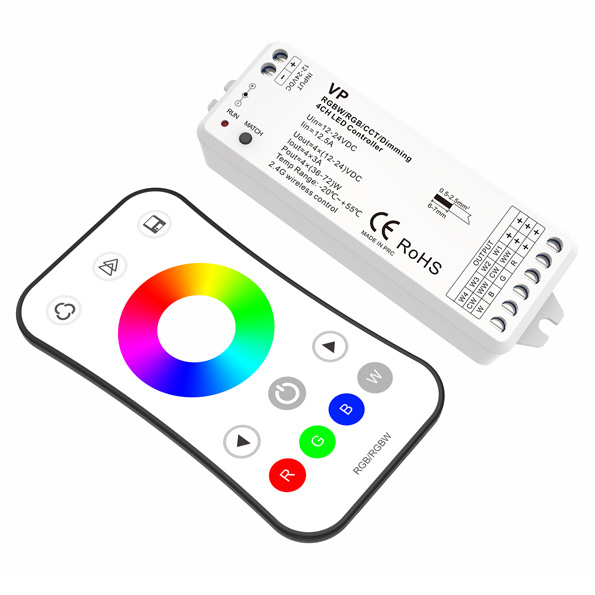

The hand-held RGBW remote control can be divided into single zone, 2 zone, 4 zone and 8zone, including the hand-held remote, panel remote, and high voltage AC100-240V, low voltage DC12-24V, 7#AAA battery or button battery powered, providing customers with a variety of choices.

1. Used for RGBW LED lights to realize on/off, color adjustment, dynamic change, group partition, scene function, create colorful static or dynamic effect.

2. Wireless 2.4G, remote control distance is 30 meters, control distances of several hundred meters are achieved by cascades between controllers.

3. The battery-powered remote has a standby time of six months to two years, depending on how often it is used.

4. Each remote can theoretically be matched with an infinite number of controllers. Each zone of a multi-zone remote can also be matched with an unlimited number of controllers.

5. Each controller can be matched with 1-10 remote controls. A controller can be matched in different zones of a remote control.

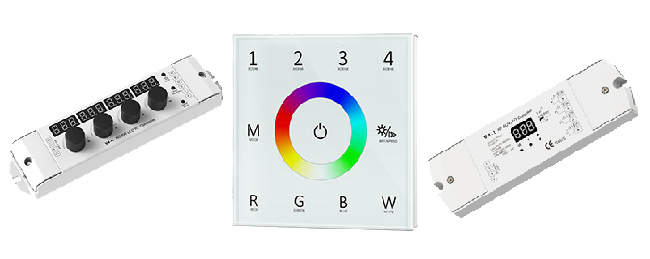

The RGBW touch glass panel remote control can be divided into single zone and 4zone, white or black glass, and high voltage AC100-240V, low voltage DC12-24V, 7#AAA battery or button battery powered, providing customers with a variety of choices.

1. Used for RGBW LED lights to realize on/off, color adjustment, dynamic change, group partition, scene function, create colorful static or dynamic effect.

2. Wireless 2.4G, remote control distance is 30 meters, control distances of several hundred meters are achieved by cascades between controllers.

3. The battery-powered panel remote has a standby time of six months to two years, depending on how often it is used.

4. Each remote can theoretically be matched with an infinite number of controllers. Each zone of a multi-zone remote can also be matched with an unlimited number of controllers.

5. Each controller can be matched with 1-10 remote controls. A controller can be matched in different zones of a remote control.

6. All RGBW panel controllers (including constant voltage controller, DMX512 master)can be used as a remote control other RF controller, can also be used as a RF controller to accept other remote control.

1. AC100-240V input, DC12/24V output, 4 channel PWM constant voltage output.

2. Output power 75-150W.

3. Dimming interface: RF Wireless, AC Push-Dim.

4. The same control function as Skydance RF RGBW constant voltage controller.

5. Built in 10 dynamic mode, include jump or gradual change style.

6. Over-heat / Over-load / Short circuit protection, recover automatically.

7. 5 Year, 50,000hr warranty.
