Special Price: $92.99

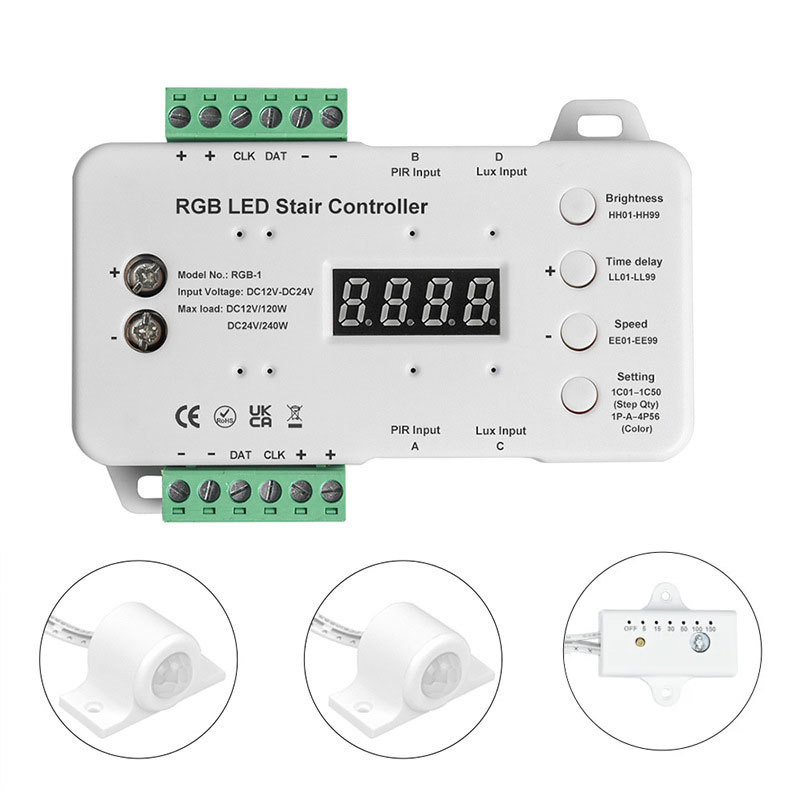

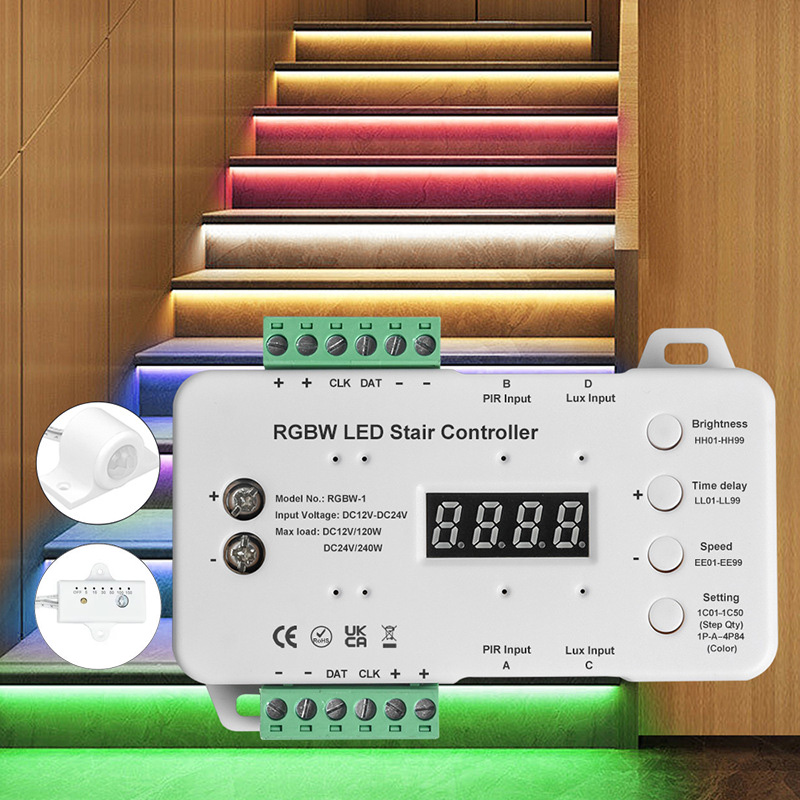

Bring color and fun to your stair lighting with this motion sensor RGBW colorful led step light controller (light sensor is contained). With the light sensor, you can adjust the need of whether the led stairway lighting is on or not in different lighting conditions such as daytime and nighttime.
This indoor led stair lighting controller adopts motion sensing technology, the light will not stay on all the time. When someone is near, the PIR sensor can detect the movement of the person and trigger the stair tread lights to come on, the RGBW lights go through a set delay time and then turn off automatically.
RGBW colorful stairway lights offer a wide range of color choices that can be customized by the user to create a unique atmosphere based on personal preferences and needs. You can customize the color of each step light.
Features:
Create colored stairway step lights. Used with RGBW led strips

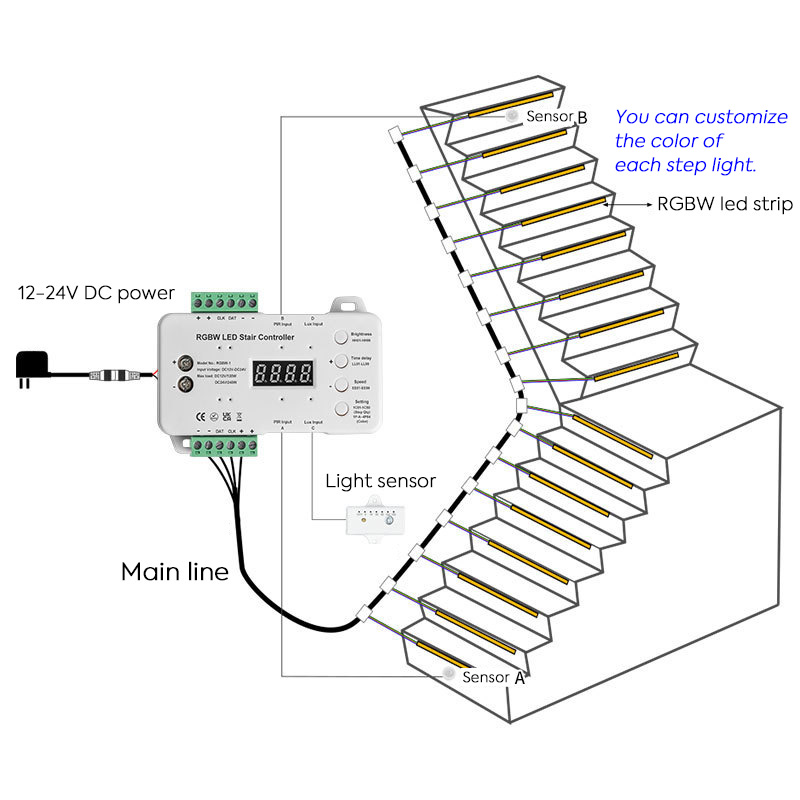

Main line wiring, easy operation, Dupont connector
Default 16 channels, max 50 channels (if you need more step numbers, please contact us)
Comes with a light sensor, off - day and night motion sensing all work, on - 6 levels of light sensing settings
10A max. current, 120W max. power for DC12V input, 240W for DC24V input.
Step lights color, brightness, time delay, speed, mode adjustable
| Modes | Brightness | Time Delay | Speed |
| FF01 - All step lights on | HH01 - 2% | LL01 - 4s | EE0 - 150ms |
| FF02 - One by one step lights on | HH02 - 3% | LL02 - 6s | EE0 - 175ms |
| FF03 - Two by two step lights on | HH03 - 4% | LL03 - 8s | EE0 - 200ms |
| FF04 - Three by three step lights on | HH04 - 5% | LL04 - 10s | EE0 - 225ms |
| FF05 - One by one follow | HH05 - 6% | LL05 - 12s | EE0 - 250ms |
| FF06 - Two by two follow | HH06 - 7% | LL06 - 14s | EE0 - 275ms |
| FF07 - Three by three follow | HH07 - 8% | LL07 - 16s | EE0 - 300ms |
| FF08 - One by one chase | HH08 - 9% | LL08 - 18s | EE0 - 325ms |
| FF09 - Two by two chase | HH09 - 10% | LL09 - 20s | EE0 - 350ms |
| FF10 - Three by three chase | HH10 - 11% | LL10 - 22s | EE0 - 375ms |
| FF11 - Seperated chase | ... | ... | ... |
| FF12 - Auto change all modes 01-11 | HH99 - 100% | LL99 - 200s | EE99 - 2600ms |
How to Set:
Long press the "Setting" on the controller to enter the setting state (set step numbers, brightness, time delay, speed, and mode). And short press the "Setting" to set the next setting. After all setting has done, long press the "Setting" to save. Choose CH-4 for RGBW mode.
Product Specification
Input Voltage: DC12-24V
Material: ABS
Output Current: 10A max.
Number of Steps: 16 default, max. 50

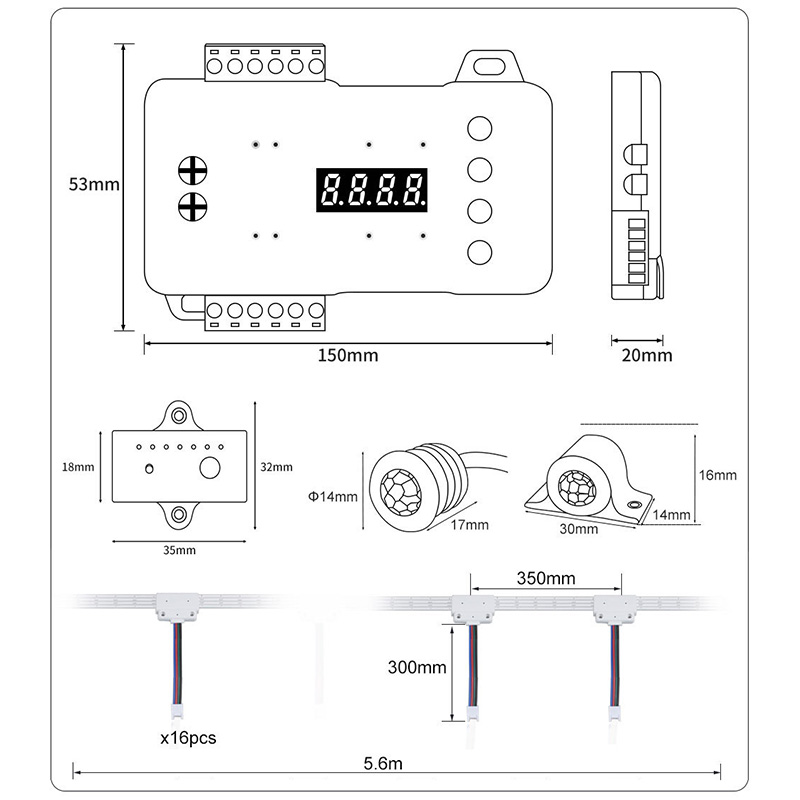

Controller Dimension: 150mm*53mm*20mm
PIR Sensor Dimension: 14mm*17mm for recessed, 30mm*14mm*16mm for surface mount
Light Sensor Dimension: 35*18mm
Brightness: 2%-100%
Speed: 150ms-2600ms
Delay Time: 4s-200s
Lighting Mode: 12
IP Rating: IP20 Indoor
