Our FSLRGBWW-5T1-5050X300 RGB+daylight white 6000k + warm white 3000k super bright 5 colors change flexible led strip lights can apply for advertising signs、hotel、KTV、computer machine box,mechanical equipment,car etc. It is very popular used in daily life for easy install and control. It has two years warrantee , please order it without worry , we only offer good quality led strip lights , led controllers and related led accessories .
The use of the best flexibility FPC as a substrate, FPC has good electrical conductivity, heat fast, resistant to bending.

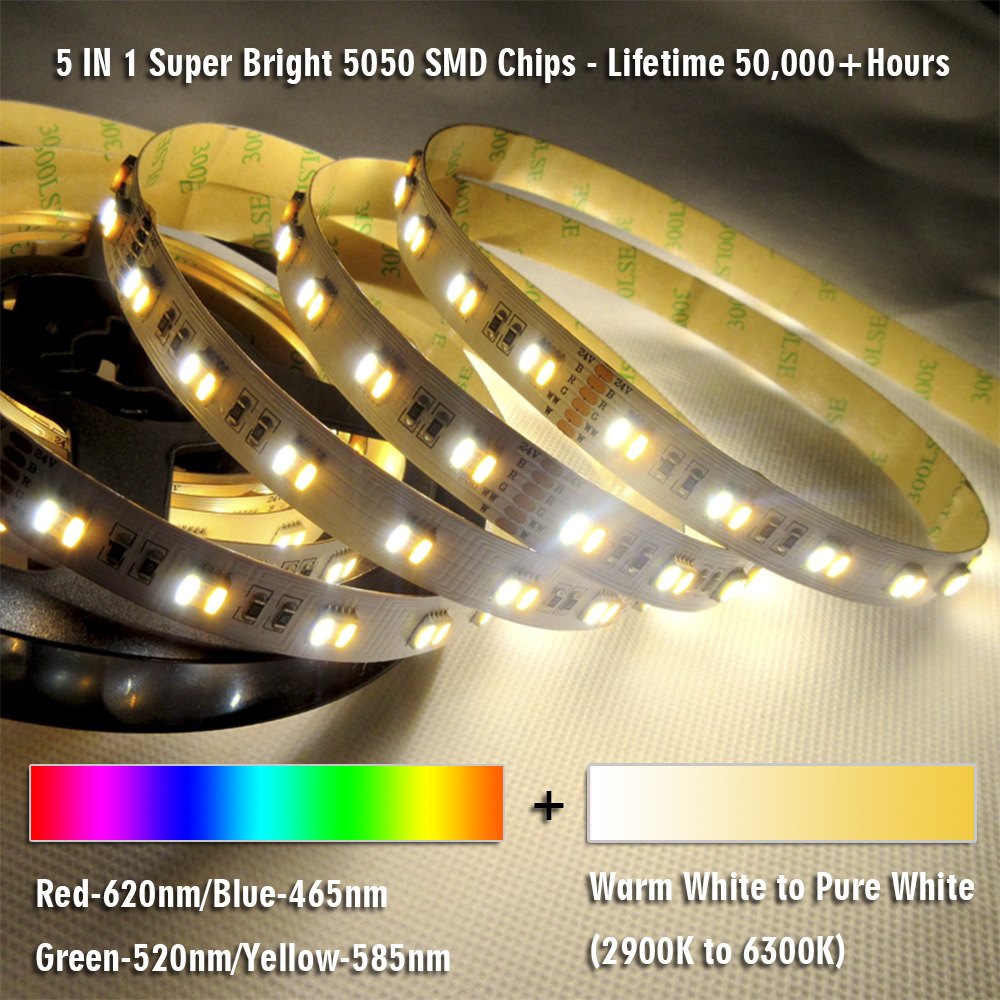

Using SMD 5050 RGBWW lamp beads, 5050RGB +Warm White +White color.

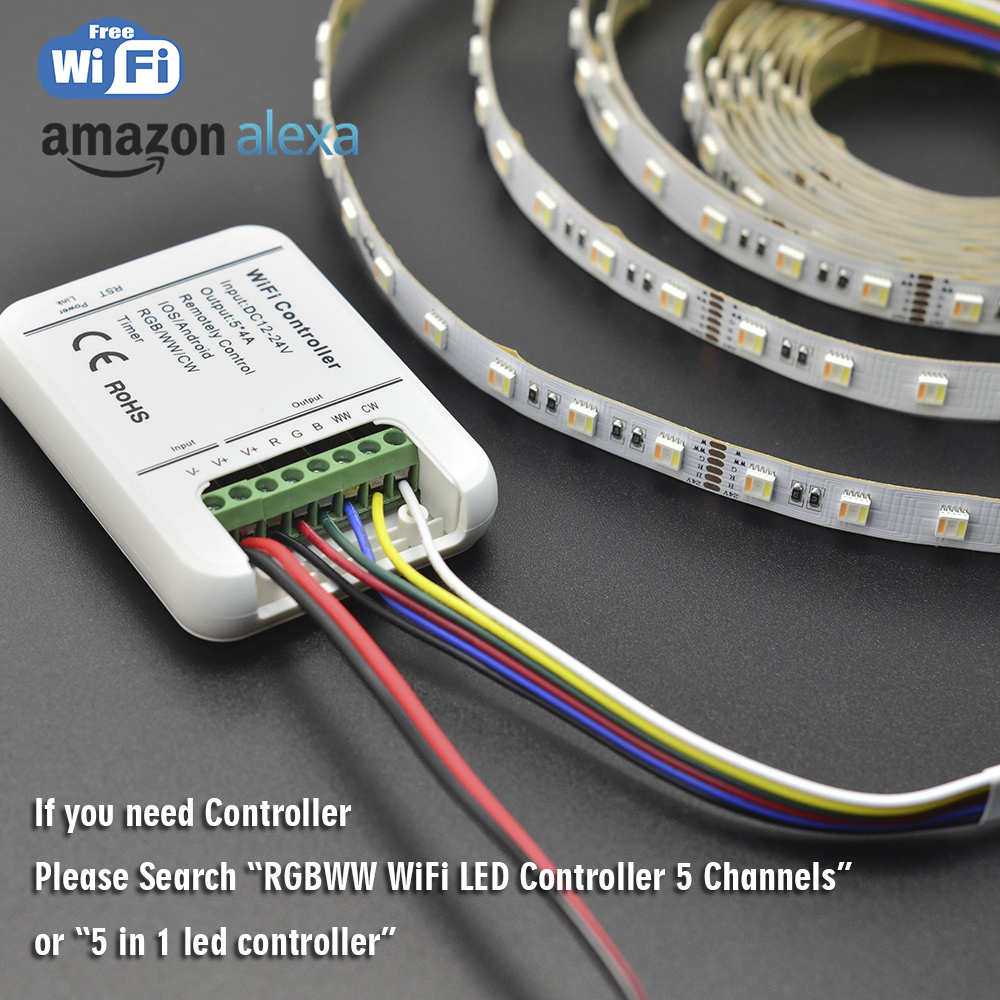

Through the RGBWW Remote controller programming to achieve any of Flashing effects.
The use of low-voltage DC24V power supply, the user is more secure when used.
Can be made of waterproof level of diversification, Glue Cover waterproof (IP65), all-inclusive casing waterproof (IP67), casing injection (IP68), as well as the latest process extrusion (IP68) .
Standards and Certifications

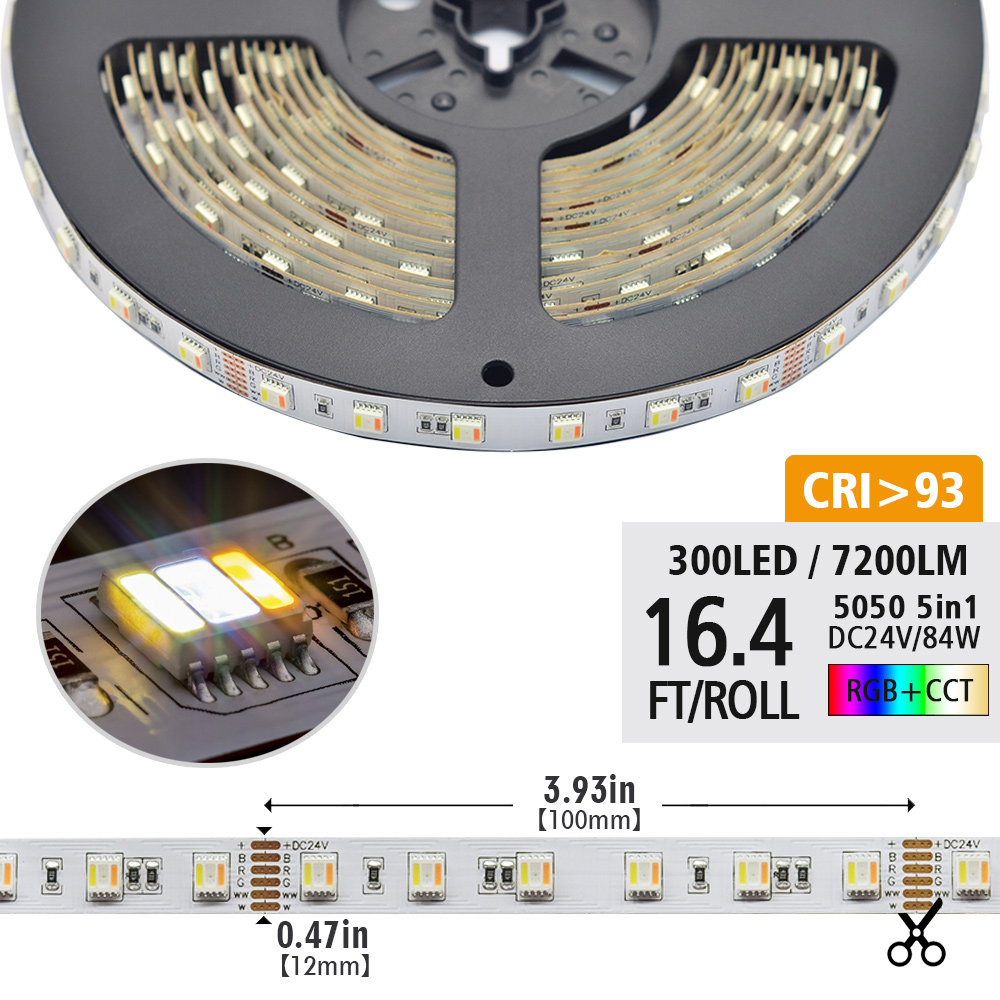

LED Strip Type: SMD 5050 RGBWW 60LEDs/16.4ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 300Leds /16.4ft
Warantty: 2 years

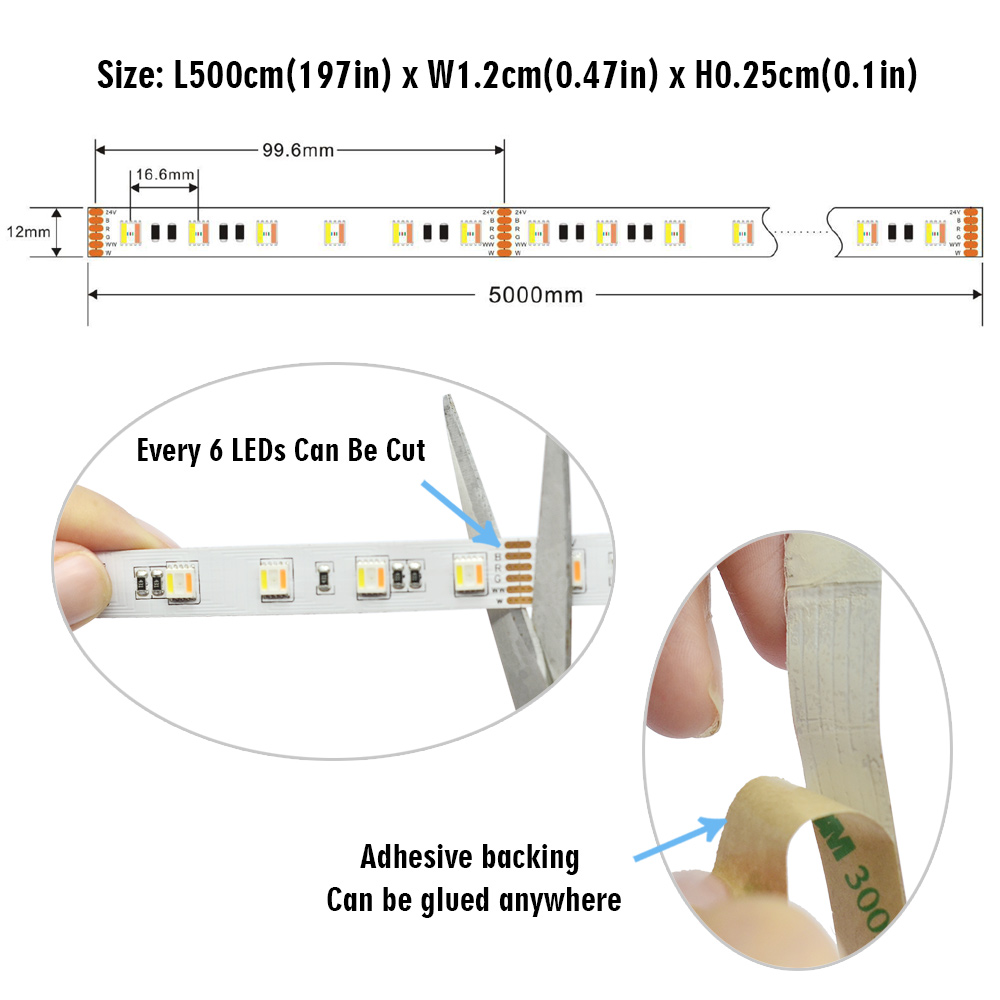

Dimensions: L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 84W/16.4ft Max
Lumen Per LED: 5400lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd

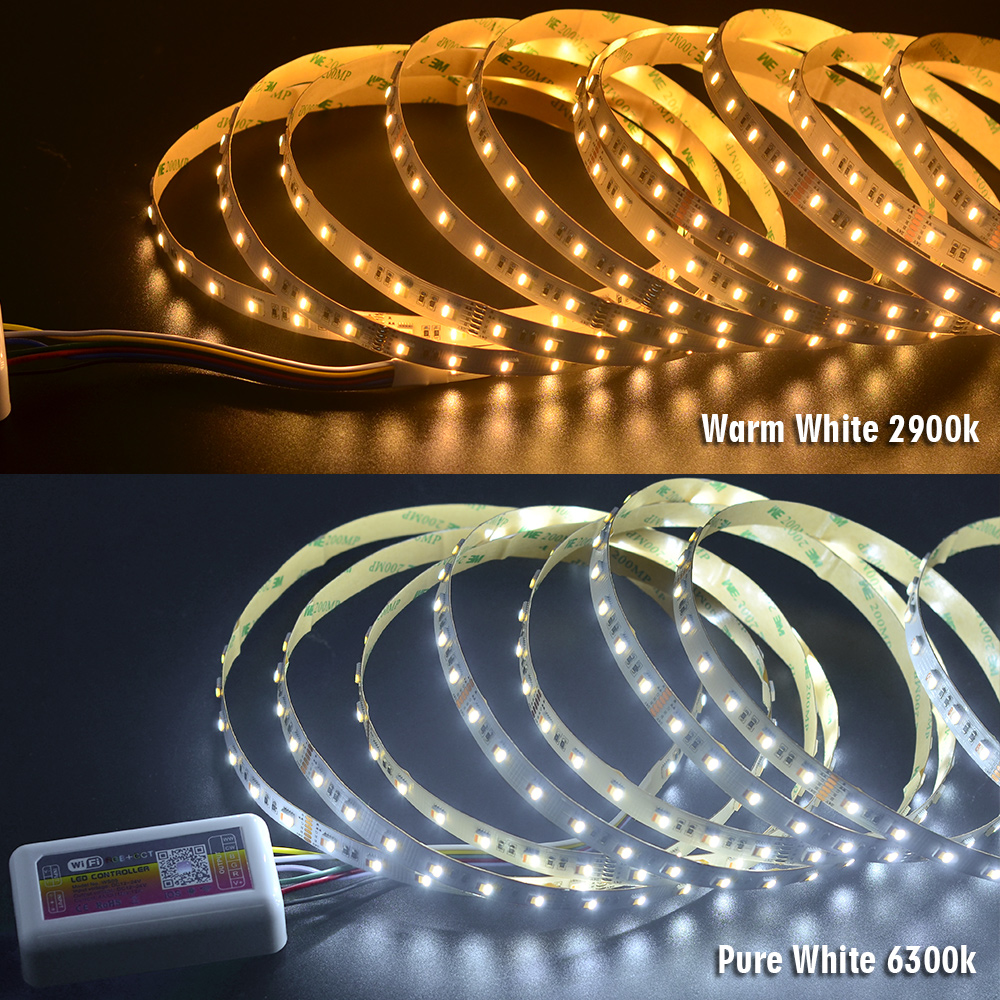

Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(5200-6800k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional

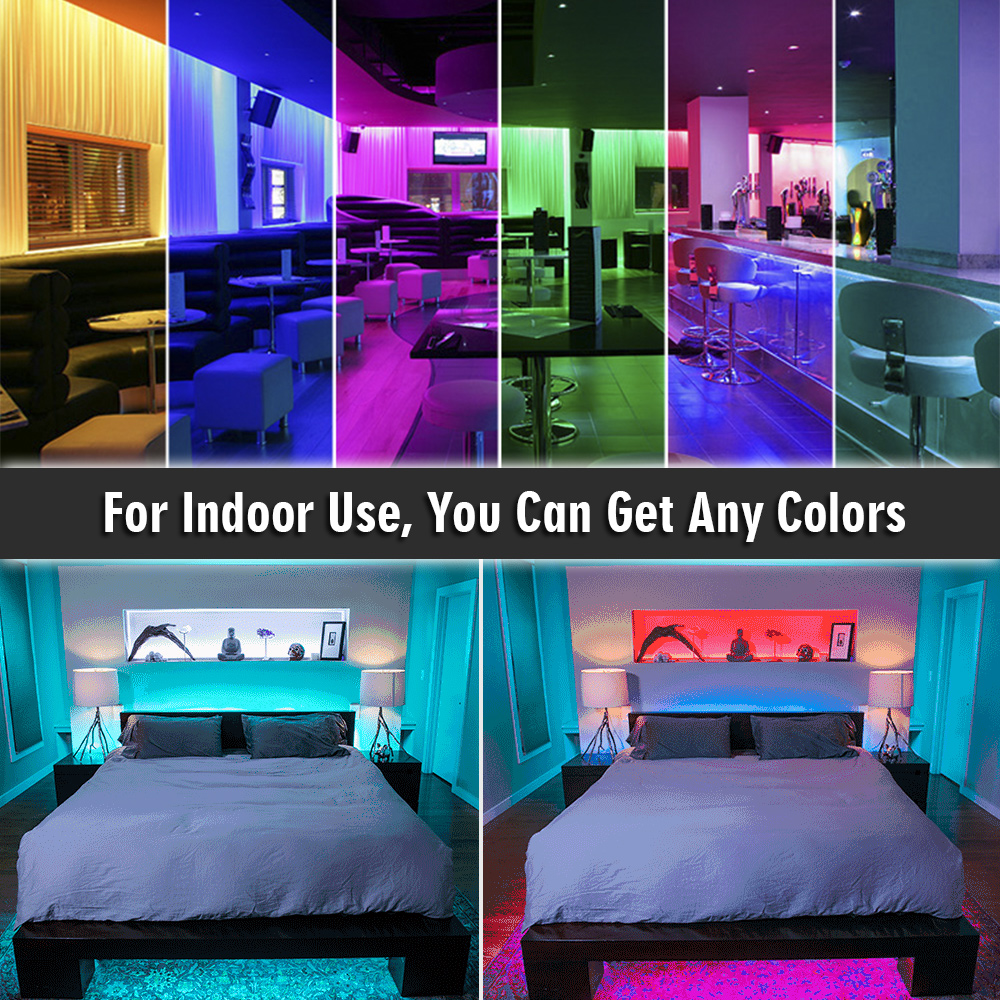

LED task Lighting
Retail LED lighting
Sign illumination LEDs
Automotive accent lighting
Display case and accent lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
Less than 16.4ft(5 meter) led strip lights connection diagram
please read the specifications carefully before using the product 2、the power must be output to DC24V
is strictly prohibited live operation
prohibit the use of any acidic or alkaline adhesive type of glue and contact with the goods
forced to press the LED surface
installation, maintenance, maintenance must be professional operation, prohibit non-professional operations
before the power to ensure that the cable without error
