SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs

Model: SK6812-SIDE-120W8
SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs
  • SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs

Select Specifications:

Select PCB Color :

Starting at: $109.98

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    This SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights with pure color, 4020 RGB PC board on the back of 3M glue, easy to install low energy consumption, high brightness , The performance is stable and can do waterproof processing unique line technology and high standards of anti-static, to ensure the life of the light bar and the use of quality with plastic deck, easy to install seismic, maintenance-free normal life of 50,000 hours or more Applications: Decor, pool, disco, bar, karaoke and other atmosphere lighting, fashion lighting



    SK6812 Chips Specifications Download   PDF



    Light strips advantages

    arrow   With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;

    arrow   With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;

    arrow   With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.



    Standards and Certifications

    DC5V CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof



    Specifications

    Input voltage:   DC5V

    Power:   24watt/meter,120watt/roll

    LED Chip Model:   SMD4020

    LED resource:   SK6812-SIDE-4020 LED(4020 side-emitting SMD RGB LED with built-in SK6812IC, similar with WS2811 IC)

    IC Type:   SK6812IC(built inside the 4020 side-emitting smd rgb led)

    Q'ty of LED:   120leds/meter,600leds/roll, each LED is separately controlled

    Q'ty of IC:   120IC/meter (1 IC drives 1 led chip)

    Pixels:   120/meter

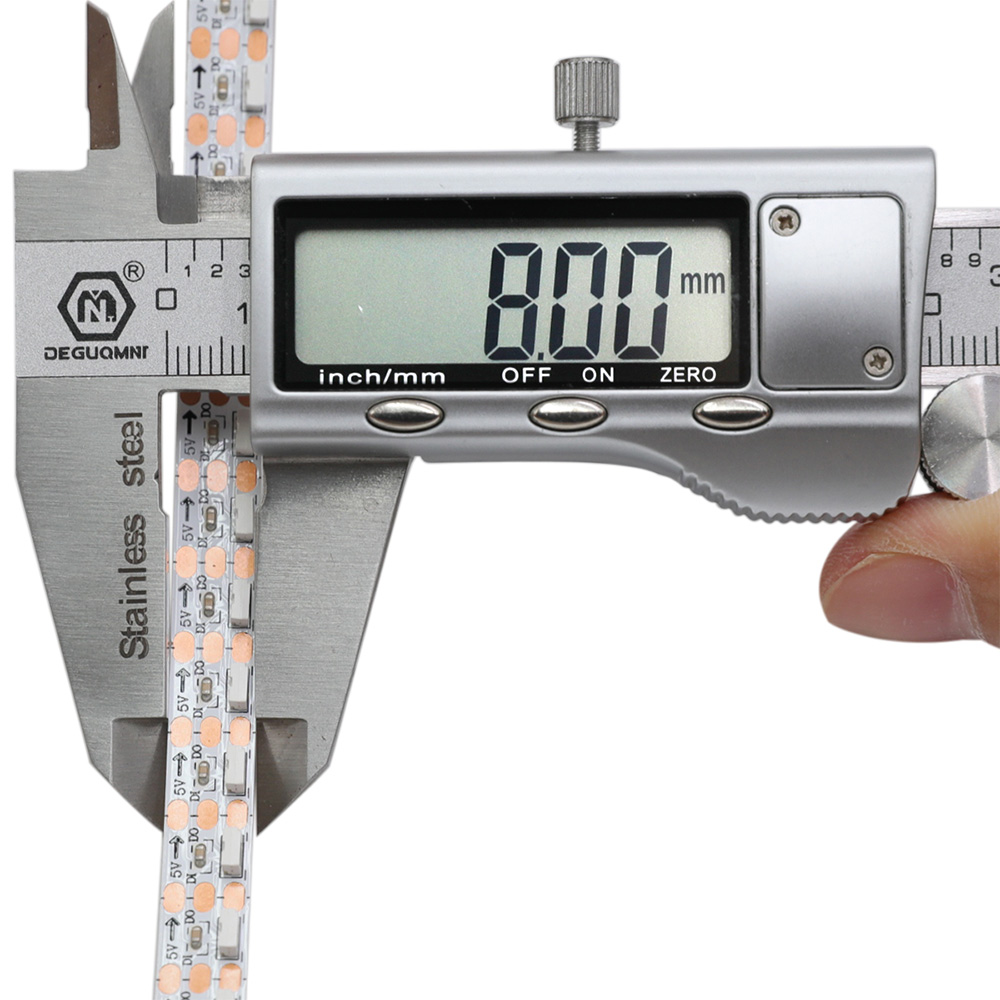

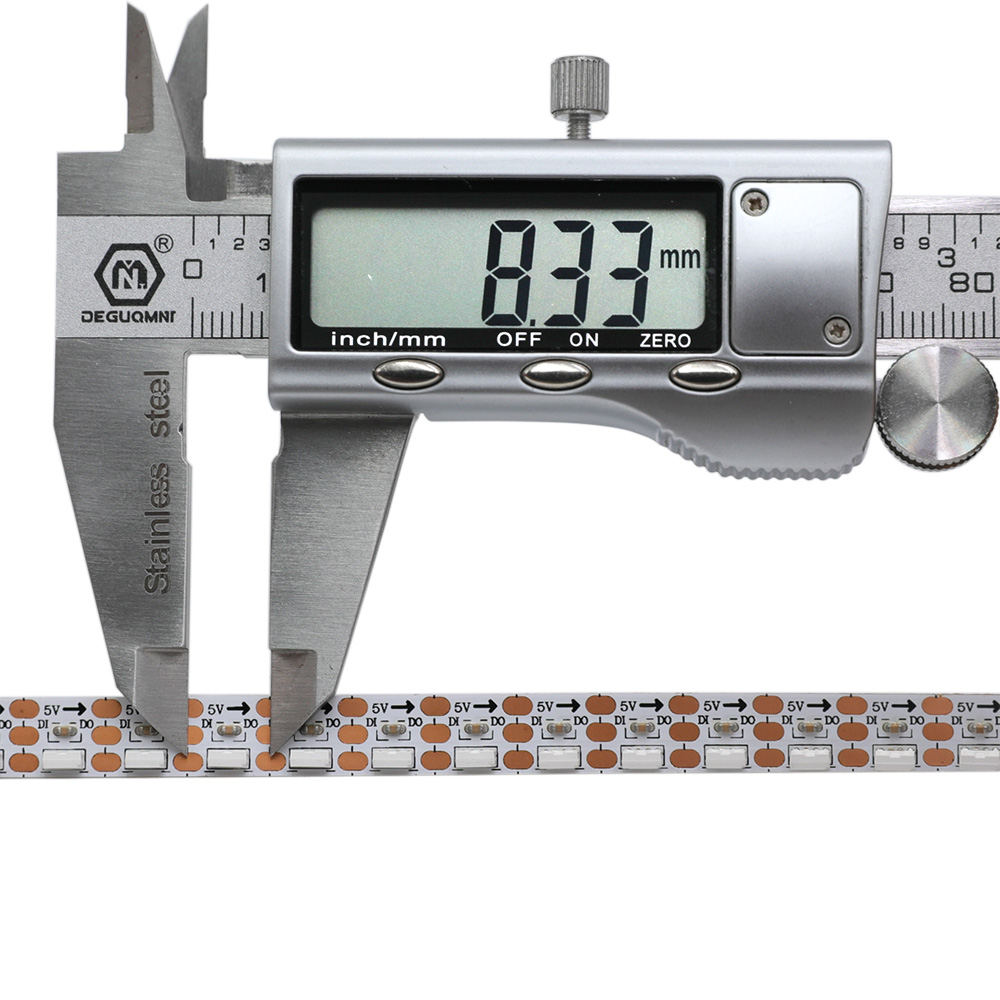

    Dimensions:     L500cm(196.85 in ) x W0.8cm(0.31 in ) x H0.25cm(0.1 in )

    FPC color:   WHITE/BLANK PCB

    Protection rate:   NON-waterproof IP20 or Waterproof IP67

    Colors:   Full color RGB, dream color changing

    Cuttable:   every LED is cuttable

    Package:   5meters/reel in anti-static bag;with adhensive tape on the back

    Grey scale:   256

    Bits/color:   8-bits/color;24bit for RGB

    Certification:   CE,FCC,GS,SAA,RoHS,CCC

    Average Life (hrs):   50000Hours+



    How to connect and control

    Similar to WS2812B LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.

    This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need a 5V power supply.

    This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.





    Waterproof Level Description

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

    led strip light waterproof level

    Installation Instruction

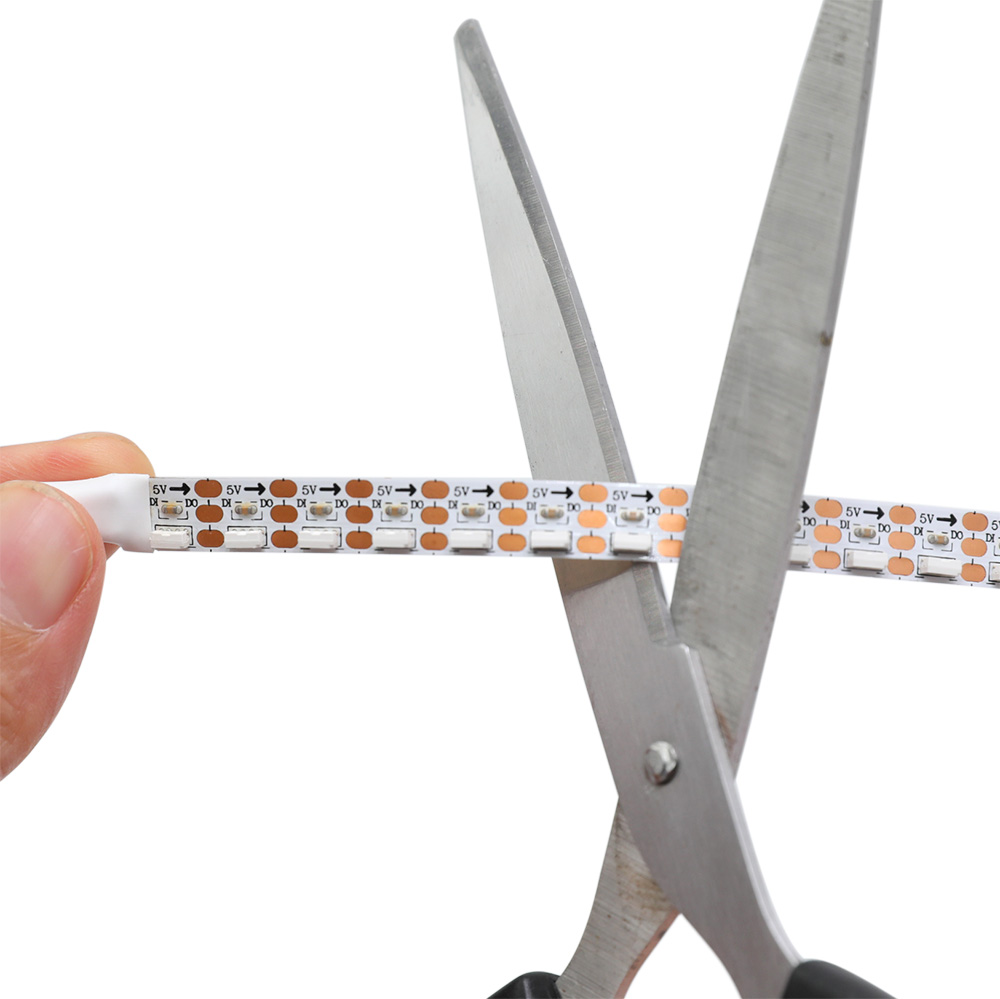

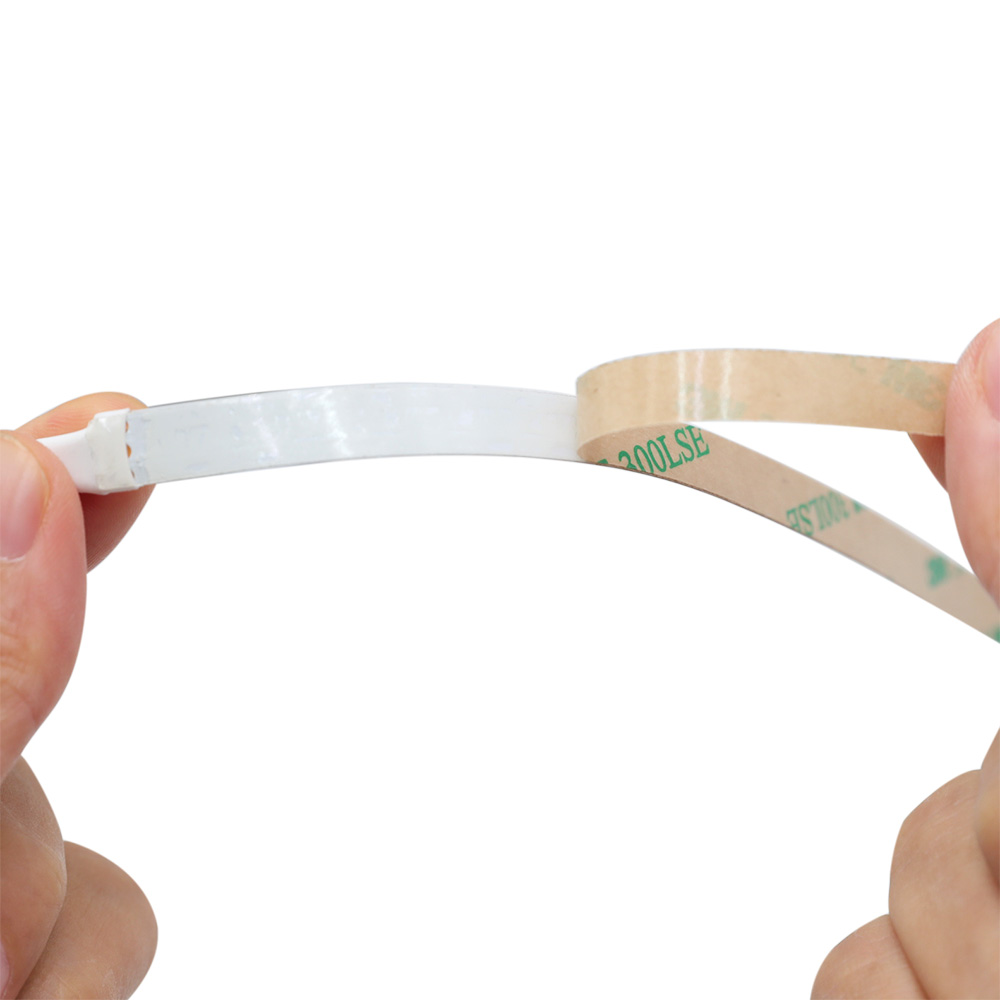

    how to cut led strip                       led strip adhesive tape                       led strip light mounting brackets

    arrow You can cut the strip every few inches,                     arrow The back of the strip is fitted with a strong                   arrow IP67/IP68 type which will come with

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements

    to many different surfaces.



    Applications

    These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration



    digital rgb addressable led strip applications

    Note

     The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work

     Electronic products to ensure that there will not be after-sales quality disputes, please use qualified manufacturers.

     LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life, and other important electrical parameters, the machine dead light rate of fewer than one hundred thousandths, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.

    Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.

    Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.

    ISO9001 / 2 management model: to ensure that each product 100% qualified factory.

    Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel, and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification, and other domestic and international related industry certification.

    SK6812 RGB DC5V 120LEDs/m Side Emitting Addressable LED Strip Lights - 240 4020SMDs

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
