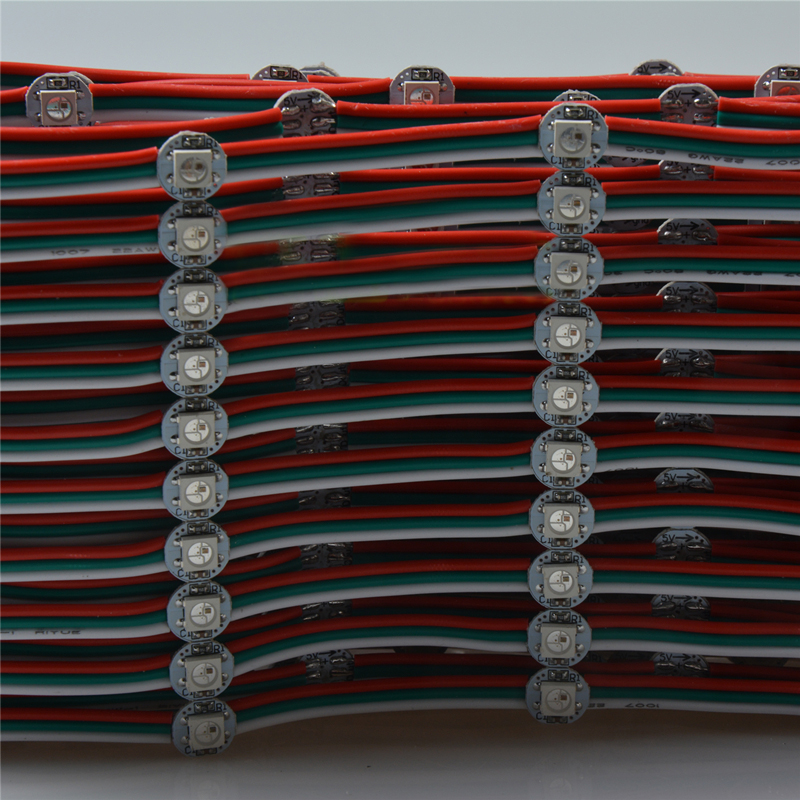

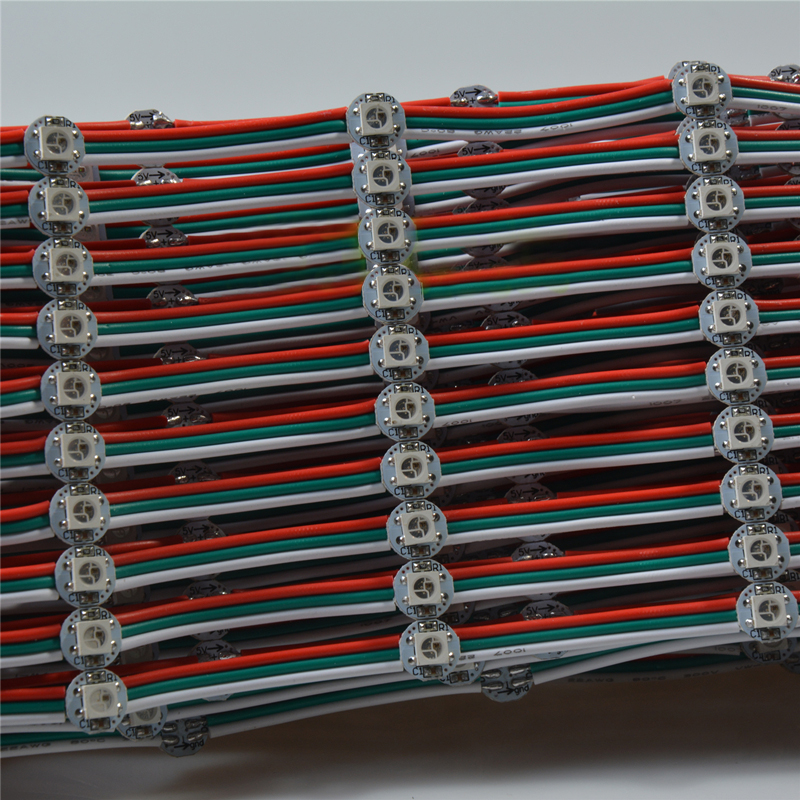

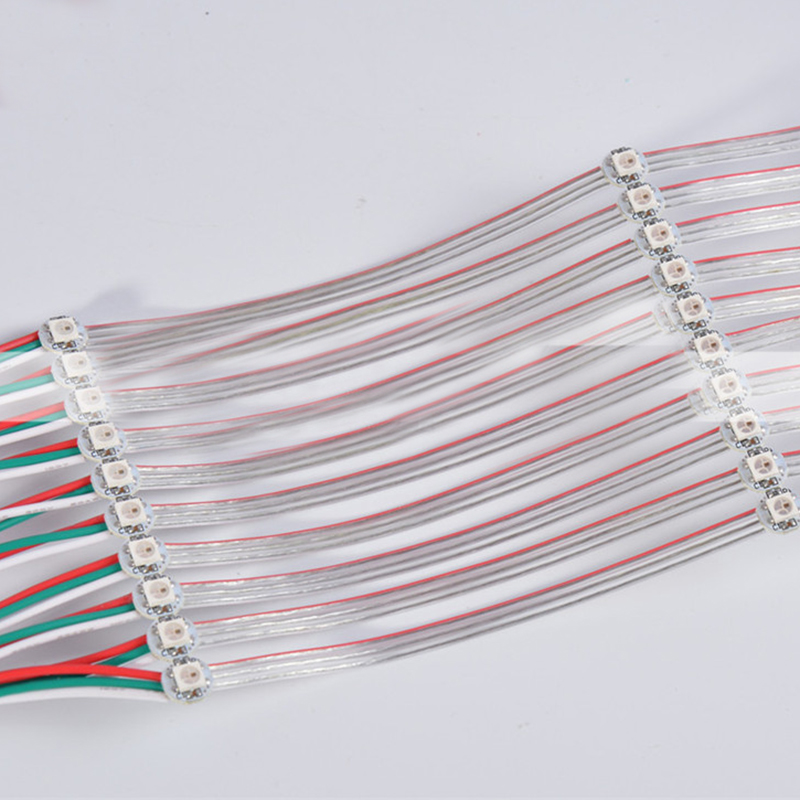

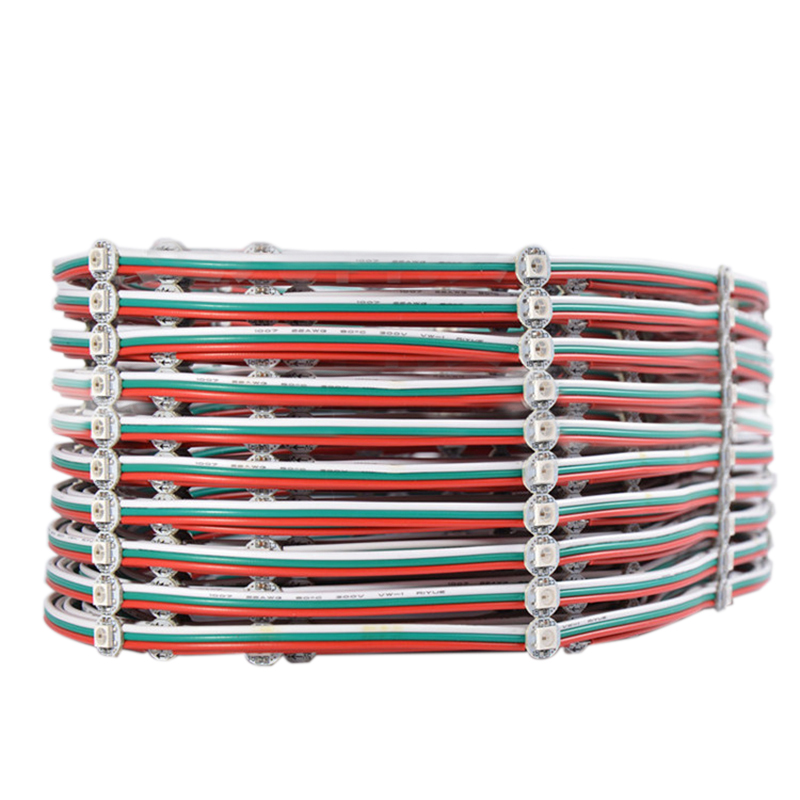

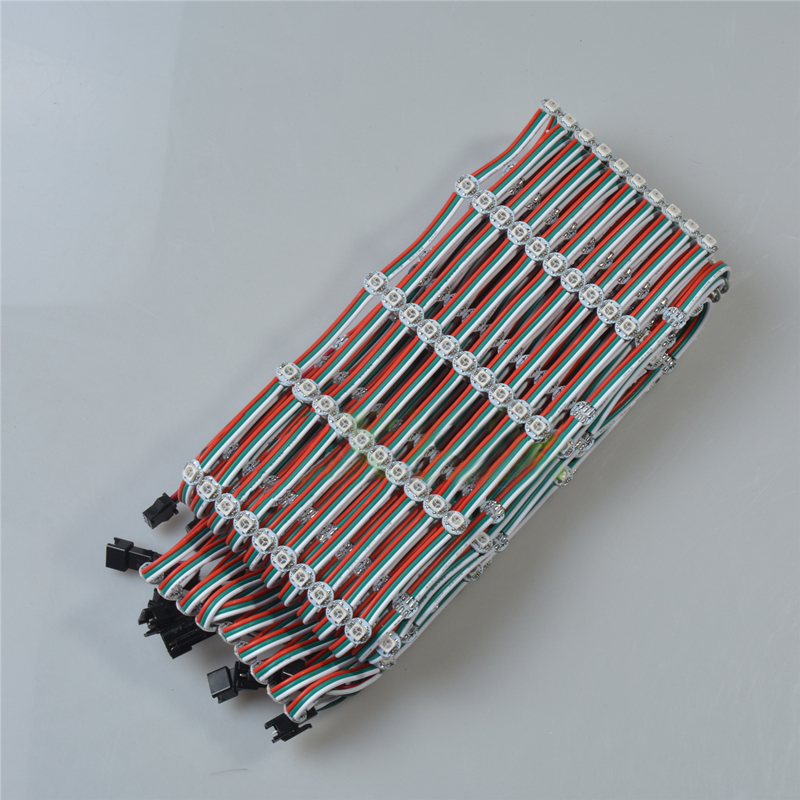

SK6812 WS2812B 50PCS/String RGB 5050 SMD Individually Digital Addressable LED Chip, DIY LED Chip
Pixels adopt the automatic reshaping and forwarding technology, so that the number of cascades of the pixels is not limited by the signal transmission, but only the signal transmission speed requirements.
LED has the advantages of low voltage driving, environmental protection and energy saving, high brightness, large scattering angle, good consistency, ultra-low power and long life. By integrating the control circuit on the LED, the circuit becomes simpler, smaller, and easier to install.

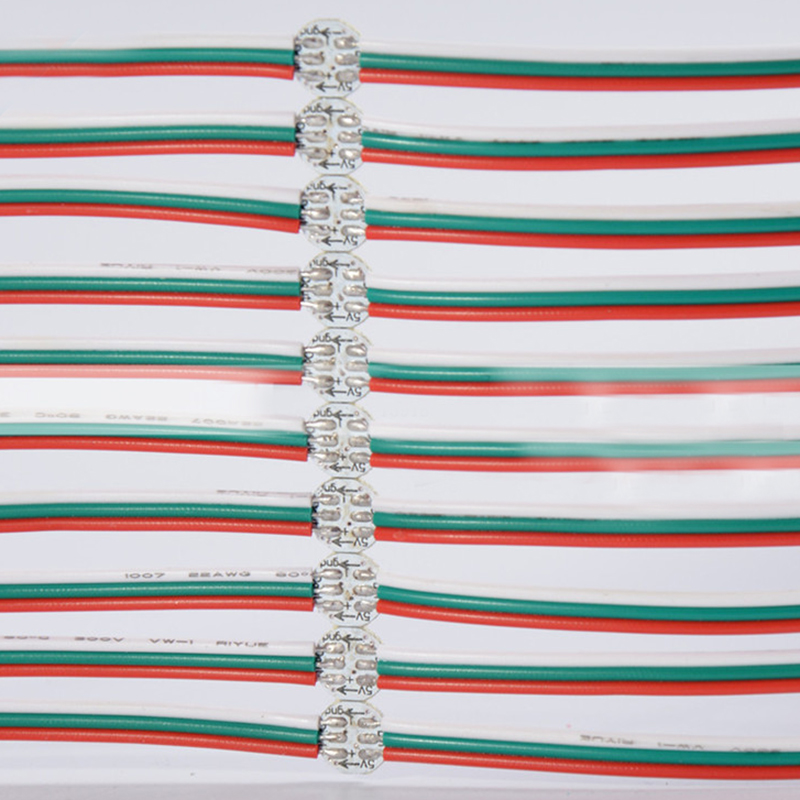

Built-in IC series full-color patch lamp string board, using the most popular WS2812 as the main one small board one pixel, each small board contains the driver IC contains RGB lamp beads, powerful, easy to use and stable quality
Product features of small round wire bonding
Smart reverse connection protection, reverse power connection will not damage the IC.
IC control circuit and LED point light source share a power supply.
The control circuit and RGB chip are integrated in a 5050 packaged component to form a complete external control pixel.
Built-in signal shaping circuit, after any pixel receives the signal, it undergoes waveform shaping and then outputs, to ensure that the waveform distortion of the line will not accumulate.
Built-in power-on reset and power-down reset circuits.
The three primary colors of each pixel can realize 256-level brightness display, complete the true color display of 16777216 colors, and the scanning frequency is not less than 400Hz/s.
The serial cascade interface can complete data reception and decoding through a signal line.
The transmission distance of any two-point transmission does not need to add any circuit when it does not exceed 5 meters.
When the refresh rate is 30 frames per second, the number of cascades is not less than 1024 points.
The data transmission speed can reach 800Kbp.
Advantages of small round wire bonding products
★. Small size, strong installation
★. Powerful, 256 gray levels, RGB arbitrary display
★. Easy to use, the welding wire at both ends can be controlled to use
★. Stable performance, no problems will occur when continuously lit for 10000000 hours
★. There is a series of resistors at the signal end to effectively protect the signal end from burning out
Applicable scope of small round wire bonding
Stage costumes, costumes, wedding dresses, night market decorations, building embellishments, counter corners, advertising signs, luminous characters, facade banners
Architectural model Children's toys Game console LED gifts Christmas tree
Standards and Certifications
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
