SMD3014 Dual Row High Voltage 110&220V Single Color LED Strips, Waterproof IP67, 240LEDs Per Meter, 50&100 Meter (164&328ft) Per Reel By Sale
Related Products
 Per Reel By Sale.jpg "SMD3014 Dual Row High Voltage 110&220V Single Color LED Strips, Waterproof IP67, 240LEDs Per Meter, 50&100 Meter (164&328ft) Per Reel By Sale")
SMD3014 Dual Row High...
$398.98
AC110-220V 1500W, RF LED...
$18.99
AC110-220V 1500W, RF...
$18.98-
Special Price: $398.98

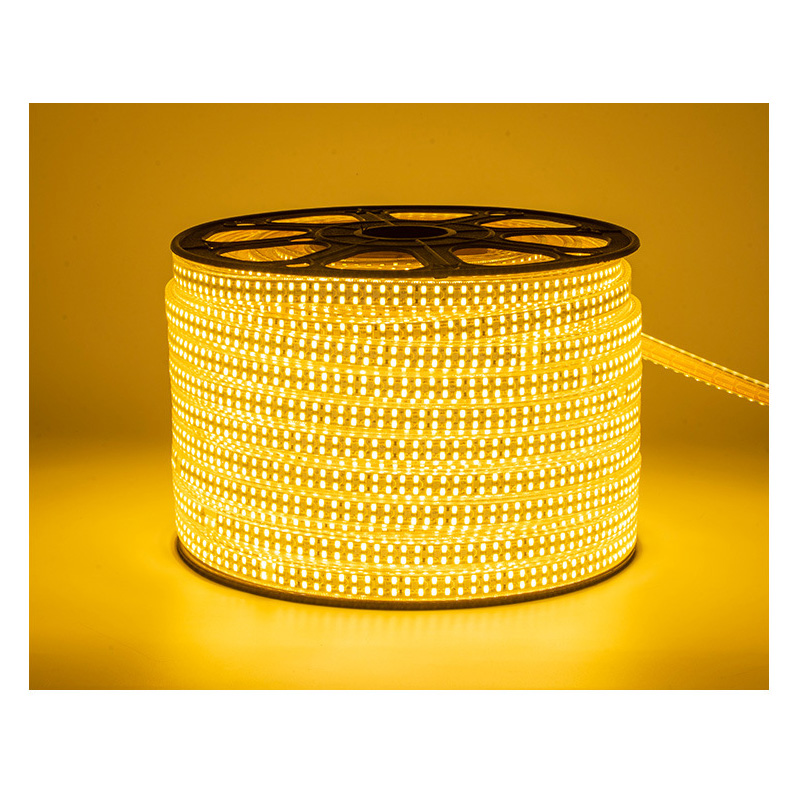

Universal single color dual row high voltage super bright Waterproof IP67 LED flexible light strip. 50/100 meters (164/328 inches) long with 12/24k 3014 SMD(SMD:Surface Mounted Devices) LEDs per unit, 164ft(50 meters) Per Reel By Sale.
This is our newest and longest high voltage brightest super flexible LED strip, The Strips soft and easy bended for installation. The led strip has low light decline and long lifespan. The use of straight power plug with AC 100-120V or AC 220-240v leads to the easy and safe installation. The strip is cuttable nearly every meter or ~3 feet, to fit nearly any application. Perfect for outdoor lighting it has IP rating of 67.This waterproof strip is far more reliable and brighter than the old style rope light. This LED Light strip is perfect for retail shops, indoor home, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+82 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. Dimmable - Connect LED High Voltage Dimmers.
Standards and Certifications
Product Specification
LED Strip Type: SMD 3014 dual row
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)
Dimension: 164 or 328ft/reel, every 3.28ft can be cut
LED Quantity: 12000 LEDs per 50meter (164 ft) 24000 LEDs per 100meter (328 ft)
Lifespan: 50,000+hours
Warantty: 3 years
Dimensions: L5000cm(1968 in ) x W1.7cm(0.66 in ) x H0.25cm(0.10 in )
Input Voltage(V): 110/220V
Working Power: 960W /164ft Max
Lamp Luminous Flux(lm): 10~12lm/LEDs 144000lm/164ft
Color Temperature CCT(White): Warm White(3000-3800k), Daylight White(5500-6800k), Cool White(7800-11000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
CRI (Ra>): 82
Color Temperature
Applications
-
Back/task lighting
-
Cove LED lighting
-
Retail LED lighting
-
Display case LED lighting
-
Accent LED lights
-
Under cabinet lighting
Installation Instruction
