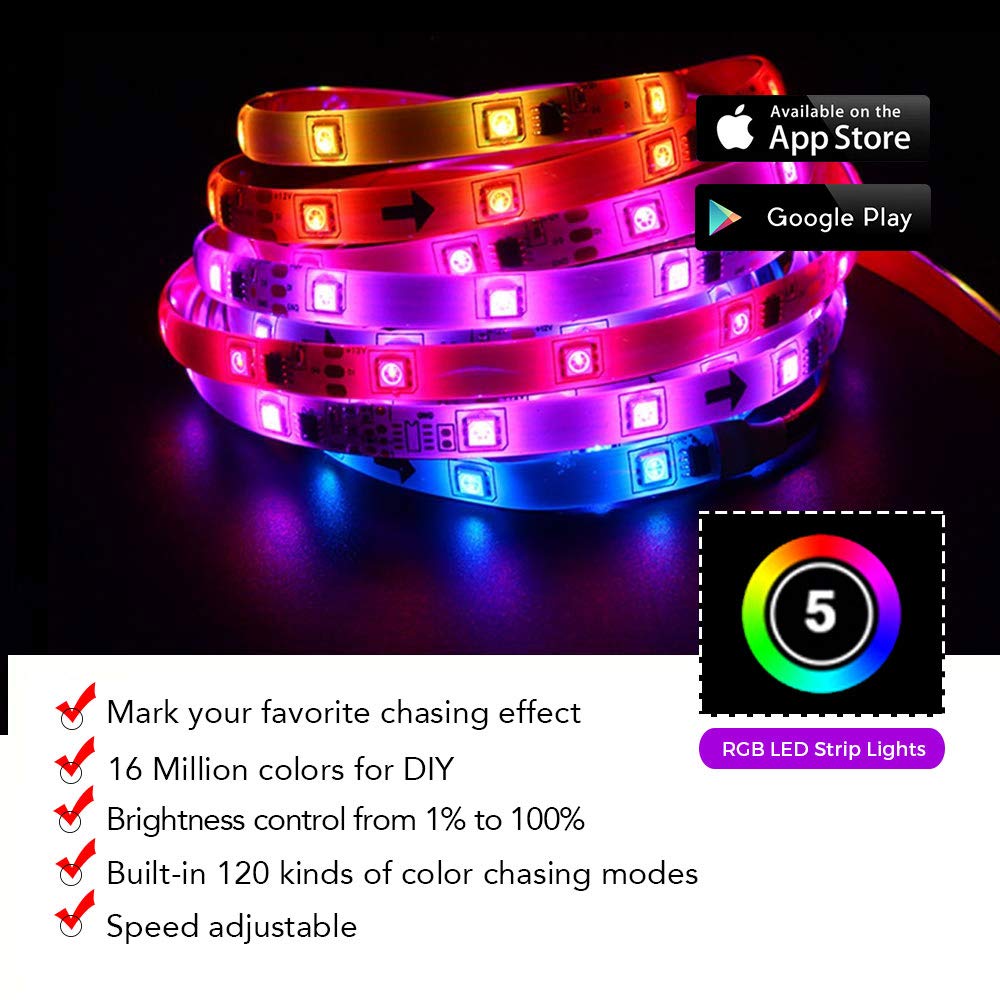

SP501E Color Chasing Alexa LED Strip Light Kit, 32.8Ft/10m Flexible Waterproof Digital Addressable RGB LED Rope Lights Working with iOS & Android FairyNest APP, Support Amazon Alexa
➤12V SMART APP CONTROLLED LED ROPE LIGHTING: With 180 individual color changing modes and 16 million dynamic colors the applications are nearly limitless. In addition, colors may be set to the single static mode, giving you a wide variety of choices for lighting.
➤LED FLEXIBLE LIGHTS WITH IC CHIP-BUILT-IN DIGITAL ADDRESSABLE RGB PIXELS: Allows chasing effects of rainbow colors giving an amazing appearance of lights dancing, twinkling and pulsing. These lights afford you the ability to use in numerous applications throughout your home, including ambient lighting under counters, bars and behind televisions, as well as decorations for holidays or just anytime parties. The uses are infinite!
➤ QUICK AND EASY INSTALLATION: Light strips backed with very strong adhesive tape, with easy peal paper covering. Just remove the paper and firmly place stripping to desired area. (waterproof IP67 without the strong adhesive backing tape).
➤LED LIGHTS COVERED WITH SILICONE FOR WATERPROOFING: A liberal thickness of silicone generously covers the lighting strip which makes it waterproof.
➤COLOR & SPEED AND BRIGHTNESS IS ADJUSTABLE: You can adjust the color hue, brightness and speed by APP and Amazon Alexa,. LET YOUR IMAGINATION RUN WILD WITH THESE FUN AND AMAZING LIGHTS!
➤ These strips are 5 meters per roll, DC12V needs to be powered separately every 10 meters, if you buy a 20 meter kit, please click here -> 20 meters kit
➤ If you want to use it outdoors, please install the power adapter and controller in a dry environment, such as a waterproof box or a waterproof bag,
and make sure that the AC plug is fixed out of the reach of children.
2x 5-meter 5050 SMD LED Strip Lights (Waterproof IP20, IP65 or IP67 optional, the connector non-waterproof)
1 x SP501E controller (Non-waterproof)
1 x 1 to 2 data connector (Non-waterproof)
20 x mounting brackets ( Suitable for waterproof IP67 only, not waterproof IP65)
WiFi(support IOS&Android device)
10M / 32.8 foot
30LED/m, 300 LEDs/10m
-20° to 50°
1. The kit comes with 32.8ft RGB LED strips, WiFi Alexa controller, AC to DC power adapter and connectors. No more accessories are required.
2. Please expand the LED Strip Light before connecting to the power supply.
3. Make sure the mounting surface is clean and will hold the adhesive tape. We recommend cleaning the surface with alcohol for best results.
1, Updated Technology, 8 kinds of dynamic chasing effect are predesigned, you can switch these chasing effects at will with Alexa voice control.
2, Multiple Dynamic and Static Effects, 180 kinds of dynamic chasing lighting effect, 8 kinds of Alexa vocie control dynamic chasing lighting effect. Mark 4 kinds your favorite effect from dynamic or static. Switch freely between dynamic mode and static mode.
3, DC5V-24V, 5.5mmx2.1mm power jack. The voltage depends on LED strips. Don't use DC12V power supply for DC5V WS2812B pixel strip.Can not support SK6812RGBW 4 channels IC .
4, Drive 900 pixles, This controller can control 900 pixels max. The APP is Fairy Nest, scan the QR code on the user manual you can download it.

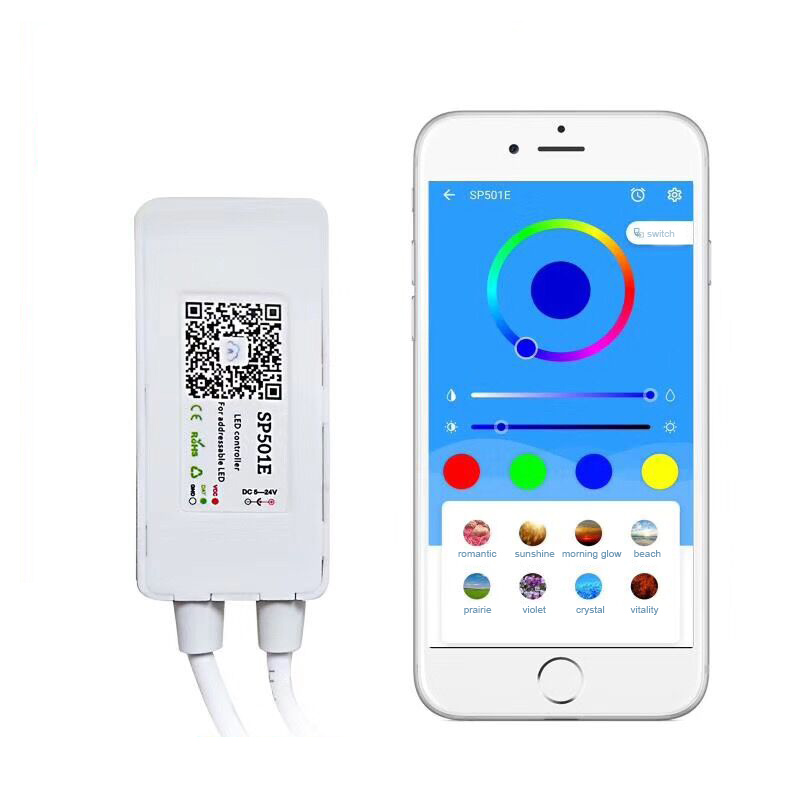

The SP501E LED controller can work with Amazon Alexa or directly controlled by the FairyNest App.
1. Scan the QR code(search for “FairyNest” on Google Play or App Store) to download the FairyNest App. Open the App and Sign up.
2.Connect your phone or tablet to a 2.4G WiFi network.(Does not support 5.0G WiFi network)
3.Power up SP501E controller(DC5-24V), and connect the controller to the LED strip.
4. Click “+” button to configure the new SP501E controller:
•Input your WiFi network password.
•Pressing and hold the button on the controller untill the LED flashes in white.
•Please keep your phone, the WiFi router and the controller closer together to maintain a better signal connection during configuration.
5.After the configuration is completed, the controller will successfully access the Internet.
1, Timer fuction, turn on/off the LED strip on time every day.
2, Remote fuction, you can control the LED strip whenever and wherever you like via APP in 2G/3G/4G/WIFI network.
3, Mark fuction, You can mark the lighting effect you like.
4, Auto playing fuction, you can set the app automatic loop play the chasing lighting effect.
5, STA mode, One APP can control lots of controller make sure connect the controller to your home 2.4G WiFi network.
6, Adjust the LED strip RGB order.
FairyNest App Function
1. There are 180 dynamic built-in effects with adjustable brightness and speed.
2.You can long press and drag your favourite effects into four slots.
3.8 buttons for 8 special led effects that can be easily called using the FairyNest app and can be called via Alexa voice commands.
4.In the static color page, you can combine any static colors using the color ring and the brightness and saturation adjust bars.
5.You can long press and drag your favourite colors into four slots.
6.8 buttons for 8 special led colors that can be easily called using the FairyNest app and can be called via Alexa voice commands.
III.Connet to Smart Speaker
1. Sign in to the Alexa App and get your smart speaker ready.
There are two skill for SP501E LED controller: FariyNest and FairyLight.
•Search FairyNest(FairyLight) on the Alexa App’s Skills page, click Enable button to enable the skill.
•Go to the FairyNest login page and enter your FairyNest account and password.
•Go to the Authorization page and click the “GRANT”button to grant Alexa permission to control the LED controller.
IV.Voice control instructions
With the FairyNest and FairyLight skills enabled, you can now control your LED with voice commands.
This FairyNest skill has basic functions such as turning on, off, changing colors and adjusting brightness.
You can use the voice command as below(presume your controller’s name is: living room light):
Alexa, turn on living room light.
Alexa, turn off living room light.
Alexa, set color living room light color to red.
Alexa, set color living room light color to purple.
Alexa, set the brightness of living room to 80%.
Alexa, brighten living room light.
Alexa, dim living room light.
•Fairy Light skill:
This FairyLight skill is used for dynamic LED effects and can be used to change effects and adjust speed with voice commands.
You can use the voice commands as below:
==========change effect ==========
Alexa, ask fairy light to run rainbow effect.
Alexa, ask fairy light to run fire effect.
Alexa, ask fairy light to run stars effect.
Alexa, ask fairy light to run ripple effect.
Alexa, ask fairy light to run halloween effect.
Alexa, ask fairy light to run theater effect.
Alexa, ask fairy light to run gradient effect.
Alexa, ask fairy light to run gorgeous effect.
======== adjust effect speed ========
Alexa, ask fairy light to speed up.
Alexa, ask fairy light to run faster.
Alexa, ask fairy light to speed down.
Alexa, ask fairy light to run slower.
======== set static color ========
Alexa, ask fairy light to run romantic effect.
Alexa, ask fairy light to run sunshine effect.
Alexa, ask fairy light to run sunset effect.
Alexa, ask fairy light to run seaside effect.
Alexa, ask fairy light to run grassland effect.
Alexa, ask fairy light to run violet effect.
Alexa, ask fairy light to run crystal effect.
Alexa, ask fairy light to run energy effect.
At SuperLightingLED, your product’s warranty covers any items that are damaged upon arrival. If you received a defective item, please contact us before any negative feedback or reviews, and we will be happy to replace it at no cost.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
