SP64XE Bluetooth RF Music Simple Mini LED Dimmer And Controller
Related Products
SP64XE Bluetooth RF Music...
$9.98
120W10A DC12V Plastic...
$26.99
12V 8mm 480LEDs 5050 LED...
$16.99
DC24V SMD5050 120LEDs/m...
$39.98
Ultra Slim 5mm 2835...
$10.98
5m Color Changing RGBW...
$50.00 $36.9826% off
Super Slim 4mm Wide 5V...
$14.98-
Special Price: $9.98
SP64XE is a simple use PWM led light controller with bluetooth, RF 2.4GHz, and music functions. It is suitable for small projects to control and save cost. Comes with an RF remote and can be mobile controlled by scanning the code on the controller to download the APP. This item includes the following models to control single color, CCT, RGB, RGBW, RGBCCT led lights.

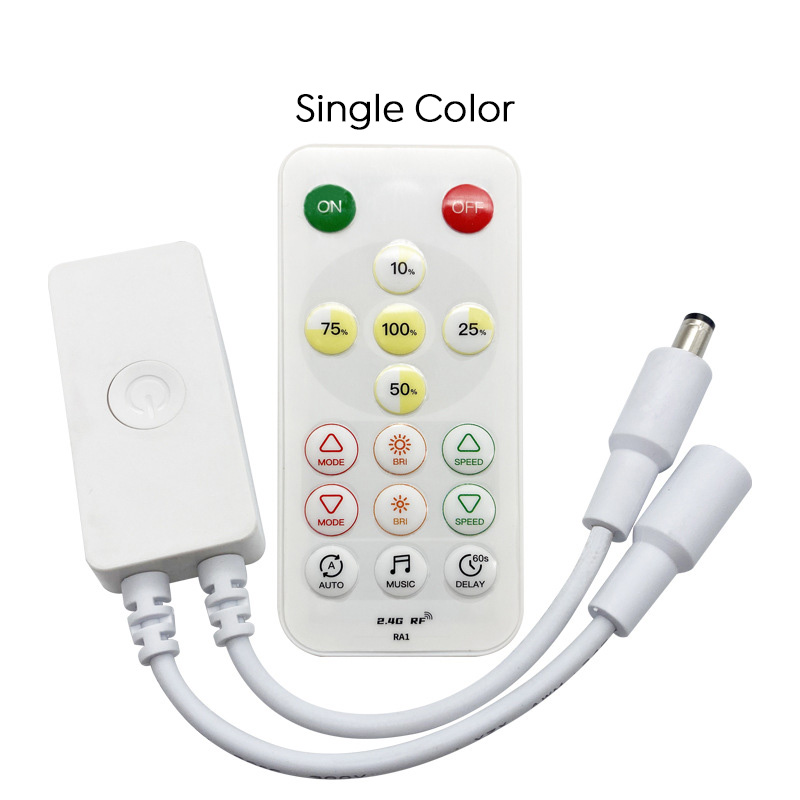

SP641E LED Dimmer: DC5-24V input, 2A/CH, 10W/24W/48W output power, with DC connectors to connect power supply and led strip;

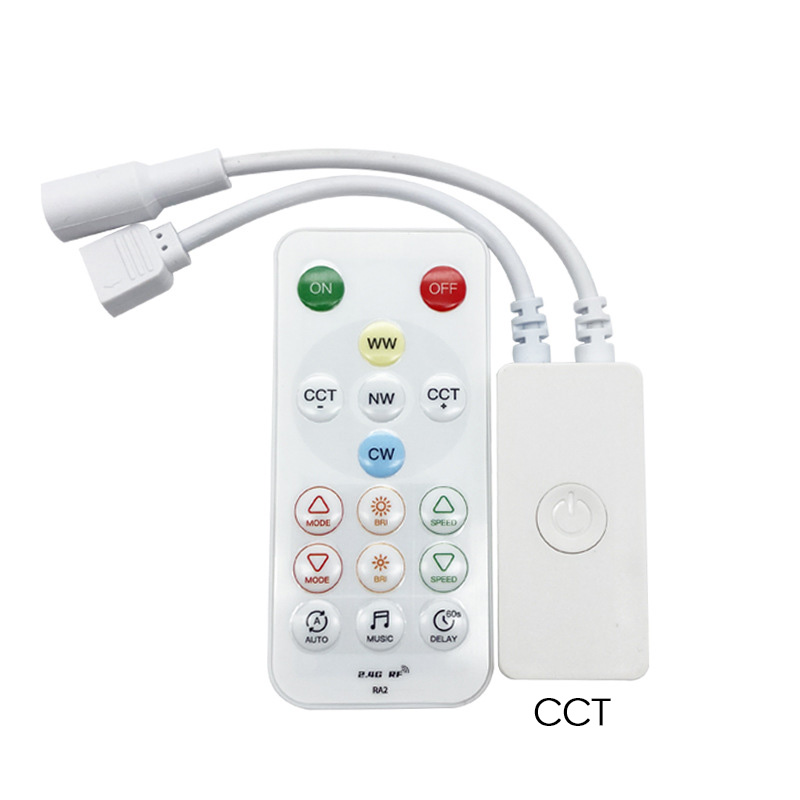

SP642E CCT Color Temperture Adjustable LED Controller: DC5-24V input, 2A/CH, 20W/48W/96W output power, with DC connector for power supply and 4pin terminal connector for CCT led strip connection;

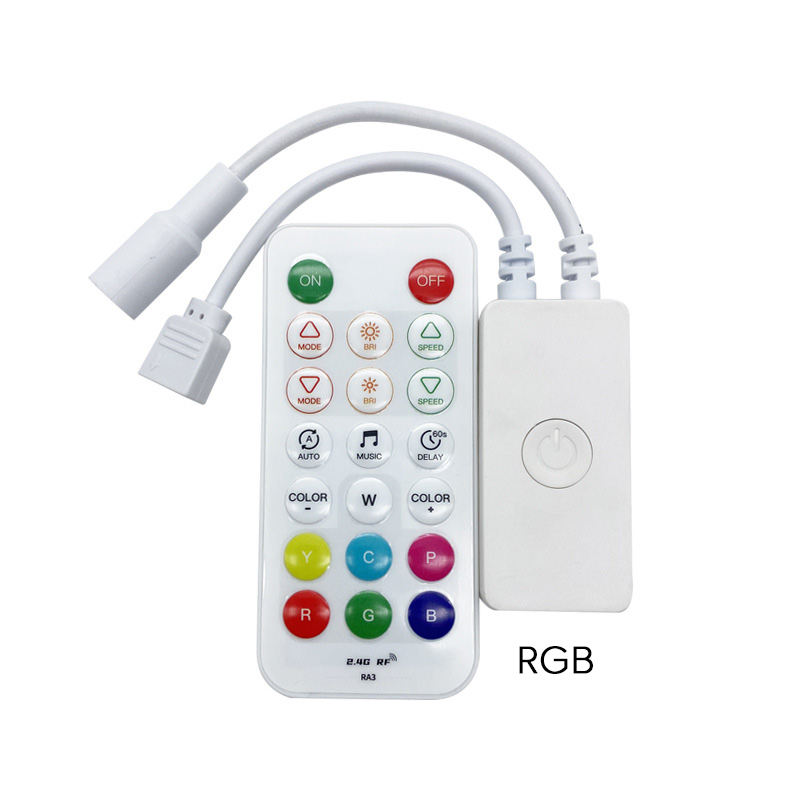

SP643E RGB LED Controller: DC5-24V input, 2A/CH, max output 6A, 30W/72W/144W output power, with DC connector for power supply and 4pin terminal connector for RGB led strip connection;
SP644E RGBW LED Controller: DC5-24V input, 2A/CH, max output 6A, 30W/72W/144W output power, with DC connector for power supply and 5pin terminal connector for RGBW led strip connection;

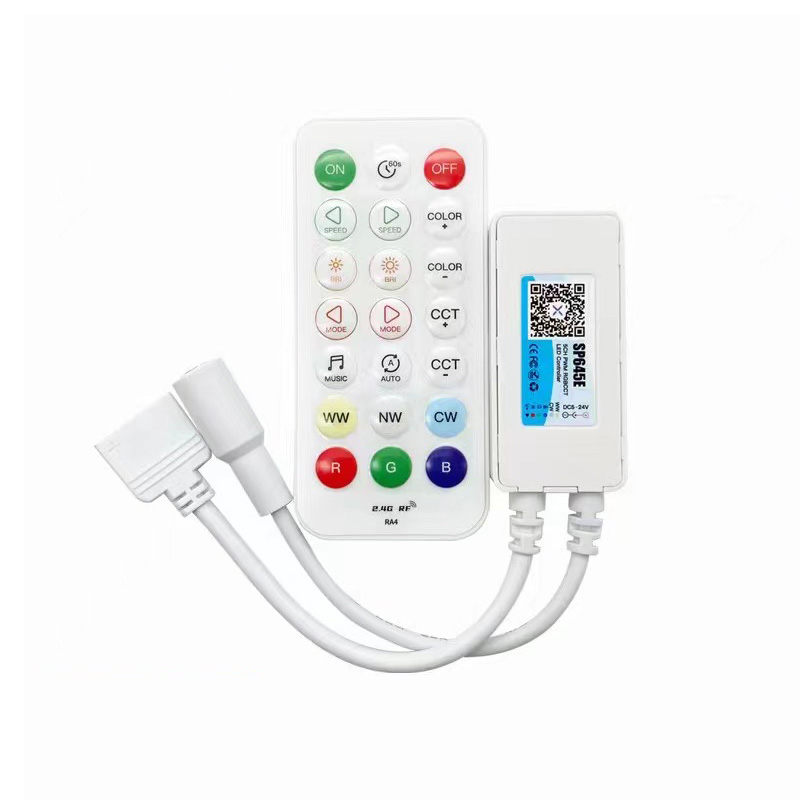

SP645E RGBCCT LED Controller: DC5-24V input, 2A/CH, max output 6A, 30W/72W/144W output power, with DC connector for power supply and 6pin terminal connector for RGBCCT led strip connection.
Pair remote to controler:
Power on the controller and long press the ON key on the remote within 20 seconds to pair or unbind remote control.
Within 20 seconds during powering on the controller, turn off the lights, long press the OFF key on the remote to clear all the binded remotes.
One controller can match with 5 remotes, and one remote can sync control multiple controllers.
Features
● Built-in multiple music effects and dynamic effects, support brightness, speed, direction, and effect length adjustment.
● Support cell phone microphone, player streaming, and on-board microphone for music capture.
● Support dynamic effect collection and collection list loop.
● Support custom effects.
● Support multiple on/off animation effects.
● Support calibration channel sequence and timing switch.
● Support OTA firmware upgrade.
Product Specification
| Product Name: | Simple LED Controller |
| Type: | Single color, CCT, RGB, RGBW, RGBCCT |
| Input Voltage: | DC5-24V |
| Working Current: | 10mA-22mA |
| Control Method: | APP "BanlanX" + RF Remote |
| Remote Distance: | 30m |
| Remote Voltage: | 3V (CR2032) |
| Connection: | DC + DC/Pin terminal connector |
| Mobile System: | Andriod 4.4/ iOS 10.0 or higher |
| Controller Dimensions: | 55mm*26mm*12mm |
| Remote Dimensions: | 85mm*40mm*7mm |
| Working Temperature: | -20℃ ~ 60℃ |
| IP Rating: | IP20 |
