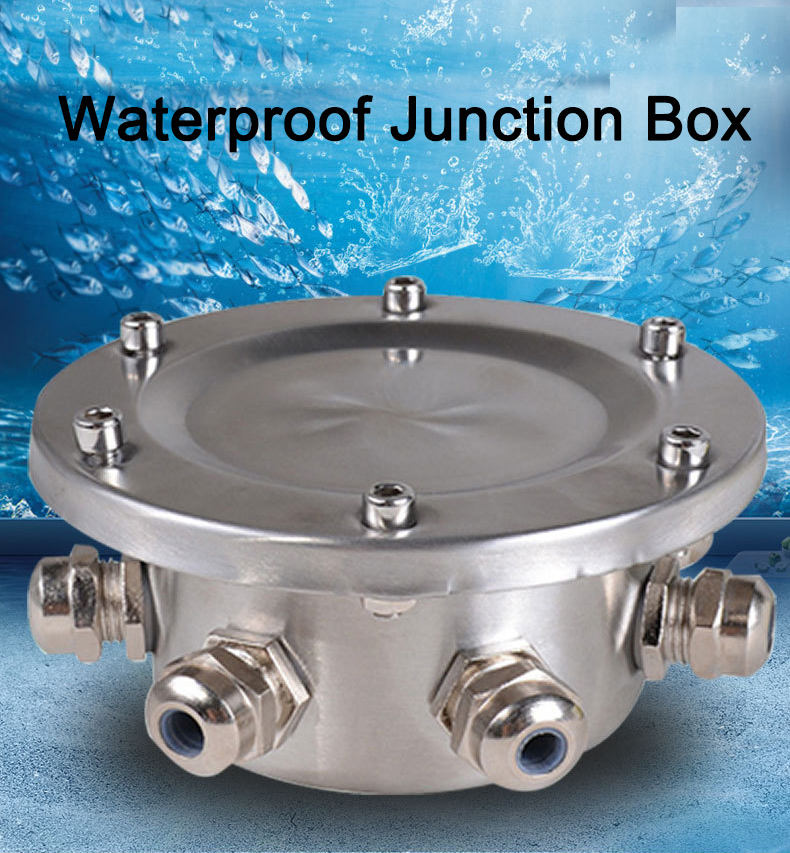

Special Stainless Steel IP68 Waterproof LED Underwater Light Junction Box
Related Products
Special Stainless Steel...
$19.98
DC12/24V High Brightness...
$44.98
DC12/24V...
$33.99
DMX512 Single Color RGB...
$19.98-
Special Price: $19.98

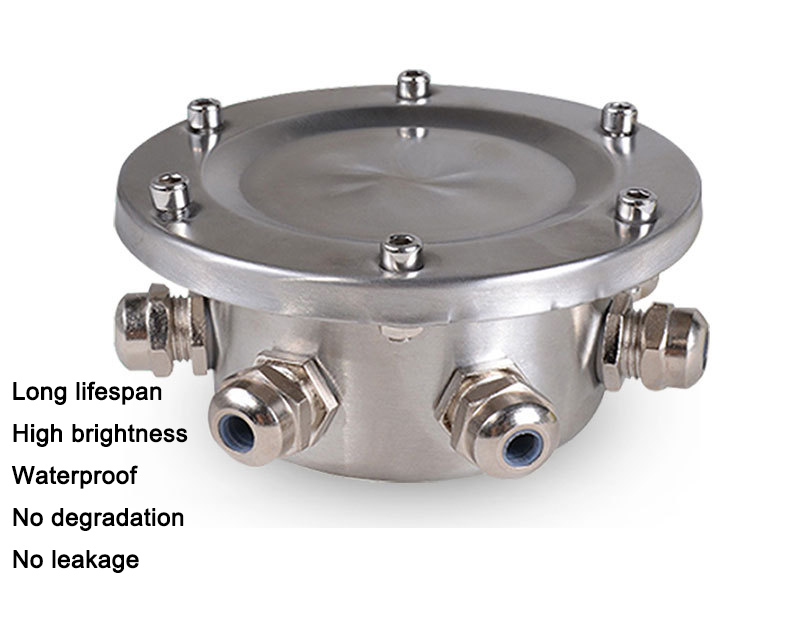

The special stainless steel junction box for LED underwater lights is made of stainless steel and has IP68 high-strength waterproof effect. Good air tightness and long service life.
Product difference
| Product Name | Size |
| one in and one out | Φ86mmH40mm |
| one in and two out | Φ86mmH40mm |
| one in and three out | Φ86mmH40mm |
| one in and four out | Φ120mmH57mm |
| one in and five out | Φ120mmH57mm |
| one in and six out | Φ120mmH57mm |
Standards and Certifications

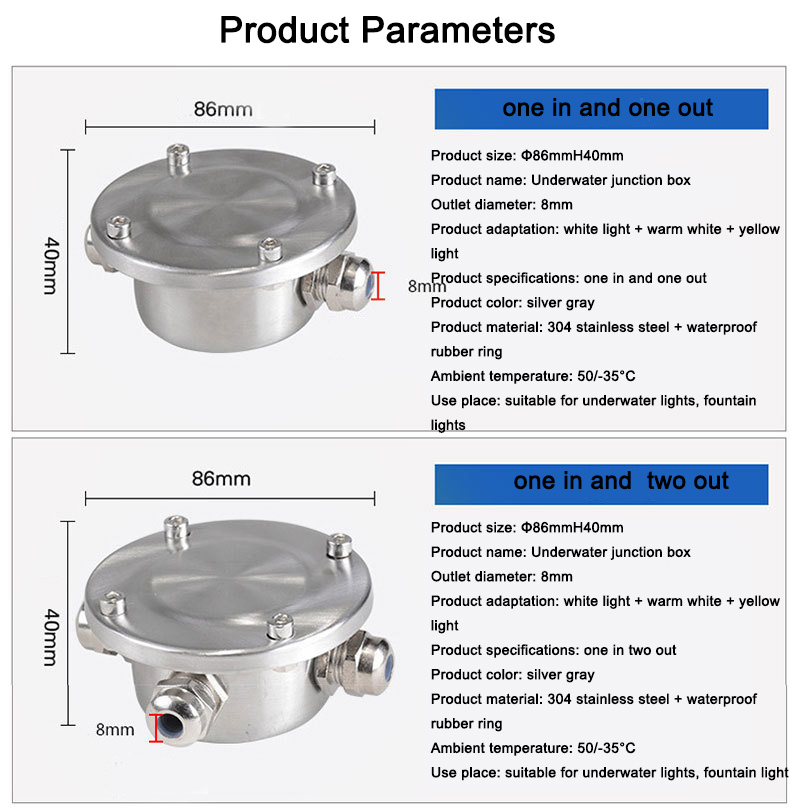

Product Specification
Product size: Φ86mmH40mm
Product name: Underwater junction box
Outlet diameter: 8mm
Product adaptation: white light + warm white + yellow light
Product specifications: one in and one out
Product color: silver gray
Product material: 304 stainless steel + waterproof rubber ring
Ambient temperature: 50/-35°C
Use place: suitable for underwater lights, fountain lights
Product size: Φ86mmH40mm
Product name: Underwater junction box
Outlet diameter: 8mm
Product adaptation: white light + warm white + yellow light
Product specifications: one in and two out
Product color: silver gray
Product material: 304 stainless steel + waterproof rubber ring
Ambient temperature: 50/-35°C
Use place: suitable for underwater lights, fountain lights

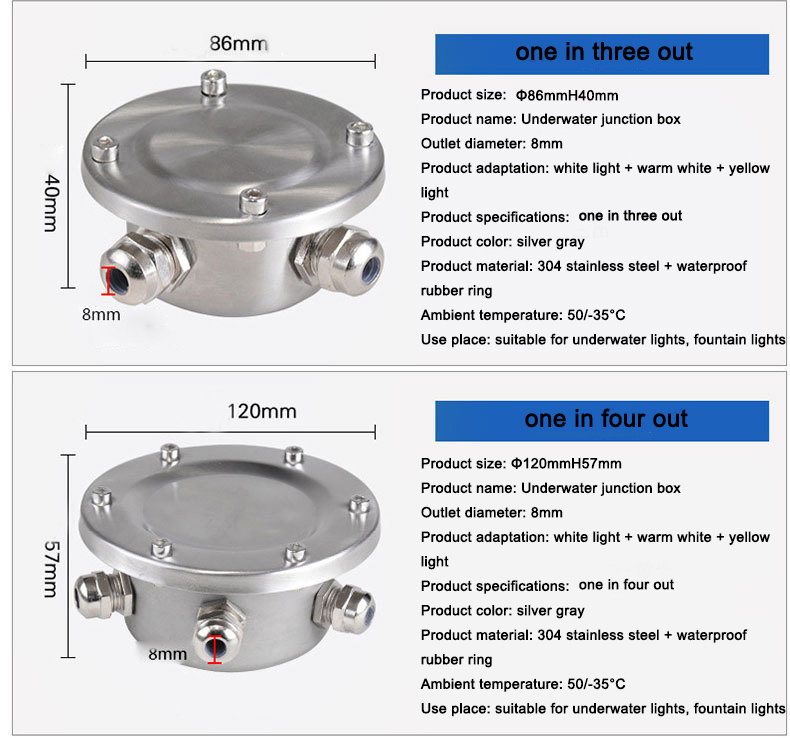

Product size: Φ86mmH40mm
Product name: Underwater junction box
Outlet diameter: 8mm
Product adaptation: white light + warm white + yellow light
Product specifications: one in three out
Product color: silver gray
Product material: 304 stainless steel + waterproof rubber ring
Ambient temperature: 50/-35°C
Use place: suitable for underwater lights, fountain lights
Product size: Φ120mmH57mm
Product name: Underwater junction box
Outlet diameter: 8mm
Product adaptation: white light + warm white + yellow light
Product specifications: one in four out
Product color: silver gray
Product material: 304 stainless steel + waterproof rubber ring
Ambient temperature: 50/-35°C
Use place: suitable for underwater lights, fountain lights

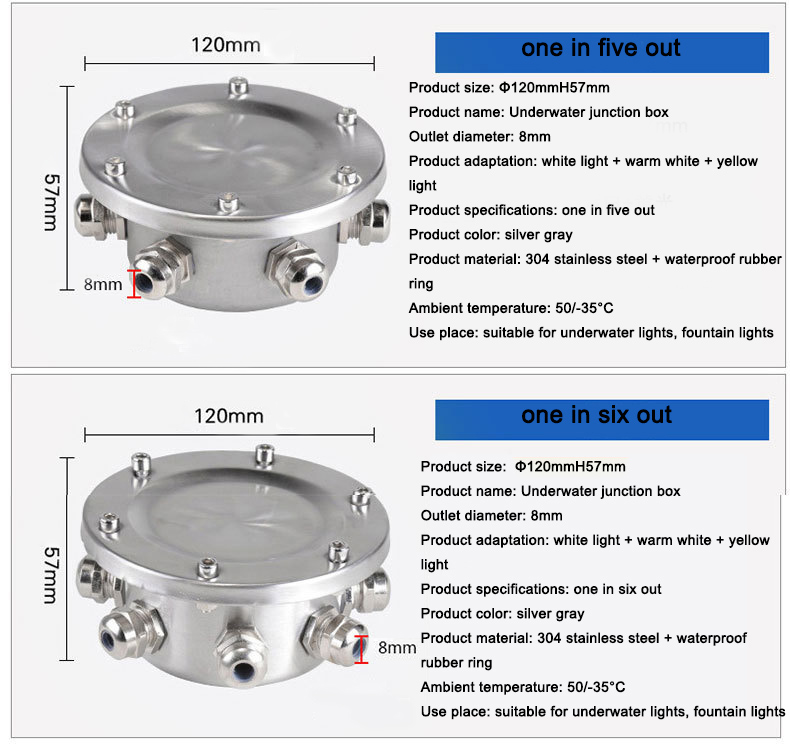

Product size: Φ120mmH57mm
Product name: Underwater junction box
Outlet diameter: 8mm
Product adaptation: white light + warm white + yellow light
Product specifications: one in five out
Product color: silver gray
Product material: 304 stainless steel + waterproof rubber ring
Ambient temperature: 50/-35°C
Use place: suitable for underwater lights, fountain lights
Product size: Φ120mmH57mm
Product name: Underwater junction box
Outlet diameter: 8mm
Product adaptation: white light + warm white + yellow light
Product specifications: one in six out
Product color: silver gray
Product material: 304 stainless steel + waterproof rubber ring
Ambient temperature: 50/-35°C
Use place: suitable for underwater lights, fountain lights
Package inclueded:
1 Pieces x led waterproof junction box
Wiring Steps:
The material adopts advanced stainless steel screws, and stainless steel shell to ensure good waterproof and tightness.
Specific operation process:
1. The cable penetrates into the bottom shell, and the stripping length is moderate to ensure that there will be no accidents such as wrong wiring or over-length or ultra-short during wiring.
2. Withdraw the cable, and tighten the waterproof connector clockwise. The stripped length of the wire is about 2CM to allow a sufficient distance to connect to the wiring port. When wiring, please do not connect it wrongly or touch the two bare wires to prevent a short circuit.
3. After the wiring is completed, put on the cover of the housing, and at the same time do a waterproofing treatment on the interface. Ensure that the outer cover and the bottom case are seamlessly connected
Connection diagram:
Application:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
