Special Price: $44.98 $36.9818% off

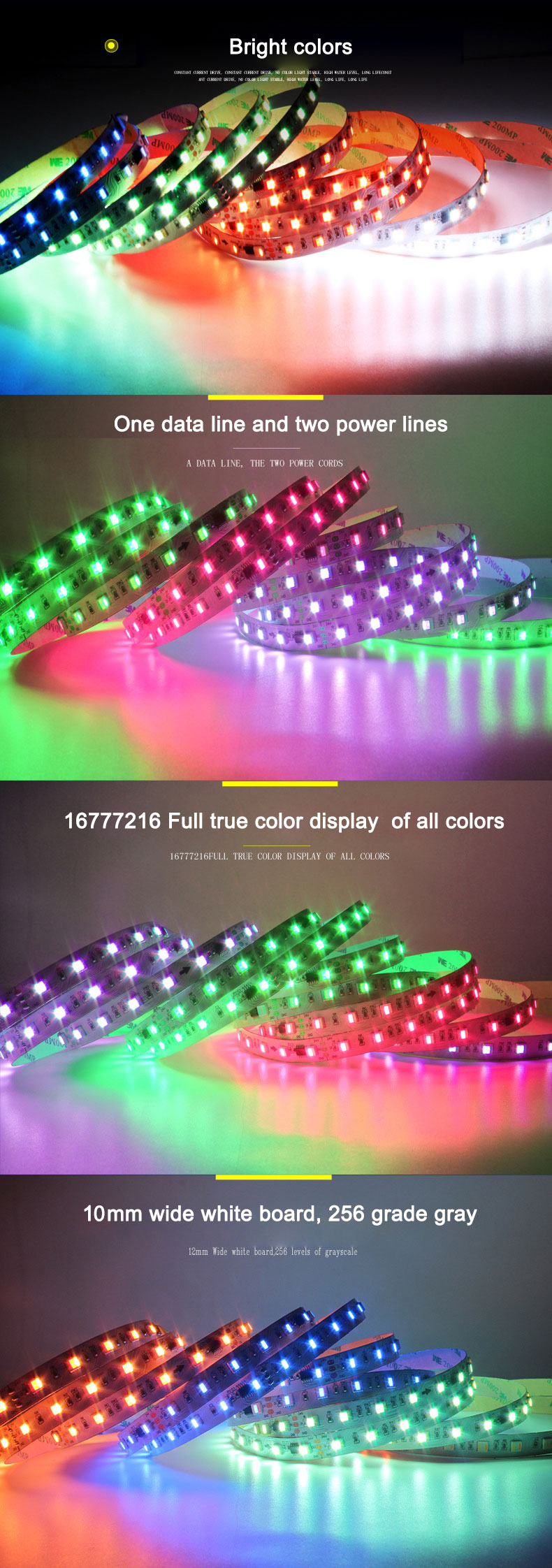

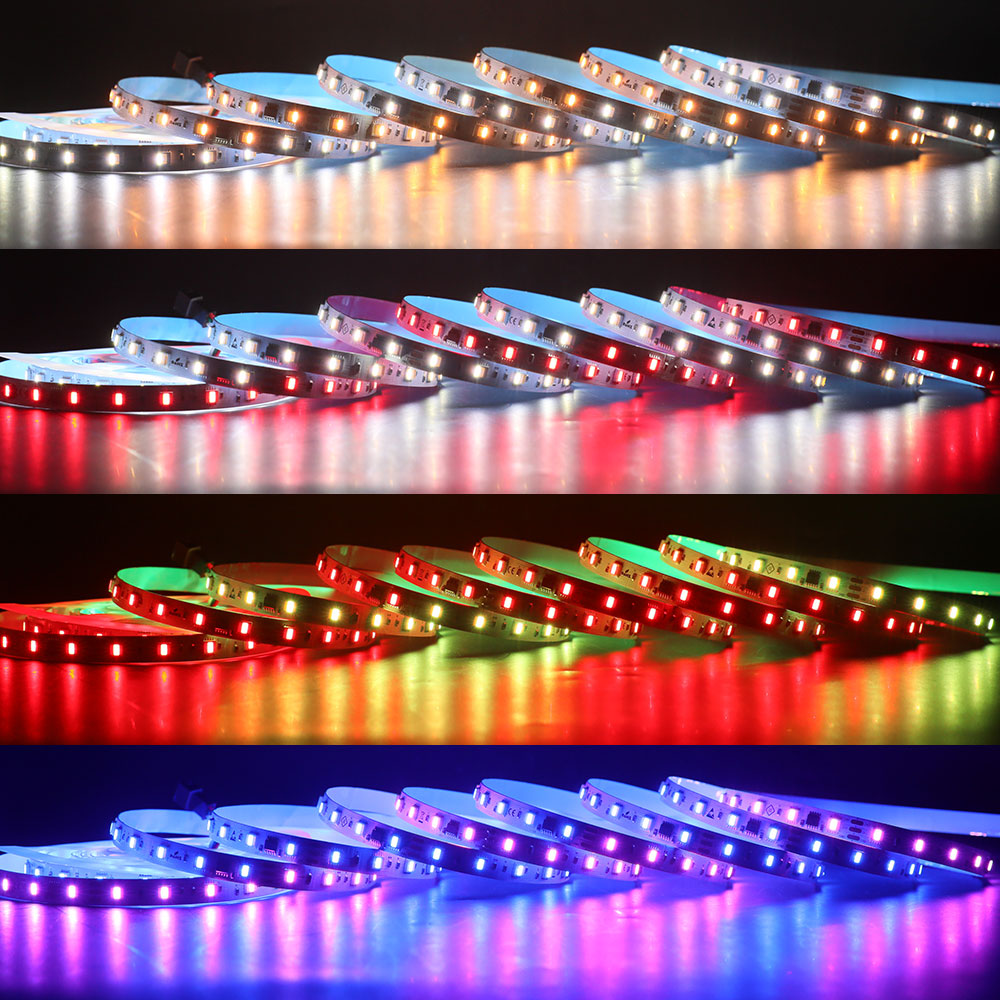

This RGBCCT led strip uses TM1906 IC chip to achieve dynamic color chase, display multiple light colors in one strip at the same time. One data line, two power lines, 256 levels of gray, realized by the Addressable RGBCCT LED Controller (WiFi controller LC2000B-TY01 or Bluetooth controller SP63AE), gradient, water flow, horse racing, text, numbers, English, pictures, animation, etc. any effect. PWM refresh rate: 800kHz, transfer speed 800k bps.

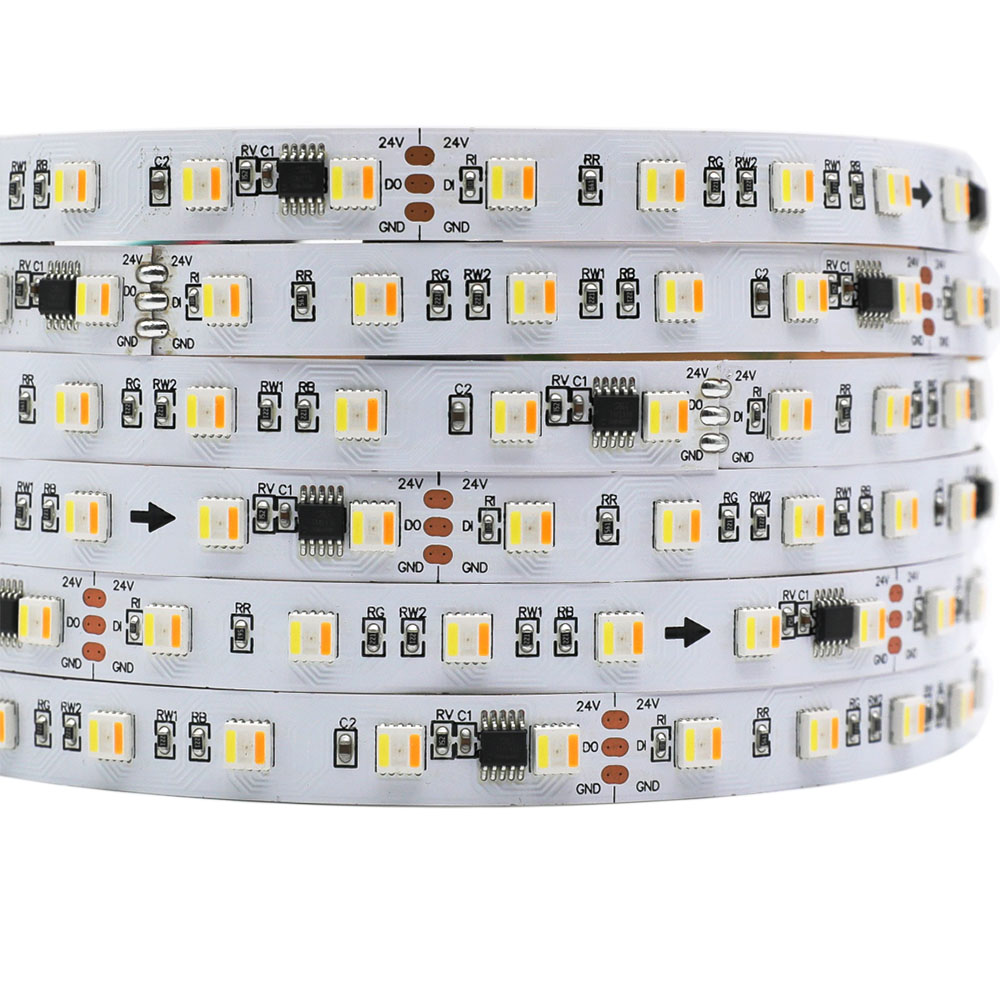

1. Control principle: One IC controls 6 RGBCCT LEDs to form a loop (a group), and the controller controls the circuit in the FPCB through the control IC to control the different effects of the LED light strip changes, such as flicker, chase, jump, clockwise horse racing, counterclockwise horse racing, monochrome horse racing, color-changing horse racing, single chase from beginning to end, running water, simulated lightning, etc.; the change effect of this light strip is not limited to the multiple effects built in the current controller, and can be based on customer needs, Write by yourself, Controller System：SD controller, DMX controller, Artnet and so on .(SPI protocol); it can be displayed in the form of a screen, text, letters, pictures, animation, etc.
2. Environmental protection and safety: It has the characteristics of low power consumption, low heat generation, no glare, and impact resistance. Low voltage DC 24V, high safety, and reliability.

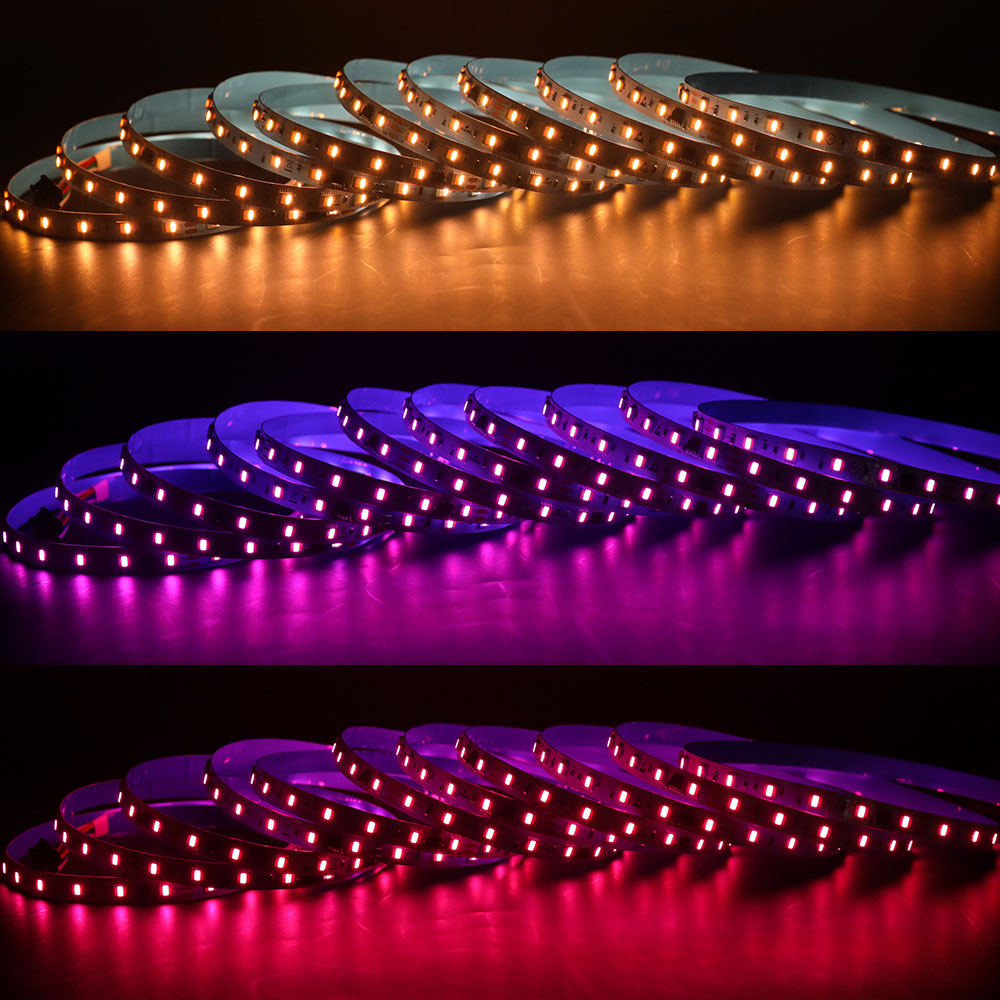

3. Rich and diverse colors can be adjusted arbitrarily through the controller according to customer needs.
4. Long life span: the average life span is up to 50,000 hours.

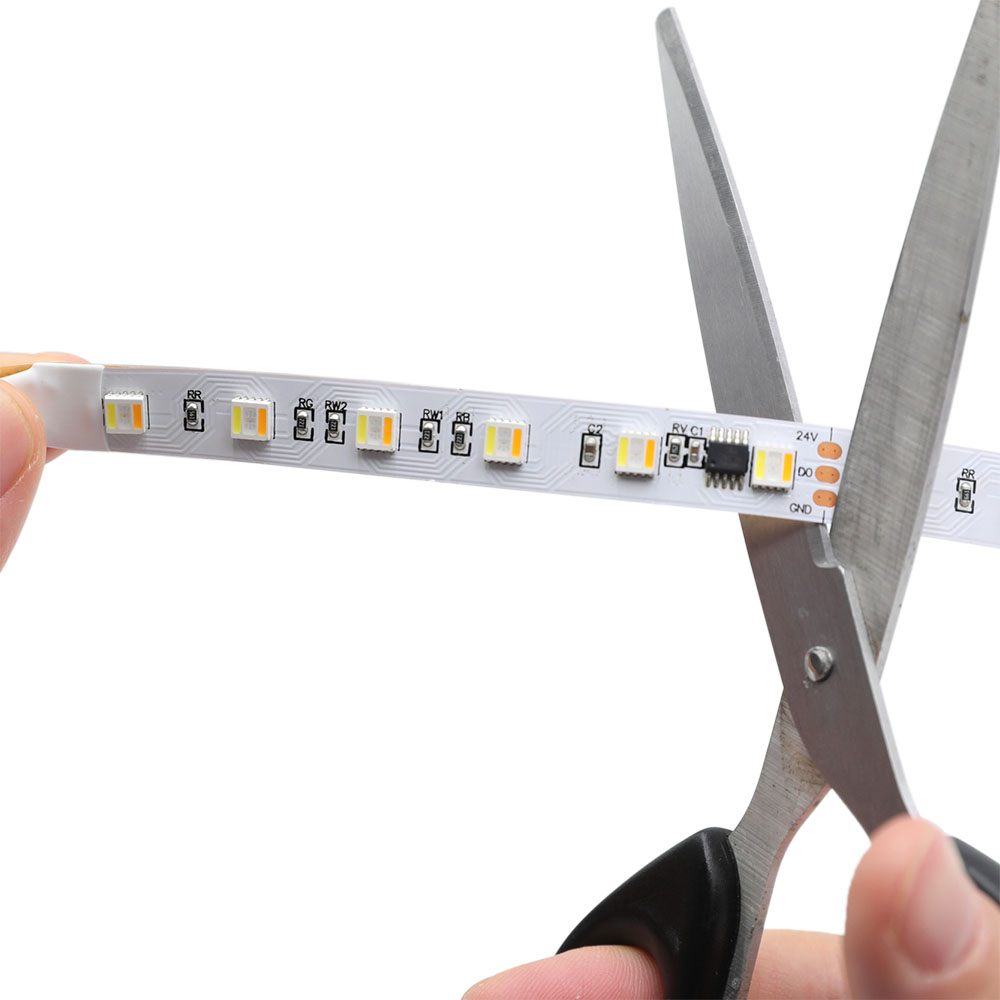

5. Cutting and welding are convenient and free: each group of 6 RGBCCT 5in1 5050 LEDs can form a loop, which can be arbitrarily cut along the upper tangent and welded to meet the needs of various light strip lengths required by customers.

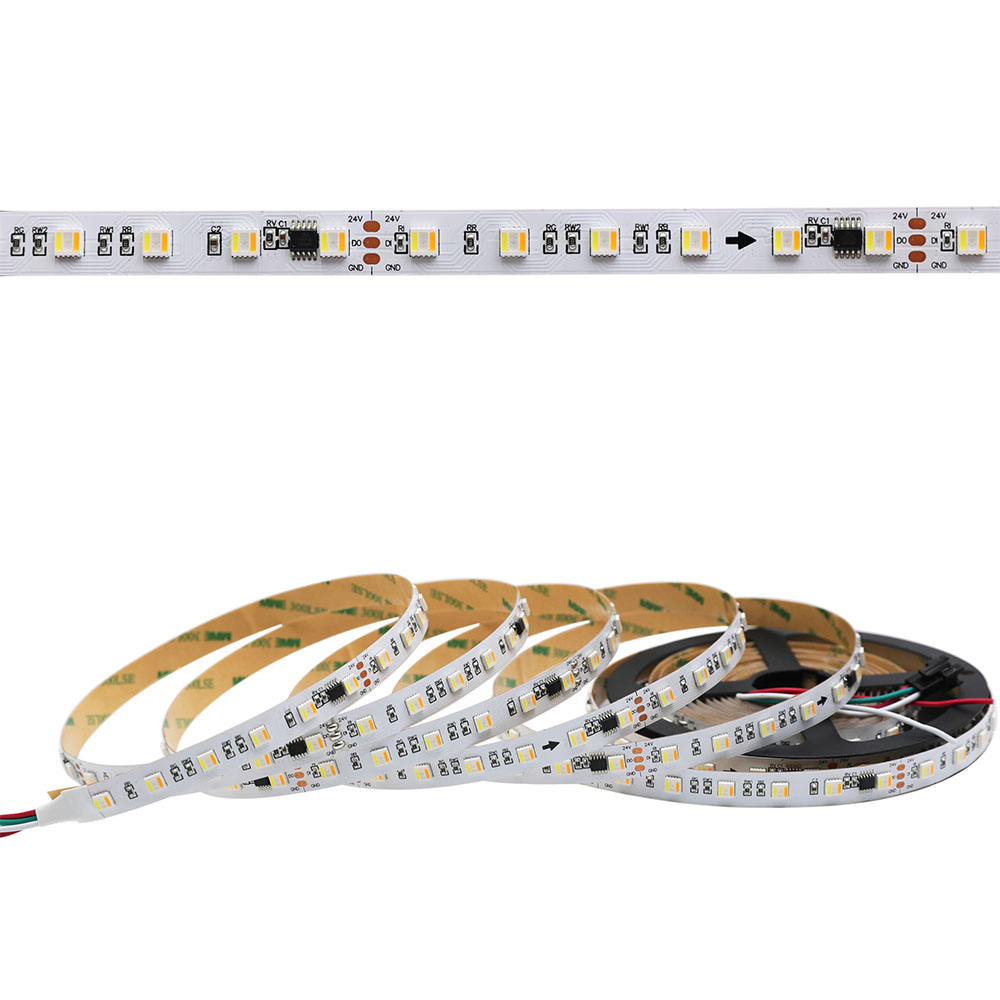

6. Soft: The soft FPCB board is used as the base plate, which can be docked, bent, cut, and fixed on an uneven surface at will. It comes in 1 meter per reel with a 3Pin female/male JST SM connector on both ends and separated Power / Ground Wires. 2unce PCB board with double cooper layer( 35um copper ). double sides membrane covers the PCB board. make sure the copper no drop from the PCB board. For Black PCB board, the MOQ is 1000m.

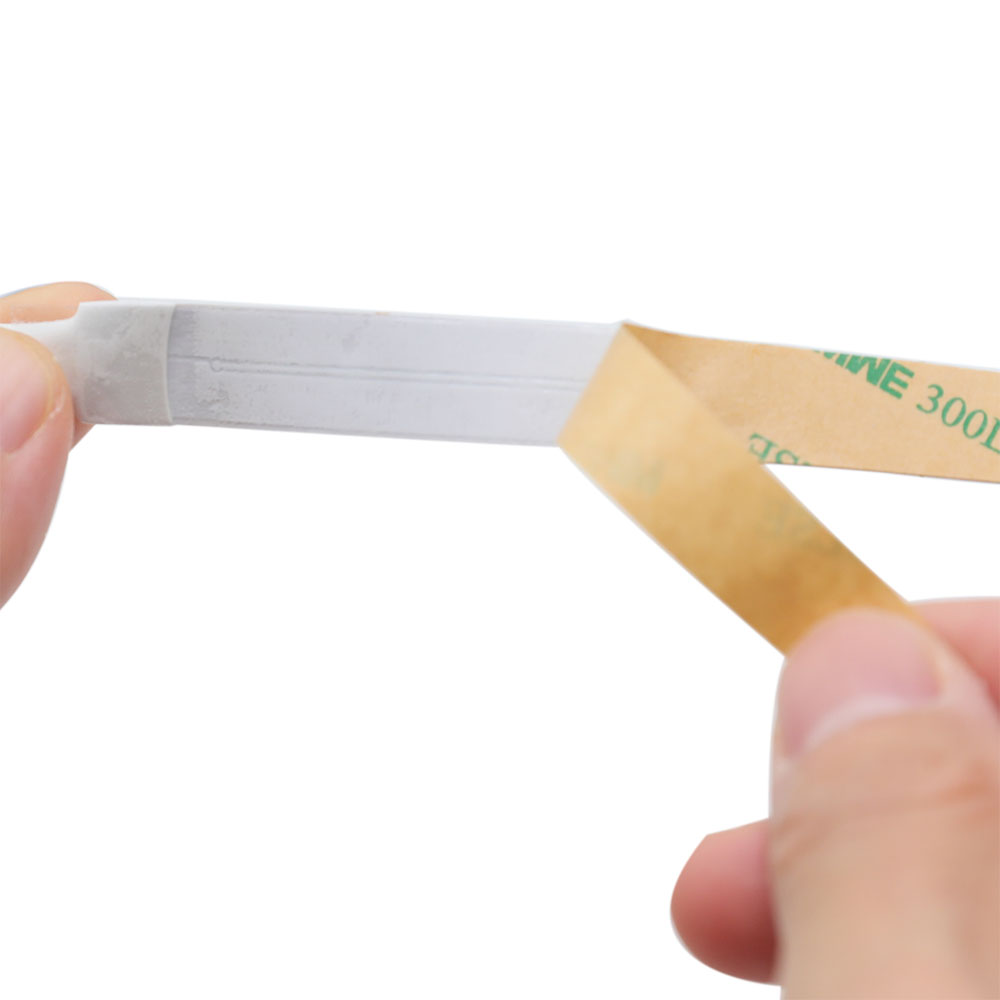

7.Installing: screw+silicon clip and 3M adhesive on backside for sticky.
TM1906 IC
You can also get it through Amazon:
one IC controls six 500 RGBCCT LEDs to form a loop (a group), and the controller controls the circuit in the FPCB through the control IC, thereby controlling the different effects of the LED strip light.
The change effect of this light strip is not limited to the 94 effects built in the current controller, you can write it yourself according to customer needs
Intelligent reverse connection, when the product is installed and connected to the 5V power supply, in the case of reverse connection shaping, any pixel will undergo waveform and then output after receiving the signal to ensure that the line waveform distortion will not accumulate
The three primary colors of each pixel can achieve 256 levels of brightness display, complete the true color display of 16777216 colors, and the port scanning frequency is 2khz/s
When the transmission distance between any two points is less than 5 meters, there is no need to add any signal amplifying circuit. When the refresh rate is 30 frames per second, the cascade is no less than 1024 points. The data transmission speed can reach 800Kbps. The color consistency of the light is strong, and the cost performance is high.
Standards and Certifications
| LED Strip Type: | SMD 5050 RGBCCT Dream Color 300LEDs/16.4ft |
| LED Chip: | Epistar Chip (5in1 5050 LED) |
| IC Type: | TM1906 (similar to WS2811), External type |
| Pixel Quantity: | 10 pixels/m - 24V, 20 pixels/m - 12V |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Color: | Dream Color RGB+CCT (2700K-6500K color temperature) |
| Dimension: | 16.4ft/roll, every 6/3 PCS LED can be cut |
| LED Quantity: | 60 LEDs per meter (3.28 ft) |
| Lifespan: | 50,000+hours |

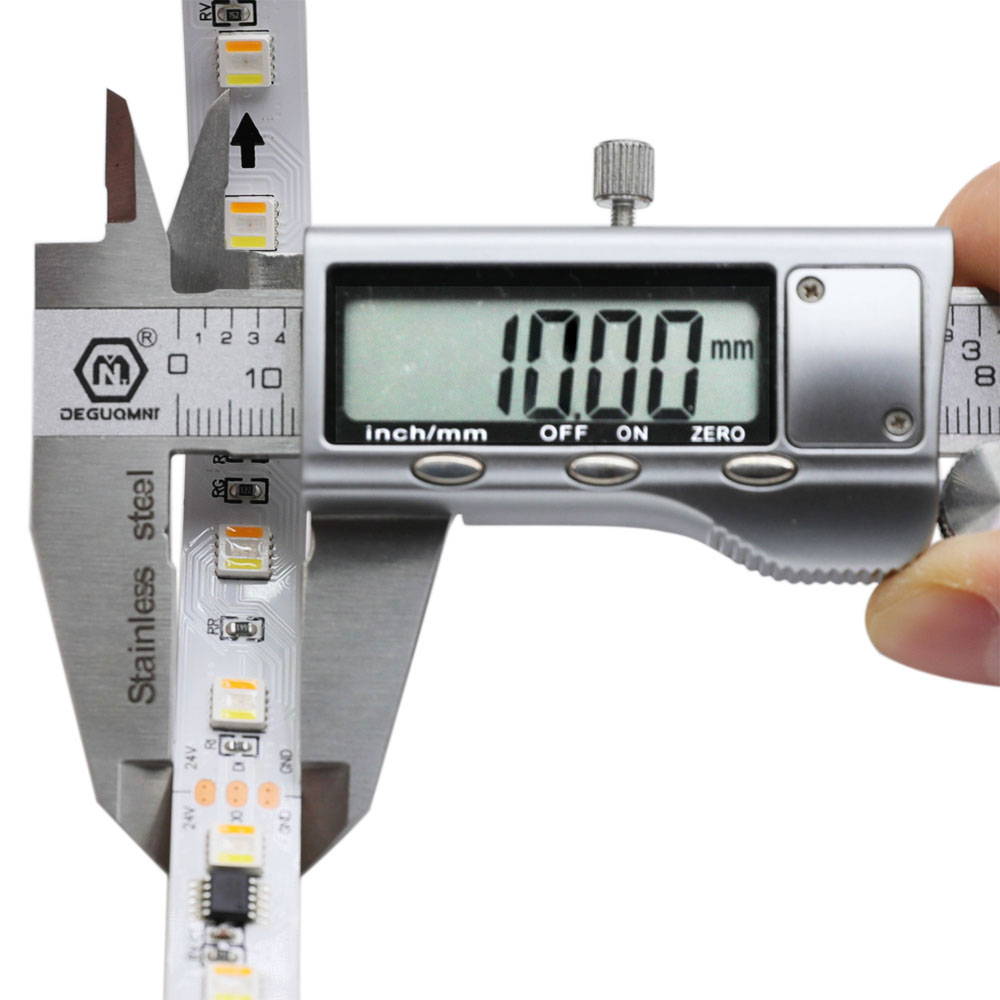

| Strip Width: | 10mm/0.4in |
| Input Voltage(V): | 24VDC - 100mm cut, 12VDC - 50mm cut |
| Working Power: | 18W/m, 90W/16.4ft, Kit power supply is Meanwell LRS-100-12 or LRS-100-24 |
| Beam Pattern: | 120 degree |
| Wavelength NM(RGBY): | 2000-2500mcd |
| Waterproof Rating: | Non-waterproof IP20, waterproof IP65 IP67 IP68 |
How To Wire Addressable LED Strip Lights?
1. Addressable RGBCCT led strip wiring diagram:
2. LED light strip accessories: Addressable dream color RGBCCT led strip matching silicone diffuser or LED channel can achieve a soft, spotless linear light effect.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
