Special Price: $79.98

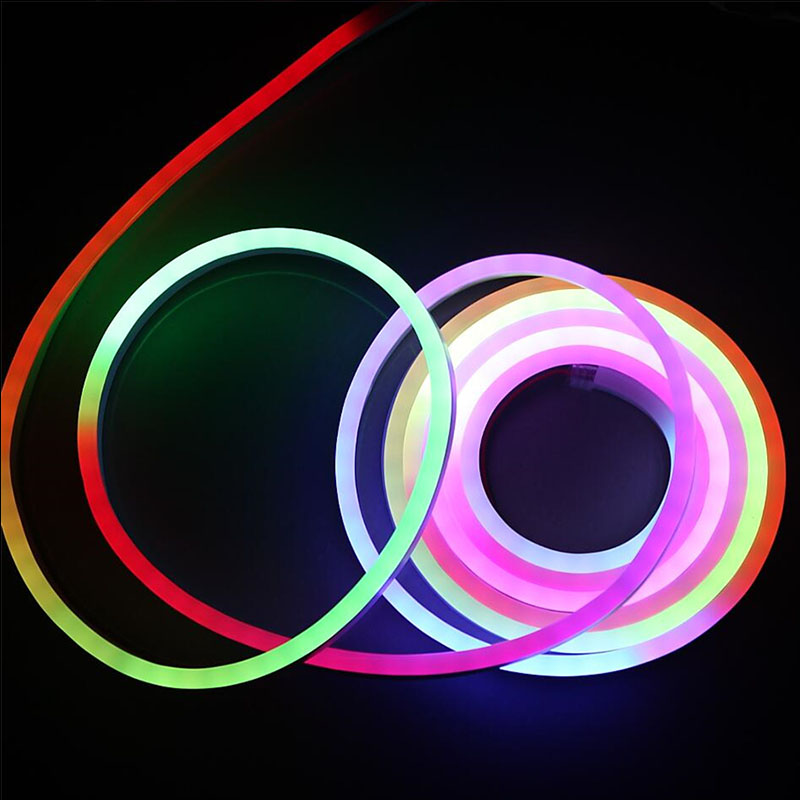

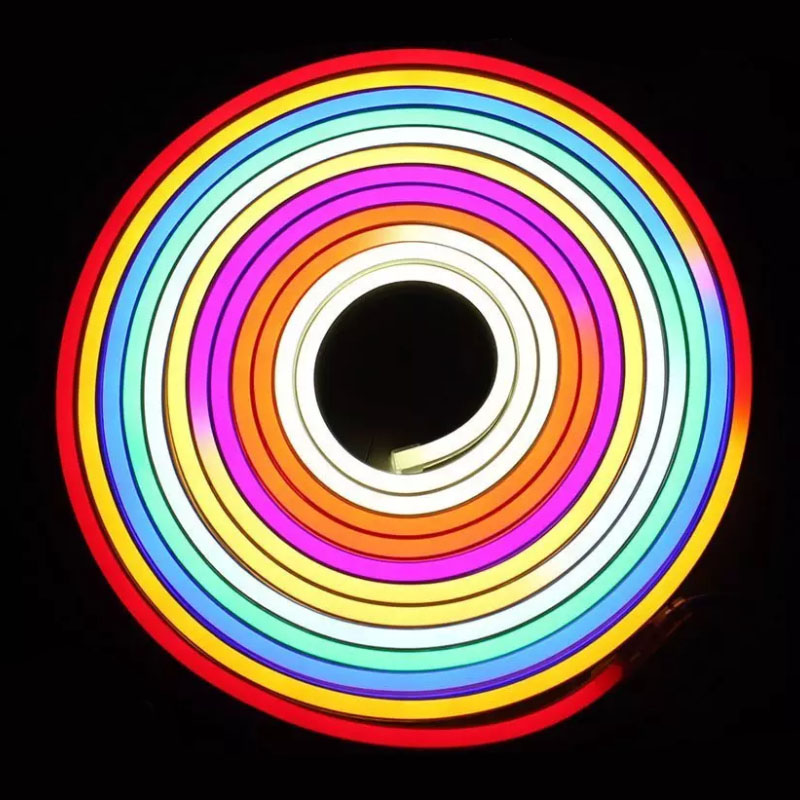

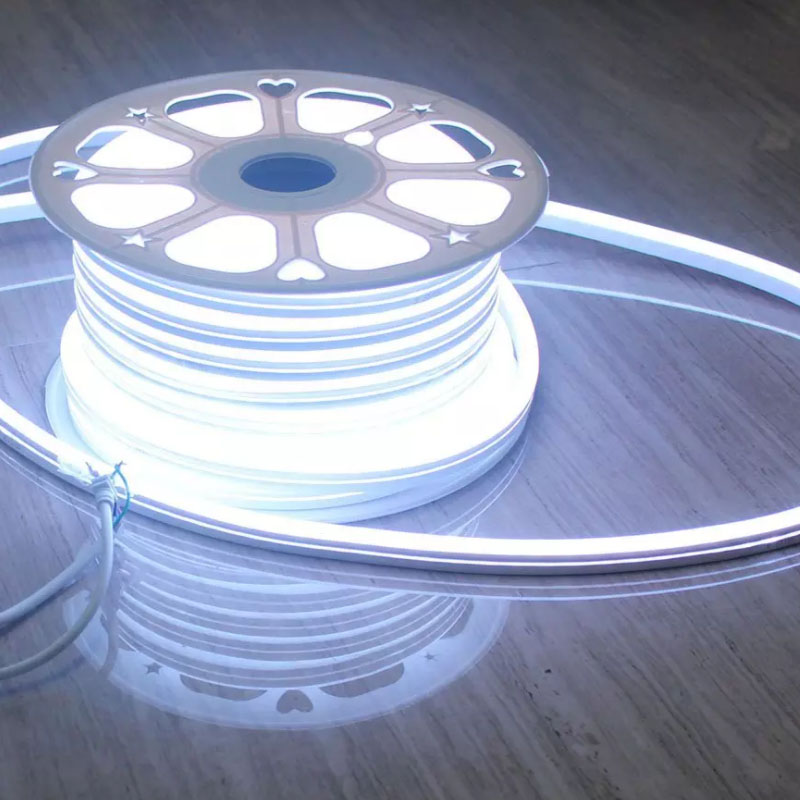

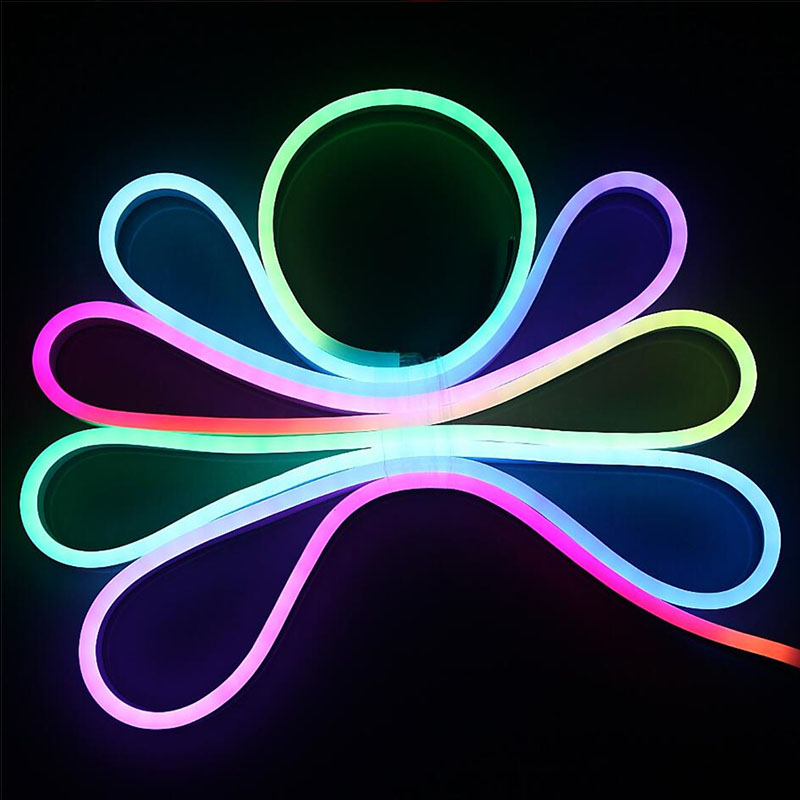

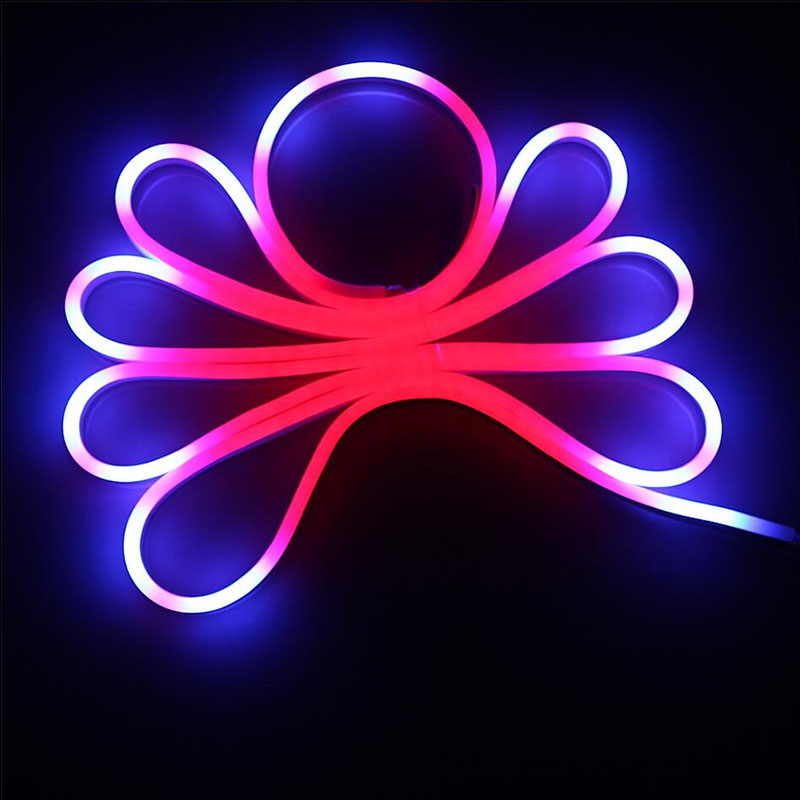

Universal single row DC24V 65 Ft Flexible LED Neon Tube Light Waterproof IP67 TM1934 Dream Color Programmable Flex LED Strip Lights For luminous characters dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. addressable LEDs allow for sequencing modes. Silicone Encased waterproof optional flexible LED light strip with 300 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. TM1934 IC chip control. 5meter(16.4') / 10 meter (32.8') and 20meter (65.6') Per Reel By Sale. No voltage drop .
Please note: For DC12V LED neon light, every 5m power at one side, 10m you need to power at two sides; For DC24V LED neon light, every 10m power at one side, 20m you need to power at two sides.
For DC12V, the max length we can make is 15m, if you choose 20m option, we will send you 2rolls 10m LED neon lights.
There are two kits available for this link. If you choose "LED lights", we will only send you an LED neon tube roll.
If you choose "LED lights + controller + power supply", we will send you an SP107E Bluetooth SPI Music controller and a 24V 350W UL-Listed non-waterproof power supply + an AC plug, and we will help you connect them into a plug and play kit.
This neon lights 14.4watt/m, 5m/16.4ft need a 80watt power, 10m/32ft need a 150watt, 15m/49ft need a 200watt, 20m/65ft need a 300watt power
If you need a DC24V waterproof IP67 power supply for outdoor, please click this link.
The following controllers are compatible with this neon flex lights.
Click to view the SP501E WiFi Alexa/Google Assistant controller
Click to view the SP107E Bluetooth music controller
Click to view the SP108E WiFi DIY Mode controller
Click to view the RF Remote + WiFi APP controller
Click to view the DC7-24V Golden WiFi music controller
Neon Flex LED Rope Lights Spec sheet
Catalog of LED Neon Flex Light Tube
TM1812 Chips Specifications Download
Standards and Certifications
Product Specification
LED Strip Type: SMD 5050 DreamColor 300LEDs/16.4ft
LED Chip: TM1934 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4'/32.8'/65.6' per roll, every 0.5m(1.64ft) can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
Lifespan: 50,000+hours
Warantty: 3 years
Dimensions: DC12V/DC24V L500cm(196.8 in ) x W1.5cm(0.6 in ) x H2.5cm(1.0 in )
Input Voltage(V): 12/24VDC
Working Power: 72W/16.4ft Max 4.4watt/Ft
Lumen Per LED: 22Lumen 402lm Max /ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: waterproof IP67
Please note: This item doesn't include any power supply, controller or the accessories. The size of the power supply according to the length of the LED neon light, you should order separately. There are various controllers, please purchase the one you need via choosing from the SPI Controller series. If you don't know how to choose the power supply and controller, please contact us online or send us the email.

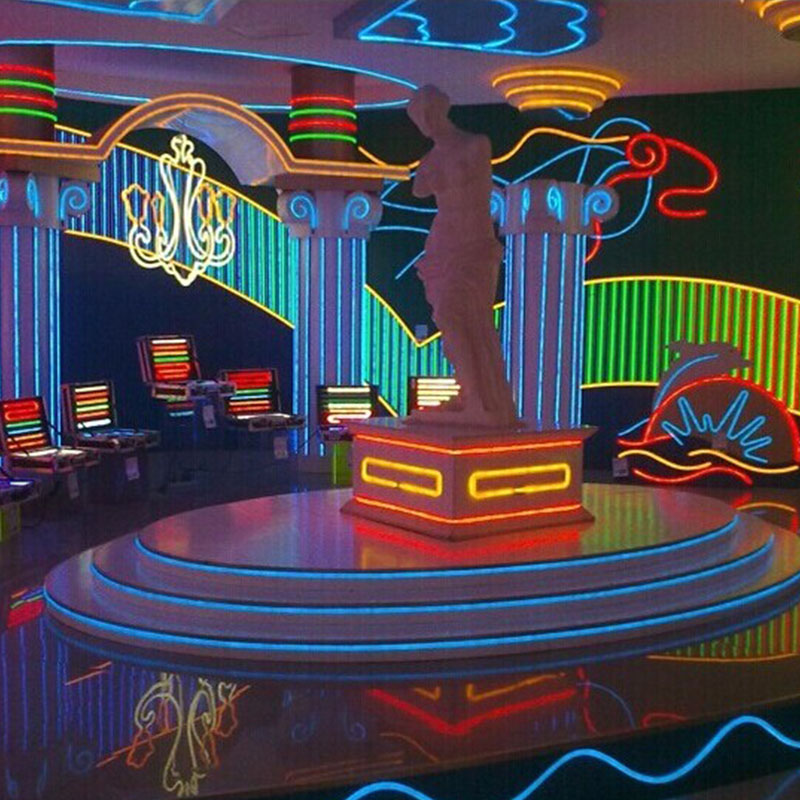

Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
-
luminous characters
-
Holiday lighting
-
Advertising lighting

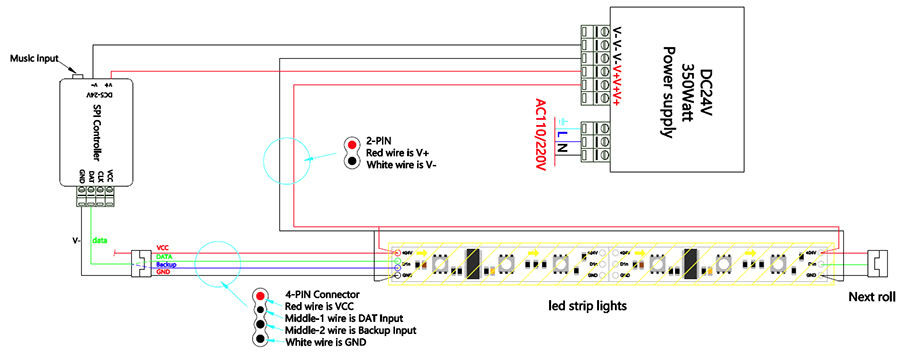

Wiring Diagram
Please note: do not exceed the pixels of the controller supports, all the addressable LED neon lights connect in series, every roll( 20m/65.6ft) need to power at both ends of the lights. If the pixels are beyond the controller supports, please add a SPI signal amplifier.
