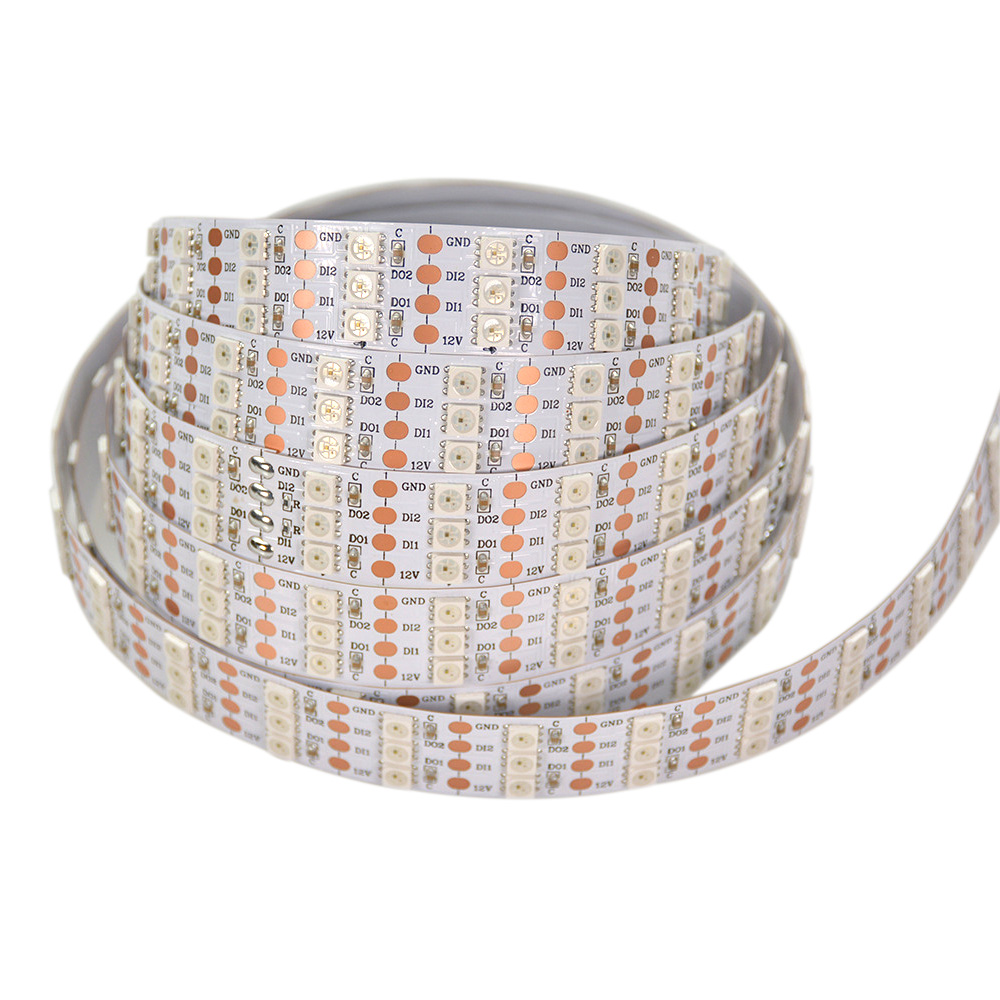

Triple Row High Density 144LEDs/m WS2815 Addressable LED Strip Light - DC12V High Bright LED Strip - 50M/164FT Per Roll

Model: DCFLS-12V-WS2815X144-50M
Triple Row High Density 144LEDs/m WS2815 Addressable LED Strip Light - DC12V High Bright LED Strip - 50M/164FT Per Roll
  • Triple Row High Density 144LEDs/m WS2815 Addressable LED Strip Light - DC12V High Bright LED Strip - 50M/164FT Per Roll
  • Triple Row High Density 144LEDs/m WS2815 Addressable LED Strip Light - DC12V High Bright LED Strip - 50M/164FT Per Roll
  • Triple Row High Density 144LEDs/m WS2815 Addressable LED Strip Light - DC12V High Bright LED Strip - 50M/164FT Per Roll
  • Triple Row High Density 144LEDs/m WS2815 Addressable LED Strip Light - DC12V High Bright LED Strip - 50M/164FT Per Roll

Select Specifications:

Select Operating Voltage:

Starting at: $119.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
10-4
$119.98
5-9
$117.58
10-19
$113.98
20+
$107.98
* Discounts may vary based on options above
Qty: -+Min:  10
*Mixed OFF

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Feature

    1. Our WS2815 triple row high density LED strips adopt the built-in IC combine with high bright 5050SMD LED chips, individually addressable, popular apply for various LED lighting projects that need super bright LED strip.

    2. DC12V safe voltage, every 3 LEDs can be cut, able to get the length of strips you need. Flexible and soft, easy to bend to the shape you need.

    3. Available in non-waterproof IP20 and waterproof IP67 LED tape light, suitable for indoor and outdoor LED lighting, IP20 version with the 3M adhesive backing tape, you can install the lights anywhere you need ( for safety, please install on the place where is well ventilated).

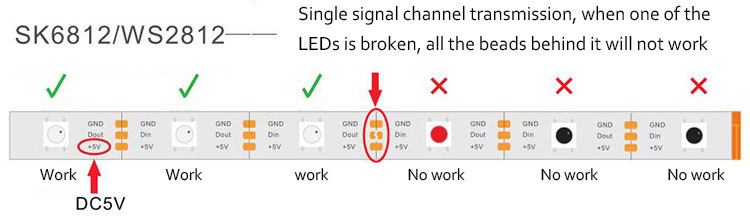

    4. Dual signal wires design, even one LED is damaged, it won't affect the work of other LEDs.





    Light strips advantages

    arrow   With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;

    arrow   With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;

    arrow   With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.



    WS2815 Chips Specifications Download   PDF



    Standards and Certifications

    DC12V CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof



    Specifications

    Input voltage:  DC12V

    Power:  34.6 watt/meter,  1780 watts/50 meters

    LED resource:  SMD 5050 LED

    IC Type:  WS2815

    Q'ty of LED: 144leds/meter, 7200leds/roll, each LED is separately controlled

    Q'ty of IC: 144IC/meter (1 IC drives 1 led chip)

    Pixels: 144/meter;

    Dimensions:  L5000cm(1968.5 in ) x W2.4cm(0.94 in ) x H0.3cm(0.12 in )

    Certification:  CE,FCC,GS,SAA,RoHS,CCC

    Color Temp(K):  RGB full color

    FPC color:  WHITE PCB

    Waterproof:  Non-waterproof IP20 or Waterproof IP67

    Colors:  Full color RGB, dream color changing

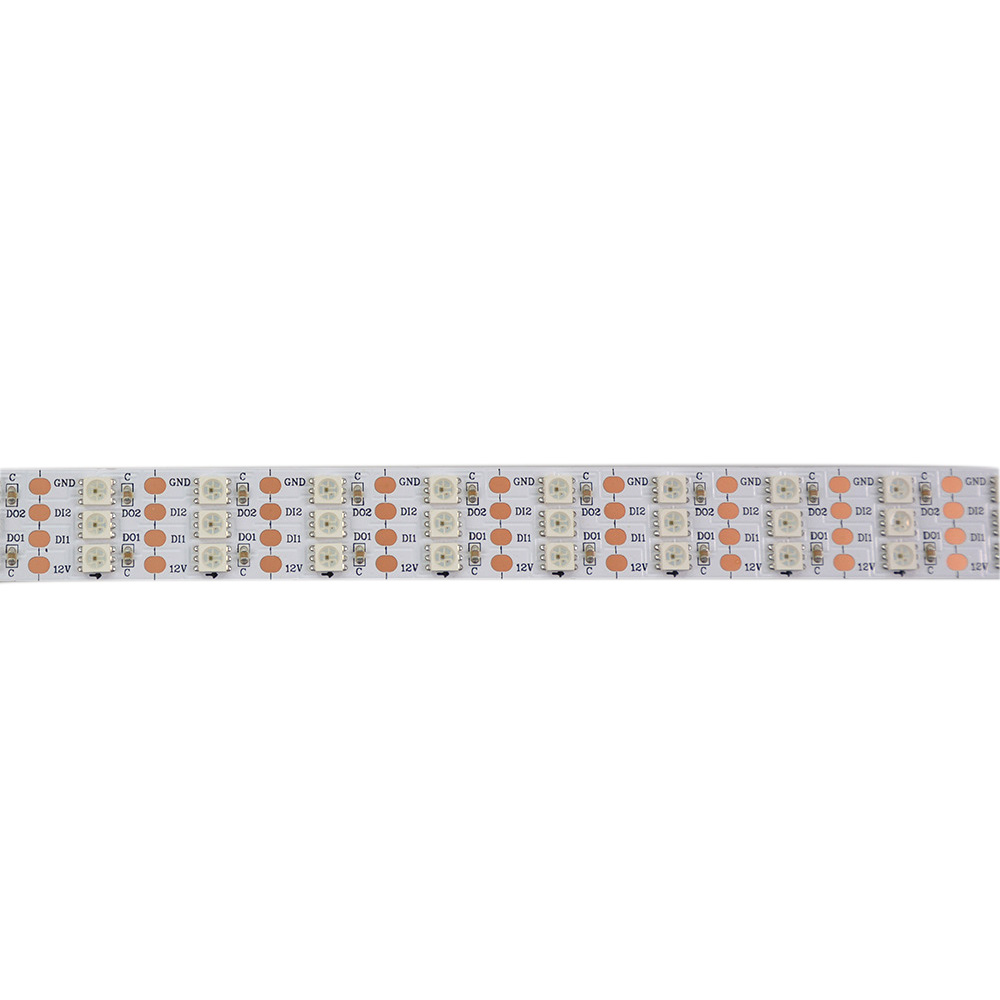

    Cuttable:  every 3 LEDs can be cut

    Grey scale:  256

    Bits/color:  8-bits/color;24bit for RGB

    Average Life (hrs):  50000Hours+



    Waterproof Level Description

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

    IP68 IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    led strip waterproof level



    WS2815 12V addressable led strip lights

    WS2815 12V addressable led strip lights

    WS2815 12V addressable led strip lights



    How to connect and control

    Besides this 144 LEDs/M version of WS2815 led strips, we have SMD5050 WS2812B density version as well.

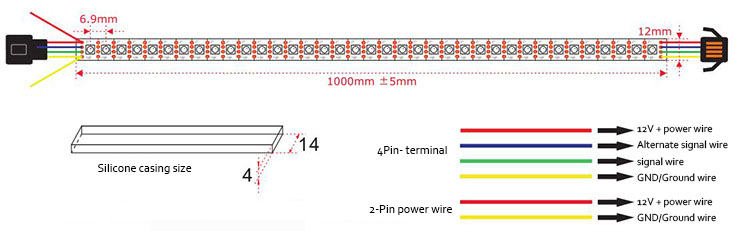

    The WS2815 led strip has 4 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 4 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.

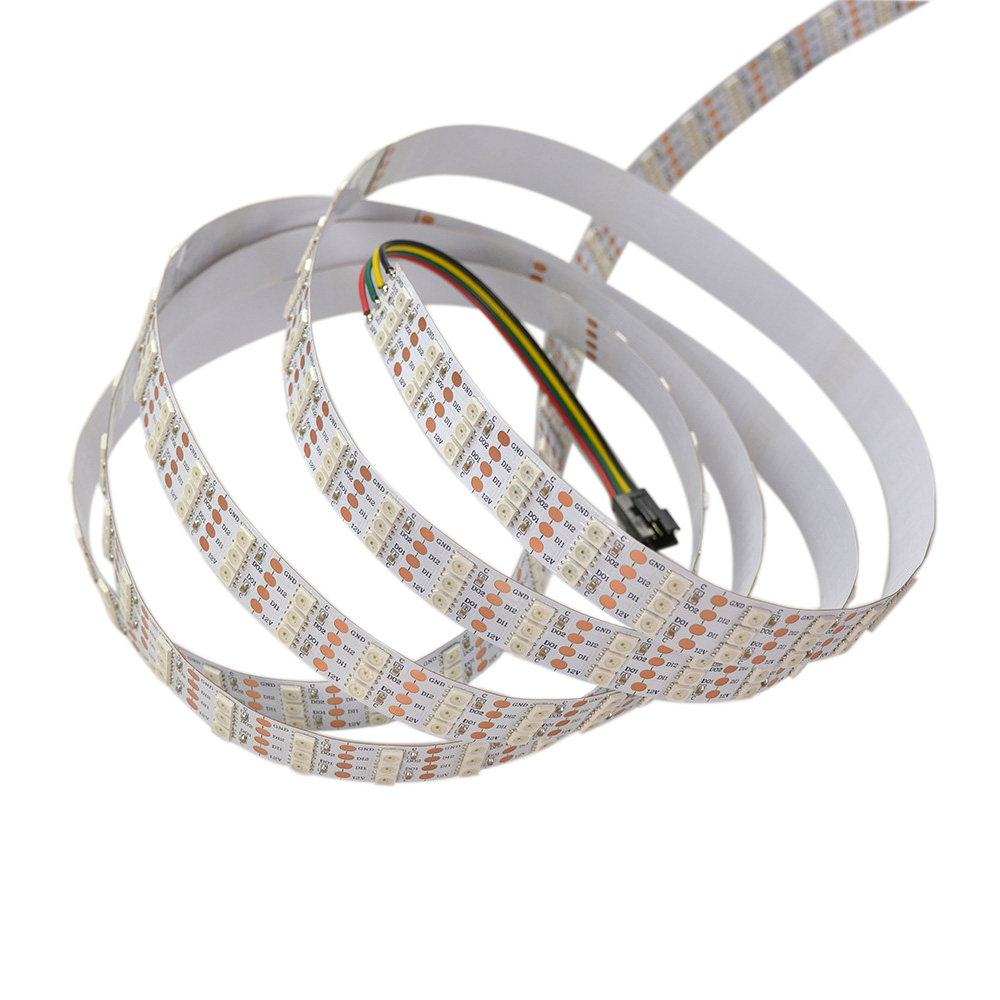

    This strip comes as a single full meter with a 4-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need 12V power supply.

    This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.



    Applications

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration

    digital rgb addressable led strip applications

    Installation Instruction

    how to cut led strip                       led strip adhesive tape                       led strip light mounting brackets

    arrow You can cut the strip every few inches,                     arrow The back of the strip is fitted with a strong                   arrow IP67/IP68 type which will come with

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements

    to many different surfaces.





    Note

    arrow The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work

    arrow Electronic products to ensure that there will not be after-sales quality disputes, please use qualified manufacturers.

    arrow LED lamp bead detection technology National leading: independent patent testing equipment in 3 minutes can be measured lamp light failure, color, life, and other important electrical parameters, the machine dead light rate of fewer than one hundred thousandths, finished lamps Anti-static up to 20KV, the factory solemn commitment to light bar warranty for 2 years.

    arrow Reduce more costs for customers: managers before the technical-based electronic components traders, the use of components without intermediate links, both genuine and inexpensive.

    arrow Waterproof to achieve the highest IP68 level: independent waterproof patented technology. Outdoor products in the hottest Hainan Sanya, the coldest Shenyang, the factory’s fish tank all-weather two years to run, there is no water phenomenon.

    arrow ISO9001 / 2 management model: to ensure that each product 100% qualified factory.

    arrow Service-oriented: by the number of electrical professional technicians composed of the installation of the steering group, at any time to listen to customers dispatch. The products have been sold to the United States, Britain, Italy, India, Russia, Iran, Nigeria, Israel, and other countries and regions. The company through the CCC certification, CE certification, ROHS recognition, PCC, ISO9001, SGS, UL certification, and other domestic and international related industry certification.
