Special Price: $20.98

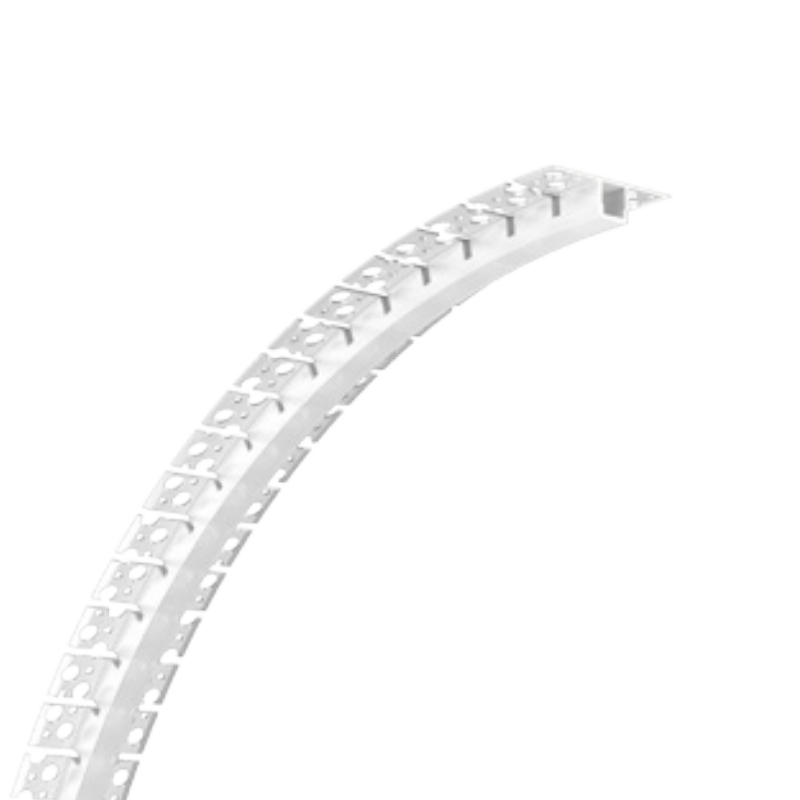

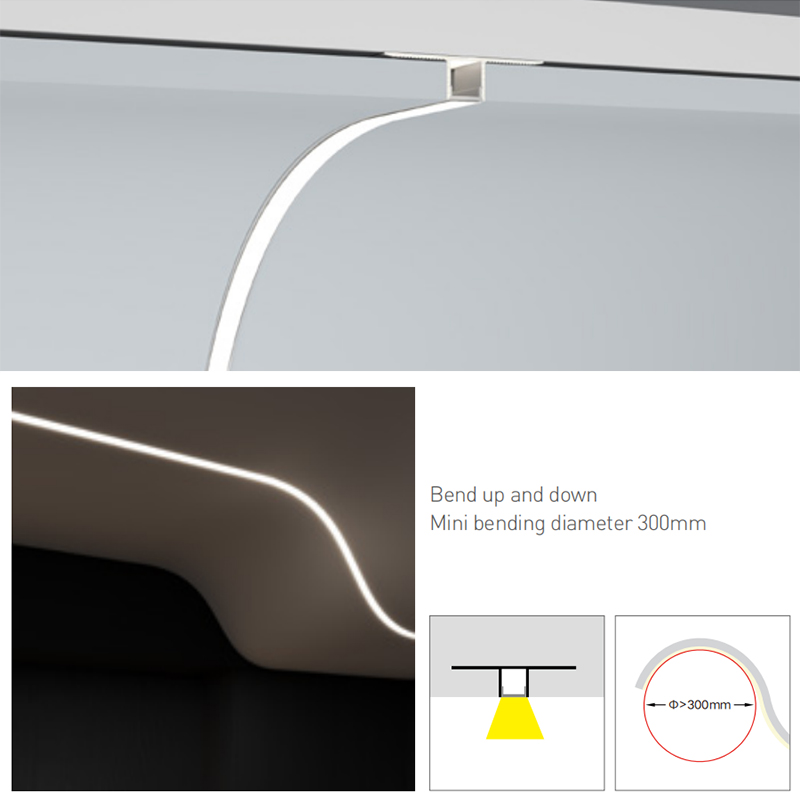

This 5414UD curved aluminum channel is specifically designed for wall lighting in curved elevations. It integrates with plasterboard walls or tile walls to create a smooth and seamless overall look. The 5414UD curving profile is to blend lighting with wall molding to bring a soft, even light to your space. Minimum bending diameter is 300mm (11.8").
If you choose the silicone cover, it can be a continuous uncut strip, please make a note when ordering. Default cut to your order lengths.
Note: Due to DHL/UPS shipping length restrictions, an extra shipping fee will be charged for the purchase of 2m 5414UD curved lighting channel smaller than 10 pieces.
Product Specification
| Product Type: | UD Series Curved Plasterboard And Tile Wall Lighting Channel |
| Material: | 6063-T5 Aluminum Alloy |
|

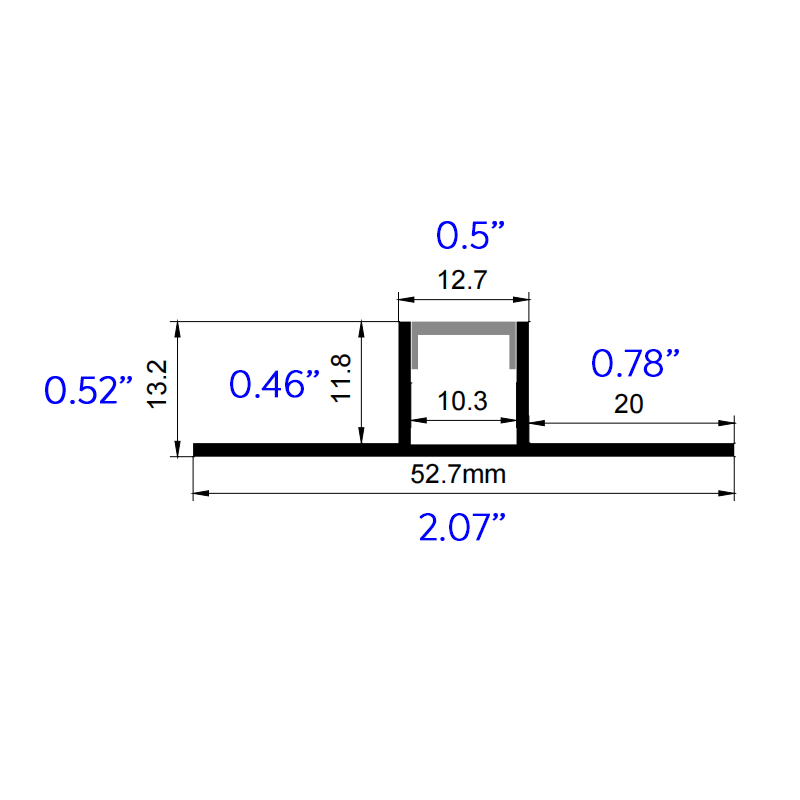

Channel Size:
|
W52.7mm(2.07")*H13.2mm(0.52")
|
| Inner Width: | 10.3mm(0.4") |
| Color: | Anodic silver oxidation |
| LED Diffuser: | Semi-clear silicone, PC semi-clear, PC opal diffuser cover |
| Length: | 1m(3.28ft) / 2m(6.56ft) |
| Accessory: | 1*curvable aluminium profile, 1*diffuser cover, 2*end cap |
| Installation: | Recessed |
| Apply to: | 8mm/10mm led strips |
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
