Special Price: $124.98

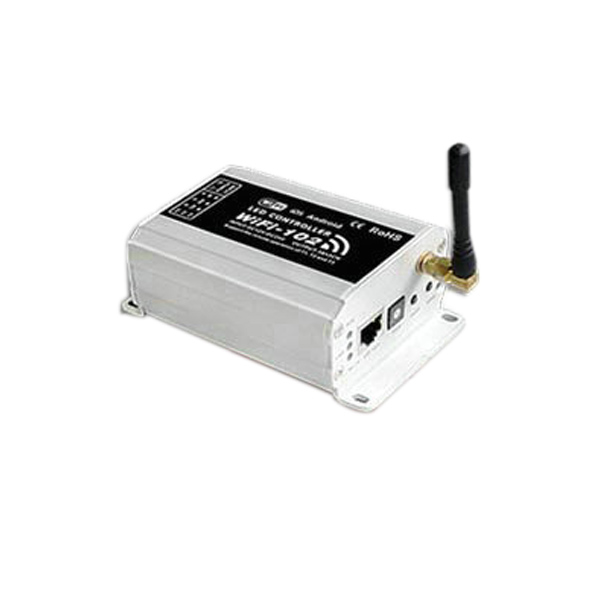

WIFI-102, 4A*3CH 12A Max, High-end Controller WIFI Series Smart Device Flexibly Control Single Color, CT, RGB LED Lgihting fIxture,Warranty 5 years
NOTE: If you purchase WIFI-102, we will send you the WIFI-104
Brief introduction
WIFI-102 controller appeared, with the installation of controlling software on mobile devices like Android & IOS phones, tablet PCs, they can remote control LED lighting products through WiFi, which makes LED control more intelligent and humanization.
One WIFI-102 controller can be used as dimmer, CT controller, even RGB controller, which means a significant saving to middleman who need to stock up, now one product will realize your three desires.
In addition, this model has DIY function. Users can get any effect they want based on our controlling software.
If you don't have any mobile devices with the controlling software at hand, you could also use our 2.4G RF remote control--T series(T1, T2, T3) to control it , which provides more choices!
| power supply | DC CV SMPS |
| Input voltage | DC12V-DC24V |
| Max current load | 4A×3CH Max 12A |
| Max output power | 144W/288W(12V/24V) |
| output control | flexibly control single color,cold warm color, RGB LED lighting fixture |
| control distance | Max 100m |
| RGB color change mode | 32 fixed modes, 8 DIY modes |
| scene mode | 9 |
| Working temperature | -20℃～50℃ |
| Dimension | L128×W73×H45mm |
| Package size | L135×W80×H50mm |
| Weight (G.W.) | 325g |
WiFi Series RGB/RGBW LED Controller
WiFi-101
WiFi-102 WiFi-103 WiFi-104
- ● Support both wifi control of Apple products (iPod, iPad, iPhone) , Android mobile devices like samsung, HTC and RF wireless remote
- control More flexible, efficient, intelligent.
- ● With the 3 in 1(RGB, dimming, CT) apple/android mobile device App. one machine multipurpose to suit different lighting application
- scenarios.
- ● Built-in 32 fixed modes, 8 DIY modes which are programmable. infinite changes mixed by the three primary colours--red, green and blue.
- ● Save scenes anytime anywhere for next play.
- ● WiFi and remote wireless control are all based on global universal 2.4 GHZ frequency band to work, share a root 2.4 G antenna, avoid
- bringing space pollution by WiFi and remote control using different frequency wireless signal.
- ● Optional CV/CC wireless sync control, it is easy to add sub-control for WiFi master controller in not enough power, wireless
- connection in different zones. CV/CC sub-control can connect different kinds of LEDs.
| Platform | Android 2.1 or above, IOS3.2 or above, with the wifi function |
| Size | IOS(4.6MB), Android(1.5MB) |
| Language | English |
| Category | Tool |
| Others | Free, plug-in-free |
