Special Price: $30.98

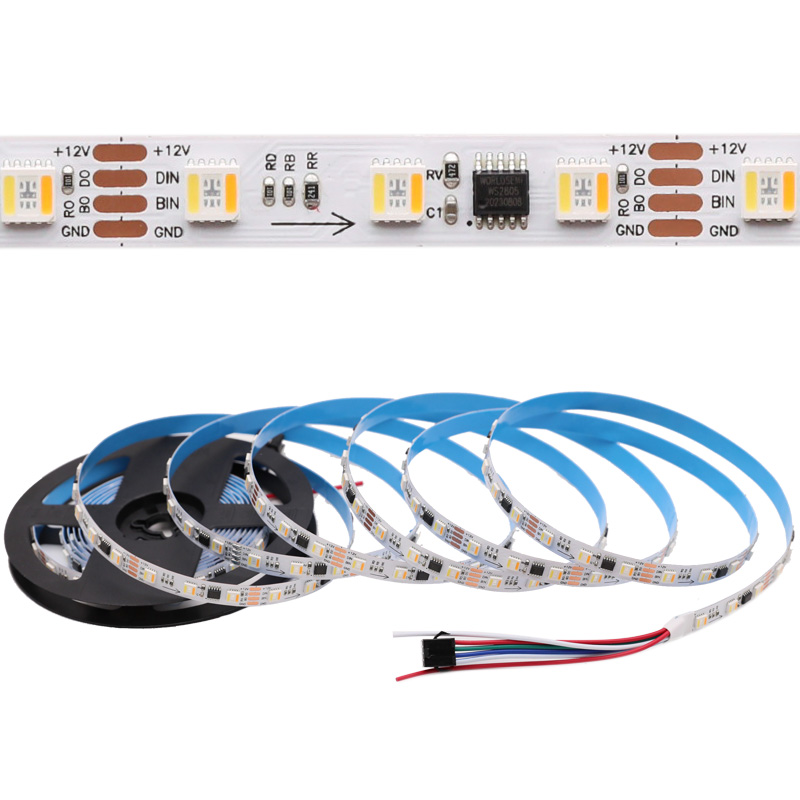

Upgraded version of our four addressable RGBCCT led strips, upgraded from previous FW1906/TM1906 (similar to WS2812B) single data signal to WS2805 (similar to WS2815) double data signal, the light signal transmission is more stable. Standard 60 5050 LED lights per meter density. Available in 12V addressable RGBWW LED and 24V addressable RGBWW LED versions, 12V addressable RGB CCT led strip is one pixel per three LEDs, 24V addressable RGB CCT led strip is one pixel per six LEDs.
5-in-1 addressable RGBTW (RGB Tunable White) led strip allows you to freely program the running effect of each color (RGB color and CCT color temperature) and is able to present the most color variations.
Note: We tested that this WS2805 RGBCCT IC chip is compatible with SP630E and SP63AE (controller in the kit) BanlanX APP controlled smart led controllers. If used for professional programmable lighting controllers, please make sure the WS2805 is compatible with your control device.
WS2805 IC Chip Specification
Addressable RGBCCT LED for the richest color rendering, Red, Green, Blue, 3000K warm white, 6500K cool white five colors in the same LED
Dual-signal data transmission: when one LED is damaged, the backup data signal will continue to work; when two consecutive LEDs are damaged, the following LEDs will not light up
12V or 24V input voltage to adapt to different LED project needs
Standard density of 60 lights per meter, 300 per roll
White and black flexible printed circuit boards
IP20, IP65 and IP67 waterproof ratings for indoor and outdoor lighting
Kit products: SP63AE Bluetooth RF addressable RGBCCT led controller (no RF remote), Meanwell switching LRS series 100W power supply
Compare to the Previous Four Addressable RGBCCT LED Strips:
WS2805-RGBCCT-60X10 (This item): The most important feature is the adoption of dual signal transmission WS2805 chip, similar to WS2815. RGB+CCT 5 in 1. DC12V or DC24V.
TM1906-RGBCCT-60X10 and FW1906-RGBCCT-84X12: Single-signal data transmission chip FW1906/TM1906 similar to WS2812B. RGB+CCT 5 in 1. DC12V or DC24V.
DCFLS-DMX-RGBCCT-60W12: Programmable RGBCCT 5 in 1 strip light directly controlled by DMX, DC24V. Different from addressable SPI signals, but with DMX SPI decoder, DMX can also directly control SPI addressable RGB+CCT strip lights.
DCFLS-RGBCCT-5-12V: Special combination of SPI digital RGB and PWM CCT dimmable white, SPI signal controls RGB LEDs, normal PWM dimming signal controls CCT color temperature LEDs. DC12V and DC5V input.
Product Specification
| LED Strip Type: | WS2805 Dual Signal 5-In-1 Addressable RGBWW LED Strip |
| LED Chip: | SMD5050 + WS2805 |
| Input Voltage: | DC24V, DC12V |

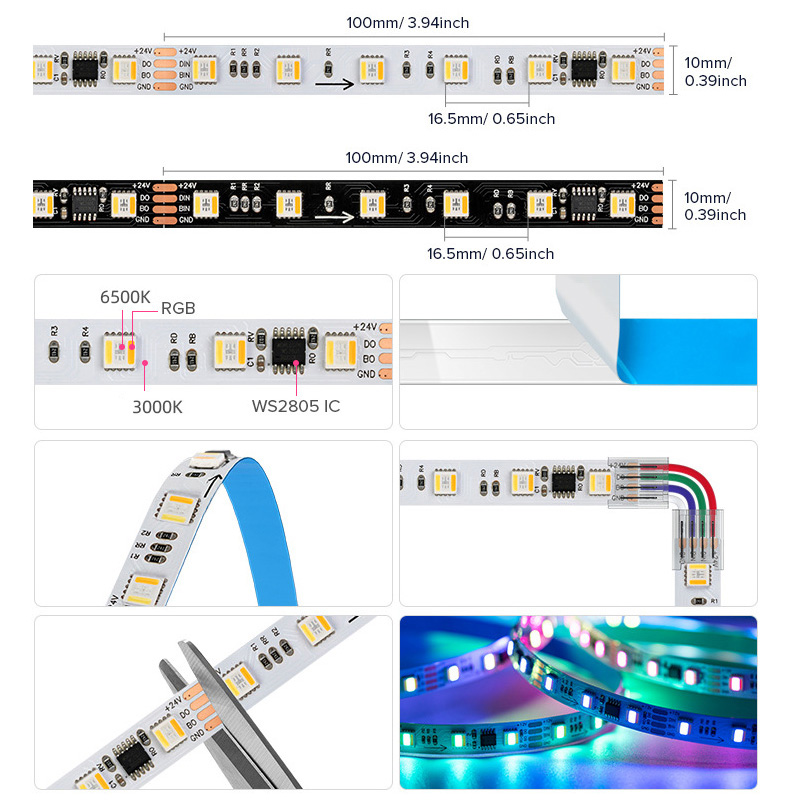

| PCB Width: | 10mm/0.4" |
| Power: | 15W/m max |
| LED Color: | Addressable RGBCCT (3000K-6500K) |
| LED Quantity: | 60LEDs/m |
| IC Quantity: |
DC24V - 10 pixels/m DC12V - 20 pixels/m |
| Length: | 5m/16.4ft |
| Cuttable: |

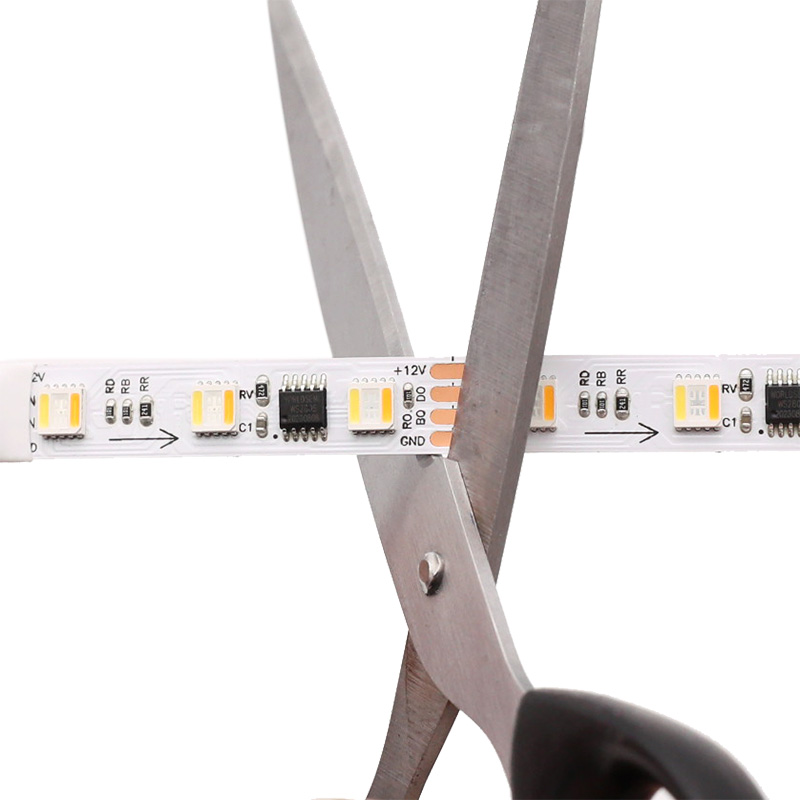

DC24V - 6 LEDs, 100mm/4" DC12V - 3 LEDs, 50mm/2" |
| Beam Angle: | 120° |
| Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 |
| Working Temperature: | -20℃~+40℃ |
| Lifespan: | ≥50000hrs |
WS2805 Breakpoint Resume Addressable RGBWW LED Strip Wiring
The backup data line can be connected to the "DAT" or "GND" of the SPI controller.
