WS2811 DC12V 144LEDs Programmable LED Strip Lights, Addressable Digital Full Color Chasing Flexible LED Strips, Indoor Use, 1m/3.28ft Per Reel By Sale
Related Products
WS2811 DC12V 144LEDs ...
$17.98
LC-2000B SPI LED WIFI...
$80.00 $44.9844% off
Mean Well LRS-200-5 DC5V...
$49.00 $39.9818% off
DC12V, Hot Style 8key RF...
$12.98 $7.9839% off
Mean Well LRS-200-12...
$45.00 $37.9816% off-
Special Price: $17.98
Please check this item DCFLS-12V-WS2811X180W17 for replacement, more denser 180LEDs/m.
Feature
1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Addressable LEDs allow for sequencing modes. Flexible LED light strip with 144 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 1meter(3.28ft) Per Reel By Sale.
2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
3. This strips soft and easy bent for installation. Available in 1 meters (39.4 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request.
4. The led strip has low light decline and long lifespan，LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
5. The 12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.
WS2811 Chips Specifications Download
Standards and Certifications
Product Specification
LED Strip Type: SMD 5050 DreamColor 144LEDs/3.28ft
LED resource: WS2811 LED
IC Type: WS2811 IC (1 IC drives 3 led chip)
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 3.28ft/roll, every 3 PCS LED can be cut
LED Quantity: 144 LEDs per 1meter (3.28 ft)
Dimensions: L100cm(39.4 in ) x W1.5cm(0.59 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 35W/3.28ft Max
Lumen Per LED: 20~22Lumen 6336lm Max /6.56ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
WaterProof: Non-Waterproof
Lifespan: 50,000+hours
Warantty: 3 years
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

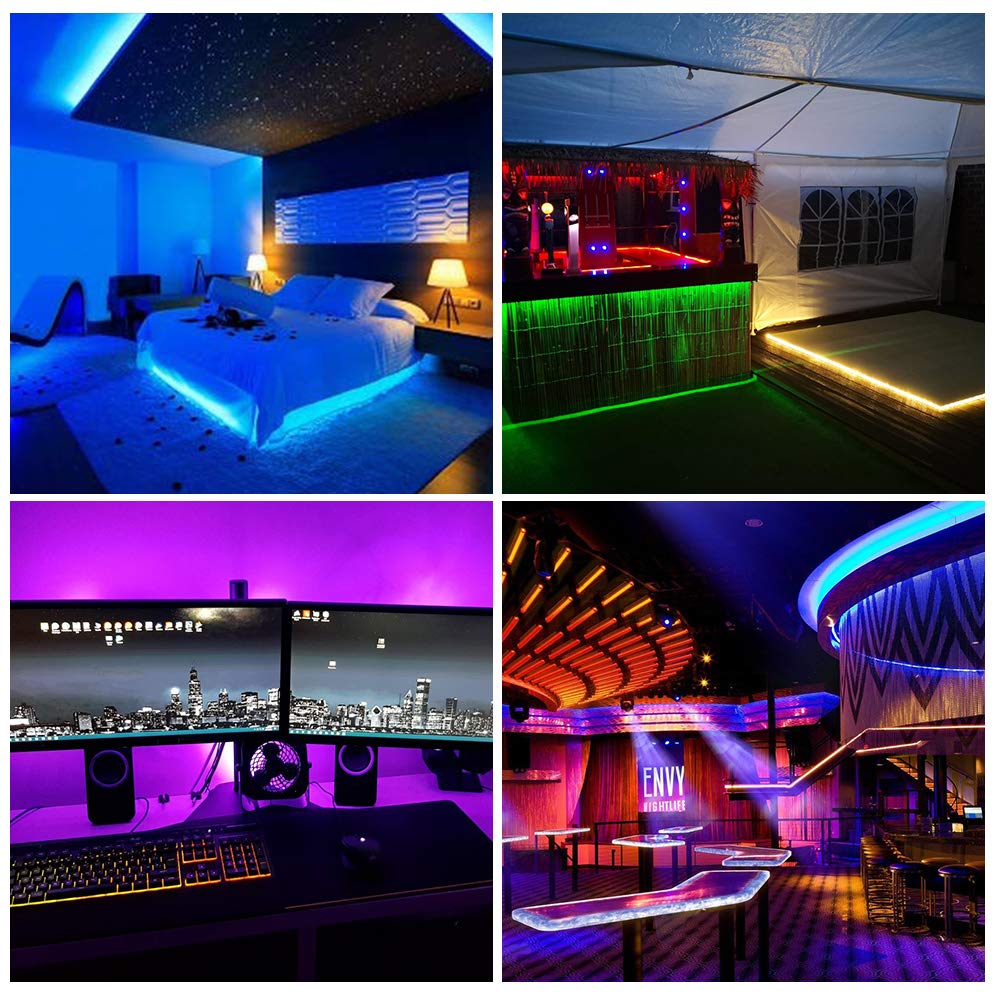

Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration

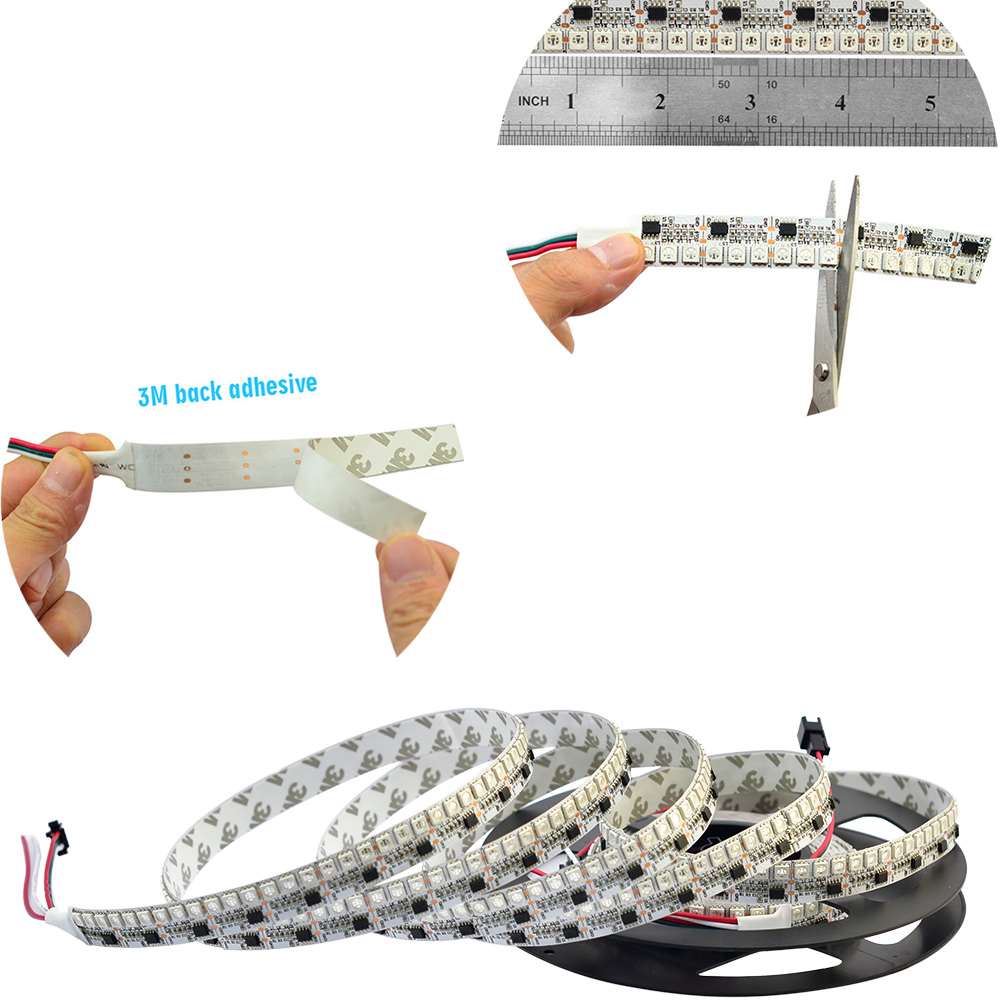

Installation Instruction
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
