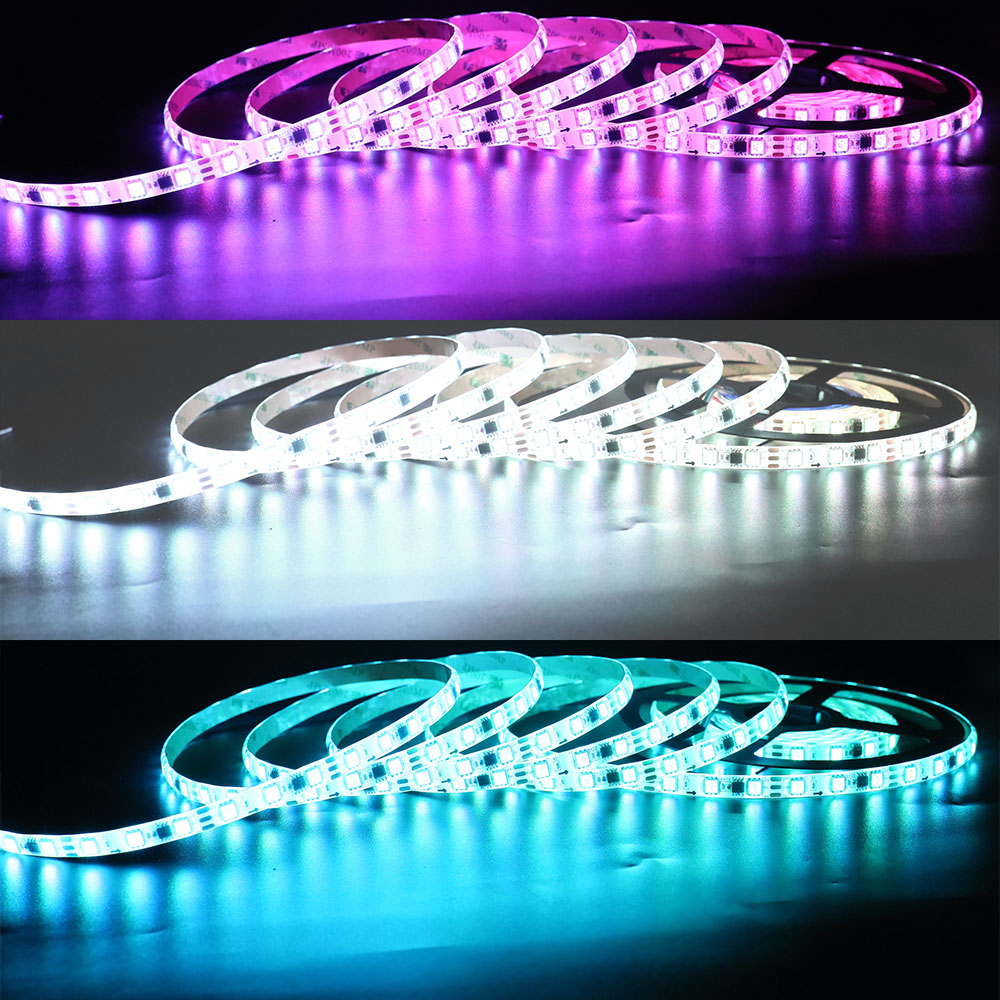

WS2811 DC12V IP65 Waterproof 1.64ft~16.4ft 18LEDs/Ft Full Color Chasing Flexible Addressable LED Strips
Related Products
WS2811 DC12V IP65...
$9.98 $2.4975% off
96W8A DC12V Plastic Shell...
$21.99
DC5-24V SP108E WiFi LED...
$21.99
SP601E LED Music...
$20.98 $12.9838% off
DC5-24V SP107E Wireless...
$16.98
SP602E SPI LED Music...
$22.98
Alexa SPI LED Controller...
$15.98-
Special Price: $9.98 $2.4975% off
Product Description

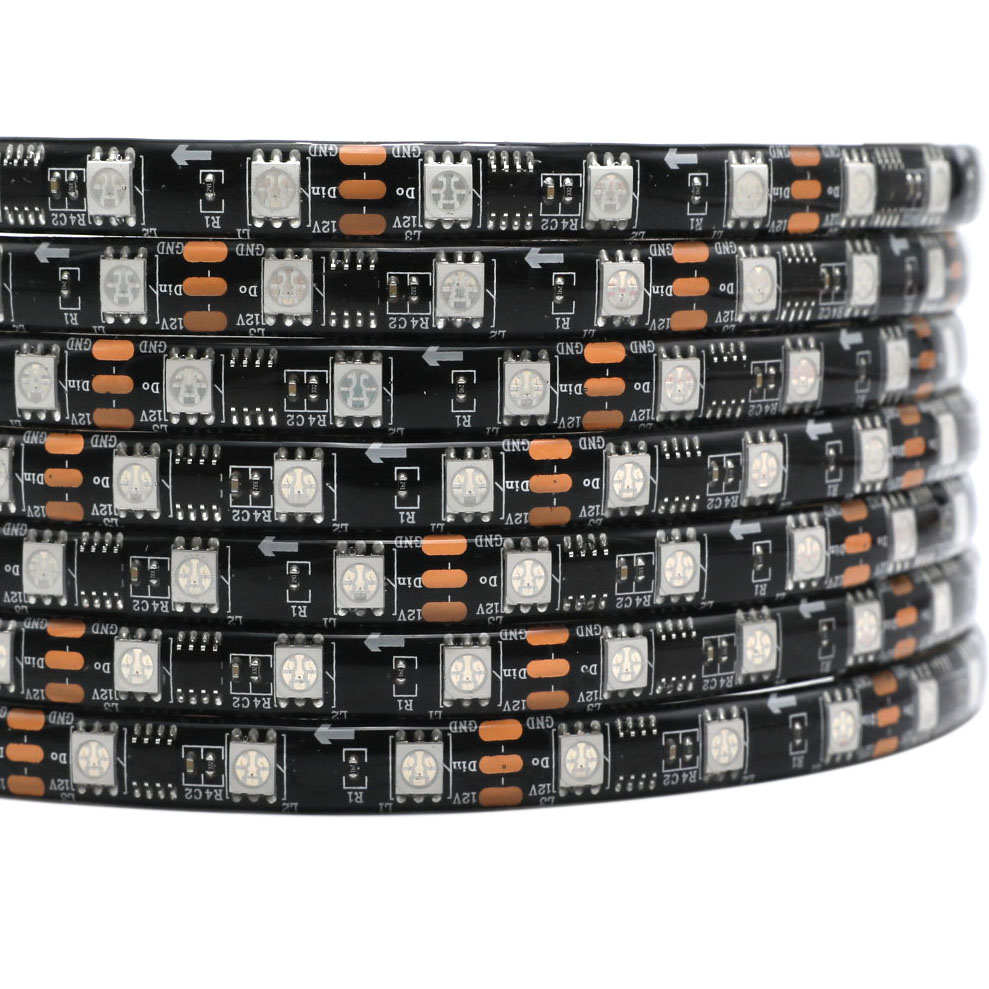

WS2811 LED package RGB LED chip and control circuit are contained in SMD5050 assembly, which contains intelligent digital port data latch and signal to shape amplifier drive circuit. Serial single-wire cascade interface, LED light strip accepts SPI controller input data, generates pulse width modulation signal, 256-level brightness adjustment output 16 million dynamic color chasing lighting effects, .
Built-in signal shaping circuit and power-on reset and power-down reset circuits (converting digital signals into analog signals), after the pixels are powered on and reset, the data is input at the DIN terminal, the first pixel IC stores the extracted data in the internal data latch, the remaining data is amplified by the internal shaping processing circuit and transmitted to the next pixel point, the number of pixel cascade is only affected by the signal transmission speed.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages.The input voltage of LED strip is DC12V, every 3LEDs can be cut, and you can customize the length of the LED light strip; the PCB surface is encapsulated with plastic gel to achieve IP65 waterproof effect, suitable for indoor environment, windproof, dustproof and splashproof. The back of the LED light strip uses high-quality 3M tape, which has strong adhesion and can be easily attached to the wall surface, and does not damage the wall structure, easy to install.
WS2811 Chips Specifications Download
-
Serial single-wire cascade interface
-
WS2811 addressable led strip light
-
DC12V low-voltage input
-
18LEDs/Ft, high brightness
-

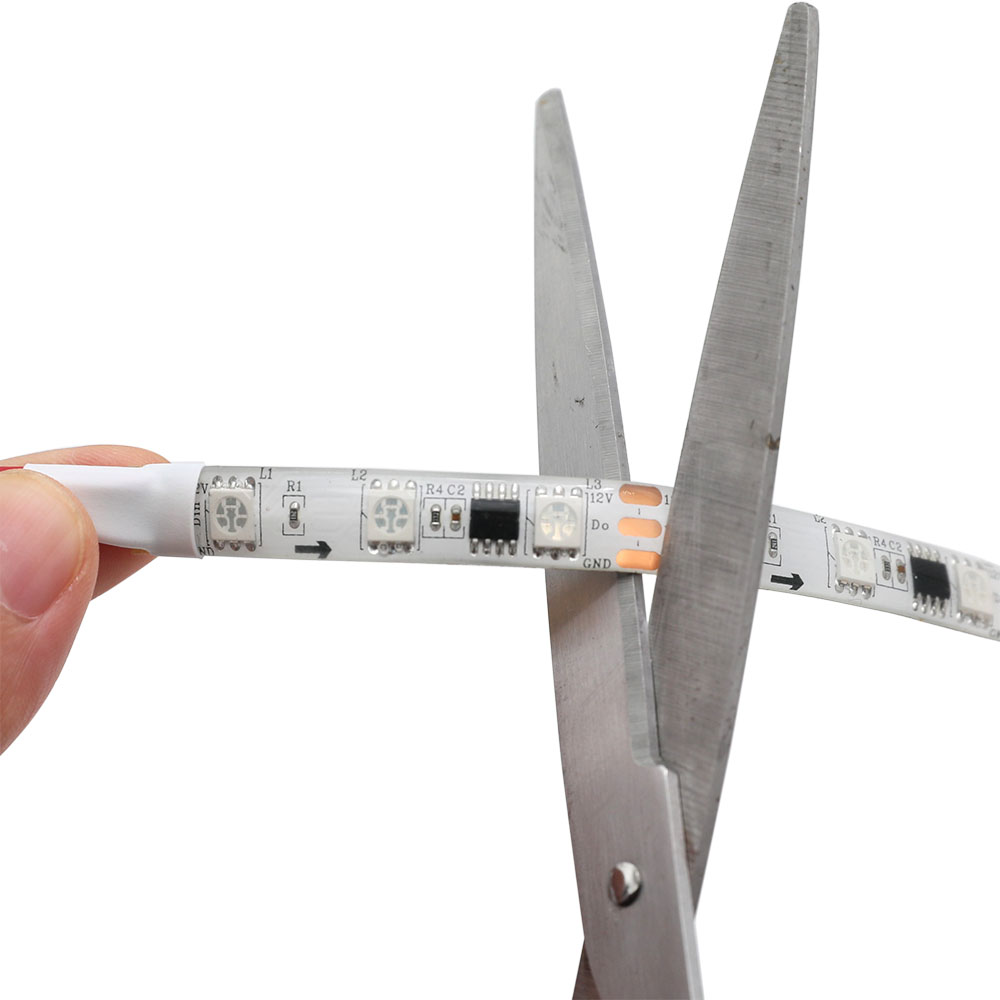

Every 3LEDs can be cut
-
256-level brightness adjustment
-

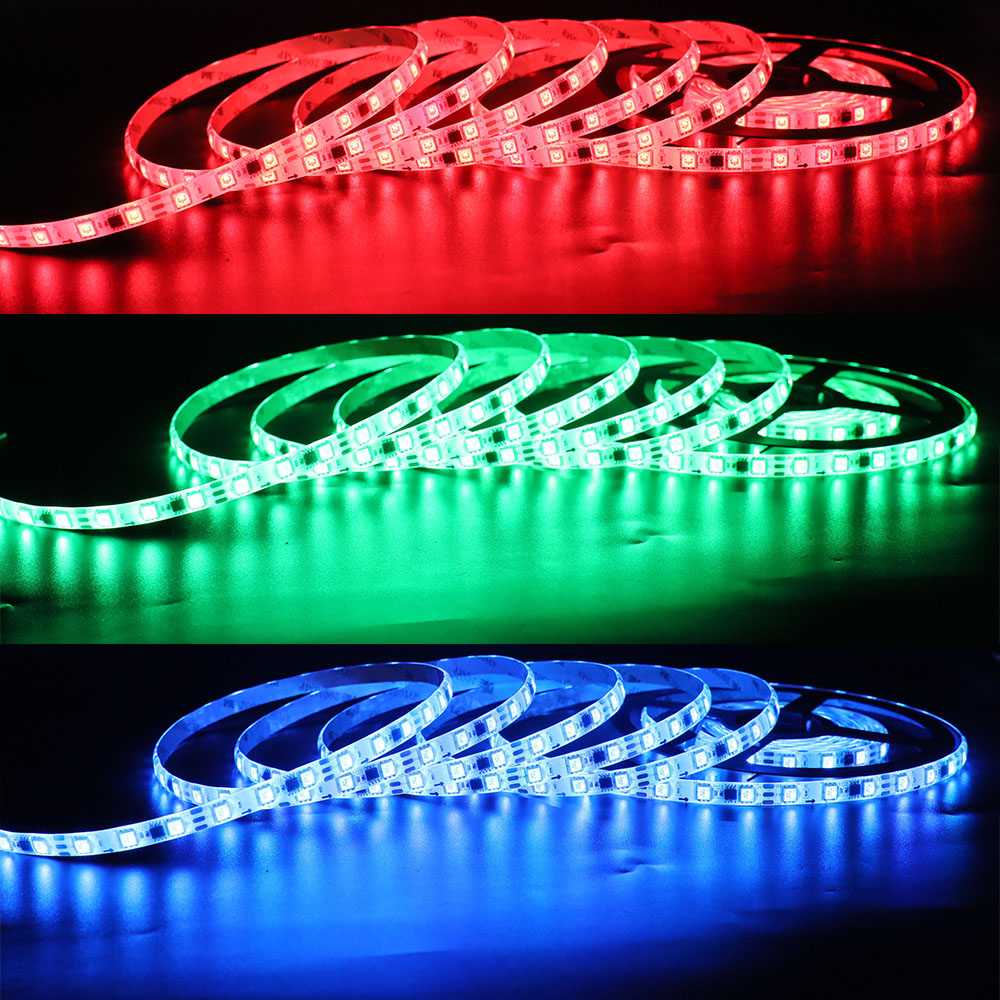

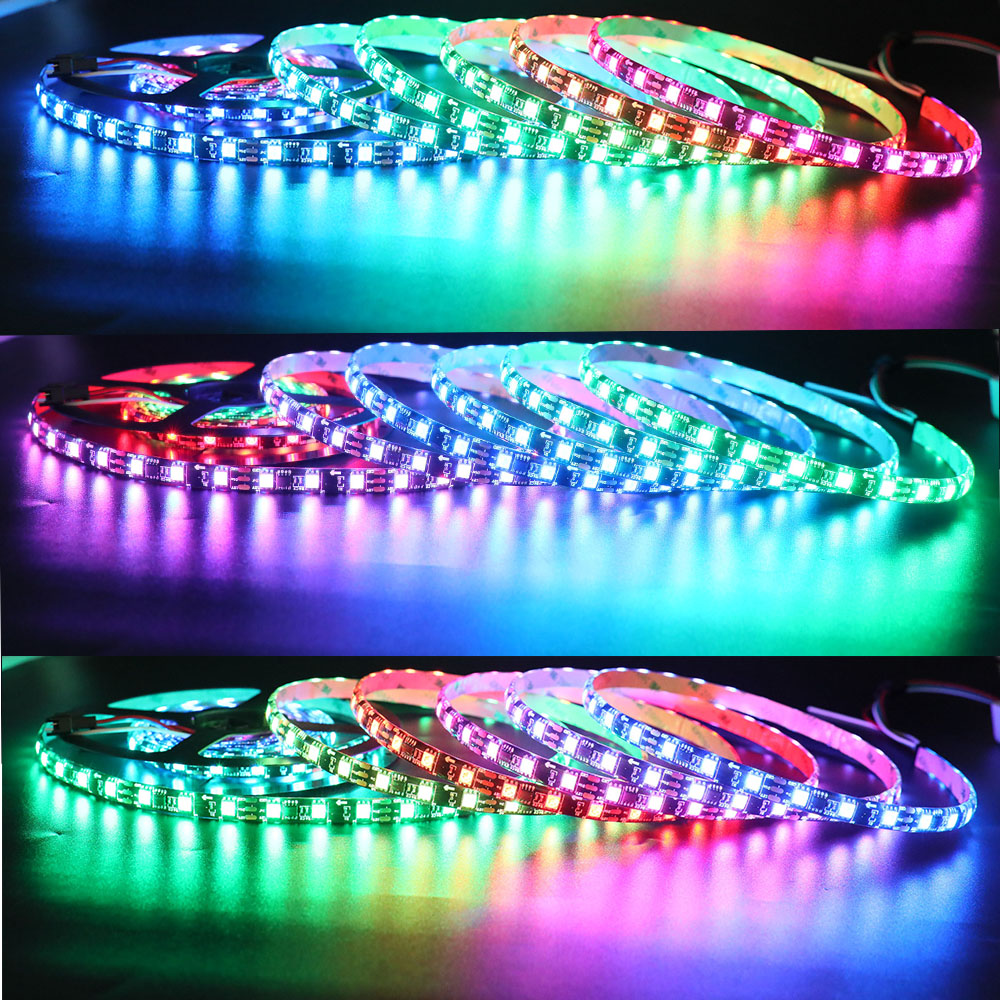

16 millions dynamic color chasing effect
-
IP65 Waterproof for indoor environment
-
Back with 3M tape, easy to install
Standards and Certifications
Product Specification

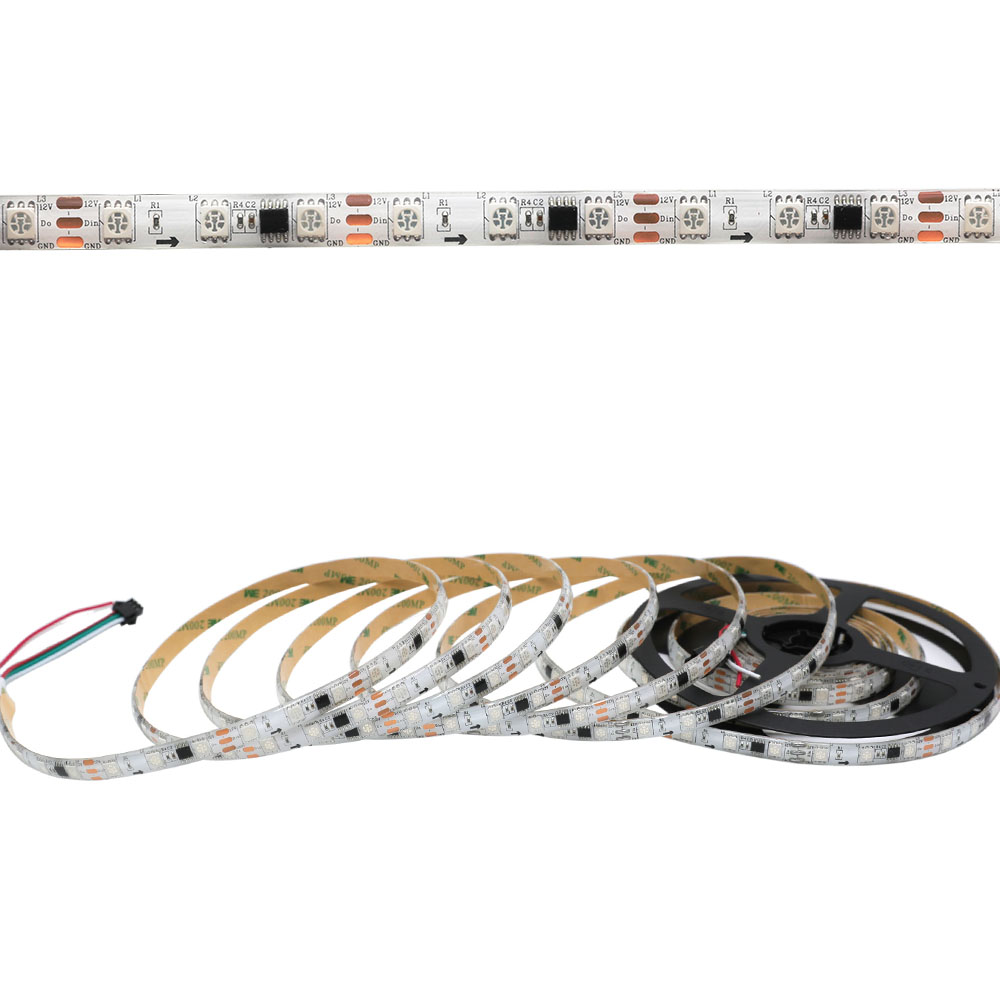

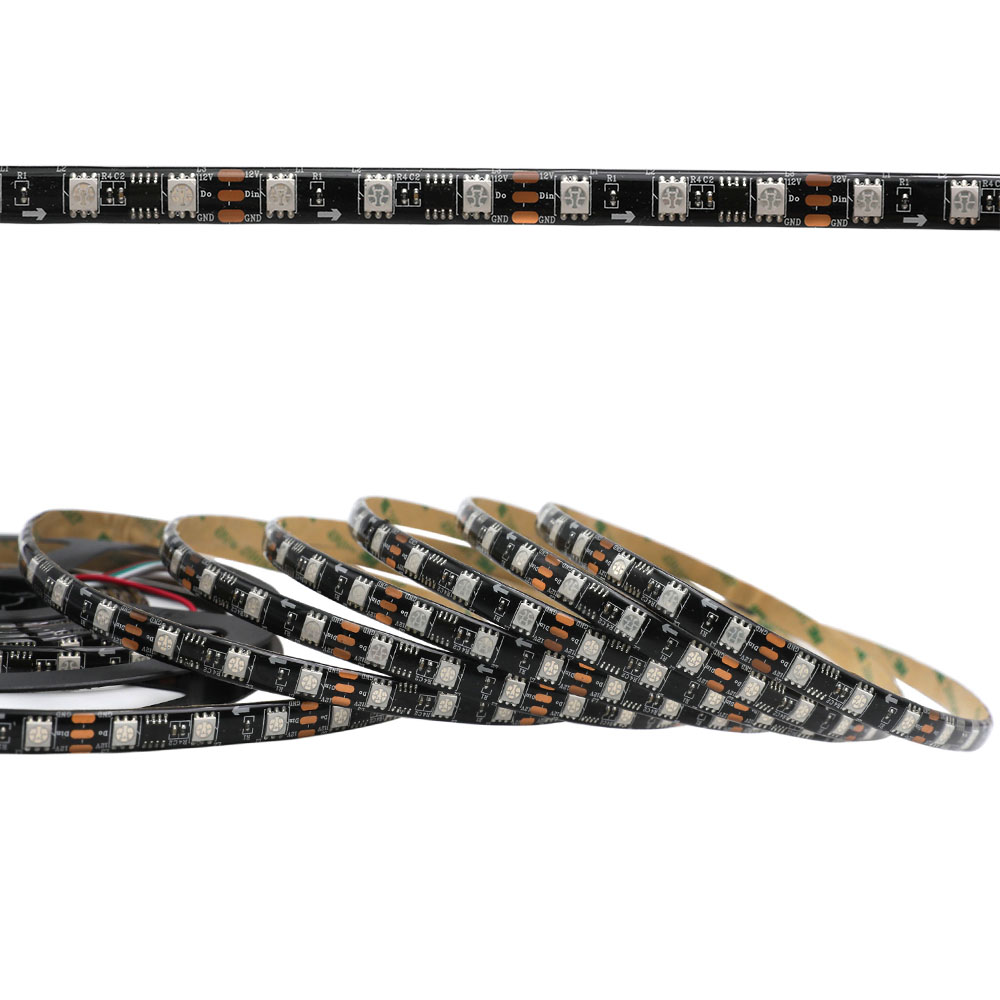

LED Strip Type: SMD 5050 DreamColor 300LEDs/16.4ft
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

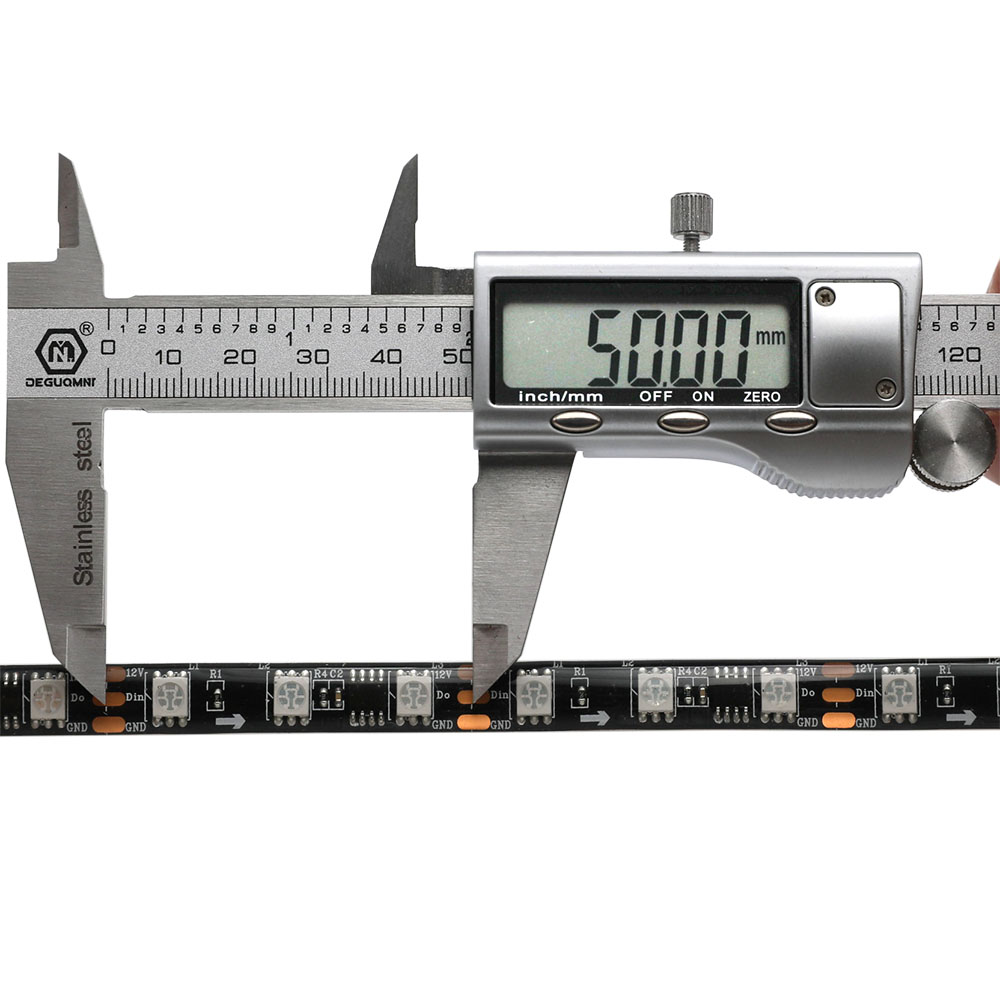

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 18LEDs/Ft; 60 LEDs per 1meter (3.28 ft)
IC Quantity: 20 ICs per 1meter (3.28 ft)
Lifespan: 50,000+hours
Warantty: 3 years

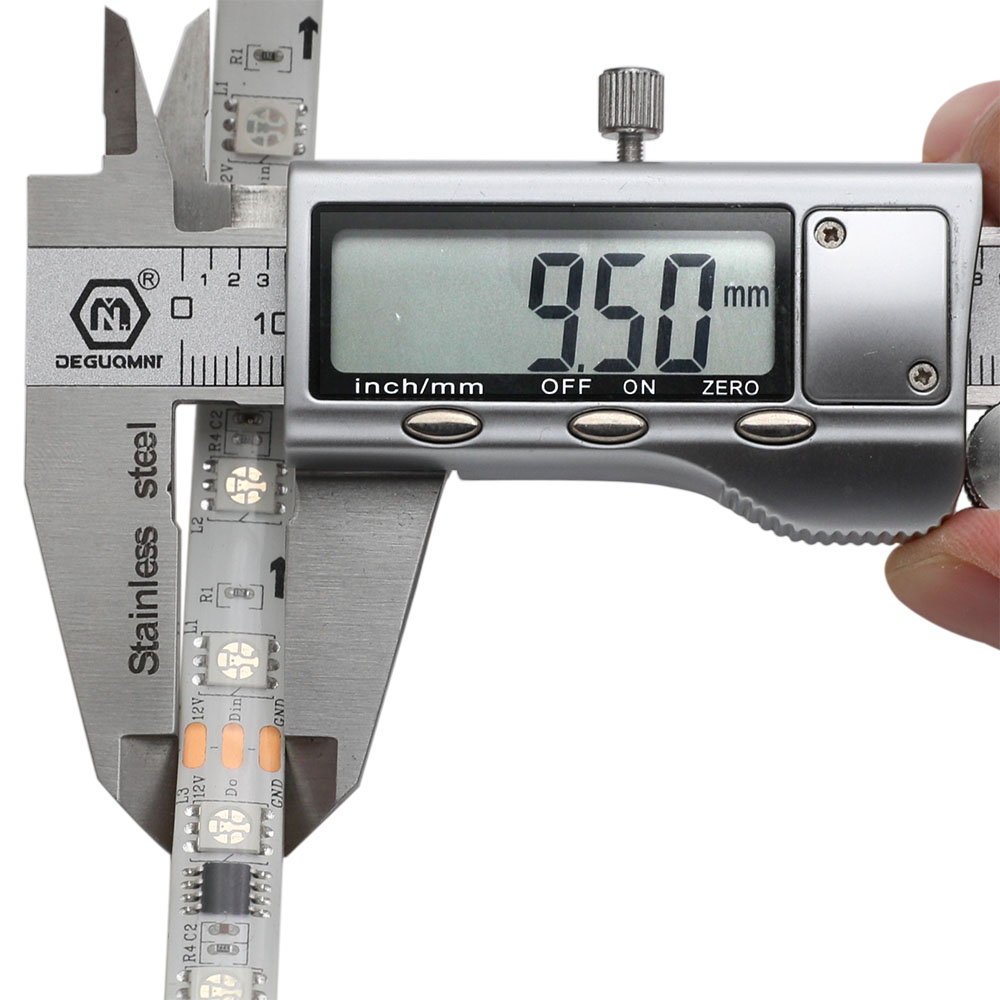

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12VDC
Working Power: 72W/16.4ft Max 14.4W/3.28ft
Lumen Per LED: 20~22Lumen 6600lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: IP65 Waterproof
Product List
1* 0.5m/1.64Ft IP65 Waterproof WS2811 18LEDs/Ft LED strip light(by default), you can choose the length of led strip light.
If you choose the LED controller in the kit, we will send you BWCDS-HCQ1-R28A4 (Which support smartphone APP control and works with Amazon Alexa and Google Assistant; you can also control the LED strip light by LED remote controller)
Note
Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
In order to ensure that you use this light strips in the process of the front and behind the light of the same brightness, please supply power at both ends of each roll led strip lights.
How to choose the correct LED power supply?
For 0.5m/1.64Ft LED strip light, the power of LED power supply is 7.2W, to avoid the power load, you need to choose 7.2*1.2=8.64W LED power supply.
For 1m/3.28Ft LED strip light, you need to choose 14.4*1.2=17.28W LED power supply.
For 2m/6.56Ft LED strip light, you need to choose 28.8*1.2=34.56W LED power supply.
For 3m/9.84Ft LED strip light, you need to choose 43.2*1.2=51.84W LED power supply.
For 4m/13.12Ft LED strip light, you need to choose 57.6*1.2=69.12W LED power supply.
For 5m/16.4Ft LED strip light, you need to choose 72*1.2=86.4W LED power supply.
For indoor environment, you can choose our DC12V LED Power Adaptor and DC12V Mean-Well UL-Listed LED Power Supply.
For outdoor environment, you can choose our DC12V Waterproof LED Power Supply and DC12V Mean-Well UL-Listed IP67 LED power supply.
Waterproof Level Description
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
Wiring Diagram
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
