Special Price: $15.98

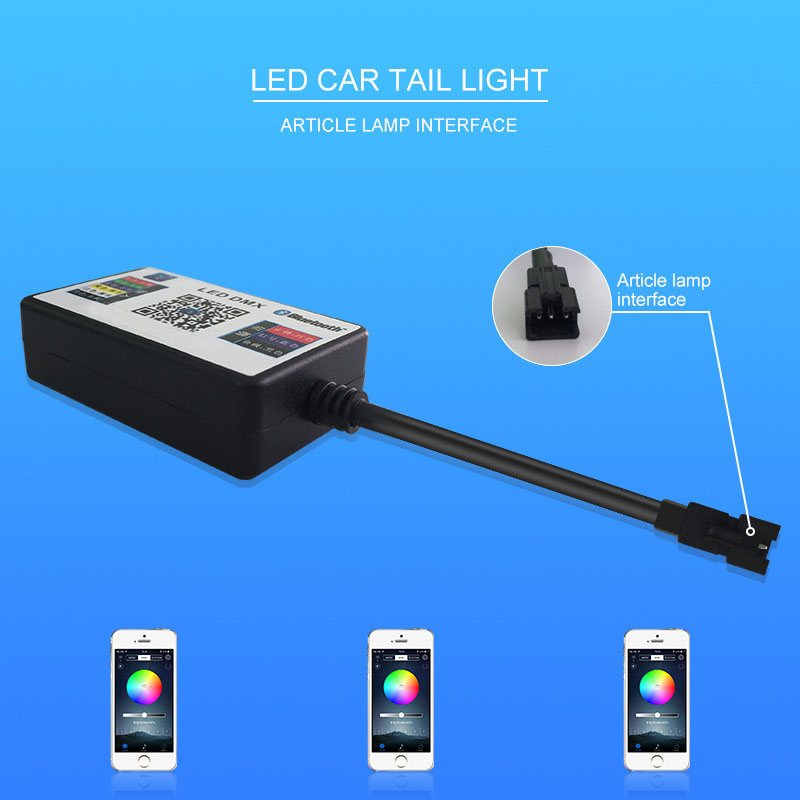

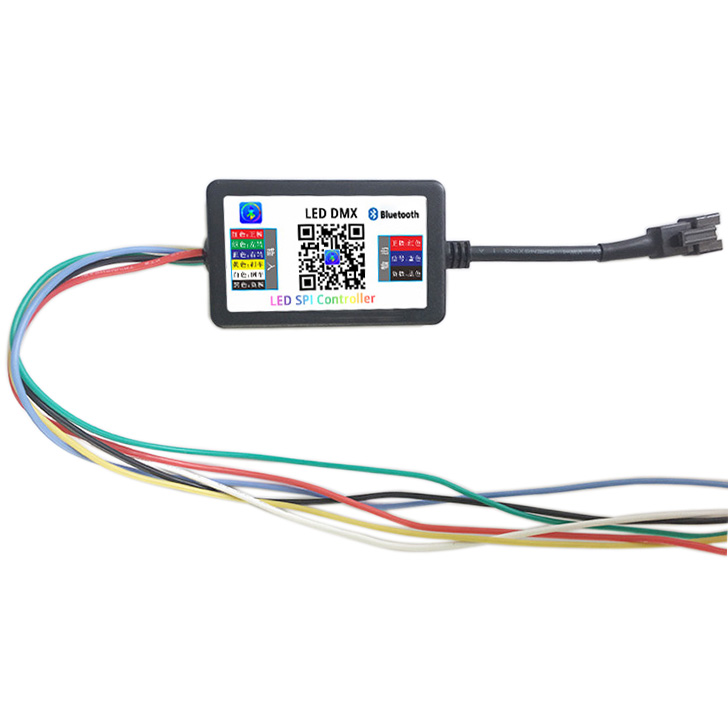

The JST connector Bluetooth controller for car LED light has only one output channel and supports WS2811 addressable led light strips. By connecting to Bluetooth, there is a mobile phone APP to achieve wireless control.

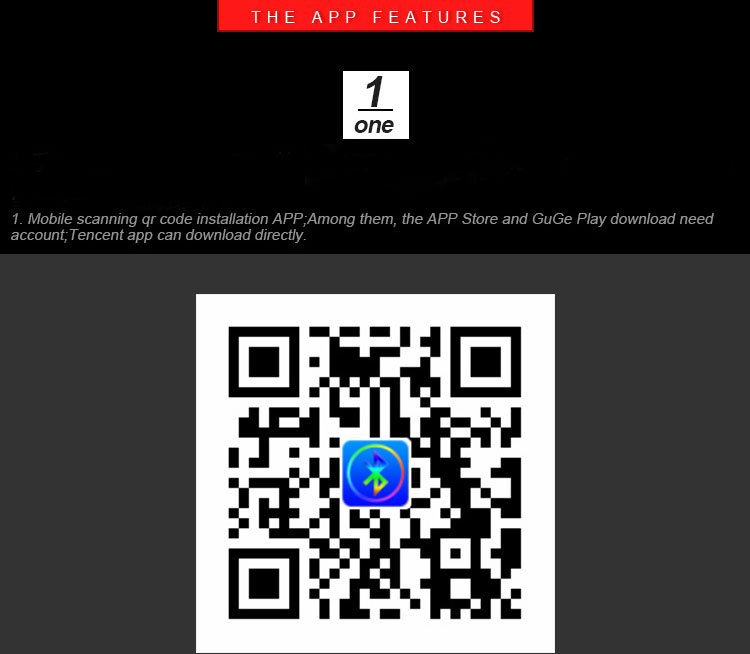

1. Scan the QR code on the Bluetooth controller with your mobile phone to download and install the APP.

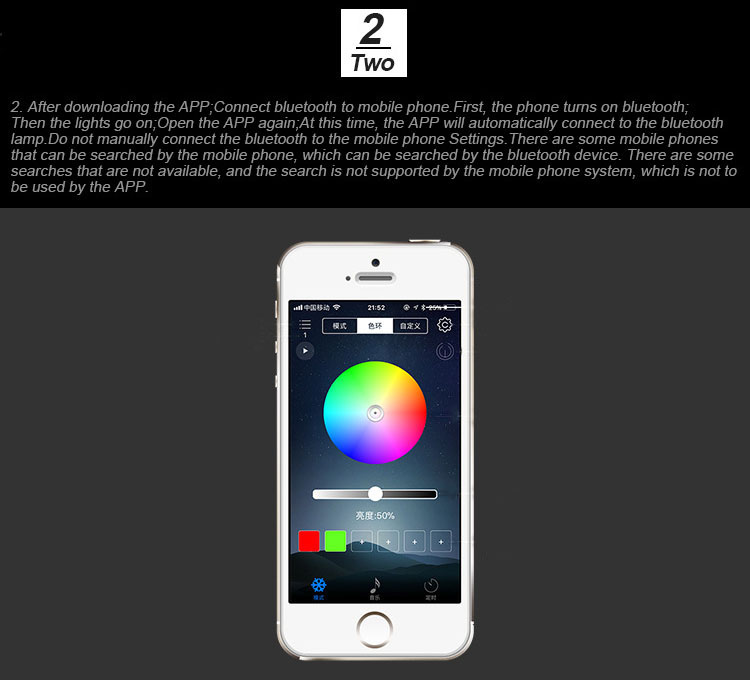

2. After downloading the APP, connect the phone to the Bluetooth LED lights.
First turn on the bluetooth of the mobile phone and connect the power supply to the LED strip. Open the APP again, and the APP will automatically connect to the Bluetooth lamps. Do not manually connect to Bluetooth at the phone settings. Some mobile phones can search for Bluetooth devices, and some cannot search for Bluetooth devices. If the search fails, the mobile phone system does not support it, and it does not mean that the APP cannot be used.

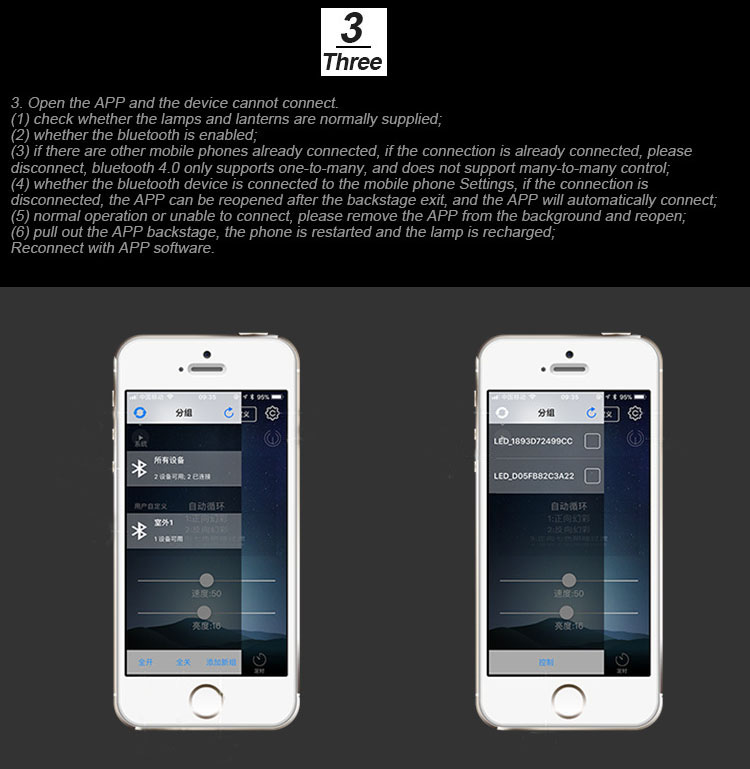

3. Open the APP, the device cannot be connected, please check the following conditions:
1) Whether the LED lights are powered.
2) Whether Bluetooth is turned on.
3) Whether there are other mobile phones connected, if they are connected, please disconnect, Bluetooth 4.0 only supports one-to-many, not many-to-many control.
4) If you still can't connect under normal operation, please exit the APP and restart it or restart the phone, power on the lamp again, reopen the APP and connect again.
Specification
Voltage: DC12V
Support IC: WS2811

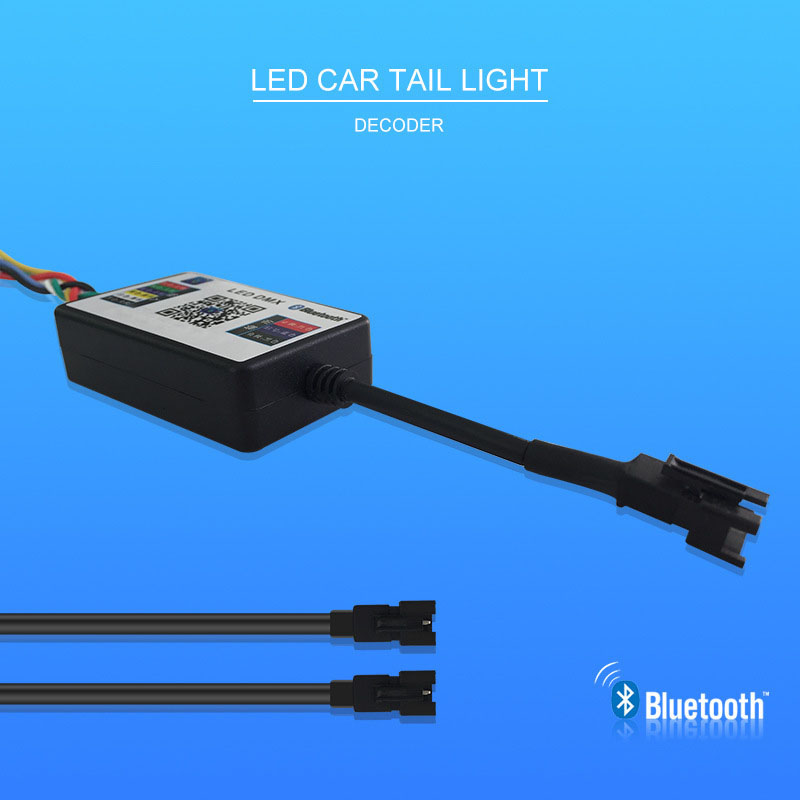

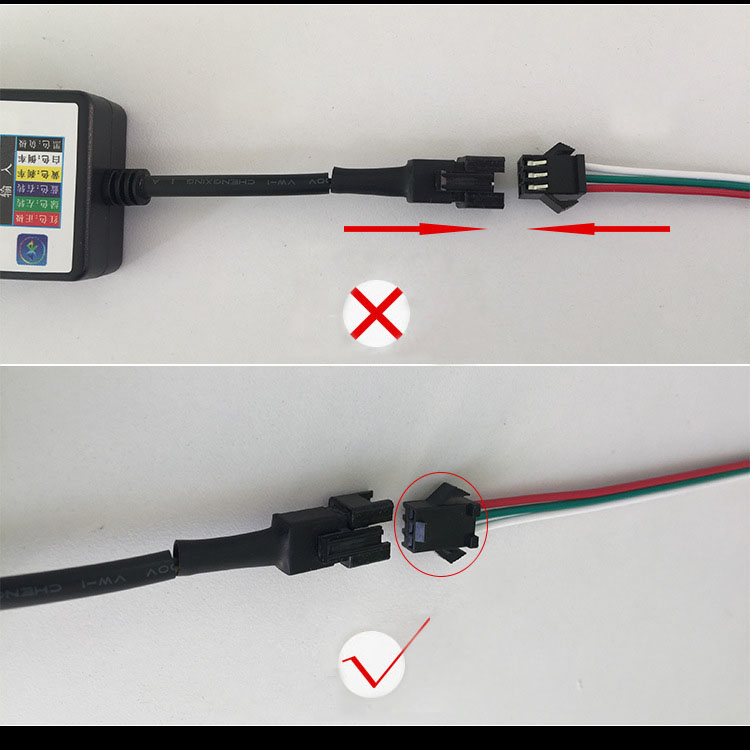

Connector: JST
Output: 1 Channel
Working Temperature: -20~60℃
Control Mode: APP(iOS or Android)
APP Control Distance: 15meters/49.2ft

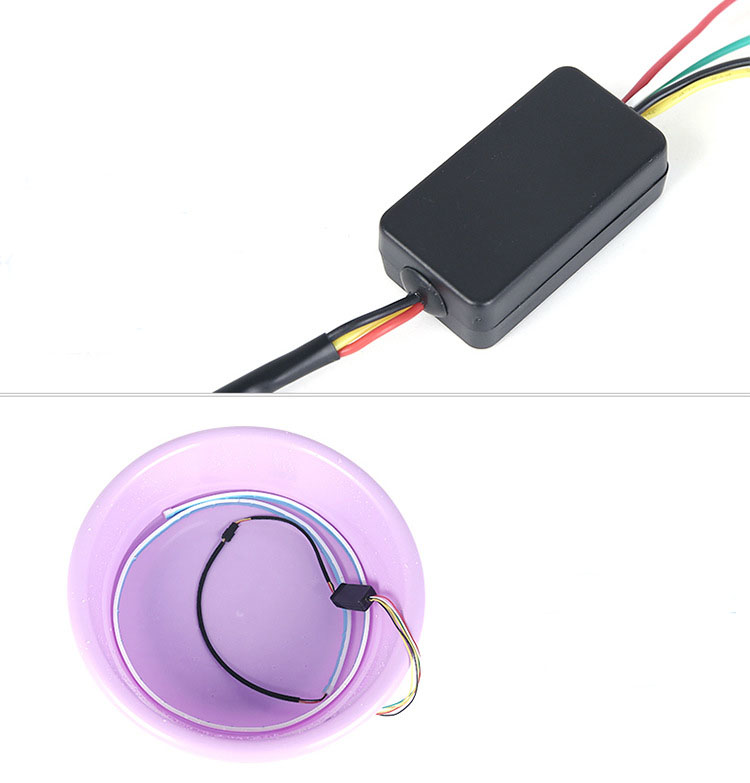

Waterproof: Non-waterproof

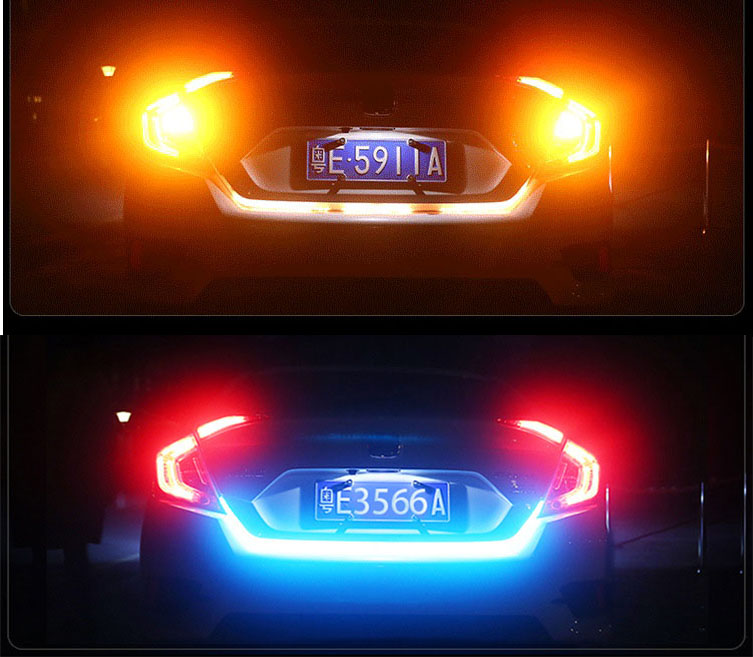

Control Mode

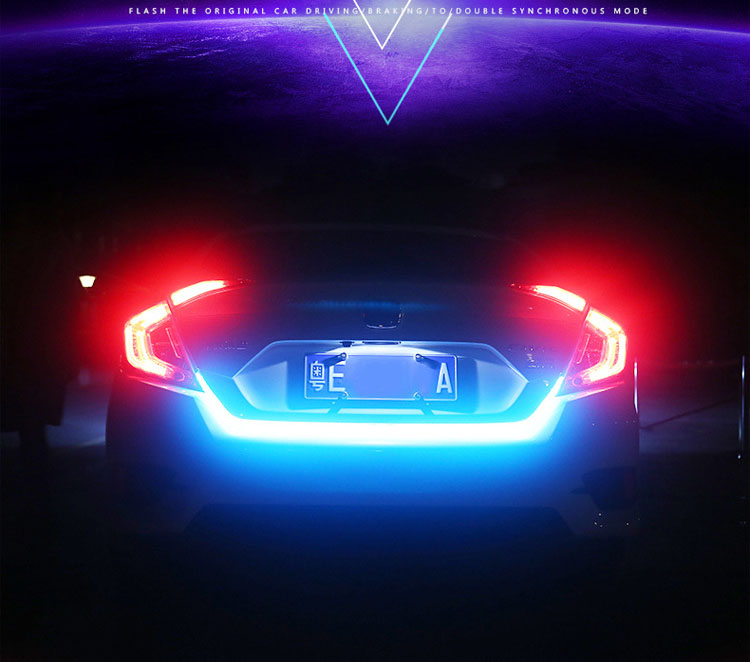

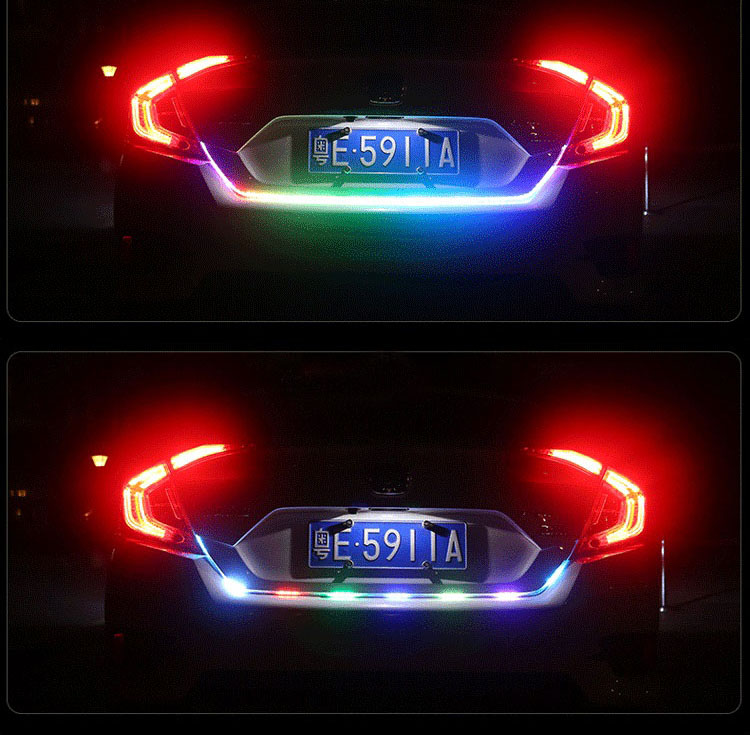

| Driving brake steering double flash original car synchronization mode | |
| Driving mode | Mobile phone + Remote control 210 modes + Custom control at will |
| Brake mode | Red light is always on |
| Turn left | Yellow light flows from right to left |
| Turn right | Yellow light flows from left to right |

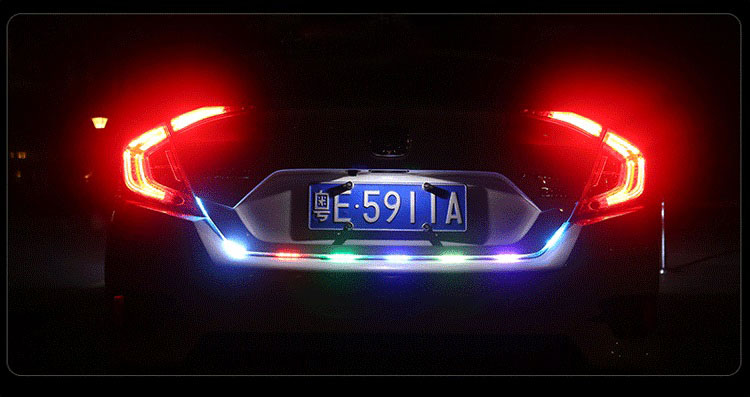

| Reversing mode | Red, green and blue flashes |
| Double flash mode | Colorful pull screen |

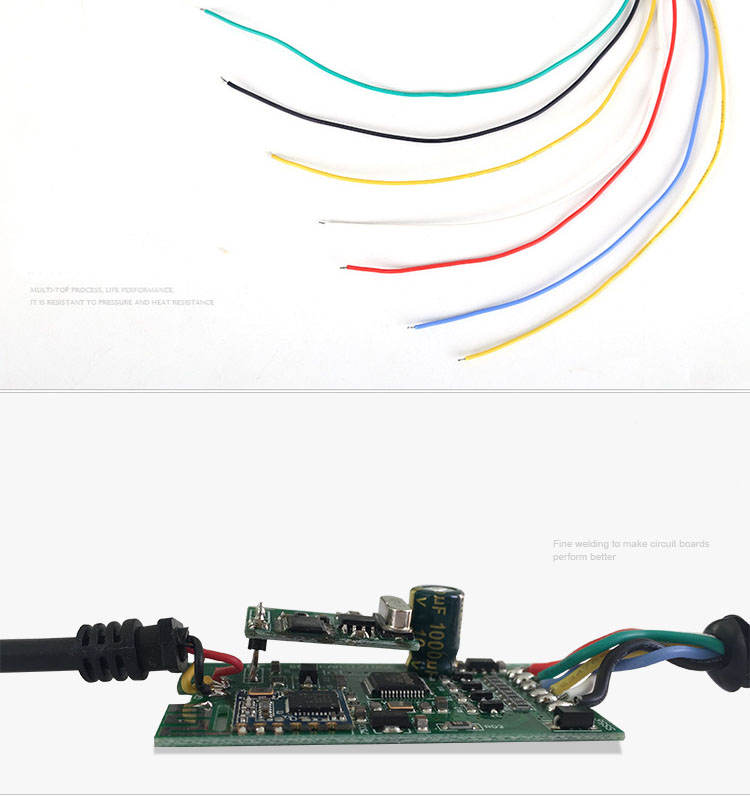

Wiring
| Input | Output | ||
| Red | Positive electrode | Red | Positive electrode |
| Black | Negative electrode | Blue | Signal |
| Green | Turn left | Black | Negative electrode |
| Blue | Turn right | ||
| Yellow | Brake | ||
| White | Reversing | ||
