Special Price: $23.98 $14.9838% off
1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Addressable LEDs allow for sequencing modes. Flexible LED light strip with 300 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 5m(16.4ft) or 10meter(32.8ft), or 20meter(65.6ft)Per Reel By Sale.
2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC24V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

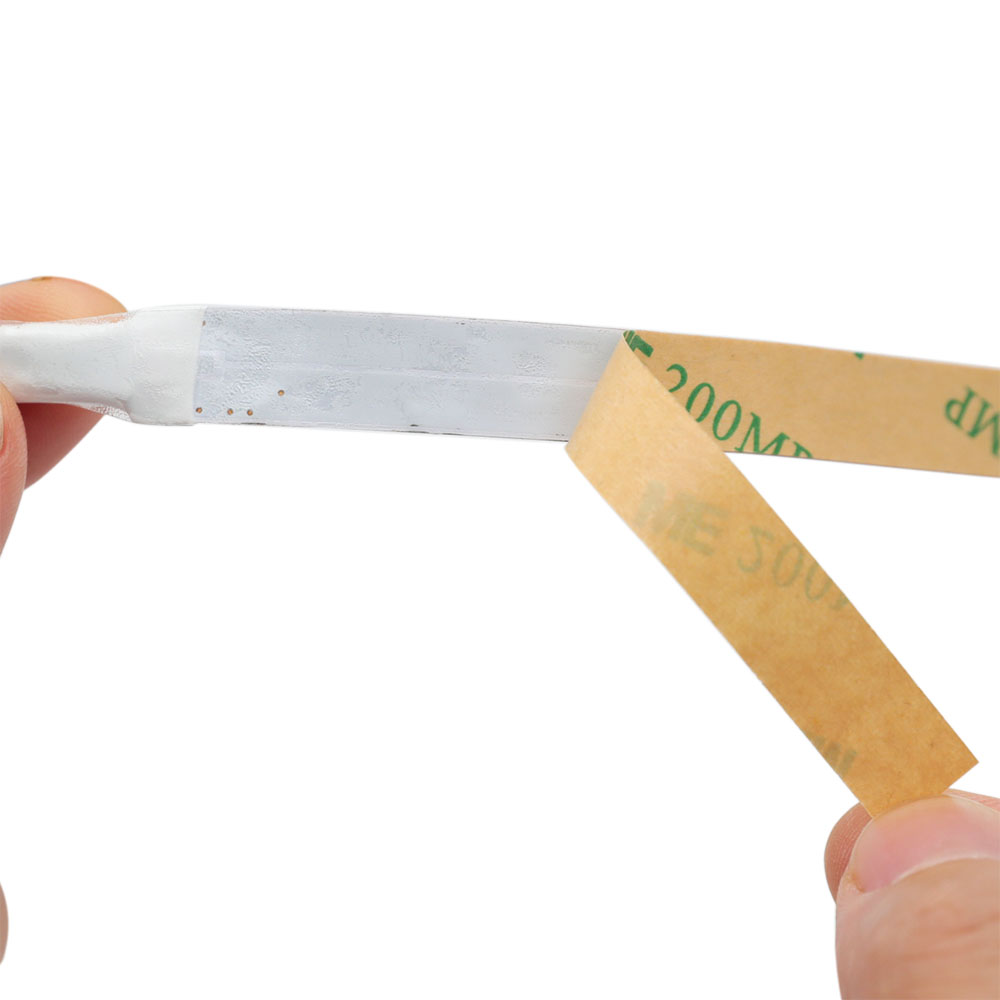

3. This strips soft and easy bent for installation. Available in 5meters(197in) or 10 meters (394 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere, can be cut into 6-LED segments, so you could cut a different length for your project and request.
4. The led strip has low light decline and long lifespan，LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
5. The 24VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.
6. The WS2811 chip has a built-in 1.2mhz high-speed 7-bit PWM for each channel - meaning it can provide each LED with 21-bit color (in a way that is easier to recognize than the eyes). Once the LED brightness level is set, your microcontroller can turn off and perform other operations without constant updates.

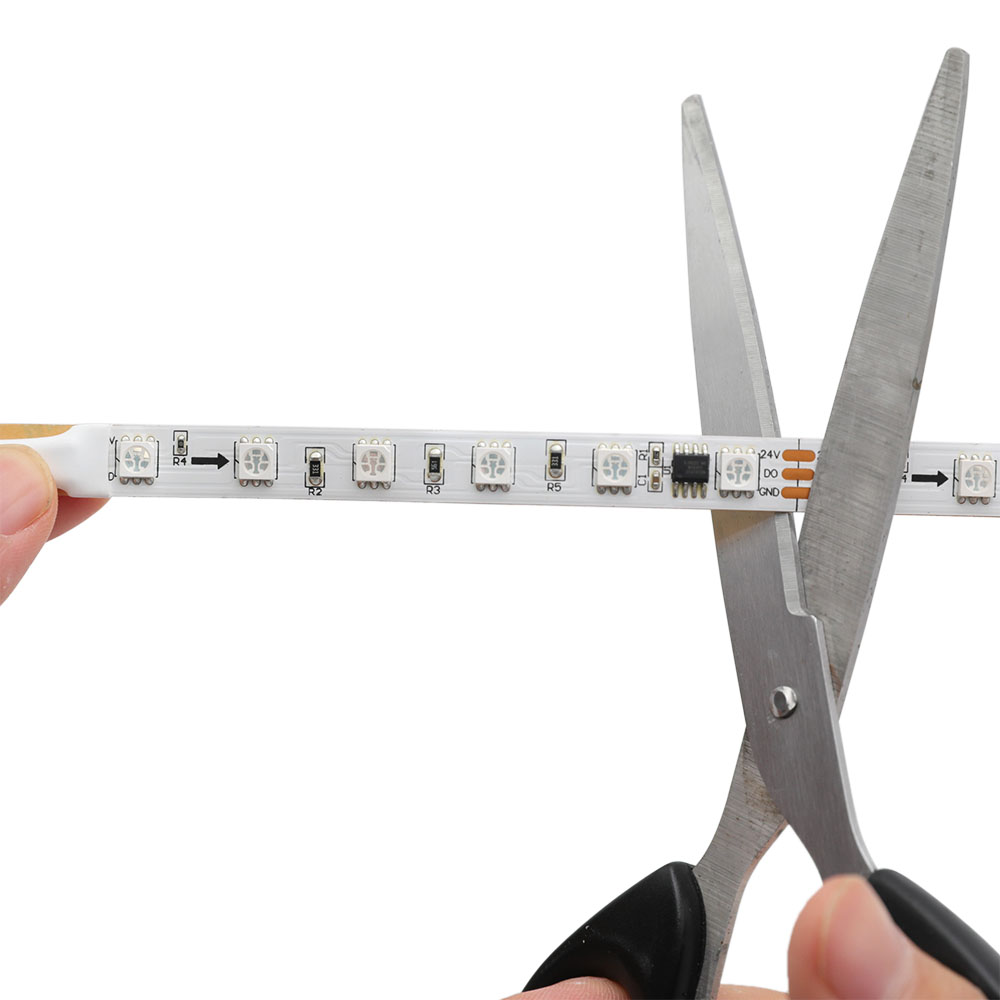

7. It comes with a 3-pin connector and a separate power/ground wire at each end. Each 6 LED can be cut without damaging the rest of the strip. If desired, you are free to shorten, lengthen, or bend it.
Please not: The Waterproof IP68 versoin only have 5m/16.4ft per roll. If order 10m or 20m roll, we will send you two rolls of 5m or 4 rolls of 5m, and there will be the price difference exist. If you have any questions, please feel free to contact us.
WS2811 Chips Specifications Download
Standards and Certifications
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
