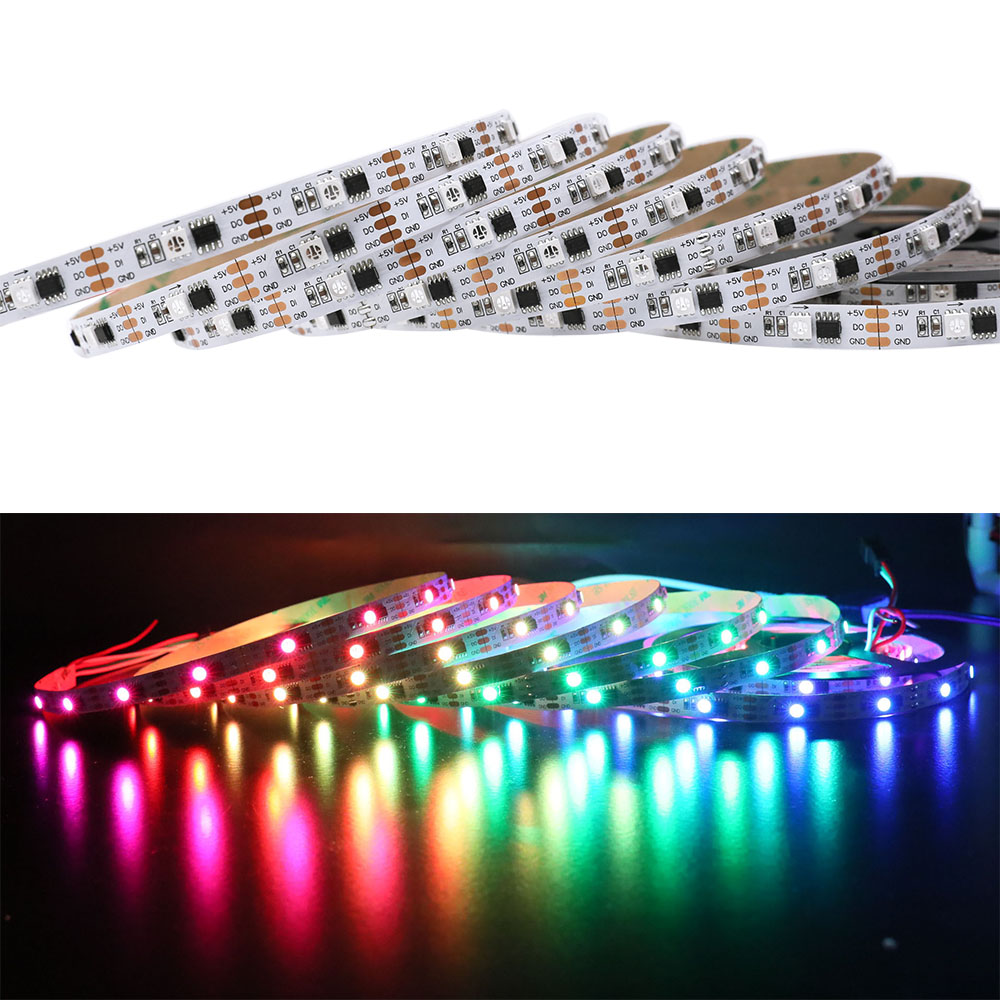

WS2811 DC5V 150LEDs Full Color Chasing Digital Addressable Flexible LED Strips
Feature

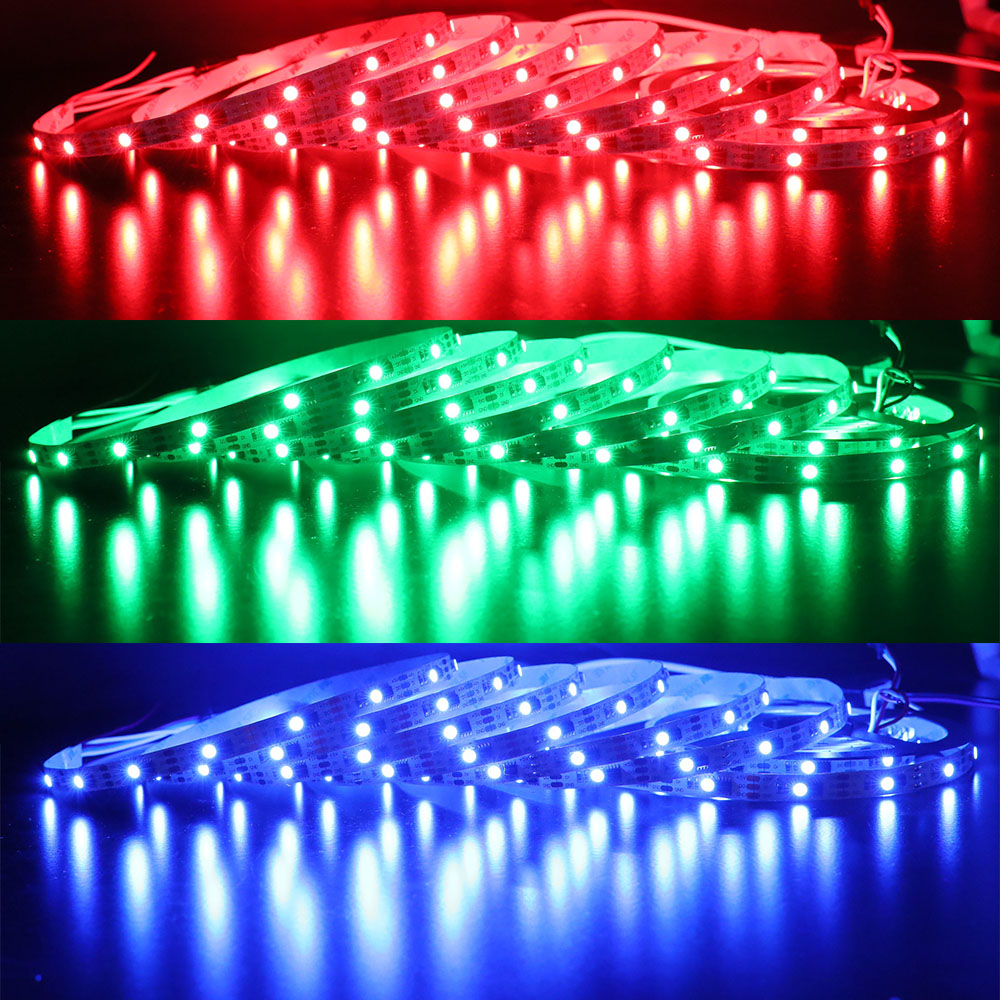

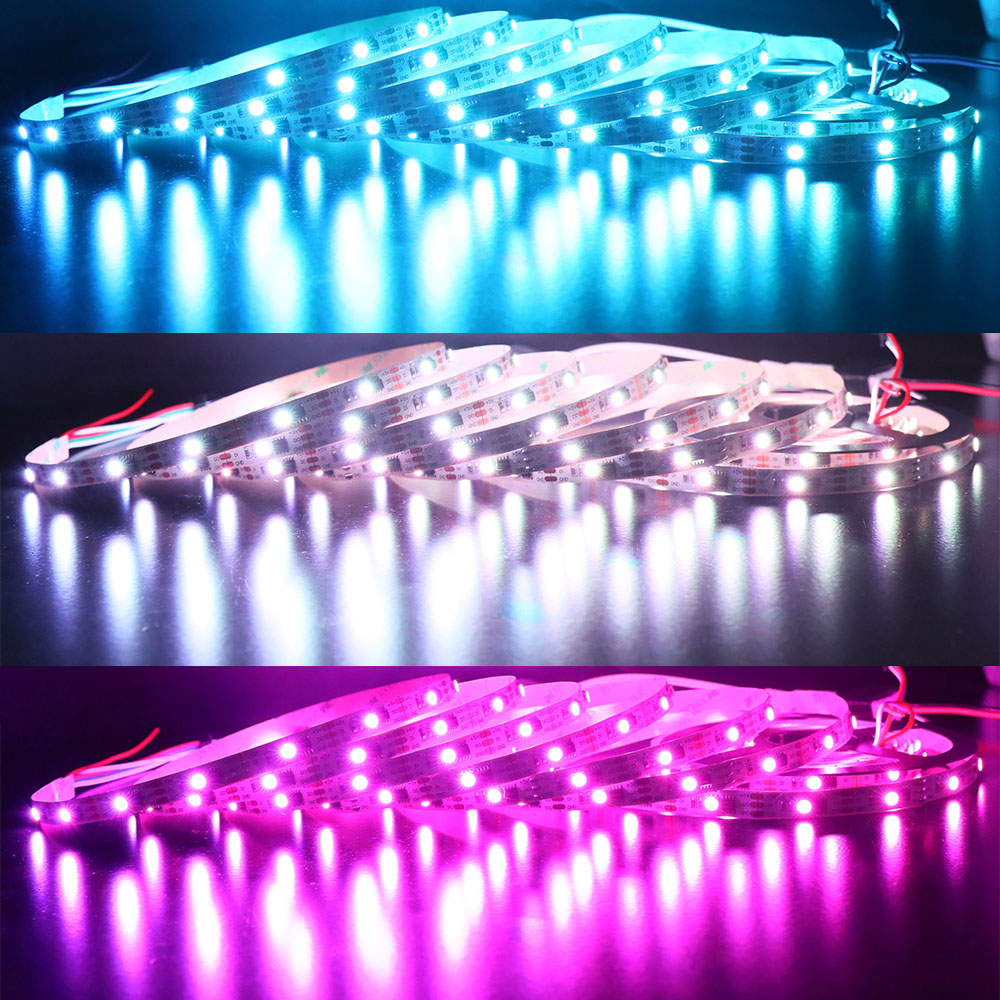

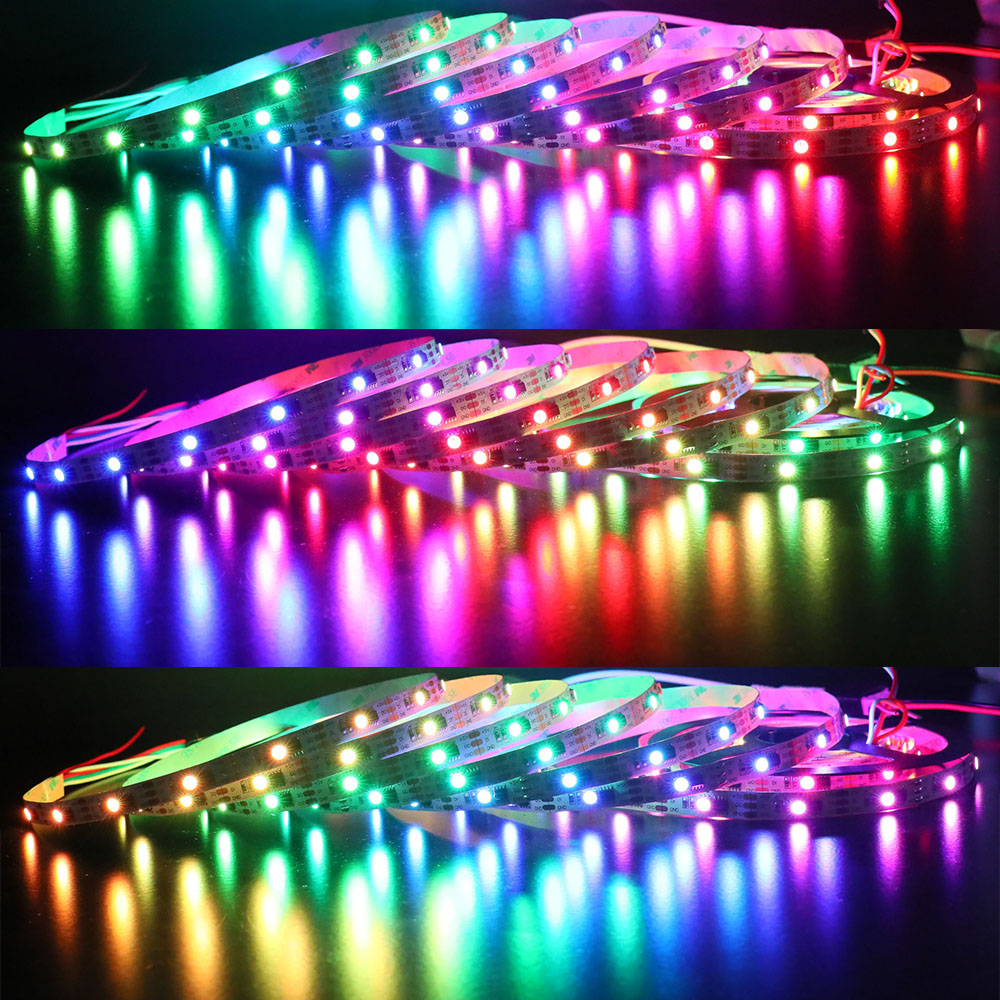

1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Flexible LED light strip with 150 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC, low voltage DC5V, 5meter(16.4ft) Per Reel By Sale.
2. These LED strips are flexible and easy to bent for installation. Available in 5 meters (196.8 in) light strips with adhesive backing and can be stuck anywhere (except IP67/IP68 type which will come with mounting brackets). Each LED can be cut, so you can cut a different length for your projects.
3. The led strip has low light decline and long lifespan, LED with low driving voltage, environmental protection, and energy-saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages.

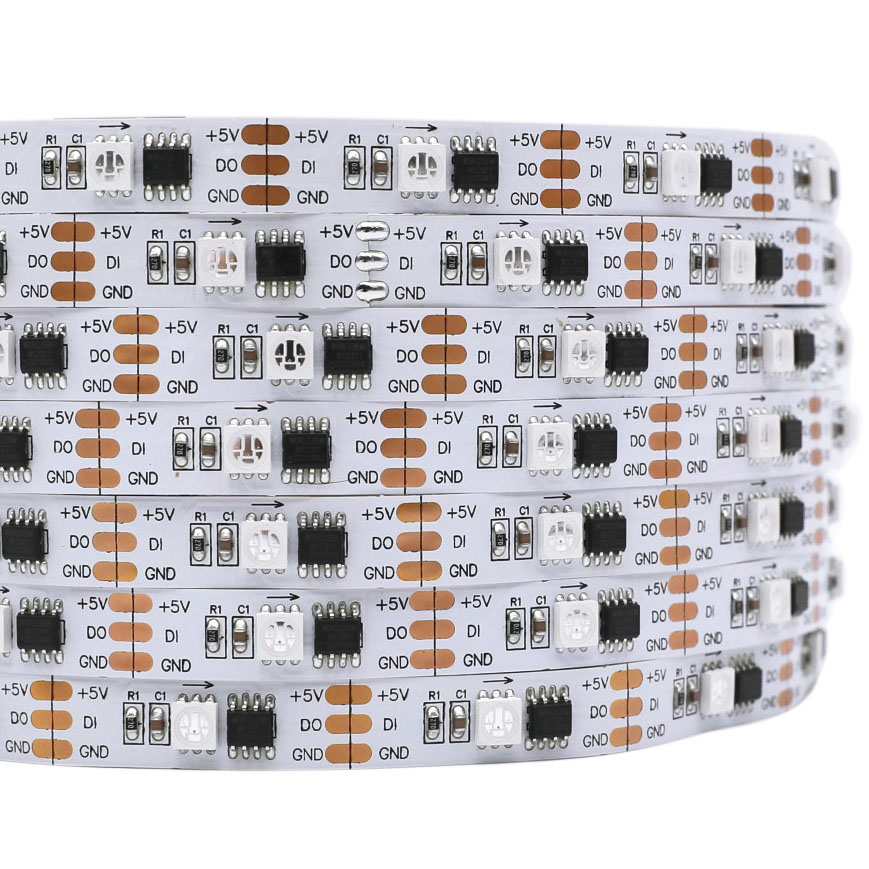

4. One IC controls one LED to form a circuit (a group). The controller controls the circuit in the FPCB by controlling IC, so as to control the different effects of LED strip lights.
WS2811 Chips Specifications Download
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

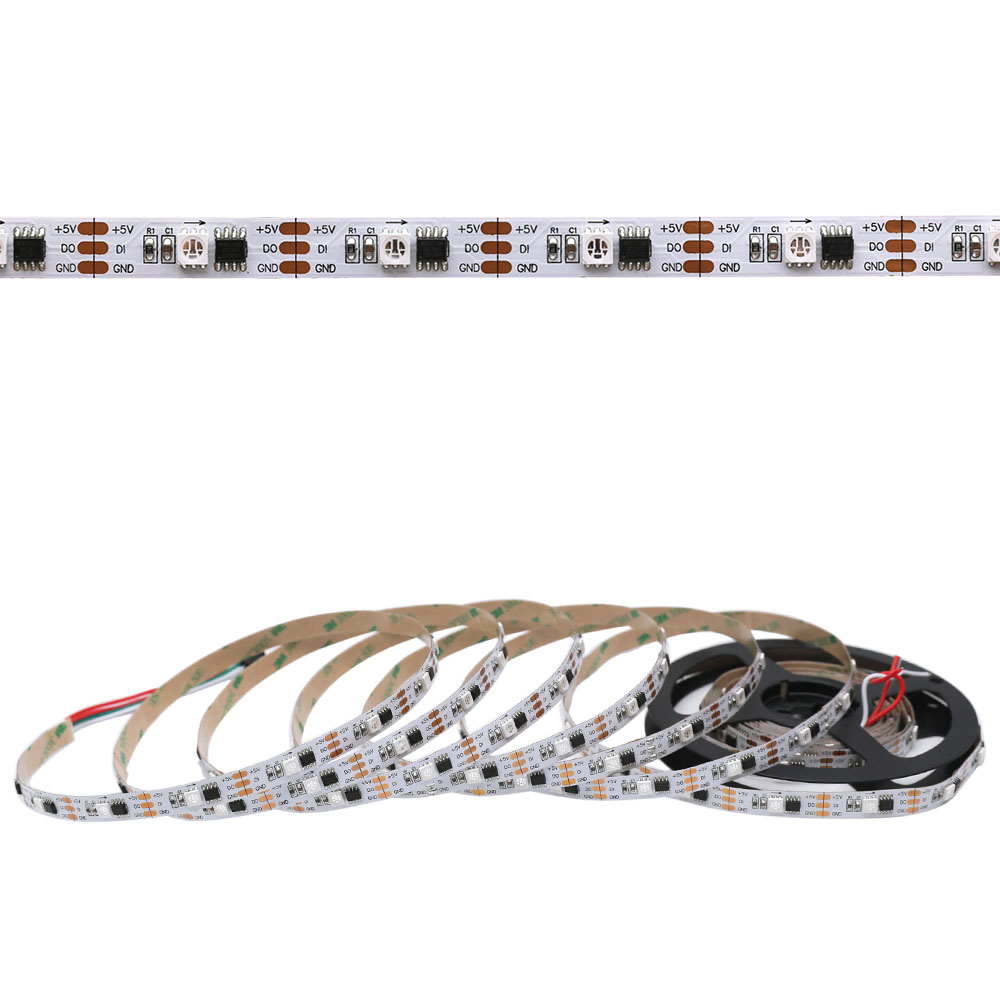

Dimension: 16.4ft/roll, every LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)
IC Quantity: 30 IC per 1meter (3.28 ft)

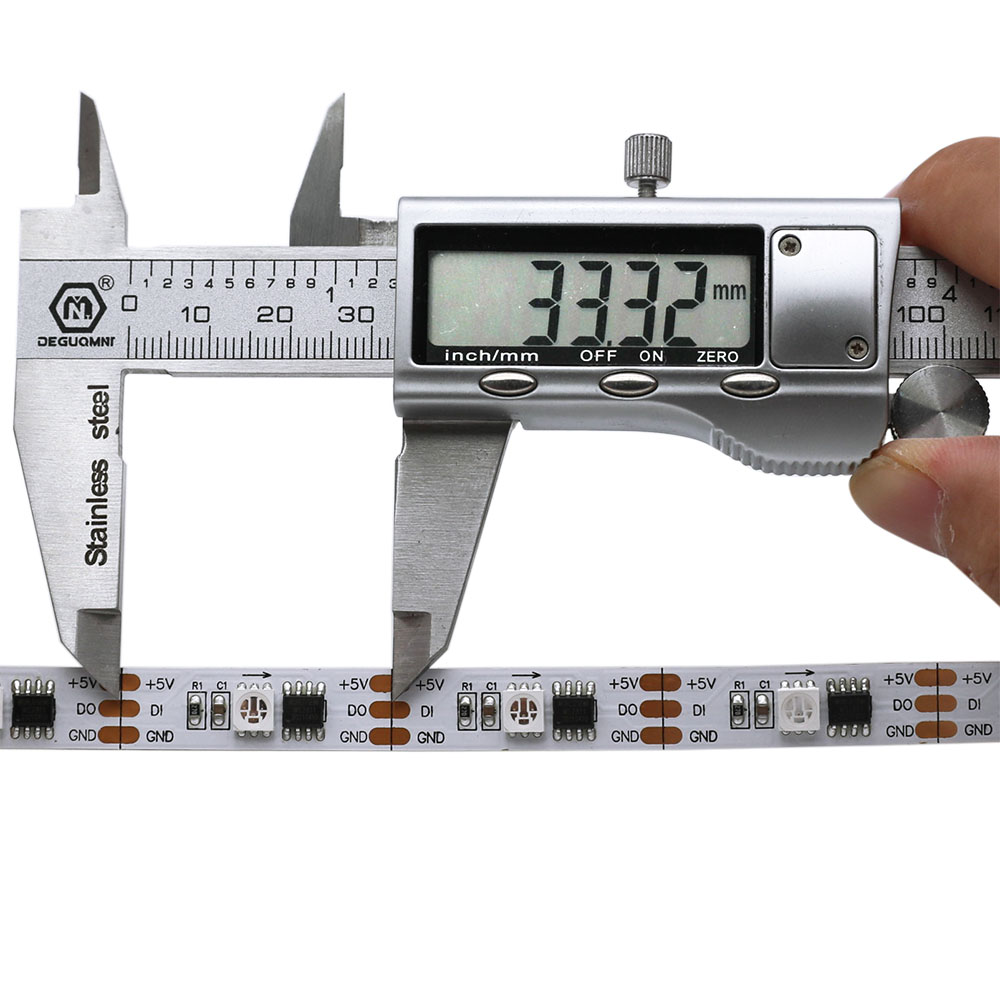

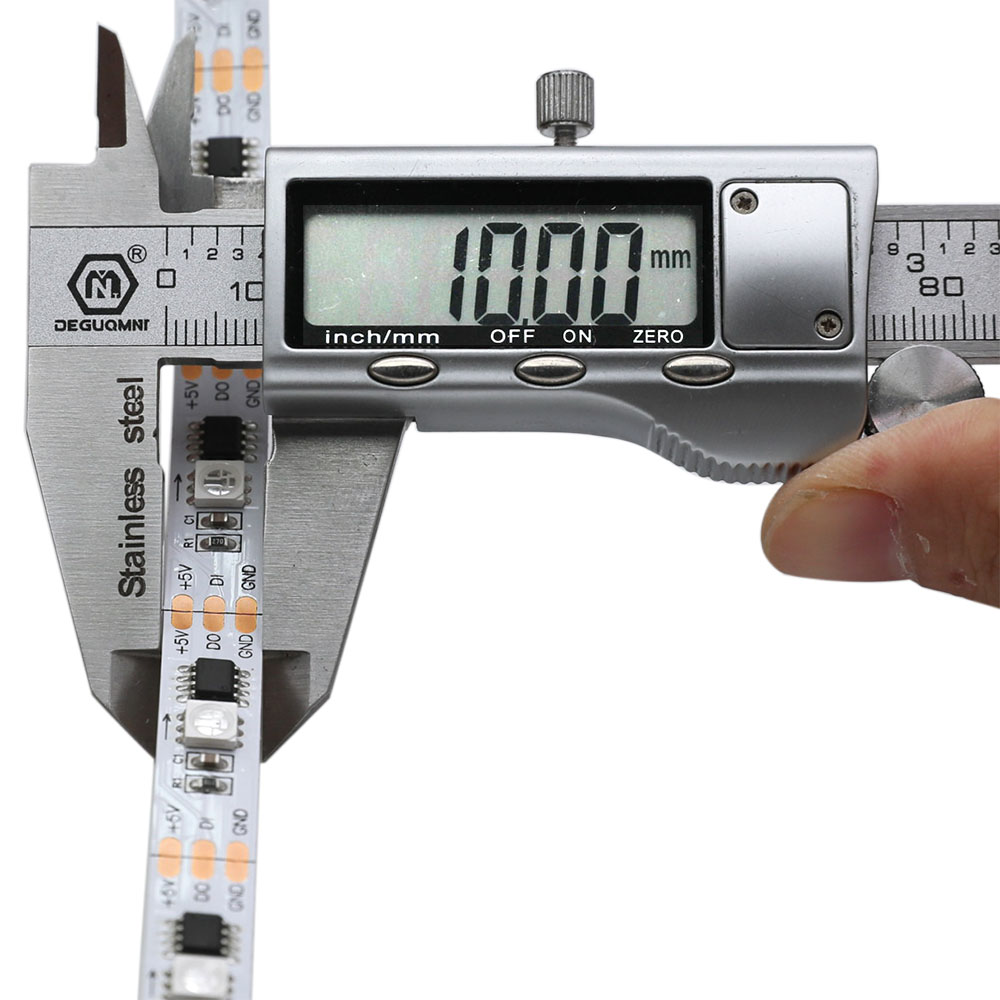

Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 5VDC
Working Power: 45W/16.4ft Max
Lumen Per LED: 20~22Lumen 3300lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
WaterProof: Non-waterproof IP20, Waterproof IP65, IP67
Lifespan: 50,000+hours
Warantty: 3 years
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
Installation Instruction

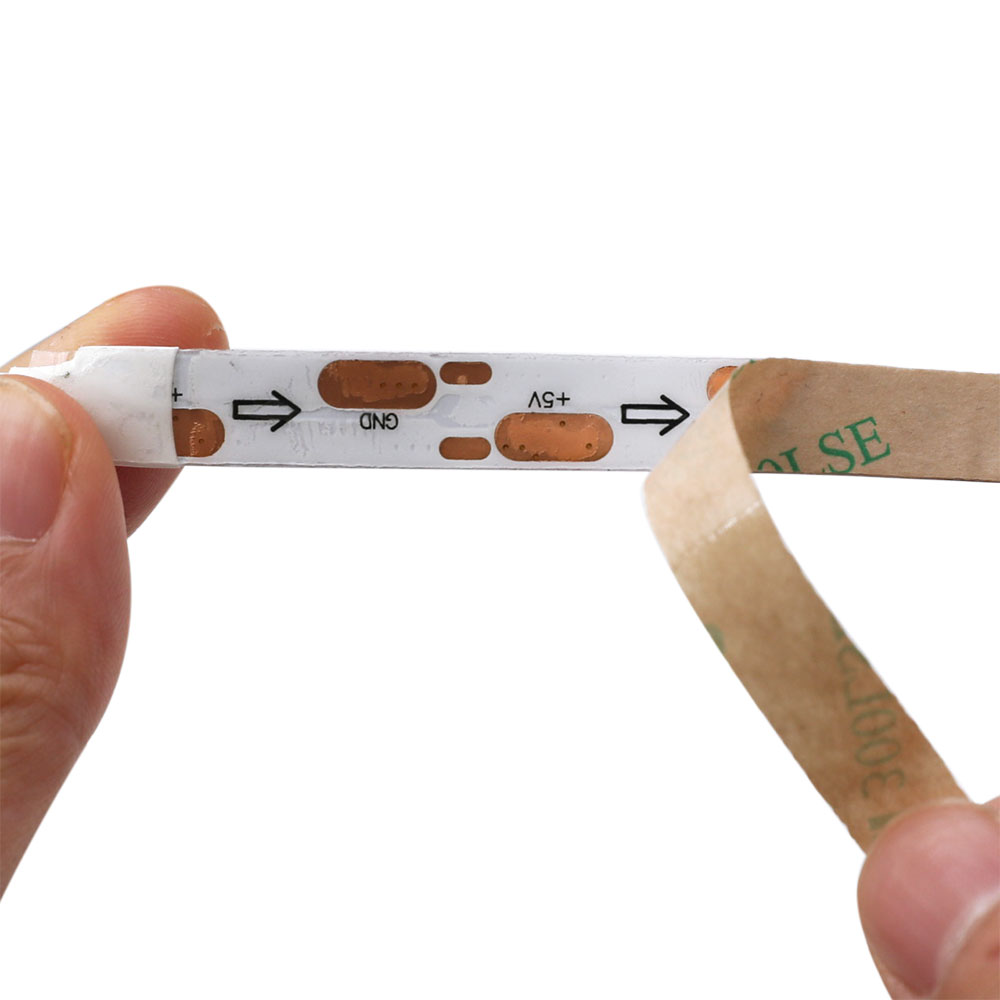

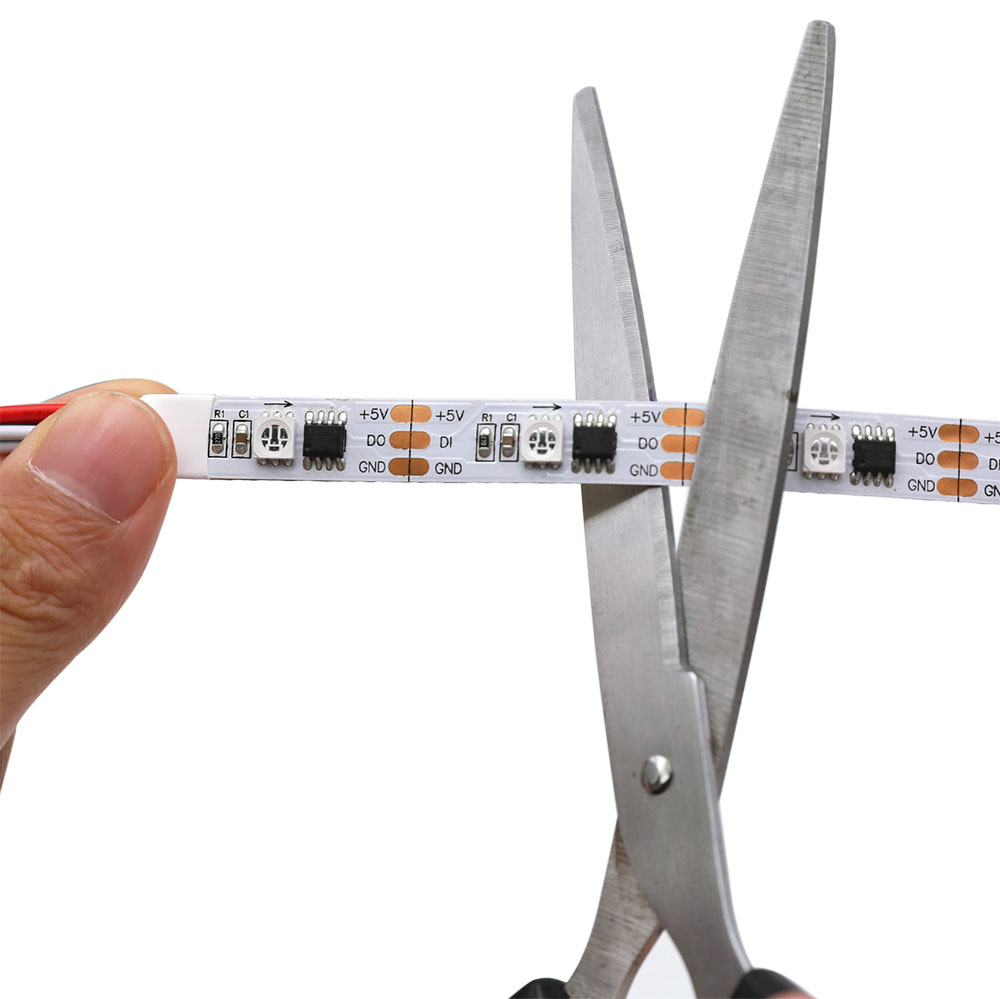

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
