DC5/12V,8 ports 8192 Pixels,T-300K Series Pixel Module Full Color Controller with SD Card Controlled via PC for Programmable IC LED Lighting

DC5/12V,8 ports 8192 Pixels,T-300K Series Pixel Module Full Color Controller with SD Card Controlled via PC for Programmable IC LED Lighting

Model: CONFULL-RF-9

$229.99

Free Shipping Worldwide On Order Over $199

Please Choose:



Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$229.99
5-9
$225.39
10-14
$202.39
15+
$165.59
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

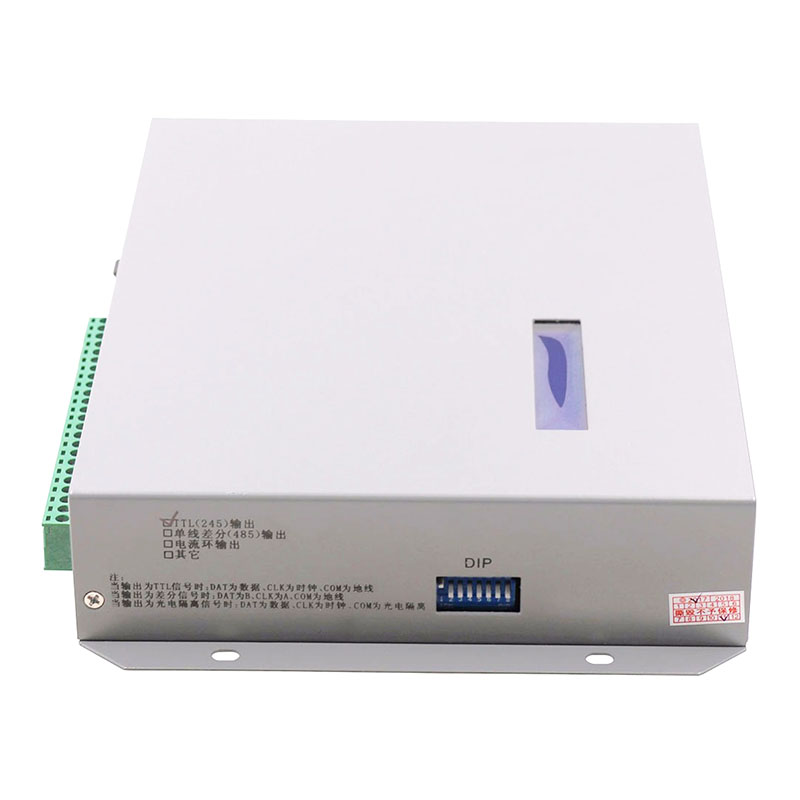

    This T-300K LED pixel module full color controller runs at DC 5/12/24V using an onboard voltage regulator, 32 65536 grade gray level support software Gamma correction. Support the rules and special-shaped handle. 8 ports output one port can support 512-1024 lamp pixels. On-line (also can SD Card) control, offline control can be multiple controllers used in combination, the contents of the line control program stored in the SD card. Compatible with single line or double line chips. If the controller to the lamps distance can choose photoelectric isolated transmission and as far as several distances of up to 200-300 M. Using the. Built-in lightning resistant and ESD protection circuit, ensure the safe and reliable.

    LED Edit 2014 software you can even upload video to be converted and executed across LED strips. Support all the various rules-shape, special shape processing. Also includes a 2GB SD card with preloaded LPD6803 TM1812 WS2801/2811/2812B/UCS1903 effects to get you started. Off-line use, can most support playing 16 program which store in the SD card.



    Standards and Certifications





    Product Specification

    • Model Number:   T-300k

    • Item Type:   RGB Dream color Magic Controler

    • Apply LED Strip:   LPD6803 TM1812 WS2801/2811/2812B

    • is_customized:   programmable

    • Warranty:   3 years

    • Color:   white

    • Brand Name:   RITA

    • Certification:   UL,CE,FC,RoHS

    • Voltage:   5-24V double channel

    • Working temperature:   -30°C ~ +85°C

    • Working voltage:   AC220V/110V

    • Working power:   10W

    • Product Size:   L:165mm×W:80mm×H:30mm

    • Weight:  1.8KG

    • Signal port:   3pin connect port

    • Memory card type:   SD card suggest using high-speed SD card

    • Memory card Capacity:   128MB—16GB

    • Memory card Format:   FAT

    • Memory card Store file:   *.led

    • Place of Origin:   China (Mainland)



    Support IC



    T-300K System features

    1). Support the rules and special-shaped handle.

    2). Eight-port output, every port can support 512-1024 pixels, Max support 8192 pixels

    3). Off-line(SD Card) control, play back content stored in the SD card.

    4). T-300K store a maximum of 16 programs, copy multiple files to the SD card in order, after formatting the SD card as “FAT” format.

    5). The program must be named in orders . just as 00_1.led, 01_1.led, 02_1.led.

    6). Compatible with single and dual IC, if you control a single line IC LED lights, without being connected to the CLK line.

    NOTE:

    1). The T-300 K controller offline control, each machine controller must put a SD card.

    2). When T-300K controller control less than 512 lamps the frame rate can reach 30fps. When T-300k control more than 512 lamps and less than 1024 lamps the frame rate will slow down automatically.

    3). 2012 Edition T-300K controller can only be combined with the new version software LedEdit 2012 . Using the old software does not support the new version of the controller; the new version of the controller has been print the Chinese sign

    4). If the distance between controller and lamps more than 50m, we suggest using differential signal transmission control or Photoelectric isolated signal transmission control,please read the manual carefully. Signal lines must be a cable,the best is Super five kinds of cable.

    5). Application Scope:  LED digital tube, LED point light sourcethe exterior light and a module pixel screen (dazzle colour screens) high power DMX lighting.

    6). T-300K must use the new software LedEdit software.

     Click here to download software LedEdit 2014

     Click here to download software LedEdit 2012

    7). offline control please use T-300K online/offline controllers

    Click here to download online control software Ledplayer 2014

    Click here to download LedEdit 2013 operating manual

    Click here to download T-300K editing program manual

    Click here to download LedEdit with AutoCAD manual



    Connection diagram







    WS2801_WS2811_WS2812B_IC_T-1000S_Controller_5050_SMD_RGB_Dream_color_programmable_flexible_led_strip_light_50M_connection_installation instructions.jpg

    1). T-300K one TTL(SPI) signal and one RS485 signal port output, can control 8192 pixels/lamps.

    2). When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller.

    3). If you need to use RS485 signal you need to connect controller A interface with LED lamps A (DMX+), controller B interface with LED lamps B(DMX-),

    4). If you need to control a new IC type by the controller, software code mode is, T-300k-IC model.

    5). When the controller control less than 512 pixels the frame rate can reach 30fps, When control more than 512 pixels the frame rate will slow down automatically.

    6). The main cable we recommend 4 square cable, the rest cable we recommend 2.5 square cable.

    7). If want use GPS world-wide synchronization,console channel distributor and timing display, please contact  our technicist get detail information.



    Attention

    The distance, between controller and transmission Repeaters between transmission Repeaters and transmission Repeaters between transmission Repeaters and signal transmission receiver  can not be  more than 50m,The maximum distance between controller and signal transmission receiver is 200m



    Trouble Shooting

    Question 1: controller after electrify, indicator light is normal, but the lamps no effect change

    Answer: the reasons for this are the following:

    (1) Please check lamps signal and controller have correct connection.

    (2) If it is meet TTL signal, lamps and lanterns and controller must altogether, namely the lamps GND (ground) to the GND and controller (ground) got together.

    (3) Please check the effect file of SD card ,the selected models whether current lamps and used the chip consistent.

    Question 2: after power, the T-300k ERROR indicator has been flashing without display output

    Answer: the ERROR indicator has been flashing means the controller did not read the card correctly, possible problems:

    • SD card is empty, with no effect file.
    • The effect file in the SD card and the controller model are not match, please choose correct controller model in LedEdit and then re-create the effect file *led.
    • SD card did not format to FAT before copy effect files.
    • Please check the supply power voltage, the controller can be individually powered to exclude power reasons.
    • Changing the SD card and then test to exclude the possibility of a bad SD card.



    Safety

    Supply voltage of this product is 5/12/24 Volts DC, do not exceed.

    Shorting output wires my cause damage to dimmer.

    Always observe proper polarity when connecting power and load.

    For indoor use only - this product is not waterproof or weatherproof.



    Note

    QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

    Connect according to the Wiring Schematic drawing.

    Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.



    Package including

    1x T300K LED Controller

    1x AC Power Cable

    1x SD Card including 2013 LedEdit Software

    1x Piece of SD Card (2G)

    1x Piece of User's Manual



    DC5/12V,8 ports 8192 Pixels,T-300K Series Pixel Module Full Color Controller with SD Card Controlled via PC for Programmable IC LED Lighting

    DC5/12V,8 ports 8192 Pixels,T-300K Series Pixel Module Full Color Controller with SD Card Controlled via PC for Programmable IC LED Lighting

    . Guided by a belief that LED lighting would be an integral part of everyday life’s illumination, superlightingled.com came into LED industry and keep up with the advanced technoloty.

    We are committed to sales flexible single color,RGB, programmable pixel full color led strip and the accessories, LED controllers, dimmers, amplifiers, power supply are the main products.

    .Superlightingleds.com founded in 2011, 5 years’ development, our team is becoming stronger and stronger. we provide quality LED technology, great customer service, and superior technical support to our customers. superlightingled is your reliable partner for LED technology.

    If you are looking for high quality LED light Series or energy saving lighting solution, please do not hesitate to contact us, we are always more than happy to help in any way we can.at superlightingled offer LED Lighting for Everything.

    enlightened  Single Color Flexible LED Strip Lights Project Display



    enlightened  Color Change RGB Flexible LED Strip Lights Project Display



    enlightened  Programmable Pixel Dream Color Flexible LED Strip Lights Project Display
