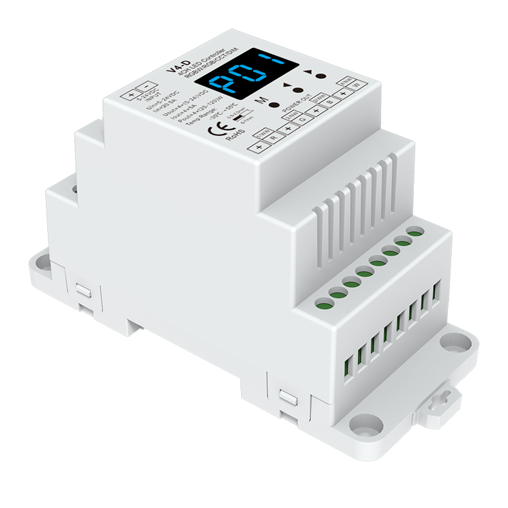

4CH*5A 5-24VDC CV Controller V4-D

Model: V4-D
4CH*5A 5-24VDC CV Controller V4-D

$19.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$19.98
10-99
$19.58
100-199
$18.98
200+
$18.18
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    4CH*5A 12-24VDC CV Controller V4-D

     Digital numeric display and easy key operation.

    ● Can set as 1 channel dimmer, 4 channel dimmer, dual color, RGB, or RGBW controller.

    ● Match with Skydance’s 2.4G single zone or multiple zone single colors, dual-color, and RGB/RGBW remote control.

    ● One RF controller accepts up to 10 remote control.

    ● 4096 levels 0-100% dimming smoothly without any flash.

    ● When using with RGB/RGBW light, built-in 10 dynamic modes, include jump or gradual change style.

    ● PWM frequency 2000/500Hz is selectable.

    ● Logarithmic or linear dimming curve selectable.

    ● Auto-transmitting function: Controller automatically transmit signal to another controller with a 30m control distance.

    ● Synchronize on multiple controllers.

    ● Over-heat / Over-load / Short circuit protection, recover automatically



    Input and Output

    Input voltage: 12-24VDC

    Input current: 20.5A

    Output voltage: 4 x (12-24)VDC

    Output current: 4CH,5A/CH

    Output power: 4 x (60-120)W

    Output type: Constant voltage



    Safety and EMC

    EMC standard (EMC): EN301 489,EN 62479

    Safety standard(LVD): EN60950

    Radio Equipment(RED): EN300 328

    Certification: CE,EMC,LVD,RED



    Dimming data

    Input signal:Key + RF 2.4GHz

    Control distance :30m(Barrier-free space)

    Dimming gray scale:4096 (2^12) levels

    Dimming range :0 -100%

    Dimming curve :Logarithmic or linear

    PWM Frequency: 500Hz or 2kHz



    Operation

    Light type and another parameter setting

    ● Long press M and ◀ key for 2s, prepare for setup system parameter: light type, output PWM frequency, output brightness curve, automatic blank screen. short press M key to switch four items.

    ● Light type: short press ◀ or ▶ key to switch five kinds type: 1 channel dimmer("Ch1"), dual color temperature("Ch2") , RGB("Ch3"), RGBW("Ch4") and 4 channel dimmer("CH4").

    ● Output PWM frequency: short press ◀ or ▶ key to switch 500Hz("F-L") or 2KHz("F-H"). Higher PWM frequency will cause lower output current, higher power noise, but more suitable for the camera(No flickers for video).

    ● Output brightness curve: short press ◀ or ▶ key to switch linear curve("C-L") or logarithmic curve("C-E").

    ● Automatic blank screen: short press ◀ or ▶ key to switch enable ("bon") or disable("boF") automatic blank screen.

    ● Long press M key for 2s or timeout 10s, quit system parameter setting.

    1 Channel Dimmer

    ● Four-channel output connects four single colors LED strip, realize synchronous dimming.

    ● Short press M key to switch coarse dimming and fine dimming.

    ● Coarse dimming: short press ◀ or ▶ key to adjust 10 levels brightness(b-1, b-9, b-F).

    ● Fine dimming: short press ◀ or ▶ key to adjust 256 levels brightness(b01~bFF).

    Dual color temperature controller

    ● Four-channel output connects two groups dual-color LED strip(WW and CW).

    ● Short press M key to switch color temperature or brightness adjustment.

    ● Press ◀ or ▶ key to set up the value of each item.

    ● Color temperature: 2700-6500K, display "270~650", short press 11 levels, long press 256 levels.

    ● Brightness: 1-10 level brightness(b-1,b-9,b-F).



    RGB/RGBW Controller

    ● The four-channel output connects RGB/RGBW LED strip.

    ● Short press M key, switch static adjustable mode(P-H) and 10 change mode(P01~P10).

    ● When running static adjustable mode, can adjust three/four-channel brightness respectively. Short press M key switch three/four-channel dimming

     (100~1FF, 200~2FF, 300~3FF, 400~4FF),  Press ◀ or ▶ key adjust each channel brightness.

    ● When running 10 change mode, can adjust each mode speed and brightness, W brightness(Only RGBW).

     Short press M key to switch speed and brightness item.

     Mode speed: 1-10 level speed(S-1, S-9, S-F).

     Mode brightness: 1-10 level brightness(b-1, b-9, b-F).

     W channel brightness: 0-255 level brightness(400~4FF).



    4 Channel Dimmer

    Mode

    ● Four-channel output connect four single colors LED strip, realize individual dimming.

    ● Short press M key, switch static adjustable mode(P-H) and four dynamic modes (P-1~P-4).

    ● When run static adjustable mode, can adjust four-channel brightness respectively. Short press M key switch four-channel dimming(100~1FF, 200~2FF, 300~3FF, 400~4FF), press ◀ or ▶ key adjust each channel brightness.

    ● When run four dynamic modes, can adjust each mode speed and brightness.

     Short press M key to switch speed and brightness item.

     Mode speed: 1-10 level speed(S-1, S-9, S-F).

     Mode brightness: 1-10 level brightness(b-1, b-9, b-F).



    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO  warranty-5-year



    Specifications Download   PDF







    4CH*5A 5-24VDC CV Controller V4-D

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
