Dream Color Controller

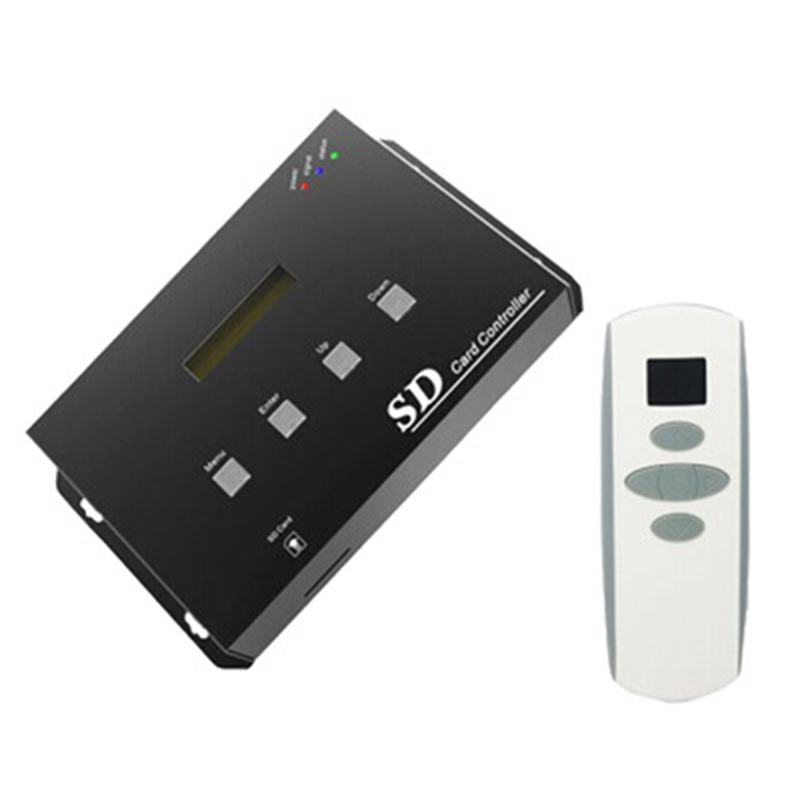

The SD card SPI controller uses an advanced computer control chip to control various lamps with LED as light sources, such as point light source, soft light bar, wall washer, glass curtain wall lamp, etc. Using key control, it has the functions of selecting pattern file, adjusting change rate, output IC selection, date setting display, holiday timing, power-off storage and switch. The system powers on and searches for all "*.LED" files in the SD card and sorts them by file name from small to large, and reads and plays the last saved file mode. The user can press the button to select the changing pattern. After selecting all the files, press the Select File Add button again to display the pattern file in a loop. It has the advantages of flexible wiring, convenient wiring, and simple use; according to the actual needs of customers, it can achieve four-channel and flat jump, gradient, strobe, horse racing, running water, running text, pictures, video and other lighting changes. The user can also edit the data pattern file through the attached pattern editing software (LedEditor v1.0). There are many different patterns and it is easy to use. For the detailed editing method, please refer to the manual of the editing software.
