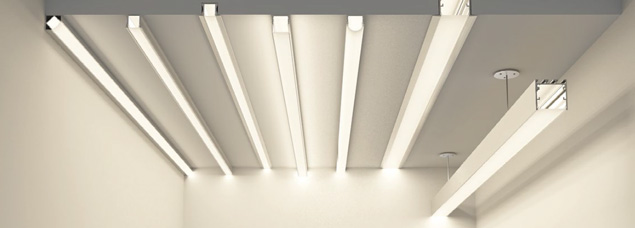

LED Aluminum Profile

Aluminium Profile For LED Strip Lighting is known as an aluminum mounting channel with silver, white, black finishes that protects LED strip light and can achieve different lighting effects such as spotless soft and even illumination or creating clear and angled light.

Most importantly, LED strip aluminium channel is available in different shapes and constructions to suit the lighting needs of different architectural structures. U-shape is the simplest led strip light aluminum channel structure and is very versatile for any strip lighting application; V-shape is specially designed for under-cabinet, under-shelf and other corner locations; and there are some special shapes made for indirect cove lighting and ceiling crown lighting. Here we have shown the most commonly used aluminum channels for led strip lights to make your selection easier.

Click to see all our Aluminium LED Strip Light Channel:

If you have needs about LED tape aluminum channel, such as length customization, new types, etc., please feel free to contact us.

Super Lighting LED Aluminum White LED Channel Series Extrusions feature a lacquer-baked finish, aluminum profiles with a smooth appearance, uniform color, and wear resistance, providing a clean and neat look for LED tape light channel system to blend well into walls, cabinets, furniture, etc. white home environments. Other silver and black aluminium channel colors are also optional.

These Aluminum Black LED Channel products with Black/Clear/Semi-clear/Opal LED diffusers for LED strip lighting. Made of 6063-T5 high-quality aluminum alloy and with black anodized aluminum surface treatment, the black LED profile acts as a heat sink and provides protection to the inside led light strips. Likewise, the all-black look makes it perform well in dark color home decor styles, blending light lines with trim lines to provide a visual coherence and unity.

The inner width of the led channel black ranges from 5.2mm to 47.6mm, suitable for all width led strip lights, can be used for black pendant lights, black ceiling lights, cabinet lighting, wall lighting, stair lighting, ground lighting, etc. including various installations and shapes. What LED Strip Widths Are Available?

The standard length of the all black aluminum led channel items is one meter, and 2m length is available. Almost all the led profile channels are available in black, silver, and white aluminum colors, default color silver, so pay attention to the color option.

Black LED Channel PDF Download

Bendable And Flexible LED Strip Channel Lighting utilizes flexible LED strip lights to provide an architectural and home lighting solution. These flexible tracks house LED strips (sold separately) inside. The entire unit can be recessed into drywall or ceilings to easily shape curved light lines with soft illumination.

There are two types of our Flexible And Bendable LED Light Channels, C-shaped (up-and-down) Bendable LED Channel for curved vertical surfaces, and S-shaped (left-and-right) Flexible LED Channel for horizontal surfaces. Choose the right type for your lighting design.

Our Flexible And Bendable LED Tape Light Channel System includes a series of items you need, LED profile, PC or silicon diffuser cover, end caps, and mounting clips (some models not), sold as a whole set for your convenience. We offer Flexible LED Channel Series Sample Box to help you choose the right product for your curved lighting decoration needs.

Flexible LED Channel Series Products Download

Blog: What Is Flexible Aluminum LED Channel?

Tile Edge LED Strip Light Channel is designed to provide background lighting for any tiled architectural structure such as drop tile ceilings, tiled walls, tiled floors (skirting and stairs). Led strip light tile profile with wings on both sides can also be used as a transition strip to smooth out different decorative materials such as tile, wood paneling, laminate, concrete, drywall, etc. Winged tile in led profile is ideal for installing LED strips in tiles for a more stable installation.

Made of lightweight, low-profile high quality 6063-T5 aluminum alloy, these tile trim profiles for led strip can be easily recessed in tile finishes to create a variety of light lines along the edges of tiles. The anodized finish makes they highly resistant to corrosion, even when installed in bathroom shower tile niches. Tile led channel is a permanent shower niche lighting solution with waterproof strip lights.

We offer led strip tile profiles in a variety of shapes and sizes compatible with 5mm, 8mm, 10mm, 12mm, and 14mm tile thicknesses, and can accommodate light strips up to 20mm wide. When installing led strip lights in tiles, please note that it is important to make sure the aluminum channel is flush with the tiles so that the light blends perfectly with the tile surface.

What LED Strip Widths Are Available?

LED aluminum channels in silver/black/white finishes for led light skirting and baseboard lighting. These led baseboard profiles are used with strip lights (sold separately) to create infinite architectural and interior lighting solutions. LED skirting board channel comes with a transparent, frosted, opal, black PC diffuser cover to uniform led light, allowing it to shine indirectly onto the floor, no glare light.

Baseboard led lighting is recessed into tile or drywall structures, ideal for accent illumination in bathrooms, kitchens, passageways, hallways, corridors, entrances of offices and homes, etc. Aluminum metal led baseboard molding profile with lights built in is very modern, its clean, contemporary and tech-savvy look suits the decorating style of modern homes and commercial spaces. Aluminum led baseboard has no harmful substances, high durability and corrosion resistance, easy to clean.

Types of Floor Skirting Board Lighting

Floor led base board lighting is usually downlighted to create ambiance and avoid unwanted glare. Up lighted base boards are used in situations where there is a need to provide light from a low level, such as artwork displays and commercial windows. Side lighted baseboard is used in hallways, corridors and aisles, staircases, etc., to provide guidance and safety lighting.

Choose LED Strip Illuminated Baseboard Installation

When you're ready to renew upgrade or remodel your existing home lighting system, choosing easy-to-install surface-mounted skirting board lighting is ideal. And for residences under construction, consider recessed baseboard profiles, they are suitable for skirting light designs on tiled and plastered walls, where only the light is visible and the profiles are not. Flexible lighted molding baseboard is our special product designed to meet the needs of fashionable architectural lighting for curved walls with lighting.

Should You Install LED Baseboard For Your Room? Trim your baseboard molding with led light inserts, check our full spectrum white led strip lights.

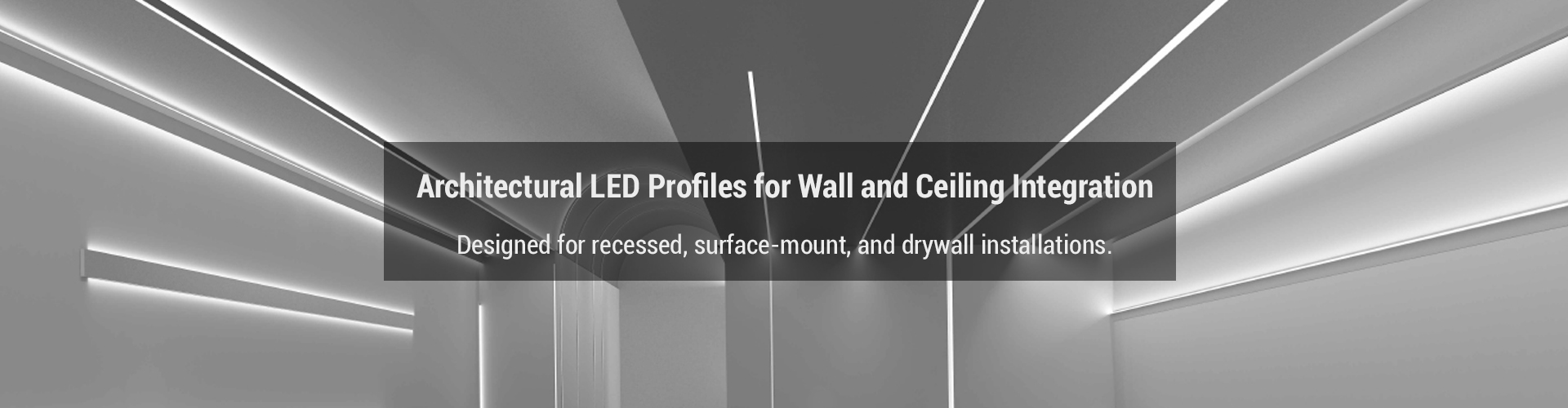

Ceiling Perimeter Lighting and Drywall Light LED Channels specifically for homes and commercial buildings. Here you can choose a more comfortable indirect lighting option for your drywall ceilings by installing these led profiles high up on walls, in the corners of ceilings and walls, around ceilings, or hidden directly inside recessed ceilings to create a warm ambient light. The simple aluminum look makes these drywall lights profiles a perfect fit for any modern space.

Plaster-in drywall LED channel is an aluminum extrusion that is designed to be mounted and concealed in lime walls to create a seamless and professional-looking installation of LED strip lights on wall. Drywall LED Lighting with led strips in wall is a popular choice for commercial and architectural aesthetics lighting design. Recess Drywall LED Strip Channel into a gypsum or wood panel wall for a seamless look; Use Ceiling LED Perimeter Lighting Channel to create a sense of more expansive space in small rooms; Mount LED Drywall Channel on the wall surface for a "wall wash" or "wall grazing" effect; Built Plaster-In LED Channel into the corner to achieve a corner light line.

Our led drywall profile is available in a variety of shapes, sizes, finishes such as silver, white, black, to match the surrounding decor. And also with different types of PC covers to provide a diffusion and uniform lighting effect.

What LED Strip Widths are Available?

Apply these LED Floor & Staircase Profiles to your home and commercial places. With a thick aluminum alloy structure, they are resistant to treading.

In-floor LED lighting provides a unique and eye-catching effect that can add light and visual interest to a space. Floor LED Channel With Light Diffuser Cover is embedded in the floor with soft illumination.

A Staircase Profile is a molding or trim that fits over the edge of the stair treads, risers, or nosing. Additional LED strip lighting to the Stair Nosing Profile increases the safety and visual appeal of the staircase. By covering the exposed edges of stair treads and their own anti-slip design, LED Stair Profiles help prevent accidents caused by slipping or tripping.

Shop By LED Floor & Stair Lighting Channel Type

Made of high-quality 6063-T5 aluminum material, these waterproof led channels are designed for led strip lights to be installed outdoors and in bathrooms, the IP20 bared led strip lighting is wrapped in the aluminium channel by the semi-clear, opal, or black PC diffuser, through sealing the end caps with glues, the whole led channel lights can achieve IP65 waterproof level for exterior use.

There are various shapes and sizes of our Silver and Black outdoor led aluminum channel to meet the users' needs, simple U shape, flanged U shape, and corner V shape. Our exterior led channel can be surface mounted, recessed, and corner mounted, perfect for your indoor and outdoor linear lighting projects like bathroom shower lighting, exterior step lighting, etc.

Tips for Using Waterproof LED Strip Light Channel:

1) As there are no connectors that can be used for these outdoor led channel strips, it is recommended to use waterproof LED strip lights for outside and bathroom shower waterproofing purposes if seamless splicing happens.

2) Each waterproof outdoor led tape channel can be optionally equipped with a separate aluminum piece, which allows you to attach light strip (sold separately) to the aluminum piece and then insert it into the PC diffuser for easy led channel light installation.

3) Accommodates led strip up to 12mm wide.

What LED Strip Widths Are Available?

Lens LED Channel For LED Strip Lights concentrates LED light at a 10, 15, 20, 30, 45, 50 or 60 drgree narrow beam angle, perfect for accent lighting and wall grazing. Our led lense tape channel contains a variety of aluminum extrusion types, including surface mount, hanging, and recessed installations. The optional swivel bracket accessory makes it possible to find the perfect angle to hit your artwork or other key space for your ceiling or kitchen applications.

We offer both polycarbonate and acrylic lenses, available in clear, semi-clear (translucent), and milky white (opal) finishes to meet a variety of optical lens lighting needs. Transparent optical lens led cover provide clear light transmission and focused lighting effect. Semi-clear/translucent and opal/milky white light lens optical diffusers scatter LED light into an evenuniform pattern, also serve to shield internal fixtures and beautify strip light installations.

We also offer silver, white, and black aluminum led lens profiles to help create stylish LED strip lighting applications. Typically, these led lens diffuser light bar channels are 1m/2m long and come with light optical lenses, end caps, and mounting clips (no led strips). What LED Strip Widths Are Available?

Alu LED Bar Light Beam Angle Versus

As the LED hanging linear light fixtures, these Low Profile Ceiling Light Suspended LED Channels are designed to accommodate LED strip lights with different widths, ideal for modern pendant lights design, stores, shopping centers, kitchens, dining rooms, etc. Light strips with led suspended channels dissipate heat better and are protected by the outer aluminum channel diffusers, so they last longer than bare LED strips. PC/PMMA diffusers come with of these led ceiling lights profiles smooth LED light output and offer a variety of light diffusing effects. To match your home style, you can choose from silver, white, and black ceiling led strip channels. The standard length of the hanging ceiling led channel is 1m, and 2m length is available, you can cut the low-profile linear pendant to any length.

Suspending LED light fixtures from the ceiling is a common installation method, and the suspension style enables the led ceiling light to shine directly into the area below, making it suitable for use in spaces that require accent lighting. Ceiling led strip channel has a simple, modern, long design with clean lines, provides continuous light along the length of the fixture with no visible dark areas.

We offer ceiling LED light channels in a variety of shapes to suit every lighting need and decorative style.

• Flat Pendant Light Profiles: Ultra-thin cross-section design for use in low ceiling spaces such as family living rooms, kitchens or modern offices.

• Square Pendant Light Extrusions: Square cross-section design, symmetrical design with a strong sense of structure.

• Rectangular Pendant Profiles: Rectangular cross-section, with deeper light slots for more focused light direction.

• Round Pendant Light Channels: Round cross-section, soft light without sharp edges.

Guide to Ceiling Types And Ceiling Lighting

Suspended Ceiling LED Strip Channel Manual Download

As a led tape light mounting channel, our surface mounted led ribbon light diffuser is available in a variety of sizes, shapes, and types of aluminum extrusions and LED diffusers. Three PC types of led tape light diffuser covers, translucent (semi-clear), transparent (clear), and opal matte, present various diffused lighting effects, which translucent (semi-clear) is the most commonly used, and opal milky white is the most shaded. Choose from silver, white, or black aluminum led surface mount stirp light profiles to suit your decorating style. Comes with end caps and mounting clips, the aluminum led surface mount lighting channel can be installed in these applications: cabinets, under cabinets, ceilings, shelves, bedrooms, kitchens, offices, homes, retails, supermarkets, etc.

Surface mount aluminum channel is typically used with LED strip light, it plays a role in led heat dissipation, at the same time protects the led light strip from dust, moisture, and external damage.

What LED Strip Widths Are Available?

LED Magnetic Light Strip Channel System. The magnetic strip light channel is made of high-quality aluminum 6063-T5 and comes with a PC diffuser to even LEDs of the inner light strip (not include) and magnets for mounting. LED magnetic aluminum profiles use the suction between magnets and metals to make the magnetic light bar firmly adsorbed on the installation object.

Installing magnetic lights is great for illuminating goods under metal shelves in a store or workshop, the magnetic led light strip can be directly adsorbed on iron shelves, and its compact shape is easy to hide, so that the LED lights can highlight the goods' display effect.

If you want to install LED strip lights on metal surfaces, this led profile with magnetic base is a good choice. You can also choose mounting clips or rotating brackets to stick the channel light. Magnetic led light track for strip lights is ideal for under cabinets, shelves, dispaly cabinets, etc.

Magetic LED Light Strip Channel PDF

Recessed LED Strip Lighting is a modern lighting solution that adds unique appeal to your room. These recessed aluminum channels embedded in drywall, ceiling, or furniture can keep the mounting surface flat, providing a neat and stylish installation result. The recessed light diffuser provides optimal light distribution and better thermal management for the light strips inside the channels.

What can you find here?

1. Ideal size and width of the recessed led channel that meet your desired function

2. Recessed led strip channel for existing installations and new build

3. LED strip light recessed channel with flange to cover uneven mounting slots; Recessed U channel to give a clean look to the mounting surface

4. Straight, square, or rectangular recessed channel lighting effects achieved through connectors

5. Suitable for ceilings from 0.78" to 2.5" thick

6. Silver, white, and black aluminum recessed channel finishes

Shop By Recessed LED Strip Lighting Channel Type

Corner LED Channel with its unique V or L shape is perfectly adapted to corner areas formed by two planes perpendicular to each other. Corner led light bar allows the inside led strip lights to emit evenly outward at a 90 degree angle, so it is also known as 90 degree led channel or 45 degree led channel.

45 degree led strip light channels are usually used together with LED light strips to enhance heat dissipation and provide physical protection for the led, dust-proof, moisture-proof, and external force damage. With a 90 degree beam angle concentrated light, the led strip light corner channel can be used as accent lighting, providing unlimited possibilities for home and commercial lighting such as cabinets or under cabinets, ceiling corner, wall corner, etc.

We offer LED aluminum corner extrusion profiles in three colors, silver, white, and black, to suit your different home styles. The standard length of the corner mount led strip channel is one meter, and the length customized service is available. Different LED light diffusers have different light effects, they are usually made of PC or PMMA material, and there are three types you can choose, clear diffuser, semi-clear diffuser, and opal matte diffuser to suit different lighting levels.

How To Realize Seamless Inside And Outside Corner Lighting?

What LED Strip Widths Are Available?

Shop By Corner Mount LED Strip Channel Type

The Extra Wide LED Channel Series aluminum profiles are specifically designed for led strip lighting projects that require high lumen output, such as offices, basements, garages, and workplaces. With a width range of 100mm to 200mm (4in to 8in), these wide LED profiles offer generous capacity, accommodating multiple LED strips and even 58mm, 64mm, 120mm wider strips. If you need multi-row led tapes, click here to see our 2835/3528/5050 led strips.

Our super wide led aluminum channel products are available in 1-meter, 2-meter, 2.44-meter lengths, catering to different project sizes. Whether you need focused lighting or overall illumination, you can always find a suitable installation method here, surface mounting, recessed installation, or suspension mounting.

We likewise offer commercial led strip channel models in widths between 50mm (2") and 100mm (4").

Mini LED Aluminum Profiles are small in size and are mainly used for indoor auxiliary lighting or accent lighting, such as ceiling lighting, cabinet lighting, stairs lighting, shelves lighting, etc. Equipping your thin LED strip with a mini LED channel can help dissipate the heat accumulated by the LEDs, effectively prolong the life of the light strip, and at the same time protect the LED strip light from the dust, moisture, and external damage.

We offer a variety of aluminum channel types and PC or PMMA light diffusers to meet your different needs. Selecting different LED diffusers will get different light diffusing effects. The clear diffuser has high light transmittance, the semi-clear diffuser has medium-light transmittance, and the opal matte diffuser has the lowest light transmittance. You can choose to buy a 1-meter standard length LED profile or a 2-meter LED strip channel. We also provide the silver, white, or black LED aluminum channels to best suit your decorating style.

What LED Strip Widths Are Available?

SlimLine COB LED Strip Collection – Revolutionizing Ambient Lighting

Round LED Channels are available in various shapes and silver, white, and black finishes to adapt to different LED strip lighting. There are surface-mounted round led channels and suspended round led aluminum profiles, suitable for any application including kitchen lighting, cabinet lighting, pendant lighting, interior lighting design, commercial lighting, architectural lighting, linear lighting, and more.

Aluminum led light channels act as a heat sink for LED light strips, and protect the led strips from dust, moisture, and external damage. 1m/2m LED profiles which support cutting to any length complete the look with end caps and PC/PMMA light diffusers, different led diffusers have different lighting effects, choose from the 6 kinds of the diffusers, PC opal microprism diffuser, PC clear diffuser, PC semi-clear-microprism diffuser, PMMA opal matte diffuser, PMMA semi-clear matte diffuser, and PMMA clear diffuser.

What LED Strip Widths Are Available?

LED Closet Hanging Rods help users choose the right clothing, and make the interior space of the wardrobe visible and visually appealing. The silver, white, or black lighted closet rod allows users to illuminate wardrobes and closets with different LED colors. Made of high quality 6063-T5 aluminum alloy, the standard length of the illuminated closet rods is one meter and comes with a PC LED light diffuser to provide even illumination.

What LED Strip Widths Are Available?

These Aluminum LED Profiles allow you to Create and DIY Cabinet Shelf Lighting with LED Strip Lights. Shelf lighitng and Display Cabinet lighting are the most commonly used places in furniture, these low profile led shelf lights are specially designed for wooden cabinets, closets, shelves, and glass shelfs. Wooden cabinets and glass display cabinets with lights to accentuate the display of items and create an atmosphere.

Made of high-quality 6063-T5 aluminum alloy, the led strip shelf lighting profiles are with different PC light diffuser to form a variety of lighting effects. 1m and 2m long led shelf strip lights channel are available, which comes with end caps to protect the led strip light (sold separately) and for easy installation.

How do you Illuminate Wood Shelf and Glass Shelf with Lights?

Wooden display shelves typically are lit with edge lighting and under-shelf lighting. Edge lighting illuminates the exhibits from behind, which adds a sense of three-dimensionality and mystery to the wood shelves. Under-shelf lighting is used for floating wood shelves and wood bar shelves, etc. it illuminates the entire display space and makes the exhibits look clearer and more complete. Glass display shelves adopt edge lighting to highlight the outline and texture of the glass shelving.

How to Design Lights For Shelving With LEDs?

Glass Shelf And Wood Shelf LED Strip Light Channel System

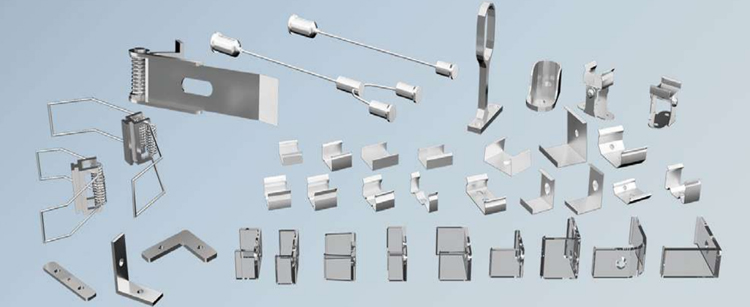

Complete your led channel lighting look with the accessories, including led strip channel connectors in stainless steel and plastic materials, suspended steel cables kits for hanging light diffusers, swivel mounting brackets for surface mounting channels, etc.

Ultimate Guide on Aluminum Profile for LED Strip Lighting

Catalog of LED Aluminum Profiles PDF
