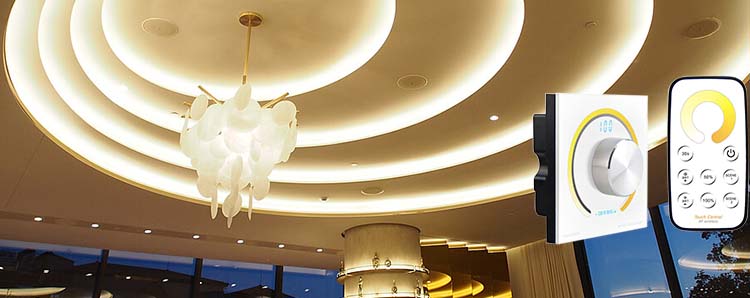

BinColor CCT LED Strip Controller Series includes constant voltage wall mount CCT led strip light dimmer and constant voltage / constant current touch button CCT led strip controller, available RF remote control; Adopting PWM (Pulse Width Modulation) digital brightness adjustment technology, these CCT controllers adjust LED light softly, stably and delicately, with accurate color temperature control.
BinColor Control System
Sponsors
Sponsors
LED CCT Controller
(0)Model:T2+P2
DC12V-24V Wireless Remote Single-Zone CT Controller P2+T2
- Input voltage: DC12V-24V
- Grey Scale:4096 levels*4
- Load Current:4A×4CH Max 16A
- size:L86xW86xH36mm
this P series touch panel controller, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. It compatible with our T1, T2, T3 wireless remote control, realize remote control function, thus can meet the demand of various occasions. Feature function: 1、Fashionable appearance, simple operation, standardly 86 style socket,...

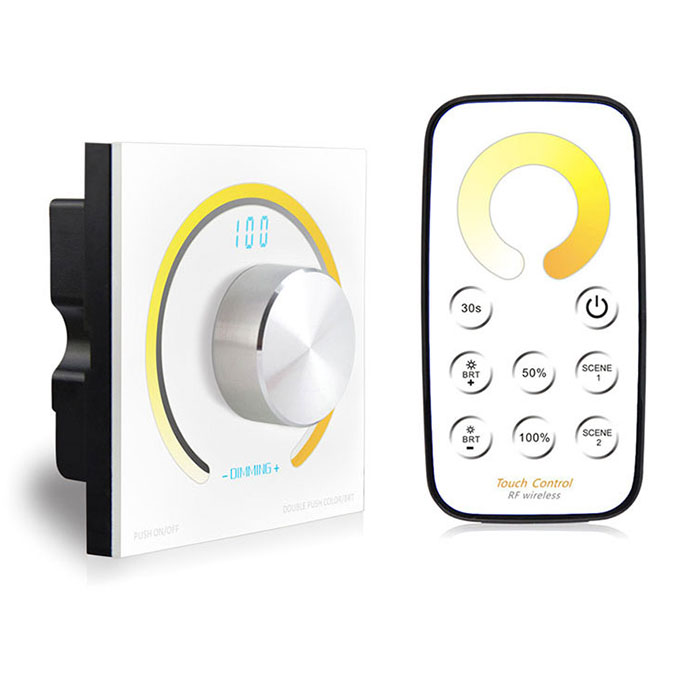

(0)Model:T2+K2
DC12V-24V LED Constant Voltage CCT Controller K2+T2
- Input voltage: DC12V-24V
- Grey Scale Level:2048×2
- Load Current:4A×2CH Max 8A
- size:L86xW86xH36mm
K series rotary controller is widely used for commercial /office/household lighting, workable for dimming, color temperature, RGB control .with digital display, display status is clear when at a glance. It compatible with our T1, T2, T3 wireless remote control, realize remote control function, thus can meet the demand of various occasions. Feature function: 1. Automatically...
(0)Model:K2
DC12V-24V LED Constant Voltage CCT Controller K2
- Input voltage: DC12V-24V
- Grey Scale Level:2048×2
- size:L86xW86xH36mm
- Load Current:4A×2CH Max 8A
K series rotary controller is widely used for commercial /office/household lighting, workable for dimming, color temperature, RGB control .with digital display, display status is clear when at a glance. It compatible with our T1, T2, T3 wireless remote control, realize remote control function, thus can meet the demand of various occasions. Feature function: 1. Automatically adapt to...
(0)Model:P2
DC12V-24V Single-Zone CCT Panel P2
- Input voltage: DC12V-24V
- Grey Scale:4096 levels*4
- Load Current:4A×4CH Max 16A
- size:L86xW86xH36mm
P series touch panel controller, This P series touch panel controller is consist of Multi-zone series and Single zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. P5, P6, P7 and P8 are DMX512 control panels, used for DMX512 lamps; P series could satisfy the controlling demand for all kinds of LED lighting...
(0)Model:BC-310
DC12V-24V LED CCT Controller BC-310
- Input voltage: DC12V-24V
- Scale Levels:4096 LEVEL /CHx2
- size:L165xW56xH36mm
This series LED color-temperature controller is a universal high-performance color-temperature controller, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting. Changing the color temperature by adjusting two different light colors, it suits for all 2 channel LED lights. Feature function: 1. Automatically adapt to LED light which works from DC5V-24V or...
(0)Model:BC-313-CC
DC12V-48V LED CCT Controller BC-313-CC
- Input voltage:DC12V-48V
- Output Signal: Constant current PWM
- Max load Current:350MA/CH*2
- size:L125xW45xH36mm
- Dimming range:0-100%
This series LED color temperature controller(C&T controller) is a universal high-performance C&T controller, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting. Changing the color temperature by adjusting two different light colors, it suits for all 2 channel LED lights. Feature function: 1. Automatically adapt to LED light which works from...
(0)Model:P6X+R4-CC-2.4G
AC85V-265V Wireless Multi-Zone CC CCT Panel P6X+R4-CC-2.4G
- Input voltage:AC85-265V
- Output Current: 350/700mA×4CH
- Dimming range:5-100%
- Output Signal:DMX512+2.4G
- Driving LEDs/ CH:1~12pcs 1W(3W) LED
- size:L86xW86xH36mm
This PX series touch panel controller is consist of Single zone series and Multi-zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Moreover, it can control DMX512 LED lights, and communicate with 2.4G RF radio technology. P5X, P6X, P7X, and P8X are multi-zone control panels, can control Max. 4 zones, PX series...
(0)Model:T5+R4-CC
DC12V-48V Constant Current CCT Controller T5+R4-CC
- Input voltage:DC12V-48V
- Working Frequency:433.92MHz
- Remote Distance: 40m-50m
- Output Current:350/700mA×4CH
- size:L106×W56×H9(mm)
- size:L176xW46xH30mm
this LED Controller series, This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as...
(0)Model:T5+R4
DC12V-24V LED Constant Voltage CCT Controller T5+R4
- Input voltage: DC12V-24V
- Working Frequency:433.92MHz
- Remote Distance: 40m-50m
- Output Current:Max 5A×4CH
- size:L176×W46×H30(mm)
- size:L106×W56×H9(mm)
this LED Controller series, This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as...
(0)Model:T5+R3
DC12V-24V Mini Constant Voltage CCT Controller T5+R3
- Input voltage: DC12V-24V
- Working Frequency:433.92MHz
- Remote Distance: 40m-50m
- Output Current:Max 3A×3CH
- size:L106×W56×H9(mm)
- size:L135×W30×H20(mm)
this LED Controller series, This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as...
(0)Model:P6X+R4-2.4G
AC85V-265V Wireless Multi-Zone CV CCT Panel P6X+R4-2.4G
- Input voltage:AC85-265V
- Dimming range:5-100%
- Max current load:Max 5A×4CH
- Output Signal:DMX512+2.4G
- Max output power:240W(12V)480W(24V)
- size:L86xW86xH36mm
This PX series touch panel controller is consist of Single zone series and Multi-zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Moreover, it can control DMX512 LED lights, and communicate with 2.4G RF radio technology. P5X, P6X, P7X, and P8X are multi-zone control panels, can control Max. 4 zones, PX series...
(0)Model:T2+R4-CC
DC12V-48VLED Constant Current CCT Controller T2+R4-CC
- Input voltage:DC12V-48V
- Working Frequency:433.92MHz
- Remote Distance: 40m-50m
- Output Current:350/700mA×4CH
- size:L106×W56×H9(mm)
- size:L176xW46xH30mm
This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as dimming, color temperature,...
(0)Model:P2X+R4-CC-2.4G
DMX512+2.4G Wireless Single-Zone CC CCT Panel P2X+R4-CC-2.4G
- Input voltage: DC12V-48V
- Input voltage: AC85V-265V
- DMX512 Socket: Wiring Terminal
- Output Signal: DMX512+2.4G
- Output Current: 350/700mA×4CH
- size: L86xW86xH36mm
- size: L176×W46×H30(mm)
This PX series touch panel controller is consist of Single zone series and Multi-zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Moreover, it can control DMX512 LED lights, and communicate with 2.4G RF radio technology. P5X, P6X, P7X, and P8X are multi-zone control panels, can control Max. 4 zones, PX series...
(0)Model:T2+R4
DC12V-DC24V LED Constant Voltage CCT Controller T2+R4
- Input voltage: DC12V-24V
- Working Frequency:433.92MHz
- Remote Distance: 40m-50m
- Output Current:Max 5A×4CH
- size:L106×W56×H9(mm)
- size:L176xW46xH30mm
This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as dimming, color temperature,...
(0)Model:T2+R3
DC12V-DC24V Mini Constant Voltage CCT Controller T2+R3
- Input voltage: DC12V-24V
- Working Frequency:433.92MHz
- Remote Distance: 40m-50m
- Output Current:Max 3A×3CH
- size:L106×W56×H9(mm)
- size:L135×W30×H20(mm)
This T Series Wireless remote is dedicated to controlling led lamps by RF radio frequency; there are several functions on the remote, such as on-off, pause, modes changing, brightness and speed adjustment etc; the wireless signal is with strong penetrating power, no limit to direction or obstacles. With our R Series receiver, it is easy to change lamp lights such as: dimming, color temperature,...
(0)Model:P2X+R4-2.4G
DMX512+2.4GWireless Single-Zone CV CCT Panel P2X+R4-2.4G
- Input voltage: DC12V-24V
- Input voltage: AC85V-265V
- DMX512 Socket: Wiring Terminal
- Output Signal: DMX512+2.4G WIRELESS
- Max output power: 240W(12V)480W(24V)
- size:L86xW86xH36mm
- size:L176×W46×H30(mm)
- Max current load: Max 5A×4CH
This PX series touch panel controller is consist of Single zone series and Multi-zone series, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Moreover, it can control DMX512 LED lights, and communicate with 2.4G RF radio technology. P5X, P6X, P7X, and P8X are multi-zone control panels, can control Max. 4 zones, PX series...
(0)Model:BC-422
DC12V-24V LED Constant Voltage CCT Controller BC-422
- Input voltage: DC12V-24V
- Grey Scale:4096 levels*2
- Max Output Current:8A×2CH
- size:L176xW46xH30mm
constant voltage CCT controller, it adopts PWM (Pulse-Width Modulation) digital brightness control technology; it changes the dimming modes by DIP switch and duplex push dim button, it's suitable for 2 channels' constant voltage CCT LED lights. Feature function: 1. Automatically adapts to DC12V-24V. 2. 2 output channels, each channel 4096 grey scale, Lamplight soft and...
