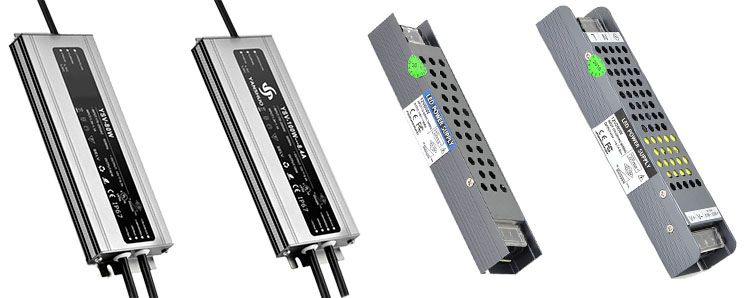

LED TRIAC 0-10V 2in1 Dimmable Driver
(0)Model:YSV80W12V-IP67
Triac 0/1-10V Dimmable LED Dimming Power IP67 12V 80W
- Output DC Voltage:12V
- Power:80W
- Pated Current:6.7A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- EfficIency:>84%
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 12V 80W Output DC Voltage : 12V Rated Current: 12V 6.7A ...
(0)Model:YSV80W24V-IP67
Triac 0/1-10V Dimmable LED Dimming Power IP67 24V 80W
- Output DC Voltage:24V
- Power:80W
- Pated Current:3.3A
- Linear Regulation:±1%
- Fequency range:50-60Hz
- EfficIency:>84%
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 24V 80W Output DC Voltage : 24V Rated Current: 24V...

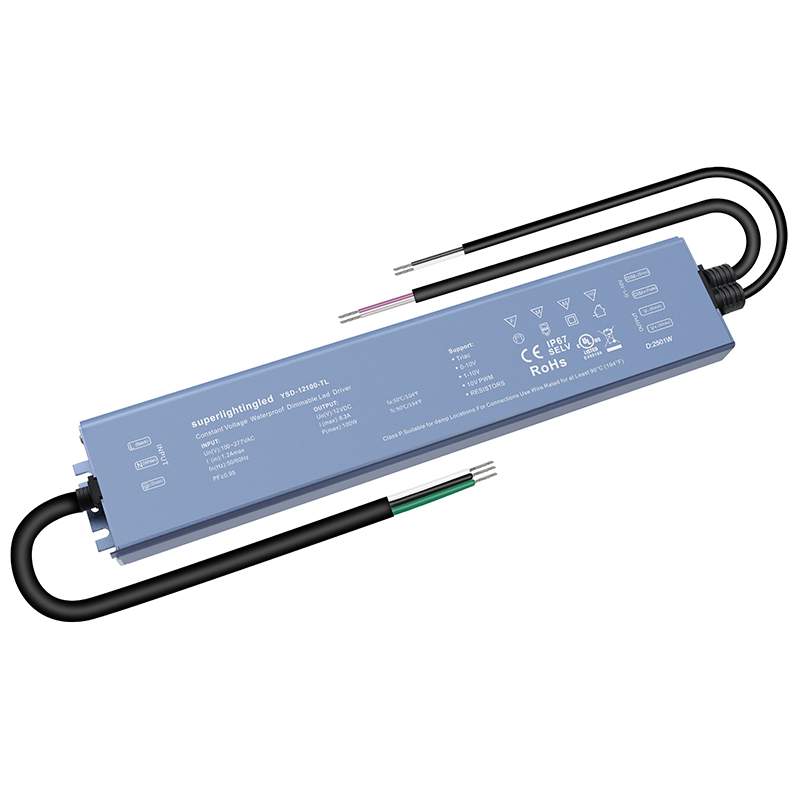

(0)Model:YSV100W12V-IP67
AC110V/220V DC12V 100W 8.4A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:12V
- Power:100W
- Rated Current:8.4A
- Linear Regulation:±1%
- Fequency range:50-60Hz
- Size:178*62*19mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 12V 100W Output DC Voltage : 12V Rated...
(0)Model:YSV100W24V-IP67
AC110V/220V DC24V 100W 4.1A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:24V
- Power:100W
- Current range:0-4.1A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- Size:178*62*19mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 24V 100W Output DC Voltage : 24V Rated Current:...
(0)Model:YSV150W12V-IP67
AC110V/220V DC12V 150W 12.5A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Input frequency:50/60Hz
- Power:150W
- Pated Current:12.5A
- OutputVoltage:12V
- Fequency range:50-60Hz
- Size:238*58*32mm
- IP Rating:IP67
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification
(0)Model:YSV150W24V-IP67
AC110V/220V DC24V 150W 6.25A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:24V
- Power:150W
- Rated Current:24V6.25A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- EfficIency(Typ.):>84%
- size:208*58*32mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 24V150W Output DC Voltage: 24V Rated Current:...
(0)Model:YSV200W12V-IP67
AC110V/220V DC12V 200W 16.7A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:12V
- Power:200W
- waterproof level:IP67
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- EfficIency:>84%
- size:238*58*32mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 12V200W Output DC Voltage: 12V Rated Current:...
(0)Model:YSV200W24V-IP67
AC110V/220V DC24V 200W 8.3A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:24V
- Power:200W
- Pated Current:8.3A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- waterproof level:IP67
- size:238*58*32mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 24V200W Output DC Voltage: 24V Rated Current: 24V...
(0)Model:YSV250W24V-IP67
AC110V/220V DC24V 250W 10.4A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:24V
- Power:250W
- Pated Current:10.4A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- Size:228*80*32mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 24V250W Output DC Voltage: 24V Rated Current: 24V...
(0)Model:YSV250W12V-IP67
AC110V/220V DC12V 250W 21A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:12V
- Power:250W
- Pated Current:21A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- Size:228*80*32mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 12V250W Output DC Voltage: 12V Rated Current: 12V...
(0)Model:YSV300W12V-IP67
AC110V/220V DC12V 300W 25A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:12V
- Power:300W
- Pated Current:25A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- Size:228*80*32mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 12V300W Output DC Voltage: 12V Rated Current: 12V...
(0)Model:YSV300W24V-IP67
AC110V/220V DC24V 300W 12.5A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply
- Output DC Voltage:24V
- Power:300W
- Pated Current:12.5A
- Working Temp:-30 ~55 ℃
- Fequency range:50-60Hz
- Size:228*80*32mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL: 24V300W Output DC Voltage: 24V Rated Current: 24V...
(0)Model:YSD12V60W
DC12V 60W 5A 0-10V LED dimming power supply for RGB LED strip light
- Voltage:DC12V
- Power:60W
- Pated Current:5A
- Linear Regulation:±1%
- Fequency range:50-60Hz
- EfficIency(Typ.):>84%
- size: 145*48*29mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL : 12V60W Output DC Voltage : 12V Pated Current : 12V5A Current...
(0)Model:YSD24V60W
DC24V 60W 2.5A Triac 0/1-10V LED Dimming Power Supply For LED Strip Light
- Voltage:DC24V
- Power:60W
- Pated Current:5A
- Current range:0-5A
- Fequency range:50-60Hz
- EfficIency(Typ.):>84%
- size: 145*48*29mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL : 24V60W Output DC Voltage : 24V Pated Current : 2.5A Current range :...
(0)Model:YSD12V100W
DC12V 100W 8.3 0-10V LED dimming power supply
- Volts:12VDC
- Power:100W
- Pated Current:12V8.3A
- Voltage Tolerance:±2%
- Fequency range:50-60Hz
- EfficIency:>84%
- size:160*48*29mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL : 12V100W Output DC Voltage : 12V Pated Current : 12V8.3A Current...
(0)Model:YSD24V100W
DC24V 100W 4.2A 0-10V LED dimming power supply
- Voltage:DC24V
- Power:100W
- Pated Current:4.1A
- Fequency range:50-60Hz
- Power Factor:PF>0.6
- EfficIency:>86%
- size:160*48*29mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL : 24V100W Output DC Voltage : 24V Pated Current : 24V4.1A ...
(0)Model:YSD12V150W
DC12V150W 12.5A 0-10V LED dimming power supply
- Volts:12VDC
- Power:150W
- Pated Current:12.5A
- Load regulation:±2%
- Fequency range:50-60Hz
- EfficIency:>84%
- size:180*64*29mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL : 12V150W Output DC Voltage : 12V Pated Current : 12V12.5A ...
(0)Model:YSD24V150W
DC24V 150W 6.25A 0-10V LED dimming power supply
- Voltage:DC24V
- Power:150W
- Pated Current:6.25A
- Fequency range:50-60Hz
- EfficIency:>86%
- Power Factor:PF>0.6
- size:180*64*29mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification MODEL : 24V150W Output DC Voltage : 24V Pated Current : 24V6.25A ...
(0)Model:YSD24V200W
DC24V 200W 8.3A 0-10V LED dimming power supply
- Voltage:DC24V
- RATED CURRENT:8.3A
- Power:200W
- Frequency Range:50-60Hz
- EFFICIENCY:>86%
- Size:205x63x29mm(LxWxH)
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification YSD 24V 200W
(0)Model:YSD12V200W
DC12V 200W 16.7A 0-10V LED dimming power supply
- Voltage:DC12V
- Power:200W
- Pated Current:16.7A
- Load regulation:±2%
- Fequency range:50-60Hz
- EfficIency(Typ.):>84%
- size:205*64*29mm
Features: Design for indoor installations Protections: Short circuit / Overload/Over temperature Cooling by free air convection 100% full load burn-in test Optional dimming method: TRIAC or 0/1-10V dimmable Meet the LED lighting Products through CE, RoHS Certification YSD 24V 200W
