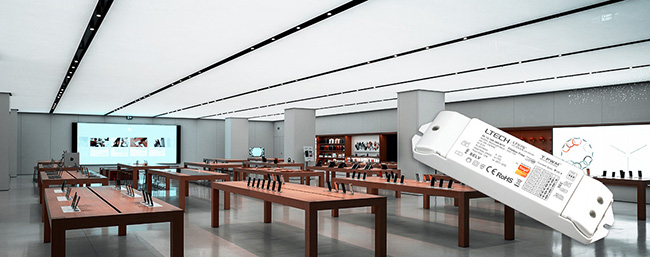

LTECH & Tuya work collectively together to develop "Tuya Bluetooth Driver" for intelligent IoT commercial lighting market. It adopts Bluetooth Mesh Ad-hoc Network and Tuya application protocol with high networking capability which are reliable and stable. Meanwhile, it applies LTECH original super depth digital dimming technology T-PWM that allows continuous and flicker-free images with high-speed shooting. Its soft-on and fade-in function aligns with Human-centric Lighting requirements which greatly enhances visual comfort. Multiple CV&CC drivers are available and meet various applications for different light fixtures.
Ltech Control System
Sponsors
Sponsors
Tuya bluetooth Driver
(0)Model:LM-100-24-G2R2
LM-100-24-G2R2 100W CV CCT Tuya Bluetooth Mesh LED Driver
- Input Voltage: 220-240Vac
- Output voltage: 24Vdc
- Output current: Max. 4.17A
- Output power: Max. 100W
- Dimming range: 0~100%, down to 0.1%
- Wireless type: Tuya Bluetooth Mesh
- Size: L296 x W44 x H33mm
- Gross weight: 0.35kg
The LM-100-24-G2R2 is a tunable white LED driver that is compatible with Class I, II, and III indoor lighting to provide a constant supply of power to the lighting fixtures. This CCT tunable LED driver is ideal for smart lighting systems since it follows Bluetooth Mesh and Tuya app protocols with strong networking capabilities for dependable and robust connections. With its soft-start and fade-in...
(0)Model:LM-75-24-G1R2
LM-75-24-G1R2 CV Dimmable Bluetooth Mesh Tuya LED Driver
- Input Voltage: 220-240Vac
- Output voltage: 24Vdc
- Output current: Max. 3.125A
- Output power: Max. 75W
- Dimming range: 0~100%, down to 0.1%
- PWM dimming frequency: 3600Hz
- Size: L293 x W43 x H30mm
- Gross weight: 0.36kg
The LM-75-24-G1R2 is a constant voltage smart driver that converts voltage to ensure proper operation of led lights. Adopting SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings, this dimmer led driver is lightweight and compact. The light driver combines the Tuya application protocol with cutting-edge Bluetooth Mesh networking to provide reliable network connectivity. This Tuya...
(0)Model:SE-20-250-1000-W2B3
20W Constant Current Tunable White Driver SE-20-250-1000-W2B3
- Input voltage: 100-240VAC
- Power: 20W
- Efficiency: 83%
- Power factor: PF>0.95
- Wireless: Tuya Bluetooth Mesh
- Warranty: 5years
Product Introduction The 100-240V LED dimming driver is designed with 1 channel 100-240V input and 1 channel PWM constant current output. By dip switch. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. Besides the 100-240V signal, the dimming driver can be controlled by push switch and potemtiometer as well. Product Features Wireless...
(0)Model:SE-12-100-400-W1Y
12W Constant Current Dimmable Driver SE-12-100-400-W1Y
- Input voltage: 100-240Vac
- Power factor: PF>0.95
- Efficiency: 80%
- Output voltage: 9-42Vdc
- Output current: 100-400mA
- Warranty: 5years
Product Introduction The 100-240V LED dimming driver is designed with 1 channel 100-240V input and 1 channel PWM constant current output. By dip switch. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. Besides the 100-240V signal, the dimming driver can be controlled by push switch and potemtiometer as well. Product Features Product...
(0)Model:LM-75-24-G1B2
75W Constant Voltage Dimmable Driver LM-75-24-G1B2
- Input voltage: 220-240VAC
- Power: 75W
- Power Factor: PF>0.97
- Efficiency: 92%
- Output Voltage: 24Vdc
- Output Current: 3.125A
- Dimming range: 0~100%
- Warranty: 5 years
Product Introduction The 220-240V LED dimming driver is designed with 1 channel 220-240V input and 1 channel PWM constant current output. By dip switch. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. Besides the 220-240V signal, the dimming driver can be controlled by push switch and potemtiometer as well. Product Features Product...
(0)Model:LM-100-24-G2B3
100W Constant Voltage Tunable White Driver LM-100-24-G2B3
- Input voltage: 220-240VAC
- Output voltage: 24Vdc
- Power: 100W
- Output current: 4.17A
- Efficiency: 93%
- Power factor: PF>0.98
- Wireless:Tuya Bluetooth Mesh
- Warranty: 5years
Product Introduction The 220-240V LED dimming driver is designed with 1 channel 220-240V input and 1 channel PWM constant current output. By dip switch. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. Besides the 220-240V signal, the dimming driver can be controlled by push switch and potemtiometer as well. Product Features Product...
