WS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By Sale

Model: DCFLS-IP68-WS2811X300 Review stars 5.0 (1 Reviews) Various options in stock
Starting at: Can.$50.81 Can.$39.5122% off
Qty Discounts Off Price
1-19
Can.$39.51
20-49
Can.$37.54
50-99
Can.$36.35
100+
Can.$34.77
* Discounts may vary based on options below
Select Specifications:
Select Connector:
Select Length:
Select Installation:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Addressable LEDs allow for sequencing modes. Silicone Encased waterproof flexible LED light strip with 300 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 5meter(16.4ft) Per Reel By Sale.

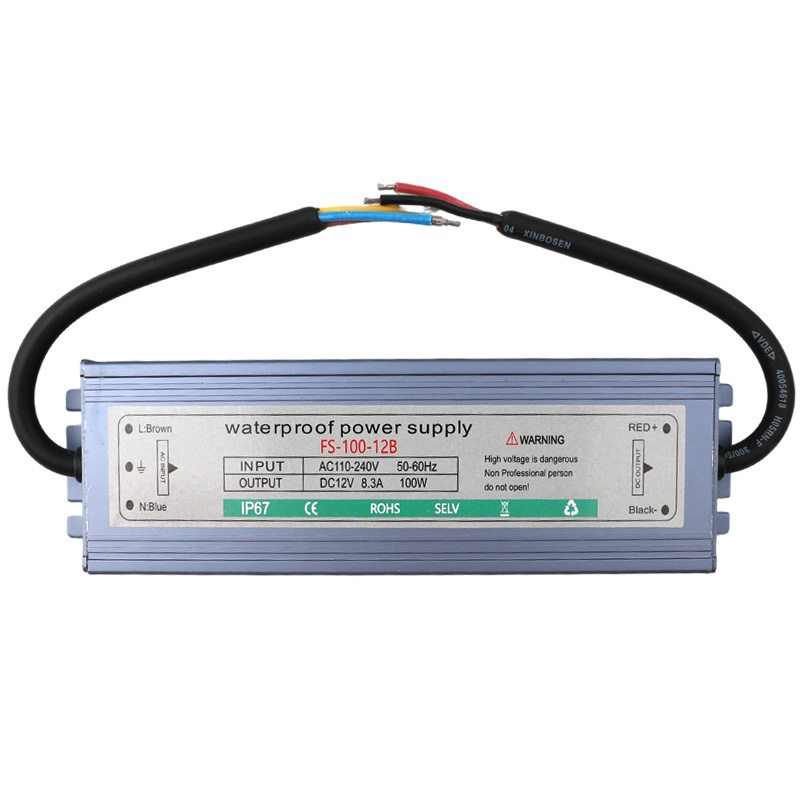

The gold controller shown in the image has been upgraded to the LC2000B-TY01 pink controller. If you choose our kit, you will receive a pink controller and a 100-watt waterproof power supply.

2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

3. This strips soft and easy bent for installation. Available in 5 meters (196.8 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request.

 4. The led strip has low light decline and long lifespan, LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.

5. The 12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.

6. The WS2811 chip has a built-in 1.2mhz high-speed 7-bit PWM for each channel - meaning it can provide each LED with 21-bit color (in a way that is easier to recognize than the eyes). Once the LED brightness level is set, your microcontroller can turn off and perform other operations without constant updates.

7. It comes with a 3-pin connector and a separate power/ground wire at each end. Each 3LED can be cut without damaging the rest of the strip. If desired, you are free to shorten, lengthen, or bend it.



WS2811 Chips Specifications Download   PDF



Standards and Certifications

DC12V CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof

Product Specification

LED Strip Type:  SMD 5050   DreamColor 300LEDs/16.4ft

LED Chip:  WS2811 IC super brights Chip

Working Temperature:  -4°F (-20°C) ~ 122°F (50°C)

Storage Temperature:  -40°F (-40°C) ~ 176°F (80°C)

Dimension:  16.4ft/roll, every 3 PCS LED can be cut

LED Quantity:  60 LEDs per 1meter (3.28 ft)

IC Quantity:  20 Pixels per 1meter (3.28 ft)/24V 10 pixels/m

Lifespan:  50,000+hours

Dimensions:  L500cm(196.8 in) x  W1.2cm(0.47 in) x H0.4cm(0.15 in)

Input Voltage(V): 12V/24V DC

Working Power: 72W/16.4ft  Max

Lumen Per LED: 20~22Lumen   6600lm Max /16.4ft

Wavelength NM(RGBY): 2000-2500mcd

Beam Pattern: 120 degree

Water Proof:  Waterproof IP68 (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);



Applications

  1. LED programmable digital display

  2. Hotels decoration use

  3. Backlighting decoration

  4. Concealed lighting, Cove decoration

  5. Theaters, clubs, shopping malls lighting

  6. Architectural decorative lighting

  7. Boutique atmosphere lighting

  8. Auditorium walk stairway lighting

  9. Hidden groove, Wine cabinet decoration

  10. Show exhibition decoration







Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

T
08/22/2026
5 or 5 stars

Daisy was a huge help

I had a few questions about controller compatibility before placing my order and Daisy got back to me SUPER fast, even with the time difference. She made sure I was getting the right parts for my project. The strips arrived in the US way quicker than I expected and everything works great.

Downloads

Files for DCFLS-IP68-WS2811X300
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

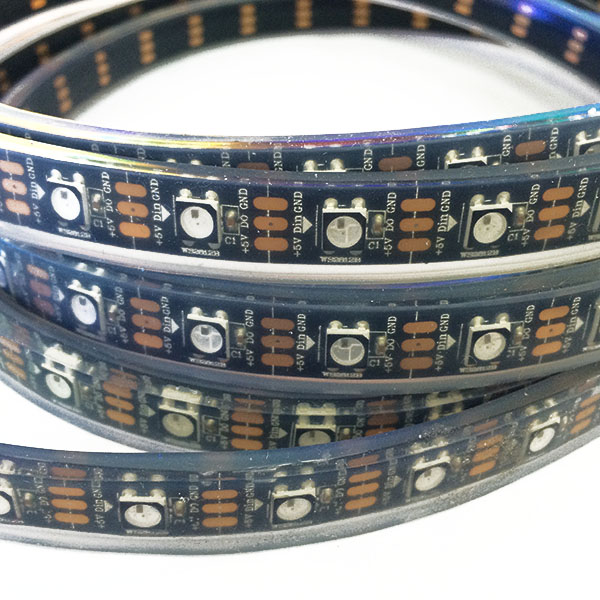

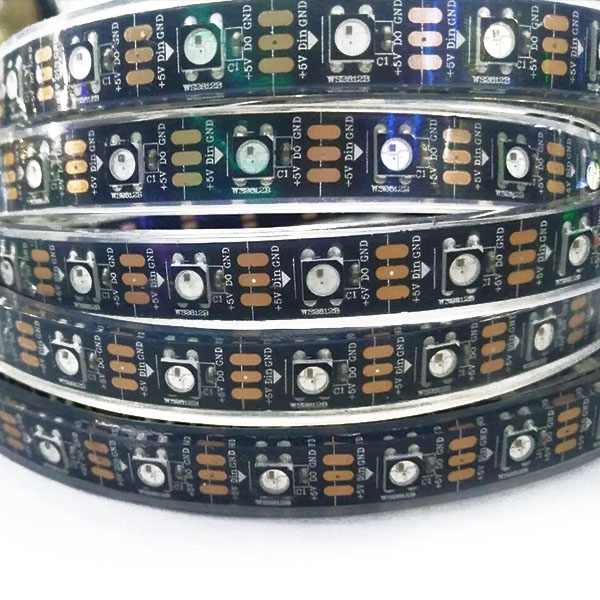

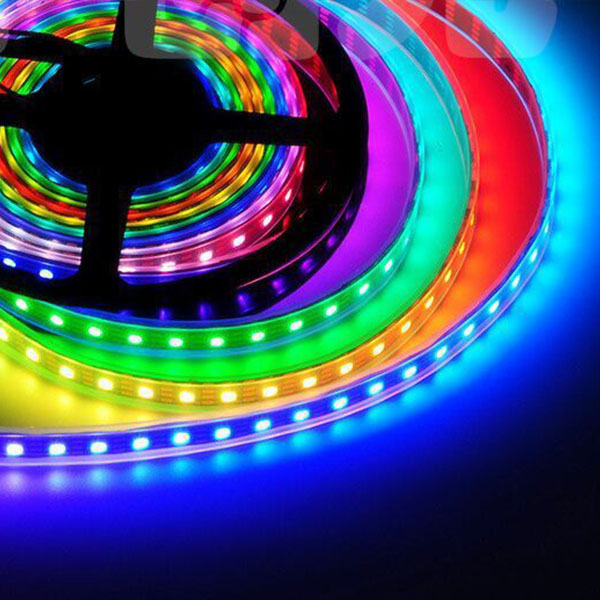

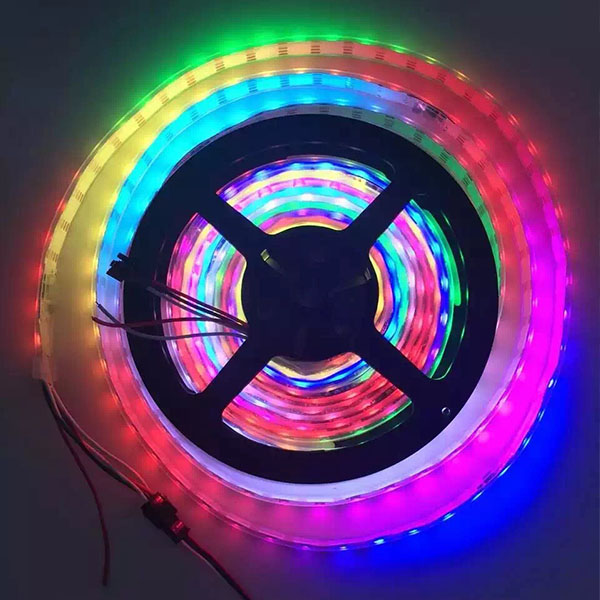

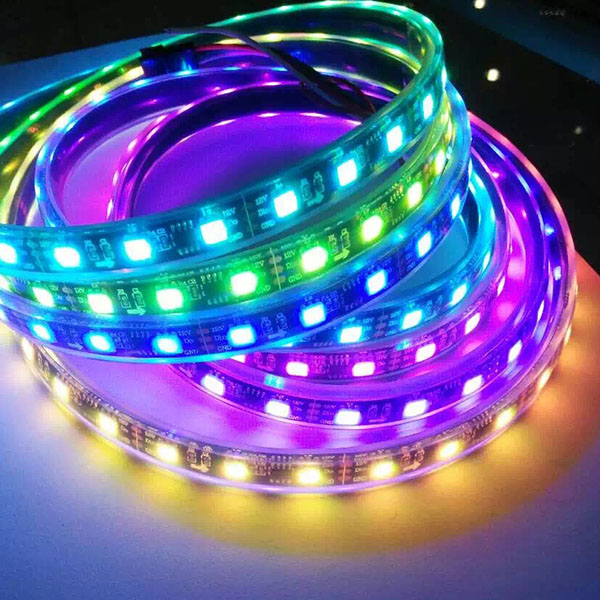

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

WS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By SaleWS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By SaleWS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By SaleWS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By SaleWS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By SaleWS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By SaleWS2811 DC12/24V 300LEDs Series Flexible LED Strip Lights, addressable Programmable Full Color Chasing, Outdoor Waterproof IP68, 5m/16.4ft Per Reel By Sale

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
This model runs on 24VDC · 12VDC. 5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Connector options on this model: Quick Waterproof Connectors. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

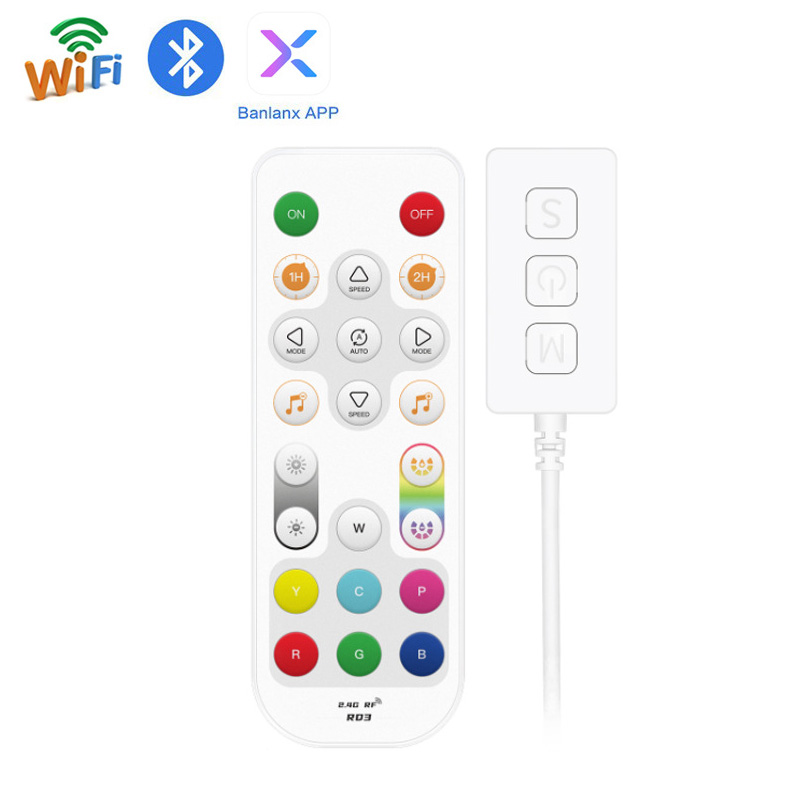

Complete your setup
