800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller

Model: GL-C-010WL
800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller
  • 800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller
  • 800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller
  • 800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller
  • 800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller

Select Specifications:

Select Colour:

Select Input Voltage:

Starting at: $25.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-99
$25.98
100-199
$24.68
200-499
$24.16
500+
$22.08
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    WLED ESP32 Pixel LED Strip Light Controller with built-in microphone function can capture audio signals (such as music, voice, noise, etc.) in the environment in real time, and control the strip light changes according to the frequency and rhythm of the sound. GL-C-010WL WLED controller ESP32 can make LED strip light flashing, changing color or brightness according to the rhythm of the music.

    Through Wi-Fi connection, GL-C-010WL easily realizes remote control of LED strip light and dynamic light effect management. Built-in WLED firmware supports hundreds of preset light effects such as flowing water, breathing, flashing, rainbow and other dynamic effects. Customizable light effects, adjustable light speed and brightness to meet individual needs.

    With a 2.4GHz Wi-Fi network connection, users can adjust the lighting settings anytime, anywhere using a cell phone, tablet or computer. Supports linkage with WLED APP, web control interface and smart home systems such as Alexa and Google Home.



    WLED ESP32 LED Pixel Tape Controller with Mic Control, WiFi connection

    Compatible with various white IC chips, RGB IC chips, RGBW IC chips, RGBCW IC chips, etc.

    With audio input, the lighting effect can be dynamically adjusted according to the music rhythm to create an immersive atmosphere

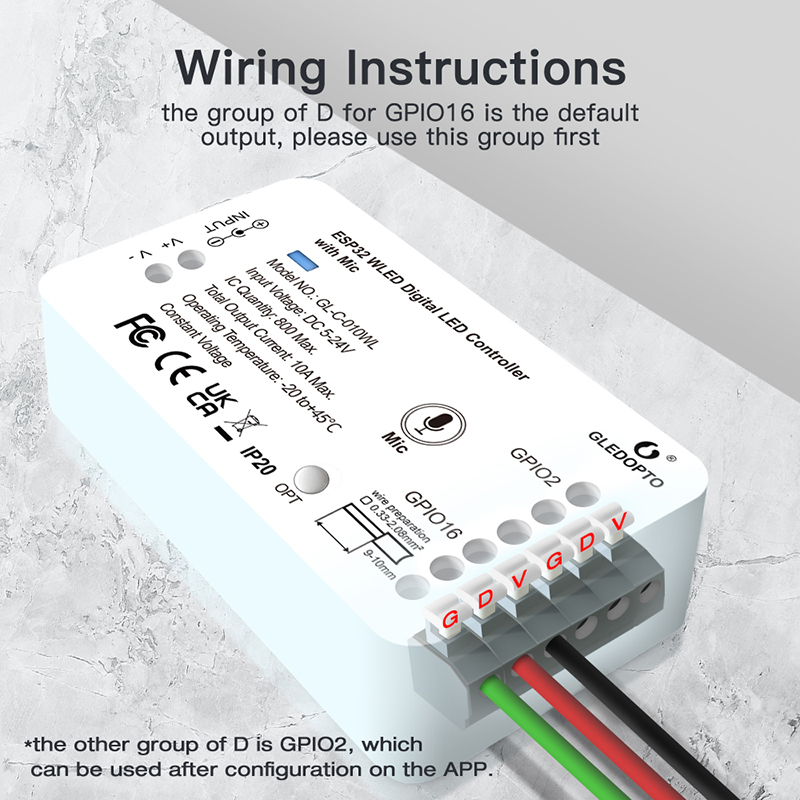

    Output 2-channel data signal, default output port is GPIO16

    Maximum output 10A

    DC 5-24V hardwired input and DC header input

    Press the button on the controller to switch the light strip on/off and switch the LED color

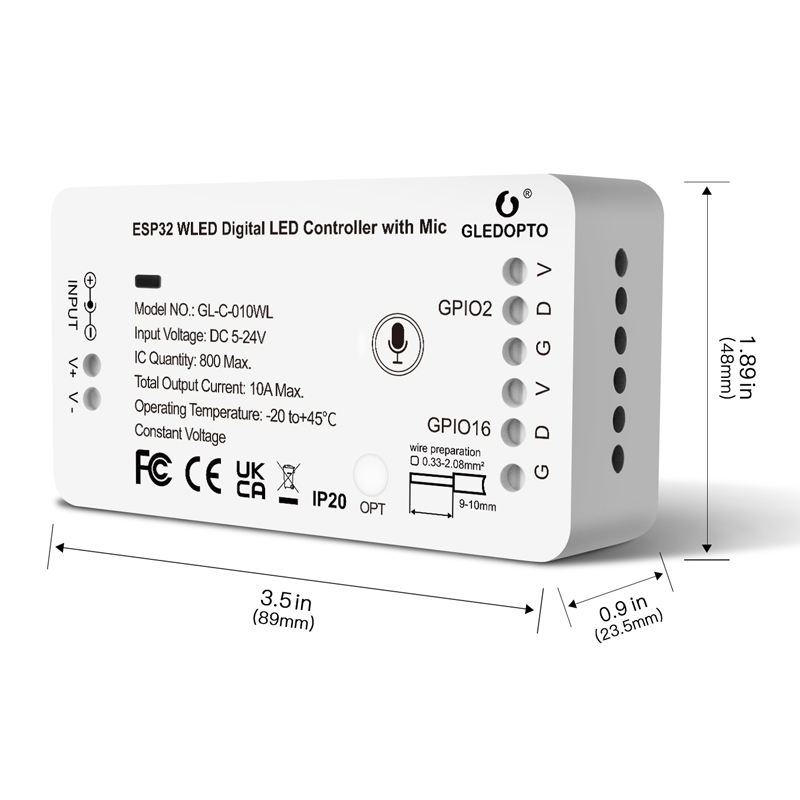

    Product Specification

    Product Type:
    Mic Control WiFi WLED ESP32 LED Pixel Tape Controller
    Model:  GL-C-010WL
    Input Voltage:  DC5-24V
    Wireless Connection:  Wifi + Mic
    Total Output Current: Max 10A, 2 dada ports
    IC Pixels:  800pcs max
    Dimensions:  L89mm*W48mm*H23.5mm (3.5in*2in*1in)
    Working Temperature:  -20℃ ~ 45
    IP rating:  IP20
    Wiring Type:  Press



    800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller

    800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller

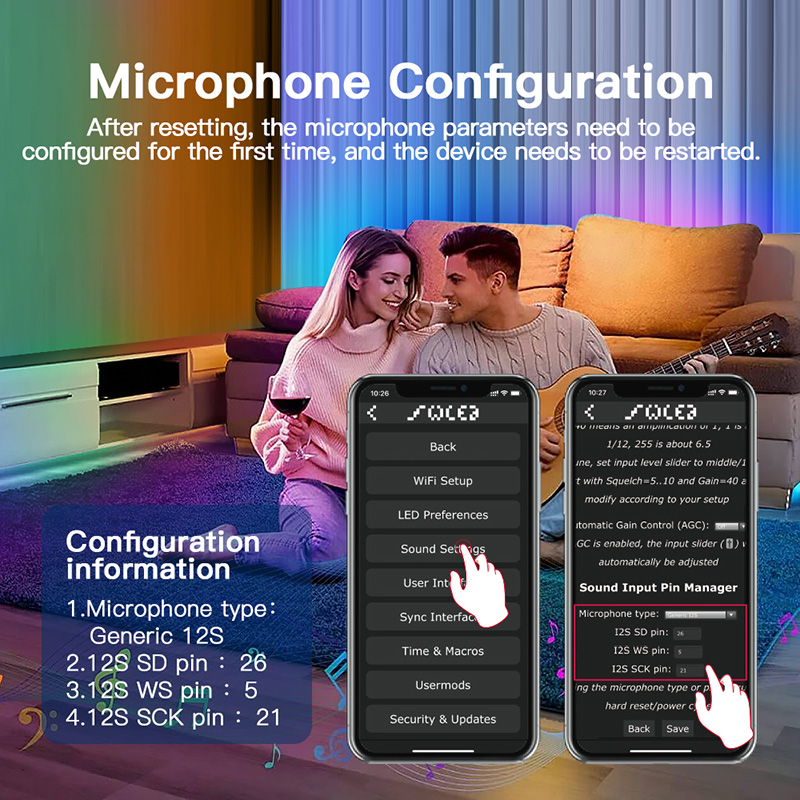

    APP Configuration Steps For WLED Controller

    WLED APP Download

    800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller800 Pixels Mic Control WiFi WLED ESP32 LED Pixel Tape Controller
