AC86-265V led artnet controller supports artnet protocol,each universe supports 680 pixels,work with Resolume,MADRIX,Jinx,etc, For digital led pixel panel
Related Products
AC86-265V led artnet...
$139.98 $104.9825% offDC12V WS2811 0.72W...
$14.99
DC12V/24V 50mm 6leds...
$54.98
DC12V WS2811 Waterproof...
$18.99
DC5V 0.3W WS2811 Outdoor...
$34.99-
Special Price: $139.98 $104.9825% off

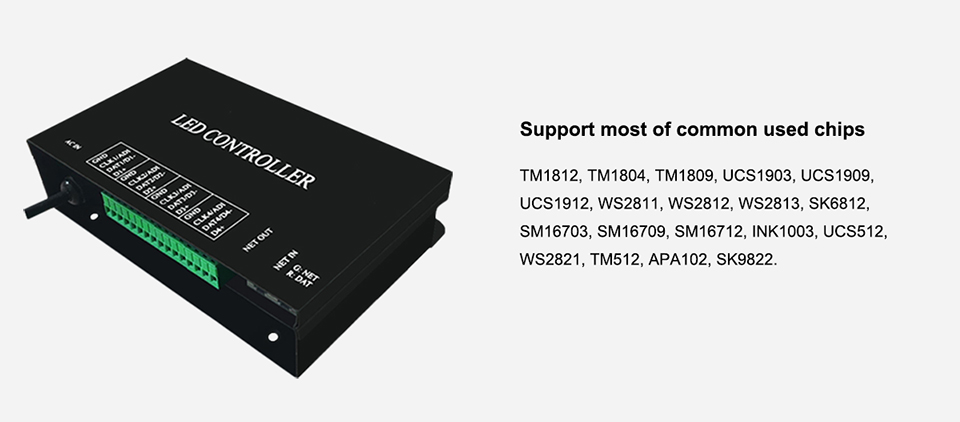

AC86-265V LED ArtNet Controller: High-Performance Lighting Control
Introducing the AC86-265V LED ArtNet Controller, a powerful and versatile solution for managing your digital LED pixel panels. This controller is designed to work seamlessly with the ArtNet protocol, ensuring compatibility with a wide range of lighting software and hardware.

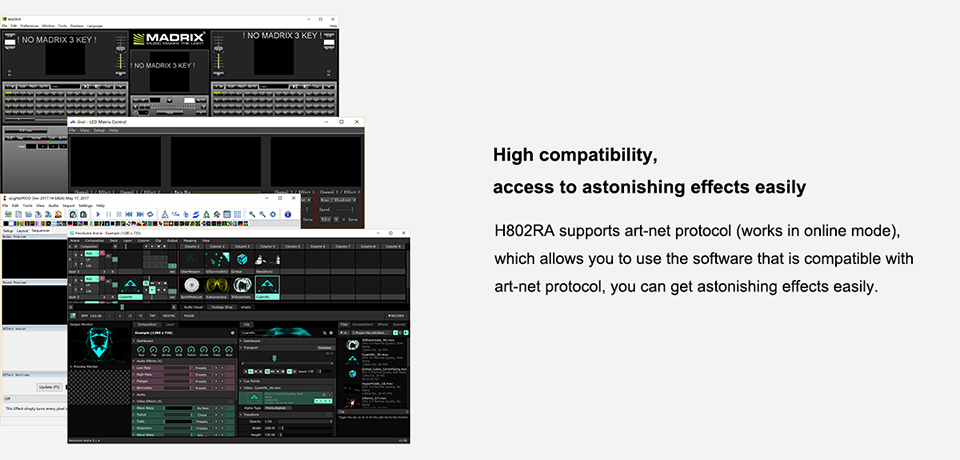

Compatibility and Software Support: The AC86-265V is compatible with industry-standard software such as Resolume, MADRIX, and Jinx, allowing for advanced lighting control and effects. With each channel supporting up to 1024 pixels, this controller is perfect for large-scale installations and complex lighting designs.
Installation and Configuration: The controller is easy to install and configure. Simply connect it to your PC and LED lights as per the provided manual. Set an IP address for the H802RA and configure it using the dedicated software. The controller is then ready to synchronize with your LED panels for a stunning visual display.
Applications: Ideal for use in various settings, including stage lighting, architectural lighting, and digital art installations, the AC86-265V LED ArtNet Controller offers a robust solution for professional lighting control.
Item Type: RGB Controler
Voltage: 220V
Certification: CE,RoHS,CCC
Power Source: AC
Model Number: H802RA
Features: high stability
Remote Distance: none
Warranty: 1 year
Max. Load Power: 10W
Controled Method: by master or PC
Applicable Lights: full color lights
Connection Mode: GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)
Material: metal
Wattage: 1
drive pixels number: 4096
universes number: 4
Software Download: https://www.superlightingled.com/PDF/Madmapper 5.1 Install.zip
https://www.superlightingled.com/PDF/madrix-5.0.zip
https://www.superlightingled.com/PDF/MadrixWygInstall.exe
https://www.superlightingled.com/PDF/2021-LedEdit_setup.rar
https://www.superlightingled.com/PDF/ArtnetSettingTools.exe
Madrix Offline Program Recording Software Download
https://www.superlightingled.com/PDF/CaptureArtnetTools%20V1.49.1-EN.rar
Mardix Software setup demo video
Product Specification

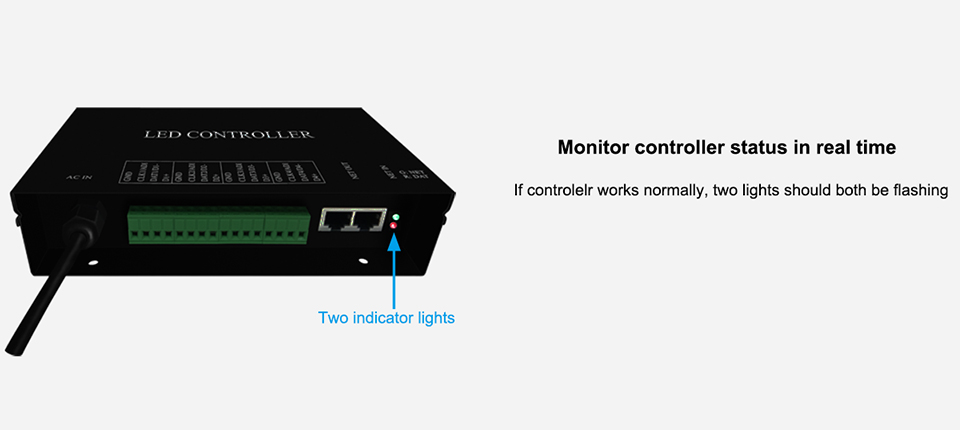

Product Display
Manual

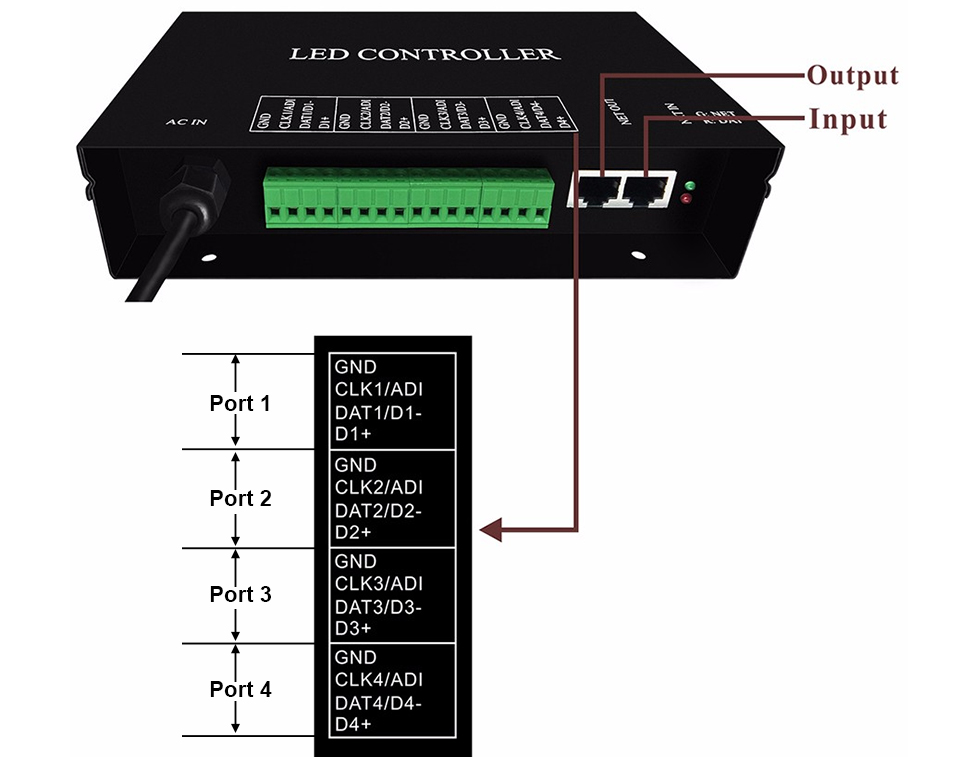

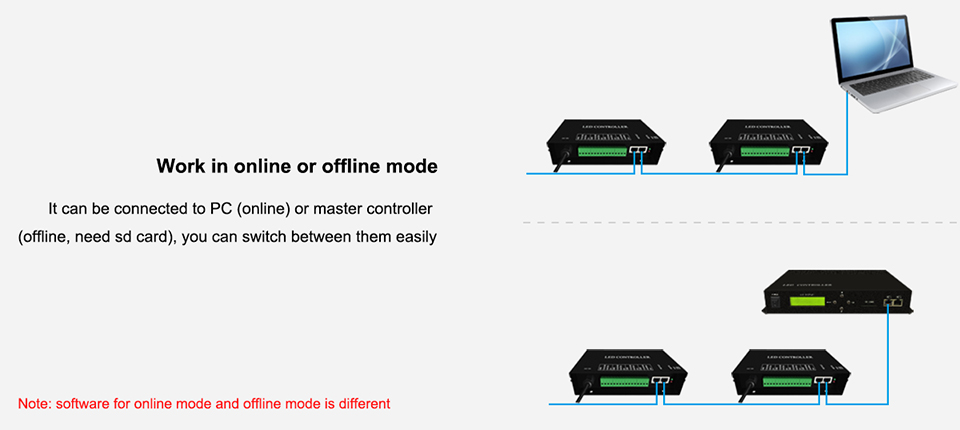

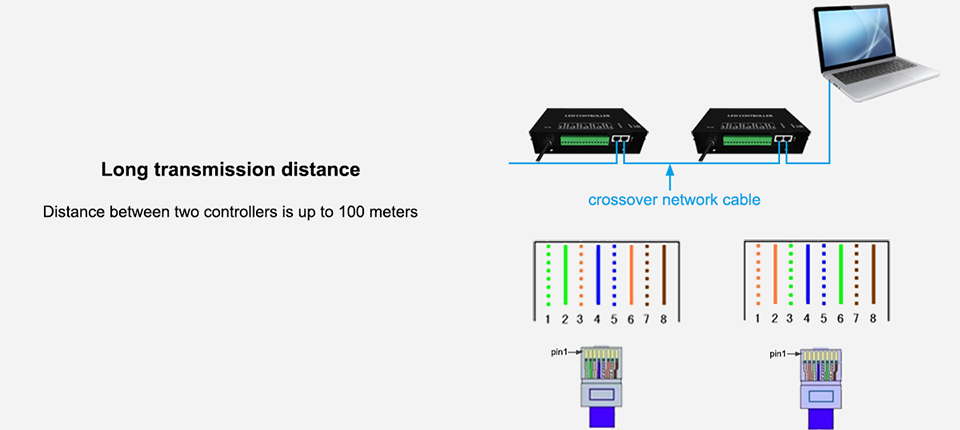

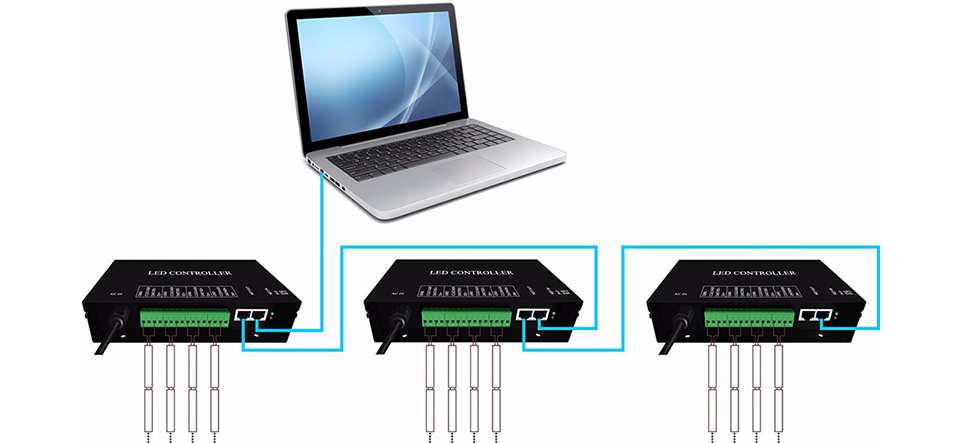

Step1. Connect H802RA to PC and led lights to H802RA like the following image displays (It's online mode)

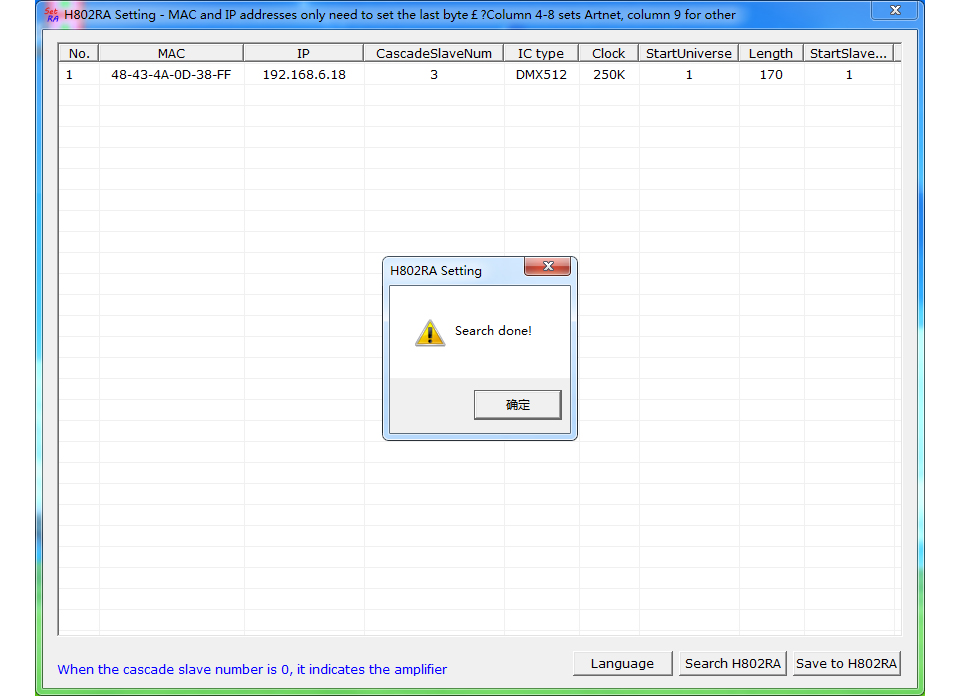

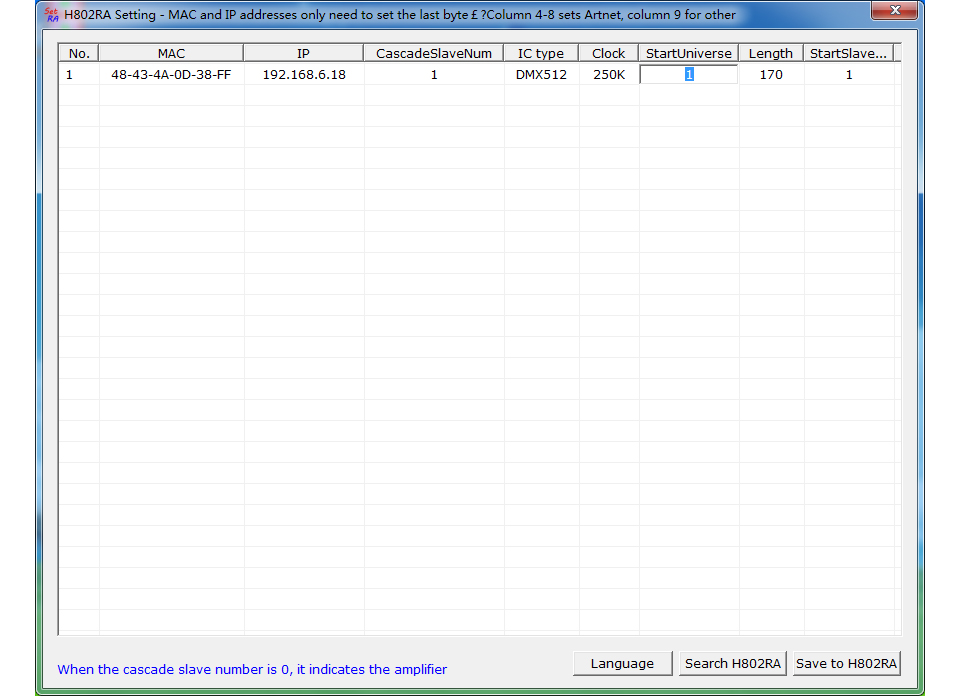

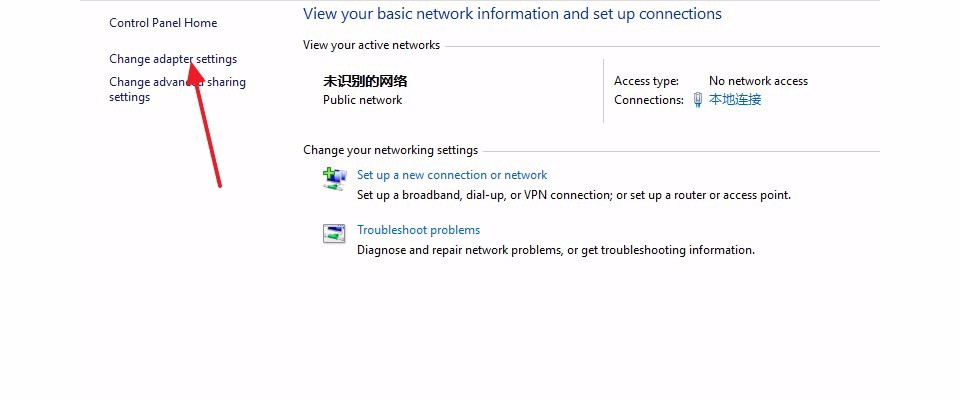

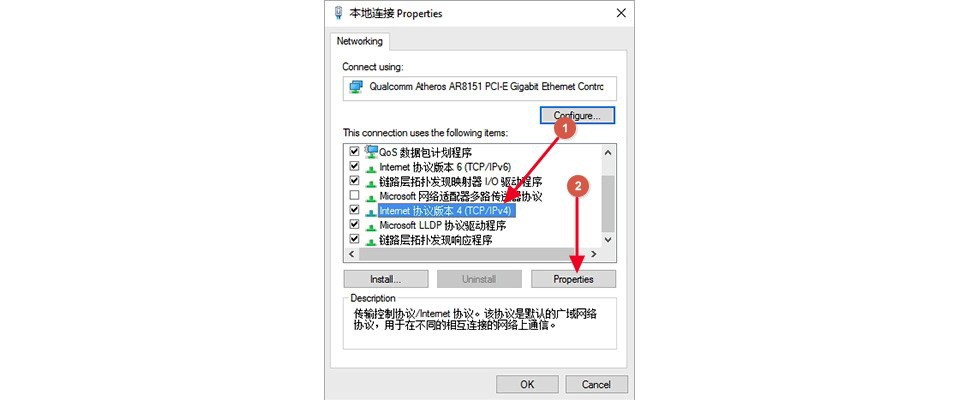

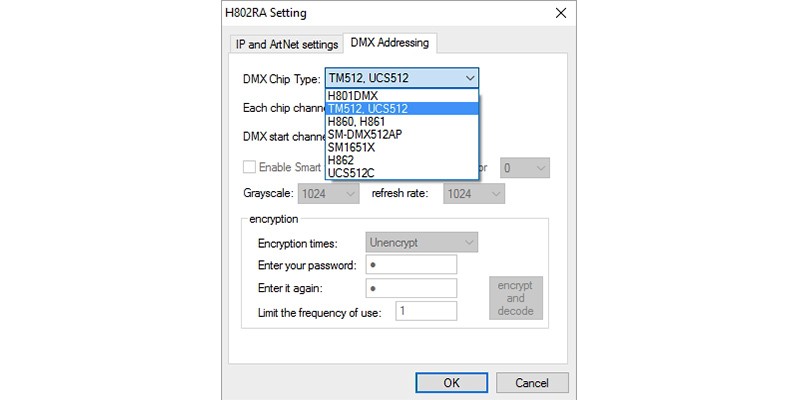

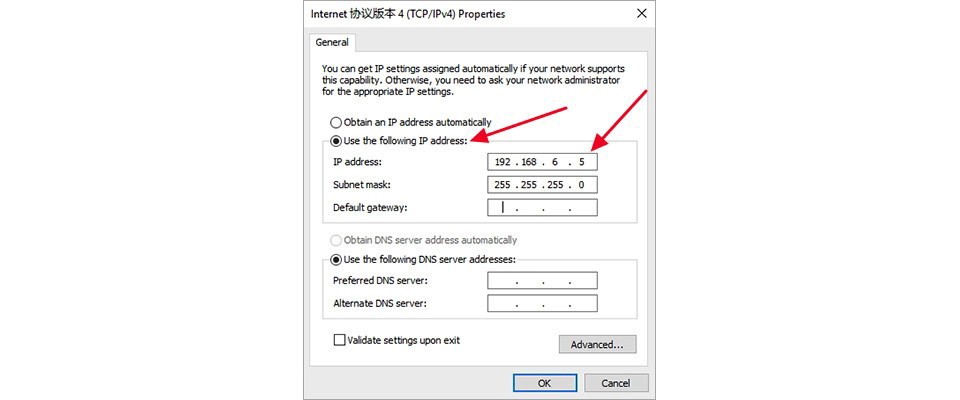

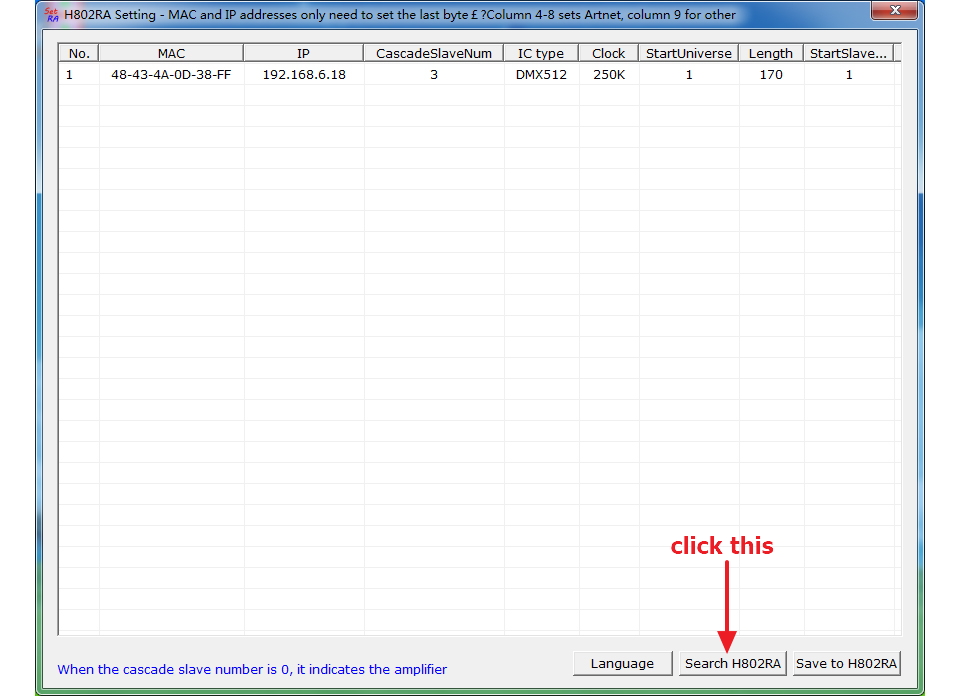

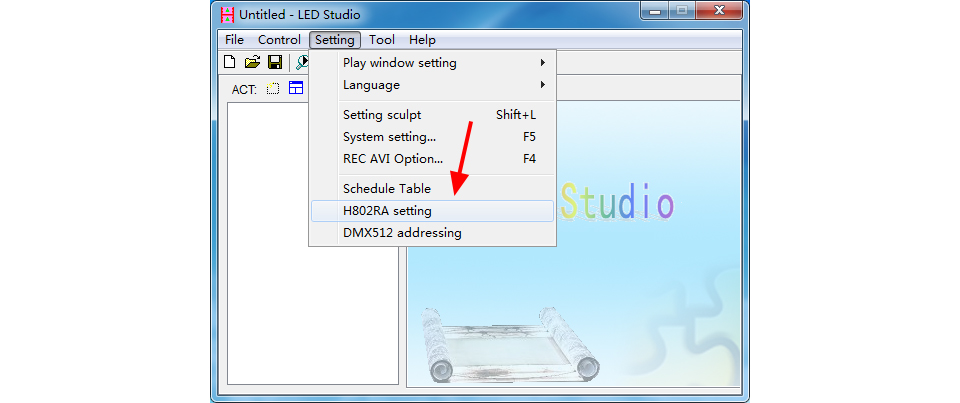

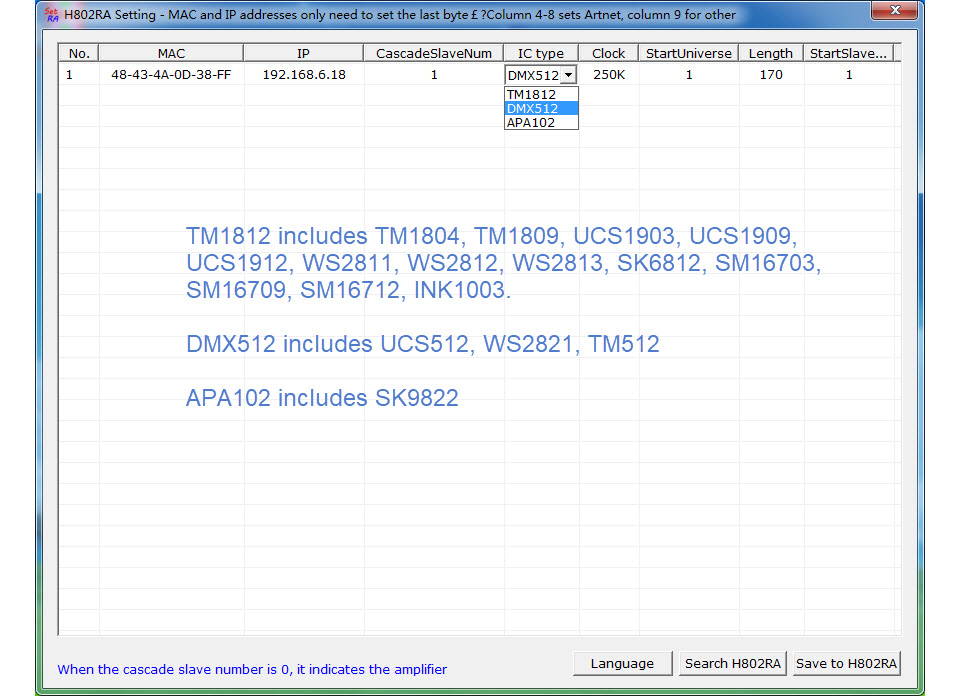

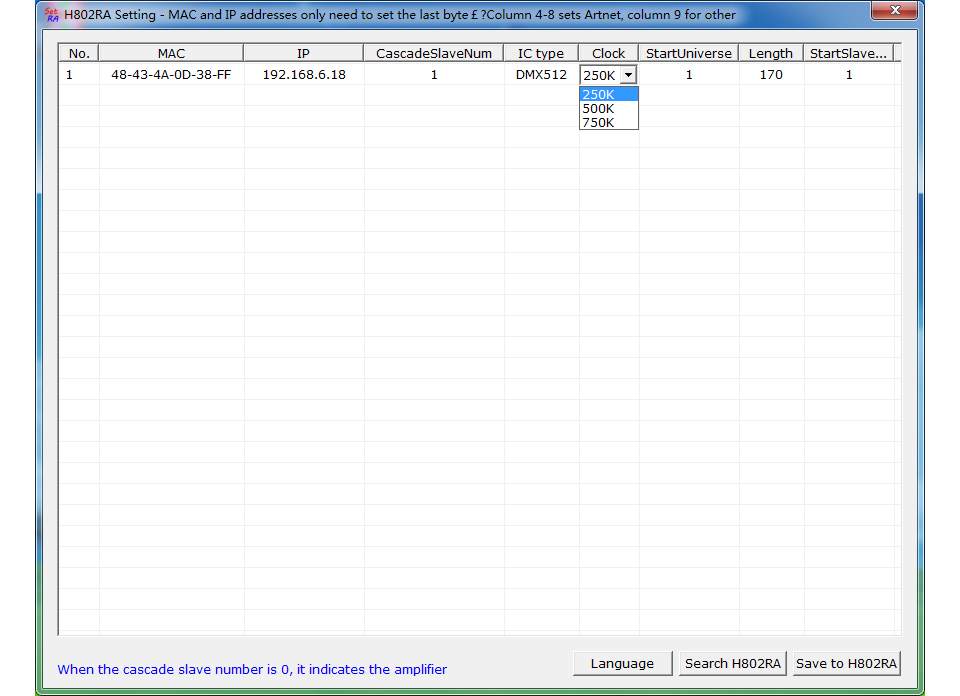

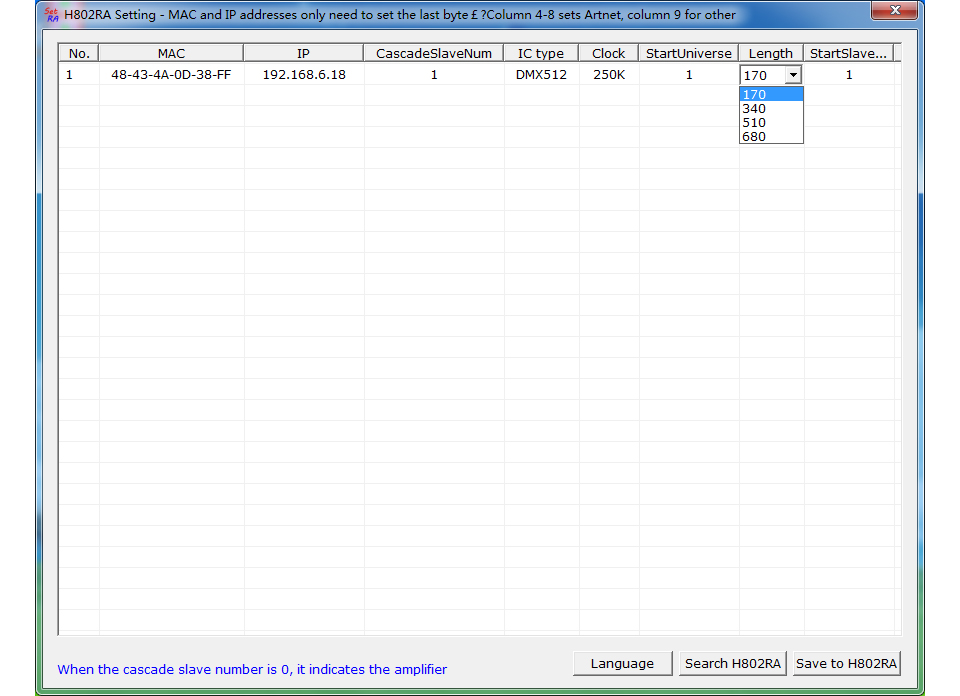

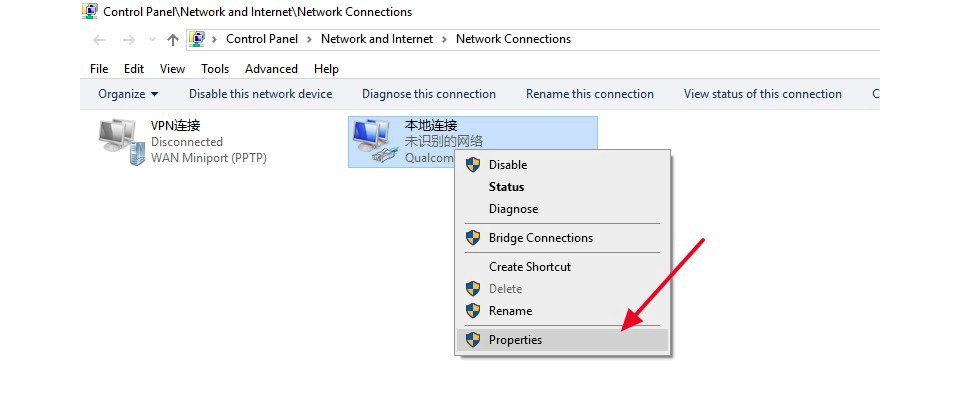

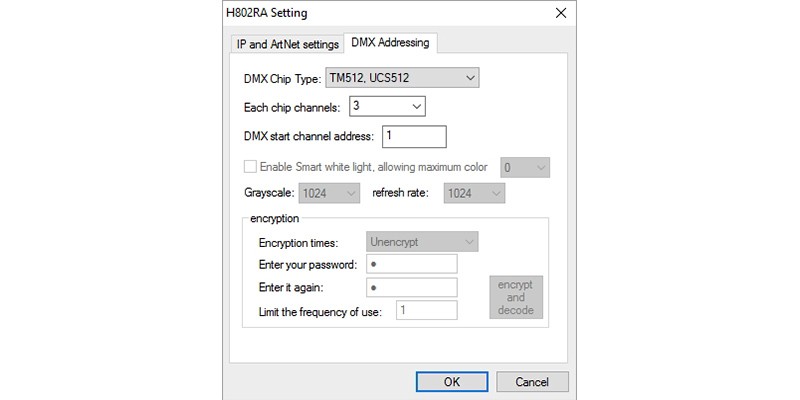

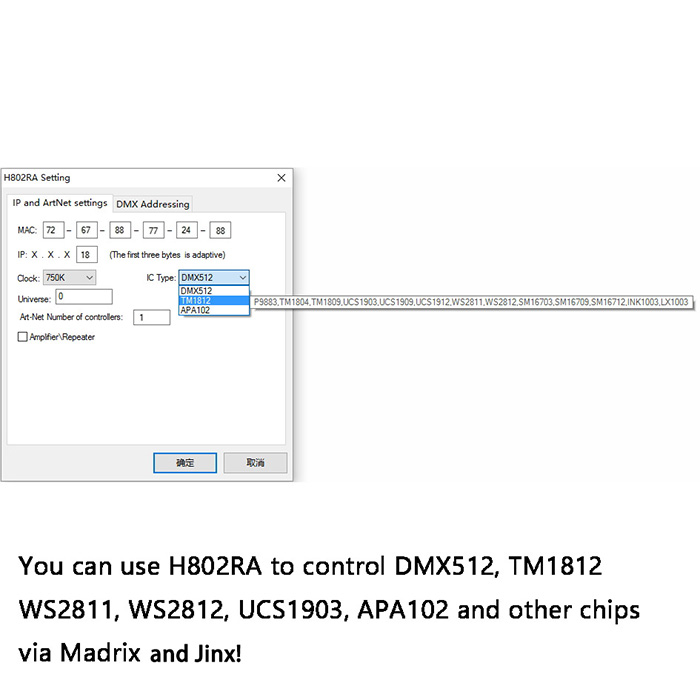

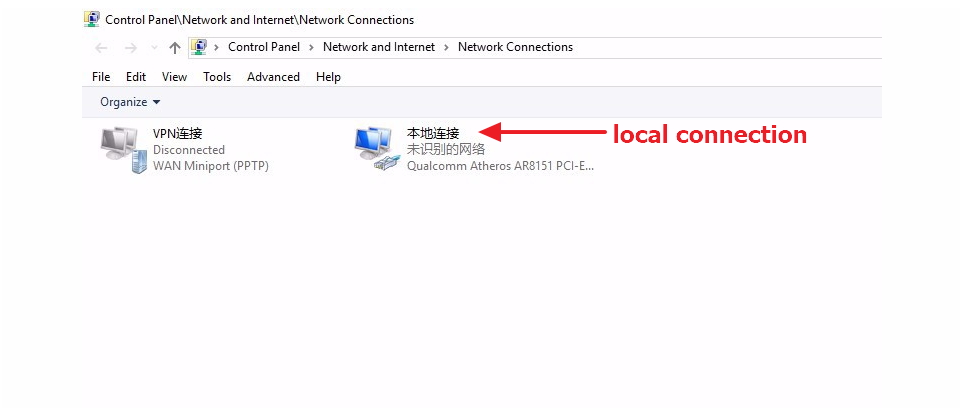

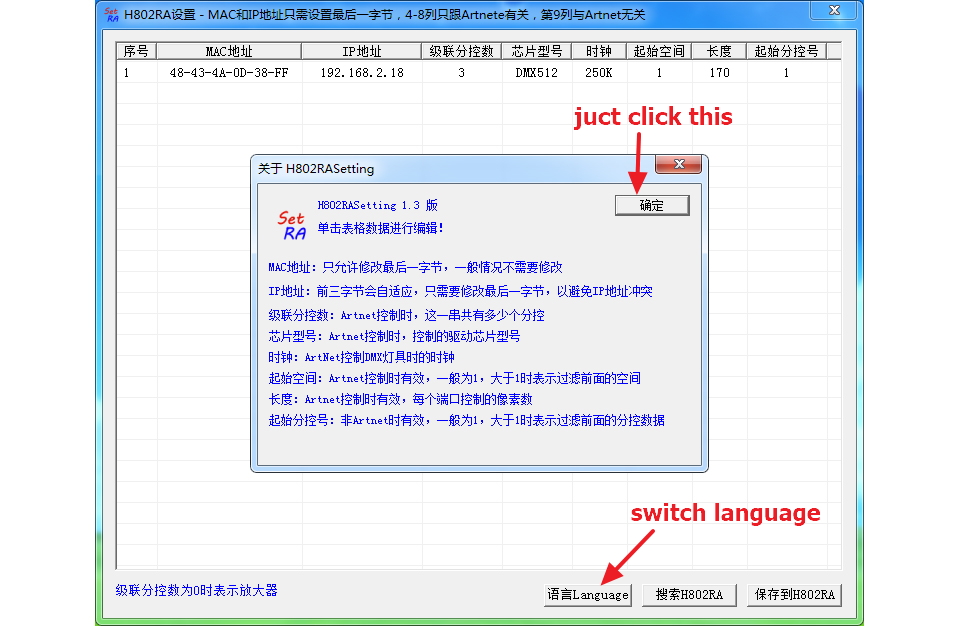

Step2. Set an IP address for H802RA
Then, click "Save to H802RA" and close the window.

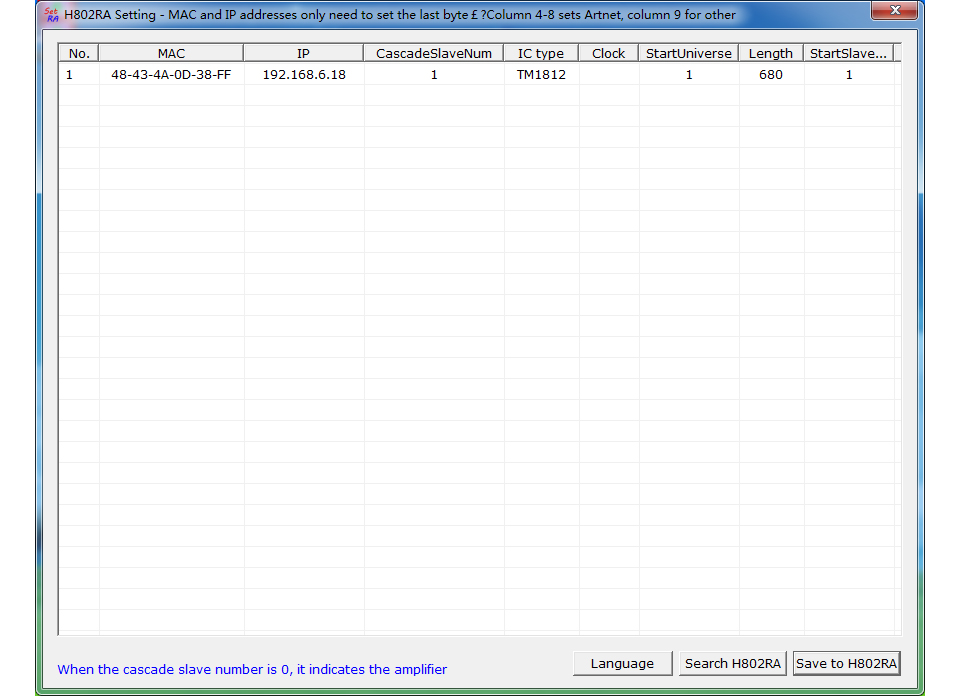

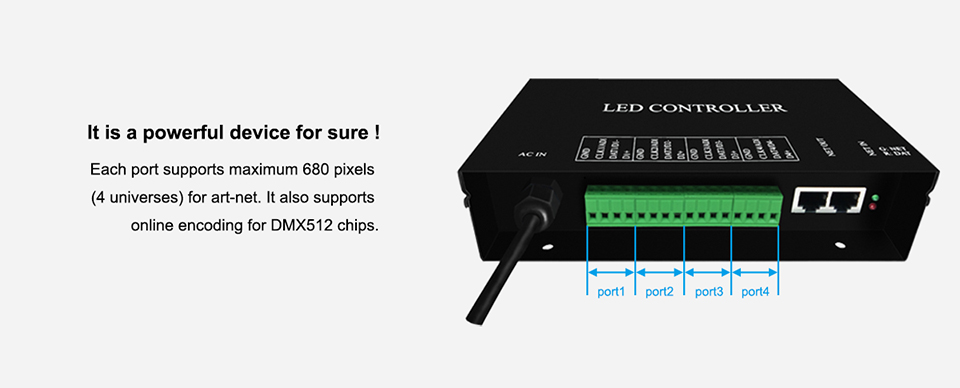

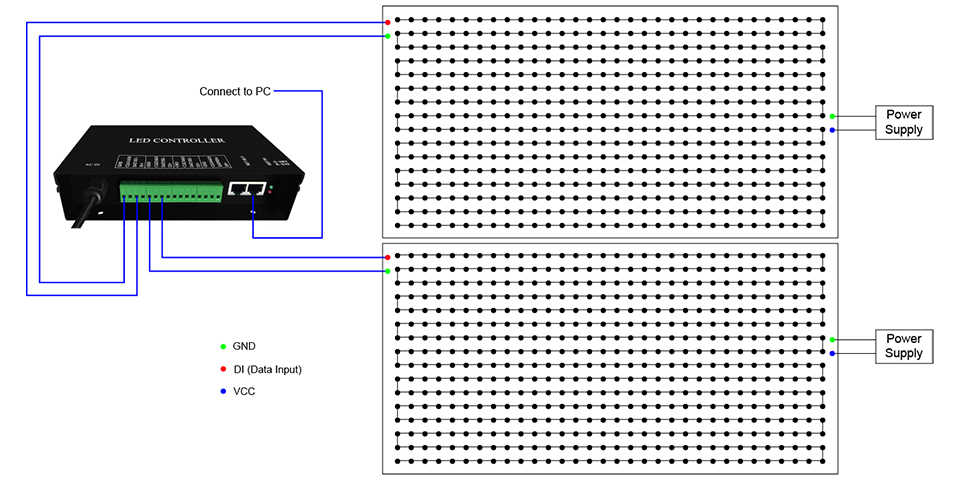

In the following example, i connect 1 pcs H802RA to PC, H802RA connects to a WS2812 panel (32 pixels by 32 pixels), each port of H802RA supports 680 pixels.

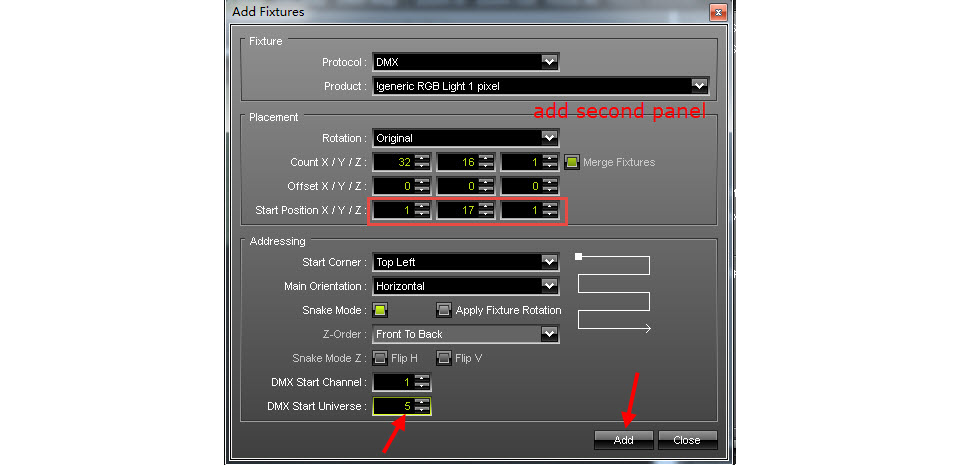

The panel consists of 2 pcs 32*16 panels

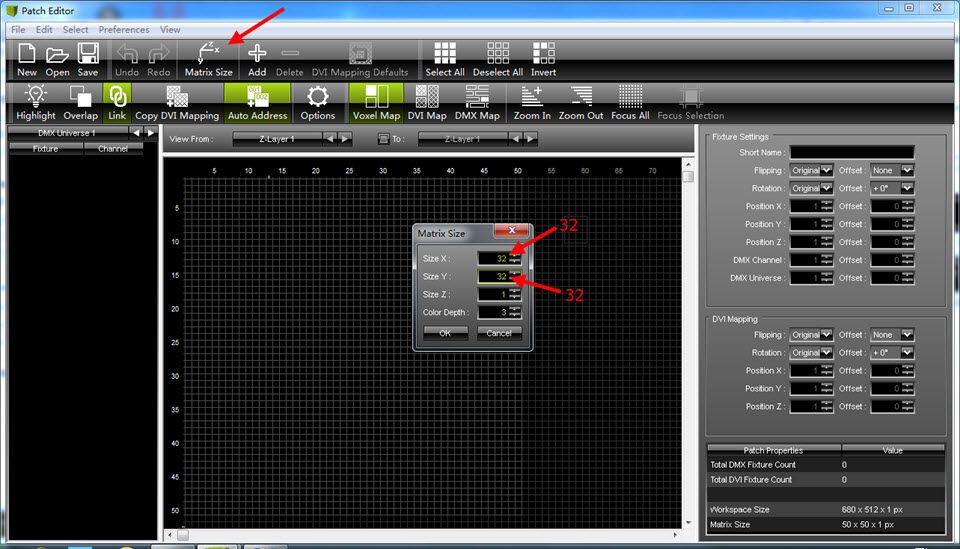

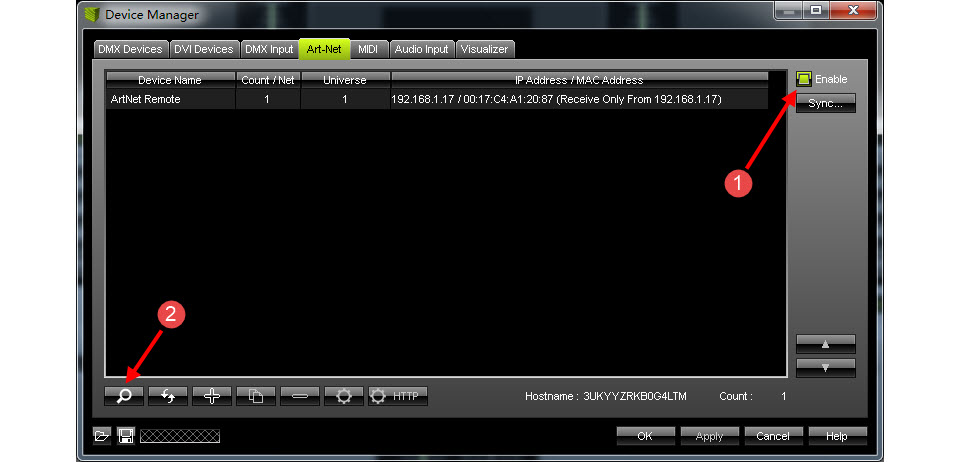

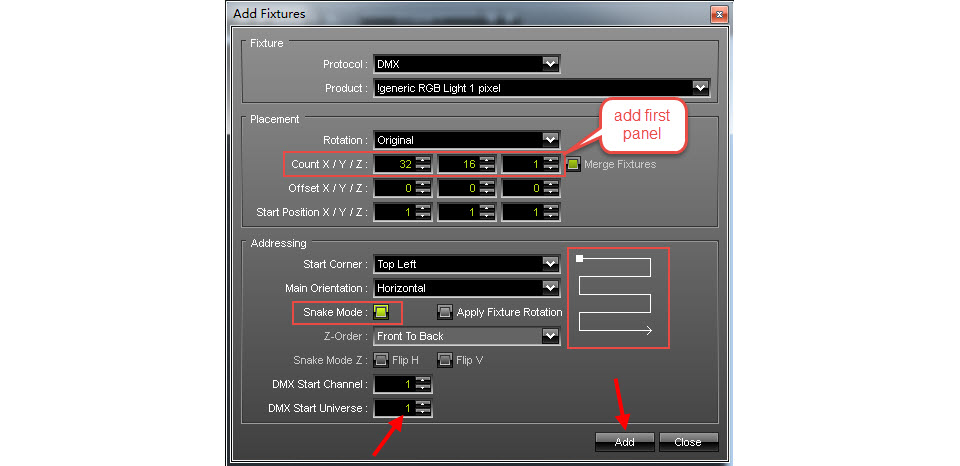

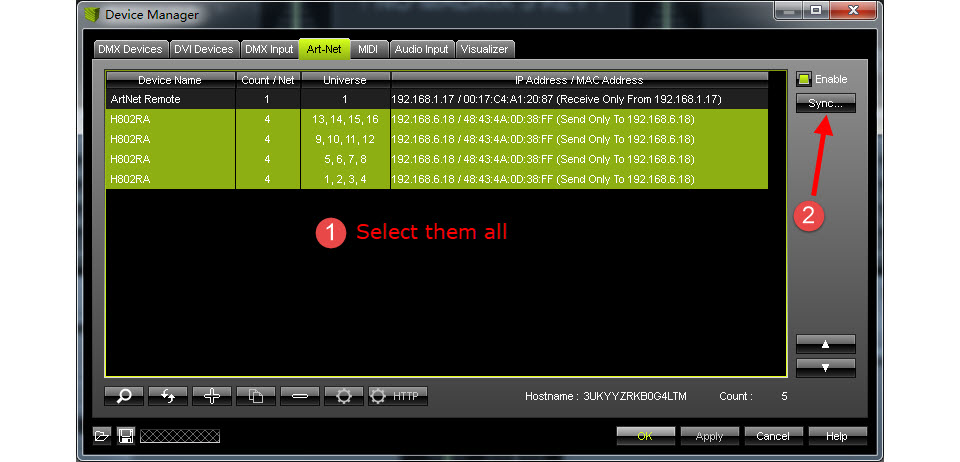

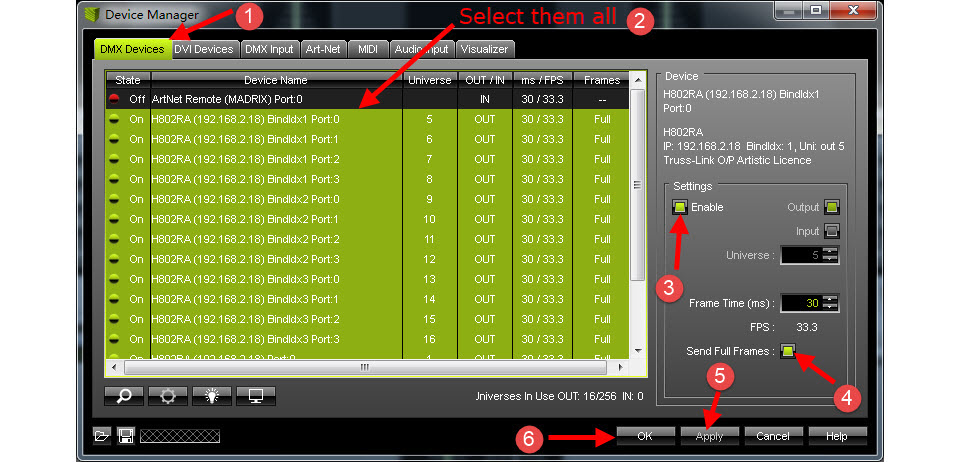

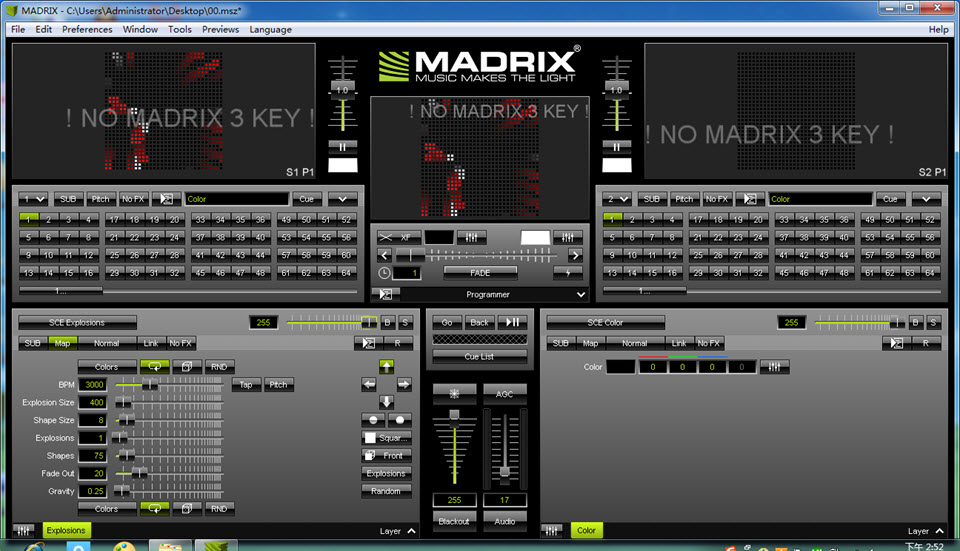

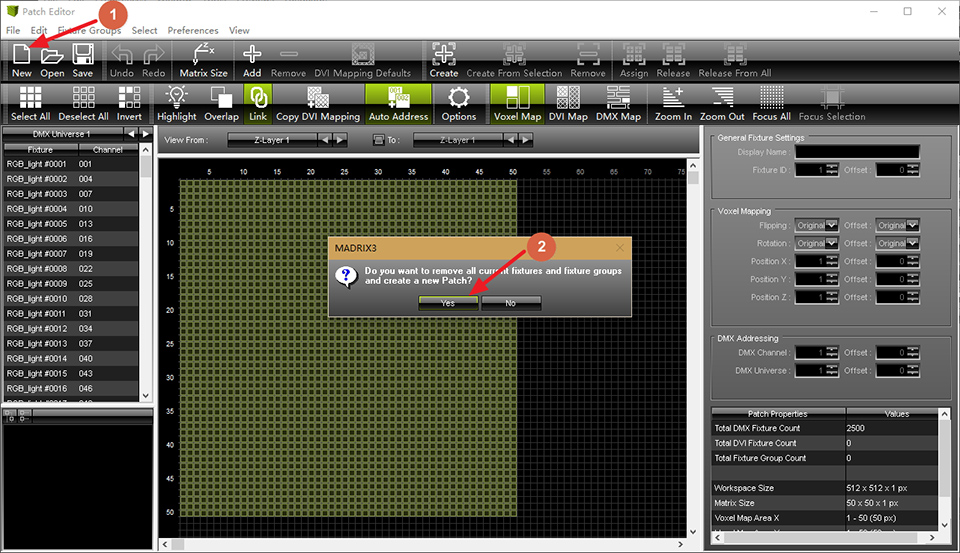

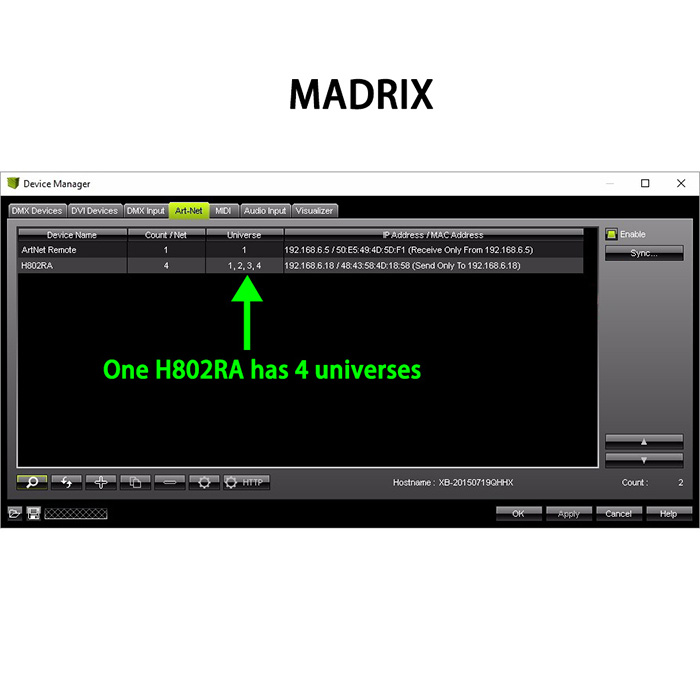

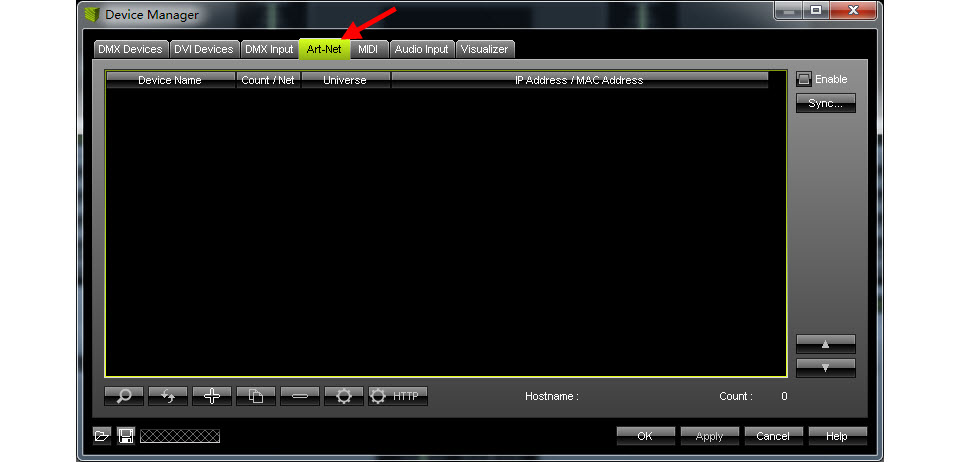

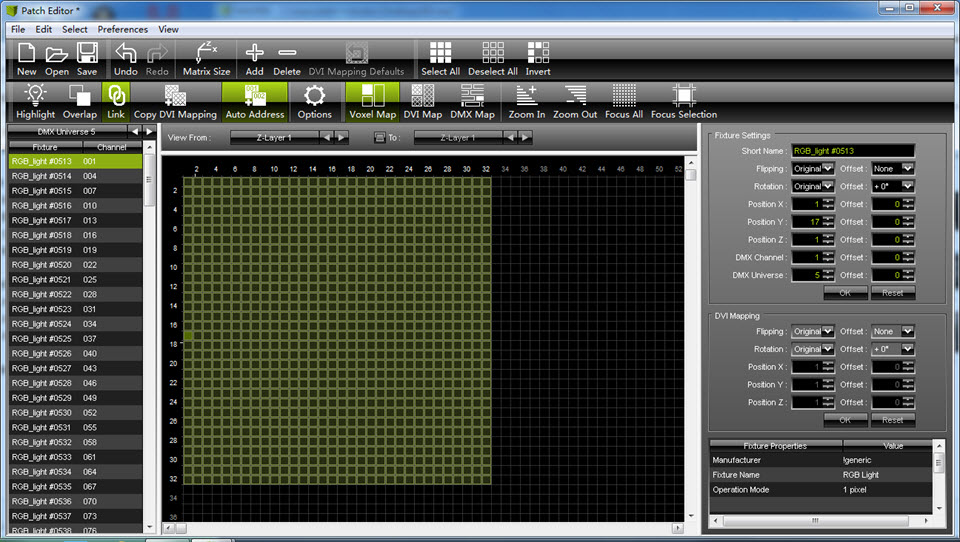

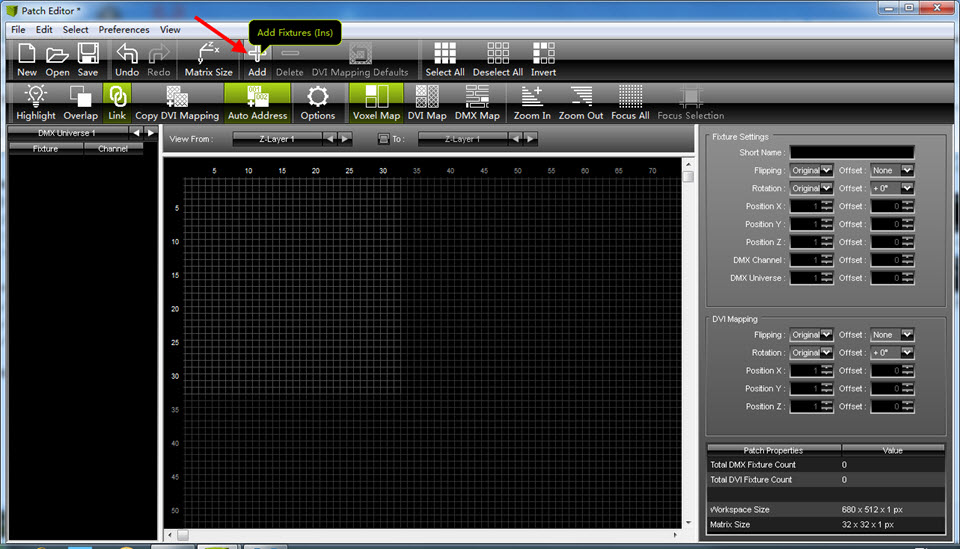

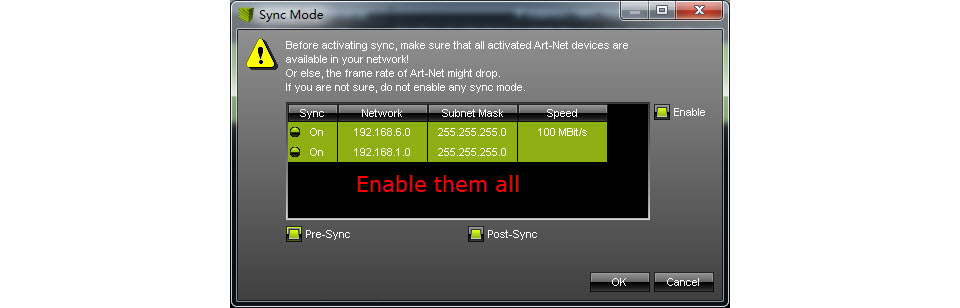

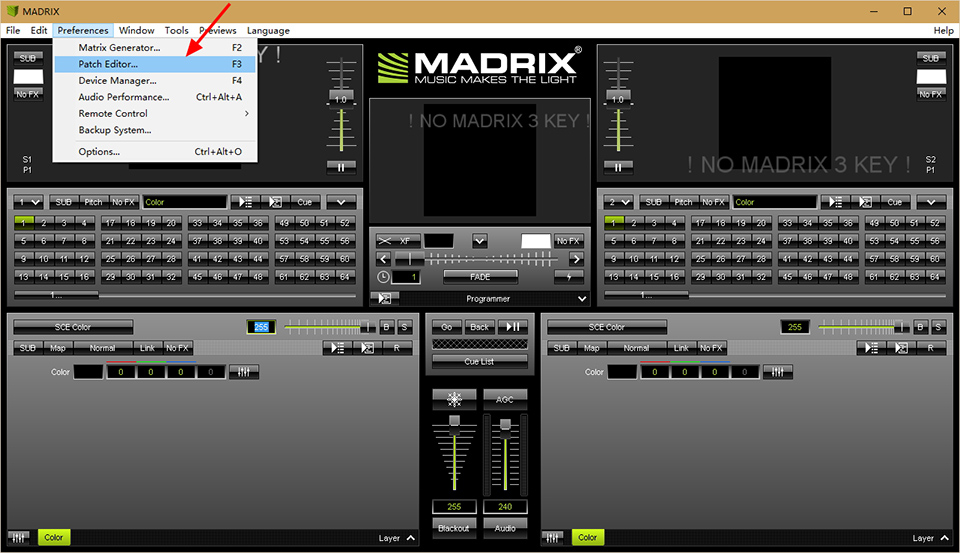

MADRIX Configurations

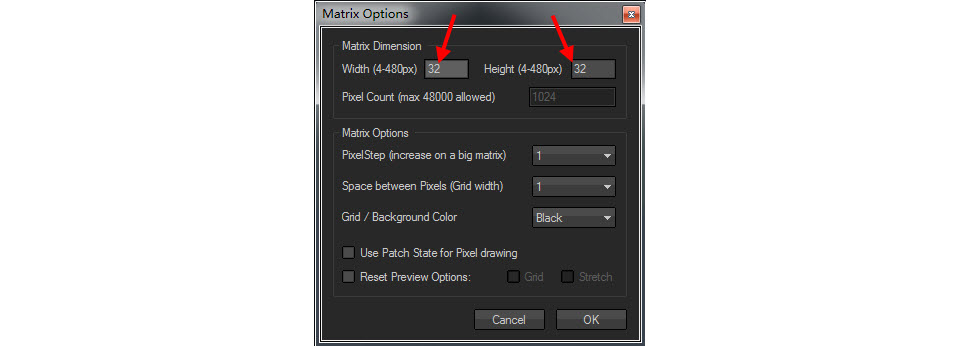

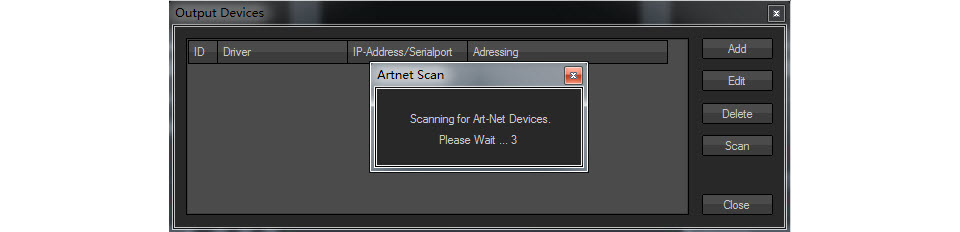

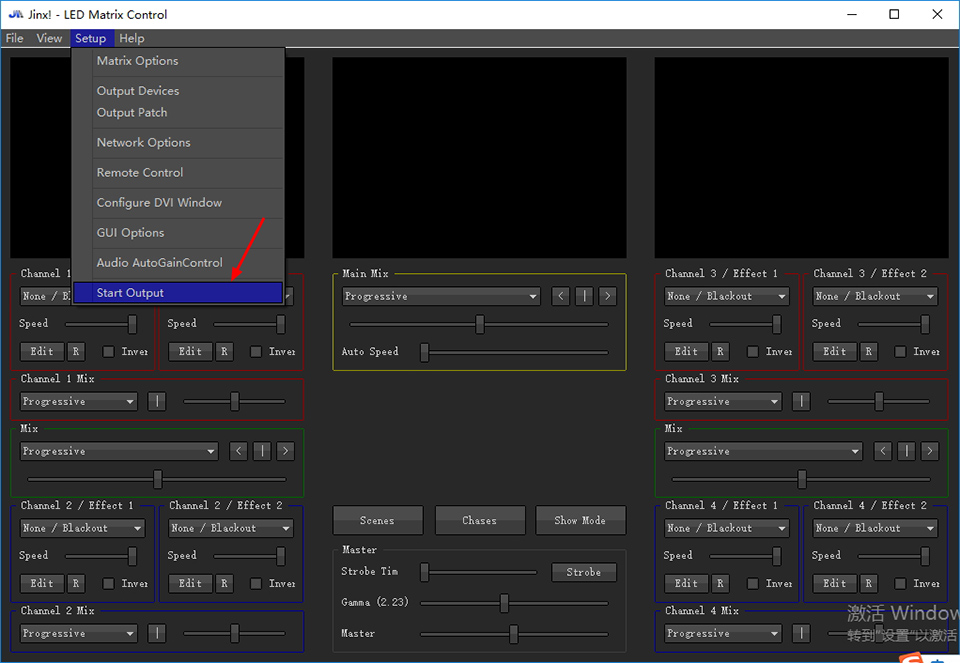

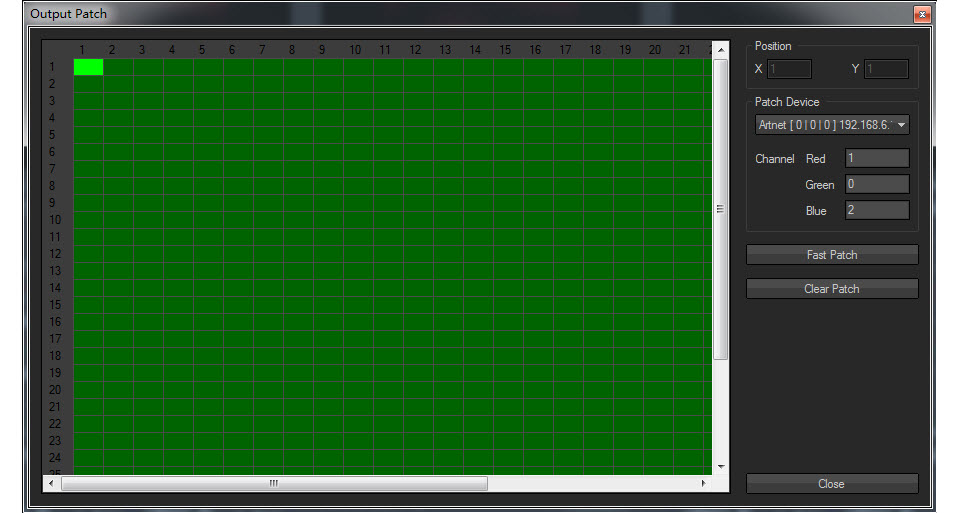

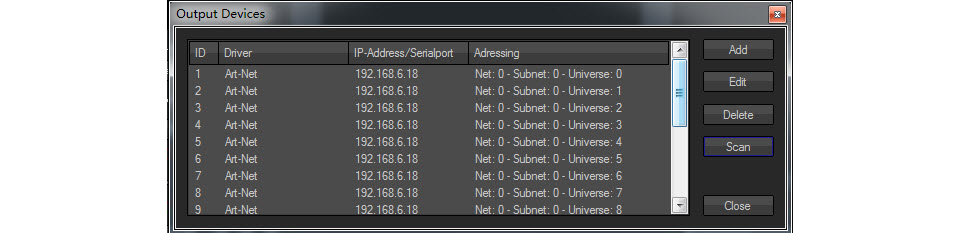

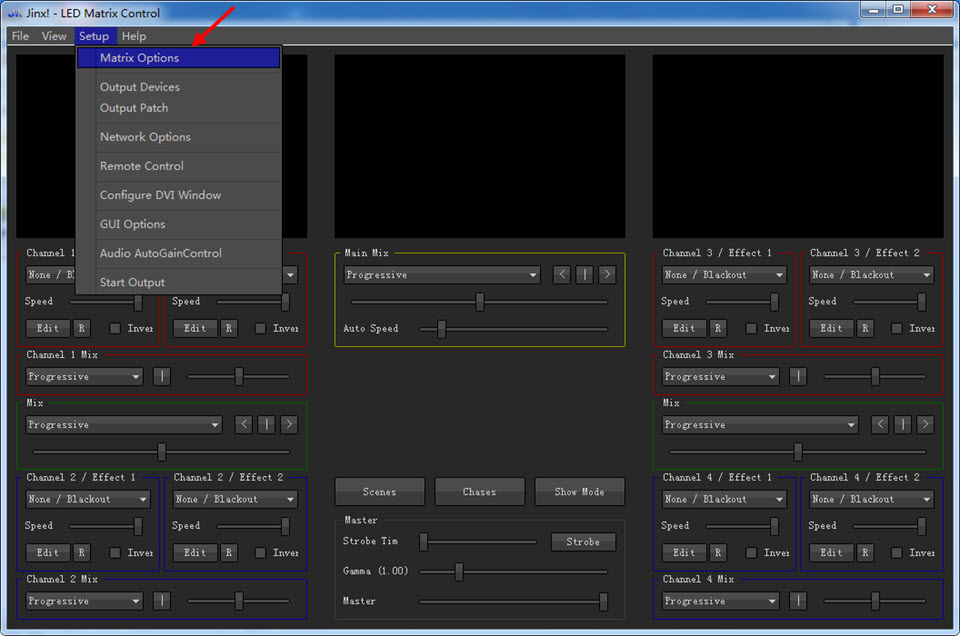

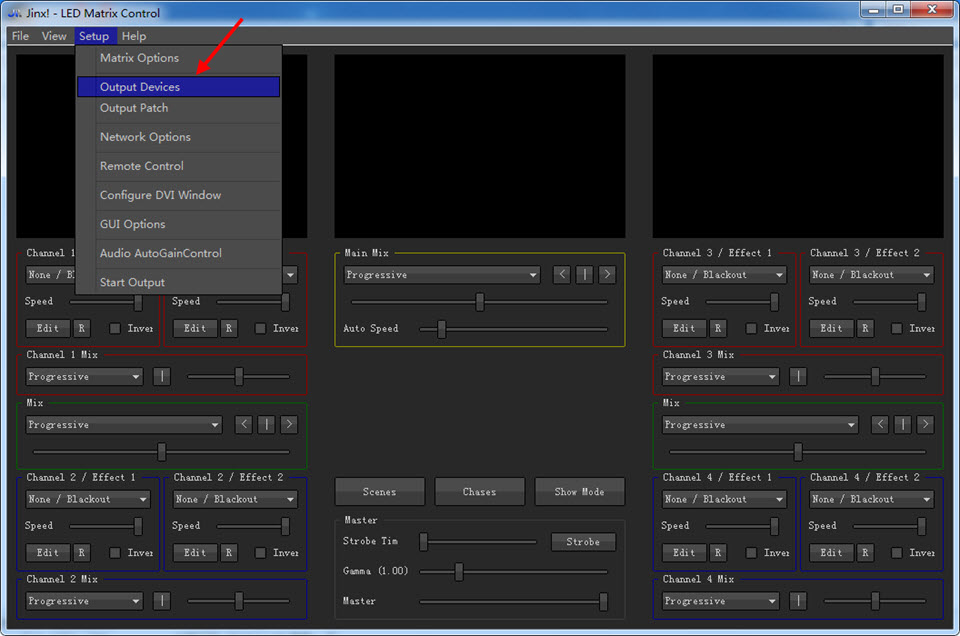

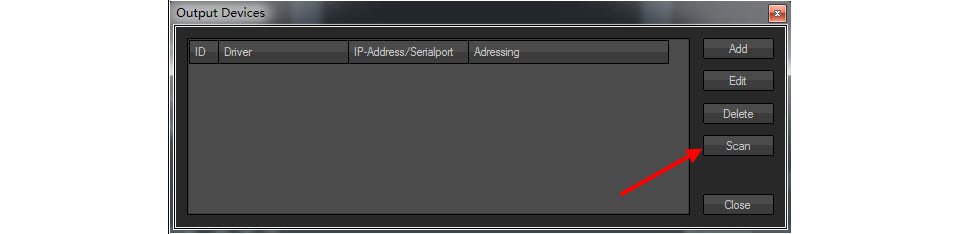

Jinx! Configurations

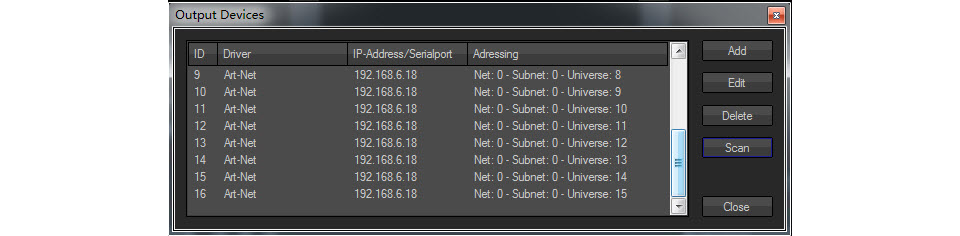

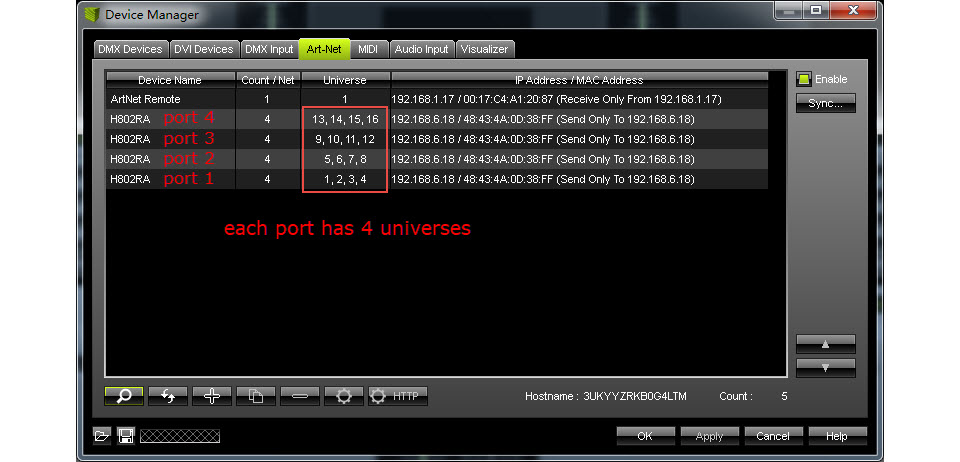

There are 16 universes in total
Then
Choose "Audio Auto Gain Control" if you need music effect

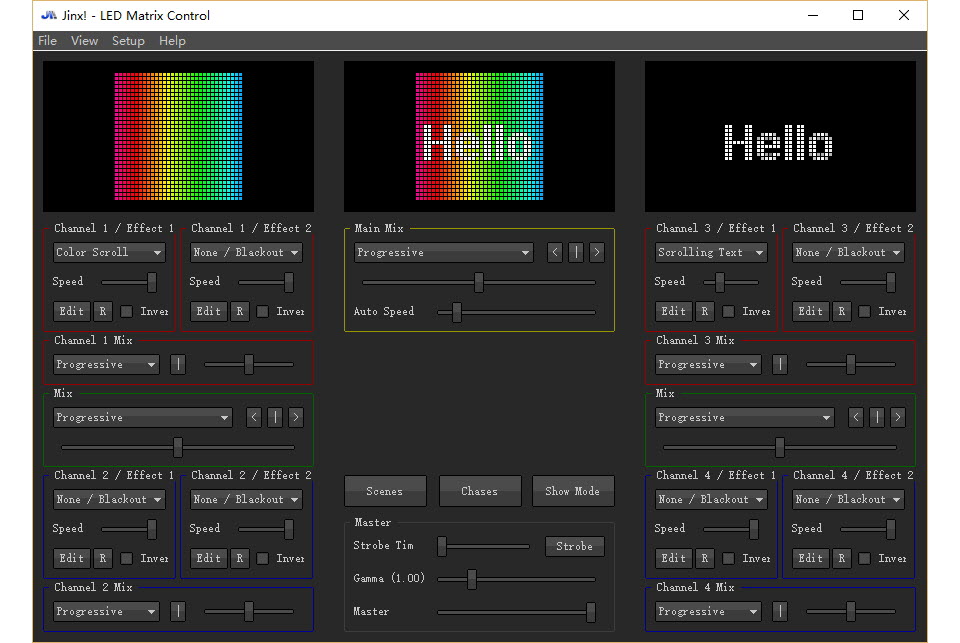

Now, you can use Jinx! to control led lights !!!

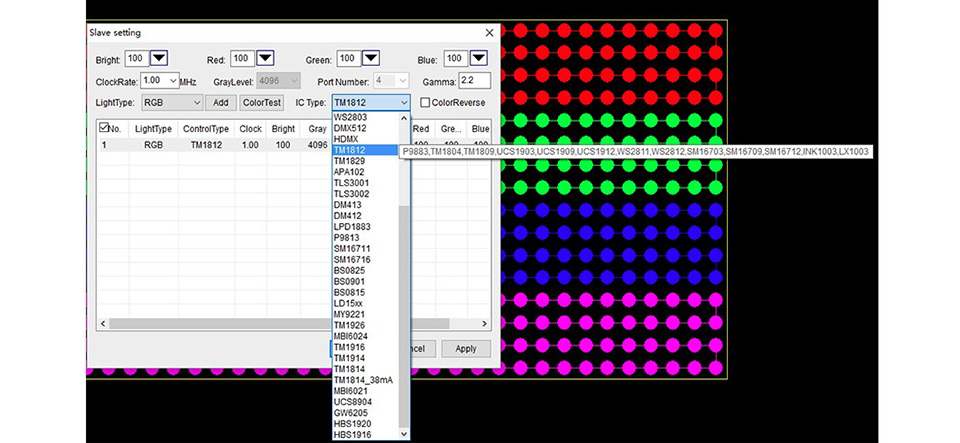

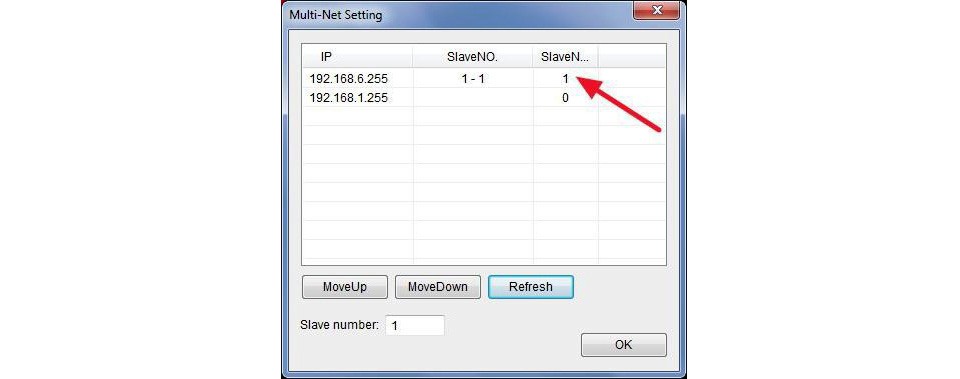

Allocate controller for the specified IP address.

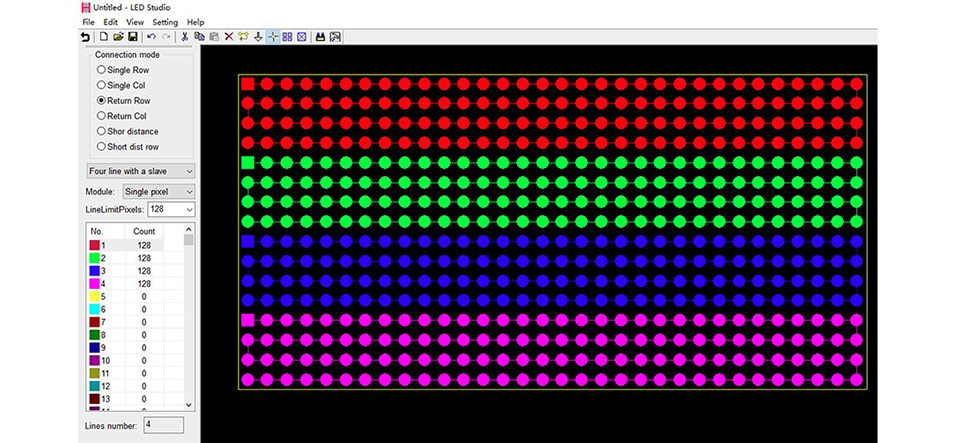

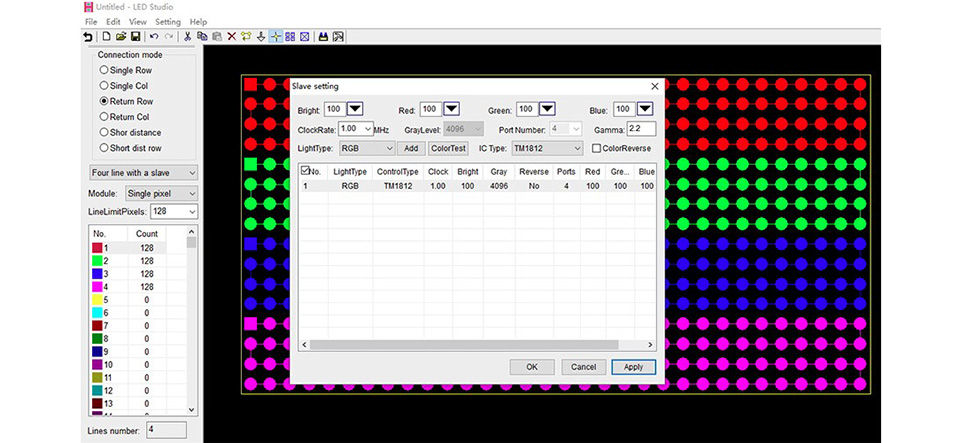

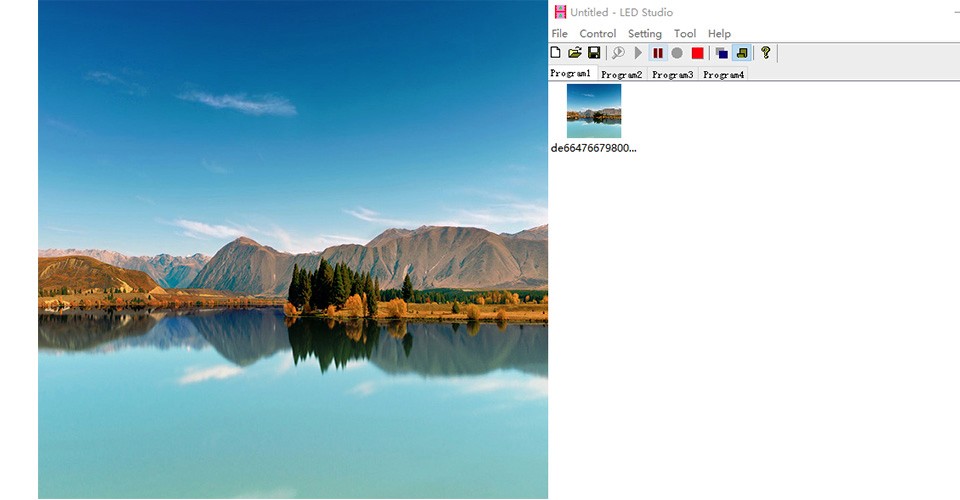

Make Animation
