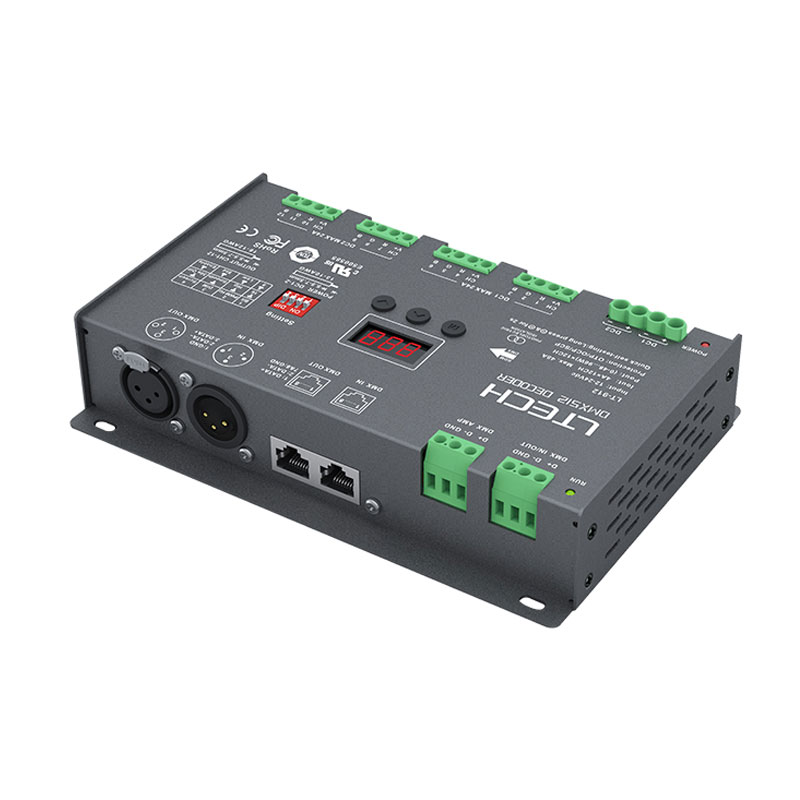

DC12-24V Max. 1152W 12CH CV DMX Decoder LT-912
Product Introduction:
1. Designed for Hi-power multiple channels application, 12 channels output, and up to 1152W output power.
2. Easy operation with OLED screen and the touch buttons.

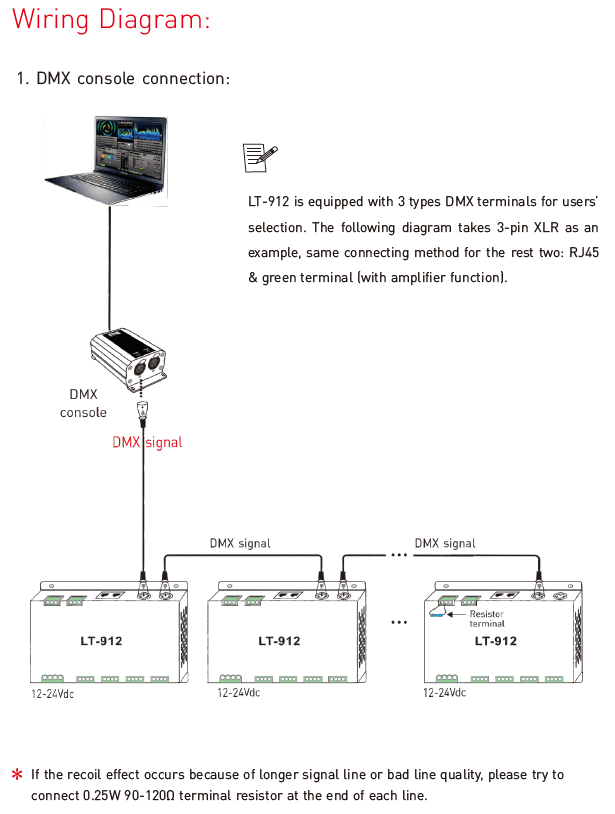

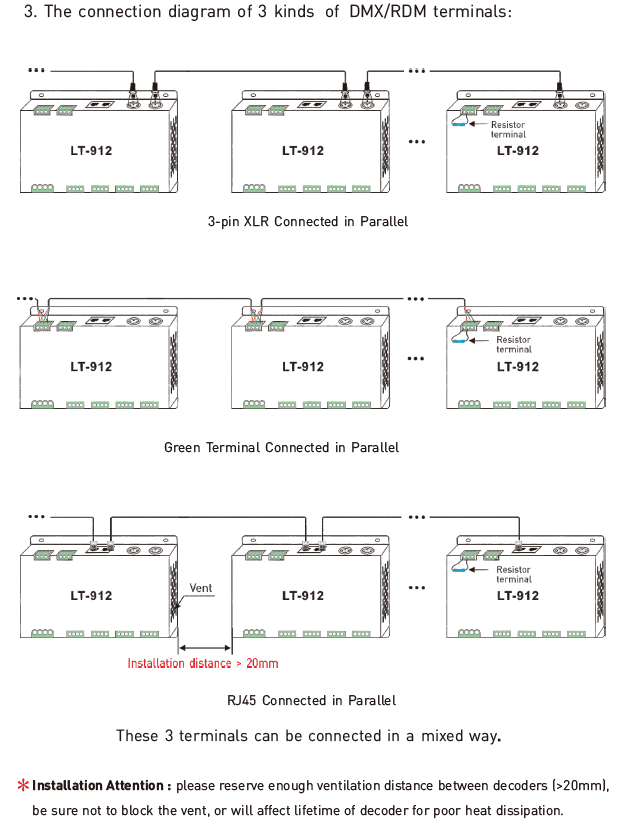

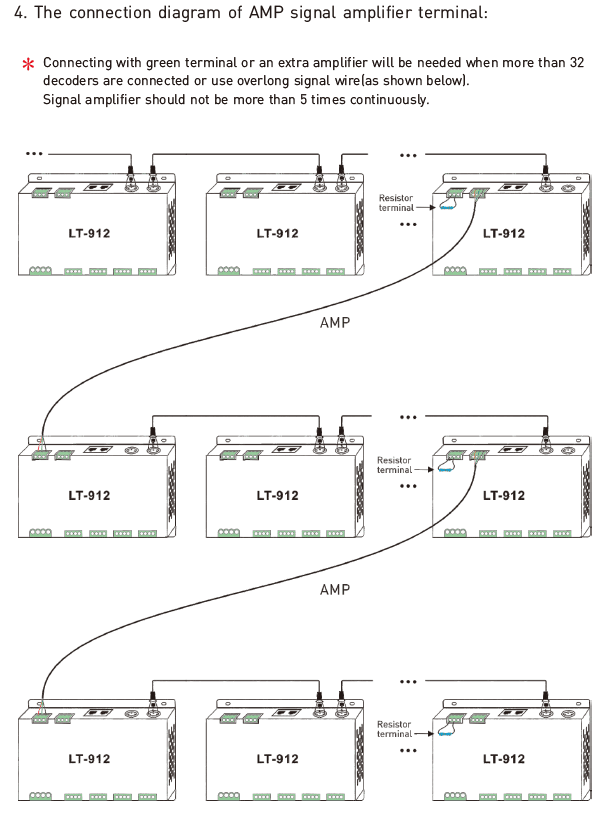

3. Support 3 kinds of DMX ports: 3-pin XLR, RJ45 and green terminal (with signal amplifier function).
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With shortcut protection and overload protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
LT912
Technical Specs:
Input signal : DMX512/RDM
Input voltage : DC12V～DC24V
Max load current : 4A × 12CH Max 48A
Max output power : (0~48W...96W) × 12CH Max. 1152W
DMX512 socket : 3-pin XLR, RJ45
Gray scale level : 8bit(256 levels)/16bit(65536 levels)
Working temperature : -30℃～65℃
Dimension: L180×W122×H39mm
Package Size : L193×W127×H41mm
Weight (G.W) : 730g
