DC12-24V Zigbee Single Color 2CH Controller Compitible with Amazon Alexa, APP Voice/RF Control GL-C-009P
Related Products
DC12-24V Zigbee Single...
$30.99
High CRI 95 SMD2110...
$42.98 $32.9823% off
High CRI 90 White Color...
$29.98 $12.9857% off
Single Row Series...
$52.98
24V Super Bright Double...
$21.98
DC3V 4 Zones of RGB+CCT...
$18.99
DC12V Double Row 3000K...
$26.98-
Special Price: $30.99
This product is a Zigbee series single color adjustment controller - Gledopto GL-C-009P, compatible with Zigbee light link network switch, and can be adjusted by amazon Alexa and smartphone APP voice. Customers can connect the strip light matching this controller to adjust the brightness and color change through the smartphone APP.

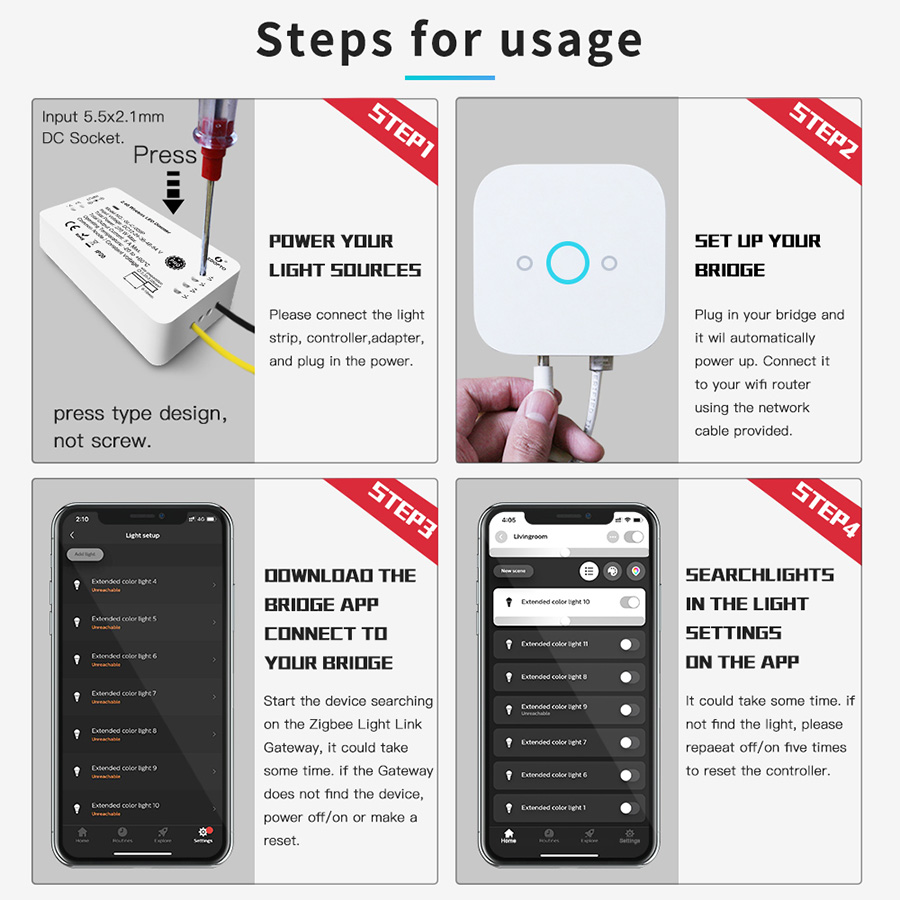

When using it, please note that the Zigbee single LED light strip controller must be compatible with Standard Light Link ZigBee Hub (required), and compatible with ZigBee Light Link gateway, Amazon Echo Plus or other brand gateways and Android iOS system.
Note: Please check whether the power supply is normal before use. If the voltage is different, the indicator light will flash. Please restart the bulb and confirm that your device supports Zigbee Light Link. The matching of the controller and the light strip can achieve different effects through the APP switching mode, which is suitable for bedrooms, bars, KTV, and other places, and the voltage output is safe, stable, and efficient.
Product Features:
-

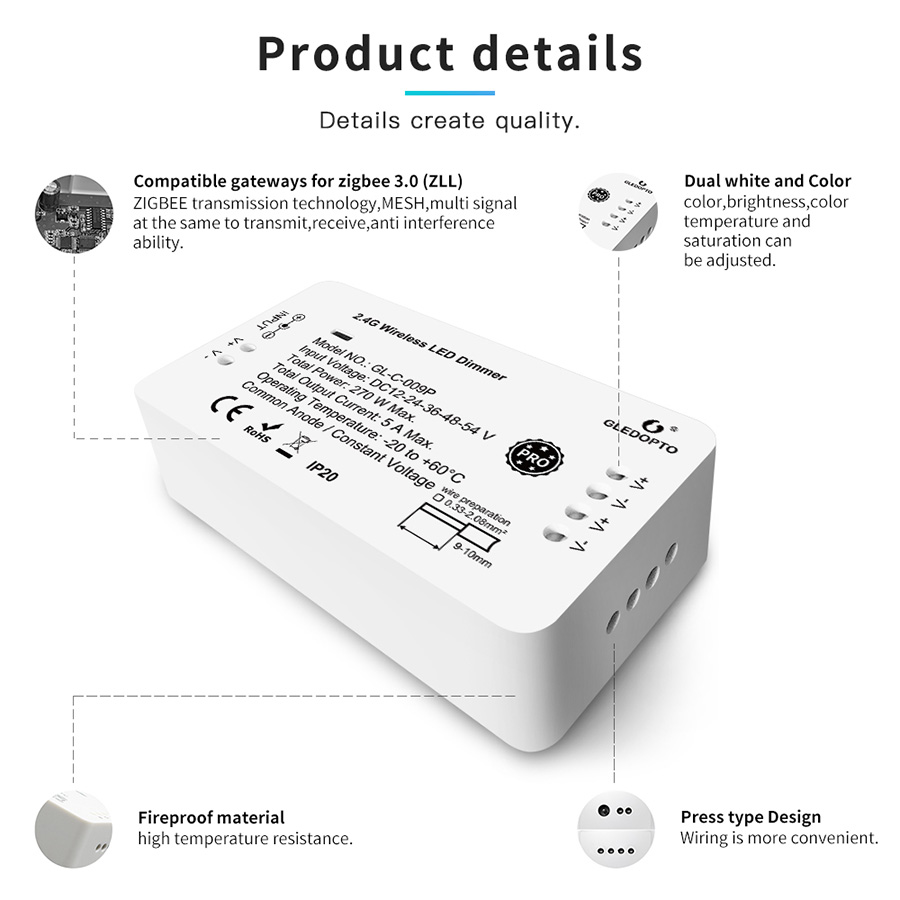

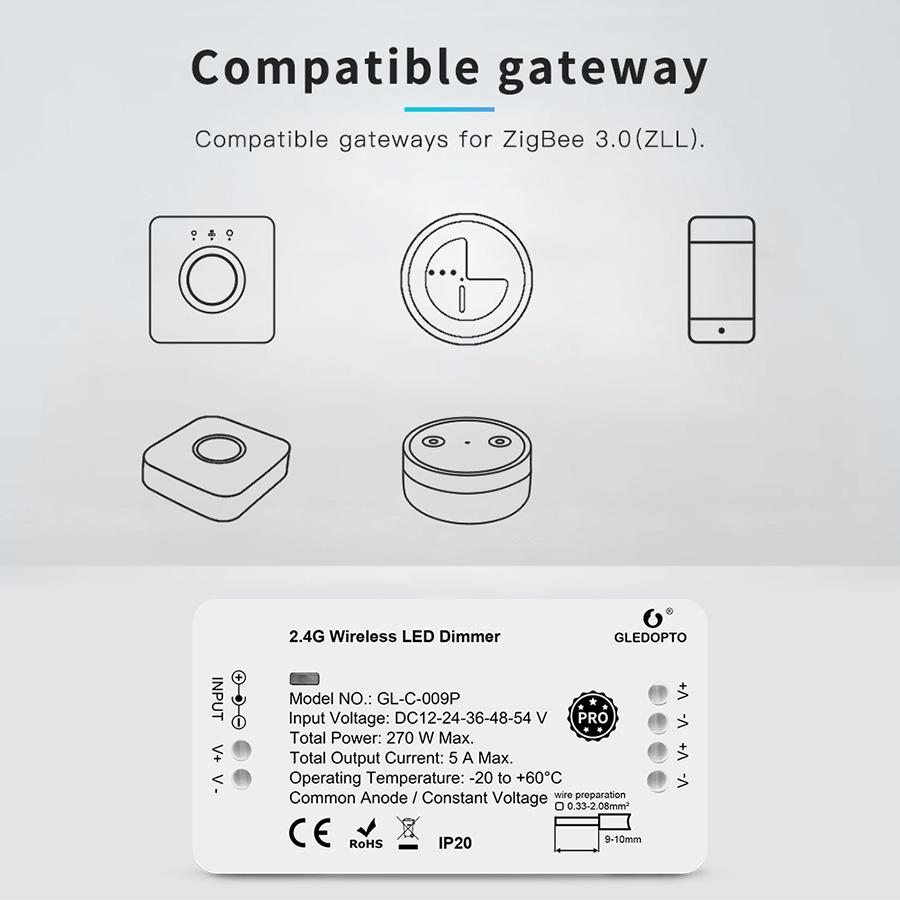

Zigbee 3.0 Gateway Compatible: Tuya, Conbee, Philips HUE, SmartThings, Amazon Echo studio.
-
Support Amazon Alexa Voice Control: Adjust on/off, brightness, and change light colors through voice command
-
Smart Phone APP Control: You can control the strip lights in all rooms through the phone app, making your life more convenient.
-
2.4G RF Remote Control: Saturation control function via 2.4G RF remote control.
-
Brightness adjustable: Brightness from 1%-100%. Select the brightness you need.
Standards and Certifications

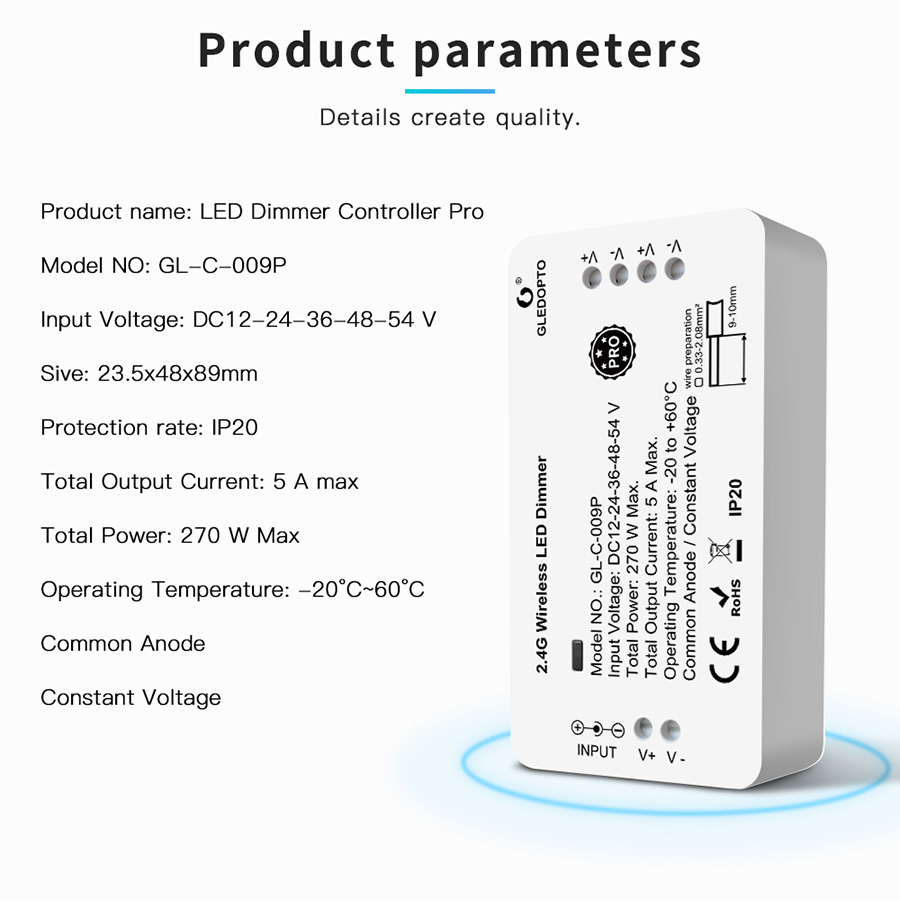

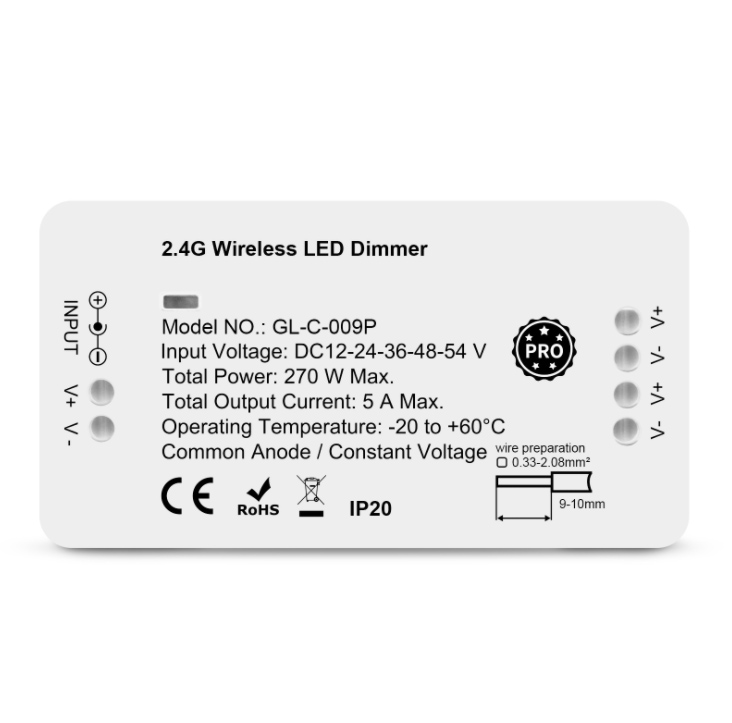

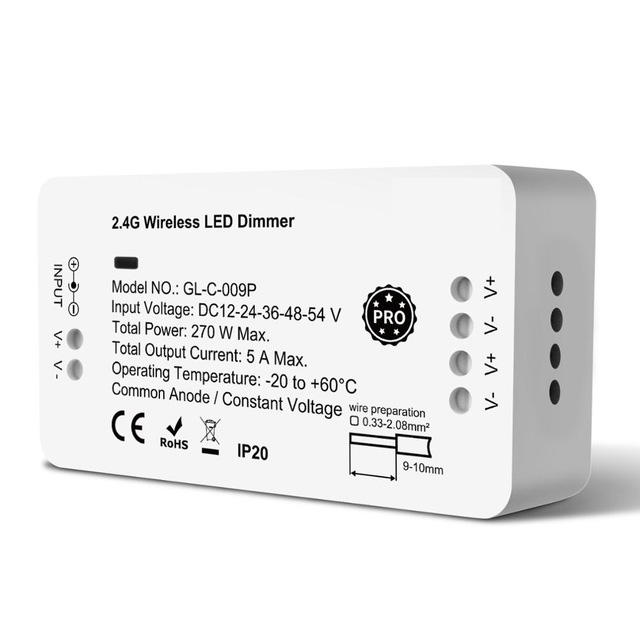

Product Specification
| Model: | GL-C-009P LED Dimmer Controller Pro |
| Input voltage: | DC12-24-36-48-54V |
| Output Type: | Constant Voltage |
| Control Type: | Common Anode |
| Total Output Current: | 10A Max, 5A max per channel |
| Total Power: | 270W Max |
| Protection Rate: | IP20 |
| Product Size: | 23.5x48x89mm |
| Operating Temperature: | -20℃~60℃ |
| Color Type: | Single color |
| Connection Type: | Gateway connection |
| Control Way: | APP voice control/RF remote |
| Control Distance: | 15-30 meters |
| Signal Input System: | ZigBee |
| Compitible: | Standard Light Link ZigBee Hub |
