DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light

Model: DCFLS-DMX512-RGBX1220
DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light
  • DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light
  • DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light
  • DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light
  • DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light
  • DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light

Select Specifications:

Starting at: $92.98 $72.9822% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$72.98
5-9
$72.62
10-79
$72.25
80+
$70.79
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    DMX512 LED strip neon light, compatible with DMX512 (1990) protocol, using RS486 signal trunking and signal differential transmission mode, high efficiency of data transmission; programmable, control IC with the operating system to achieve water running lighting, popular tail chasing and other fancy light effects, to meet the personality needs of color chasing LED.

    LED neon tube using environmentally friendly silicone material, with folding and bending resistance, corrosion resistance, yellowing resistance, UV resistance and other characteristics, waterproof level of IP67, suitable for outdoor lighting, with good heat dissipation; LED density of 96LEDs/m 29LEDs/Ft, low light decay, high brightness, smooth LED alignment and large luminous angle, the top light up to achieve no light spot.



    How to choose the Right DMX Neon Flex Strip?

    You can choose single-side outlet (half with hole and half without hole) or each-side outlet (end caps with hole) of this DMX512 neon rope light, and the outlet type (straight outlet, bottom outlet, side outlet) depends on your actual project needs. Default 5-pin JST quick connectors, 5-pin waterproof wires (20AWG, white) or 5-pin waterproof fast connectors (small size, white color) optional.

    Note: Please do not cut the LED neon light by yourself, if you need to customize, please contact us feel free or leave a note when placing the order.



    Product Feature

    12*20 LED neon light size

    DMX512 LED strip light

    Color Chasing RGB water running effect

    DC24V low voltage input

    Environmental Silicone material

    IP67 Waterproof, for outdoor lighting

    Good heat dissipation

    96LEDs/m 29LEDs/Ft with no spot light

    Folding and bending resistance,

    Corrosion resistance, yellowing resistance



    Standards and Certifications

    24VDC CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof

    Product Specification

    Item Type:  Outdoor DMX RGB LED Neon Flex
    LED Chip:  San'an SMD5050 + 10-pin UCS512H4L/UCS512H6L IC
    Material:  Silicone

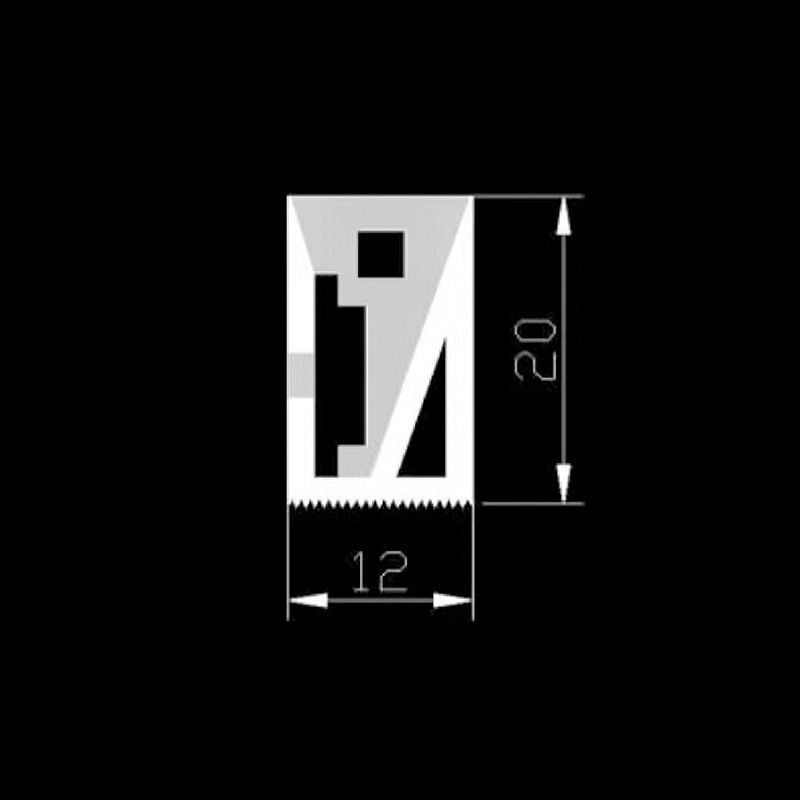

    Product Size:  12*20mm
    Input Voltage:  DC24V
    Power:
    15W/m, 4.6W/ft, 75W/16.4ft, 150W/32.8ft - 8pixels/m
    25W/m, 7.6W/ft, 125W/16.4ft, 250W/32.8ft - 16pixels/m
    LED Color:  Addressable RGB
    PCB Width:  12mm/0.47"
    LED Quantity:  96 LEDs/m, 29/ft
    IC Quantity:

    96LEDs/m - 8 ICs/m (1 IC controls 12 LED lights)

    96LEDs/m - 16 ICs/m (1 IC controls 6 LED lights)

    Cut Unit: (No cut mark)

    8 ICs/m - 125mm/5in

    16 ICs/m - 62.5mm/2.5in

    Waterproof Rating:  Outdoor Waterproof IP67
    Strip Length:  5m/16.4ft, 10m/32.8ft
    Working Temperature:  -20℃~+45℃
    Light Direction: Side emitting
    Beam Angle:  120°



    How to control DMX Led Neon Flex?

    This DMX neon strip light is driven directly by DMX512 signals. It is recommended to choose an easy-to-use wireless DMX controller such as XC (RF) and WT-DMX-S (WiFI) to directly connect it.

    If the power supply is placed indoors, you can choose LRS-200-24 / UHP-200-24 (For 5 meters) or LRS-350-24 / UHP-350-24 (For 10 meters). If the power supply needs to be waterproof, you can check out our 24V waterproof power supply series.

    Wireless Control DMX512 RGB Led Neon Flex





    DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    DC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon LightDC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon LightDC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon LightDC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon LightDC24V DMX512 16.4Ft 480LEDs Addressable RGB Outdoor Lighting LED Neon Light
