Special Price: $54.99 $33.9838% off

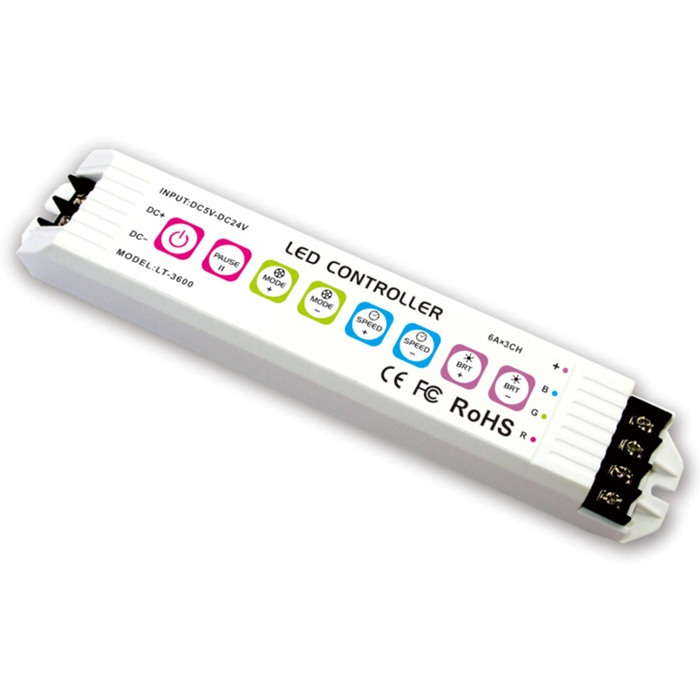

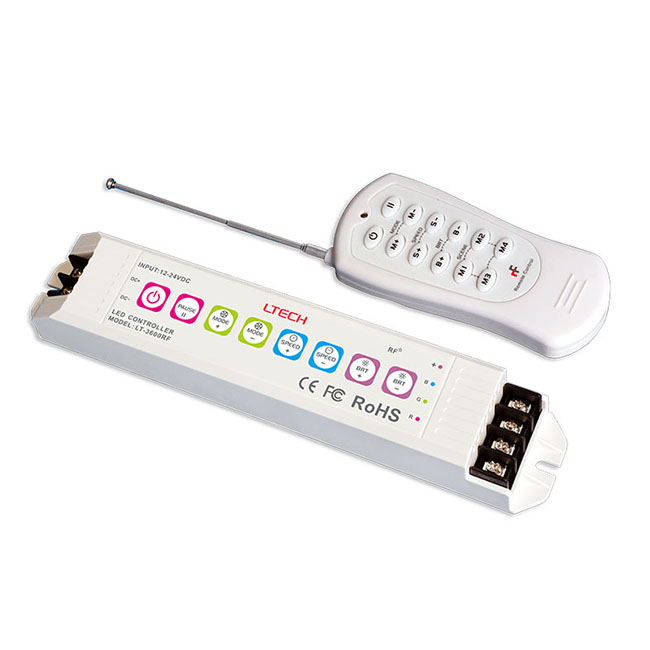

This Ltech RGB controller has been discontinued, it's replaced by LT-3600RF now. If you still order this model, we will send you LT-3600RF.
This is DC9~24V 7-keys 15A 3channel touch infrared controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp. It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. R / G / B increase and decrease control, 7 keys infrared controller, Unique appearance, circle remote have a good feeling, The touch panel is stable. Adope pwm technology, change of lights is smooth, Unique remote cooperate controller, have a perfect visual effect.

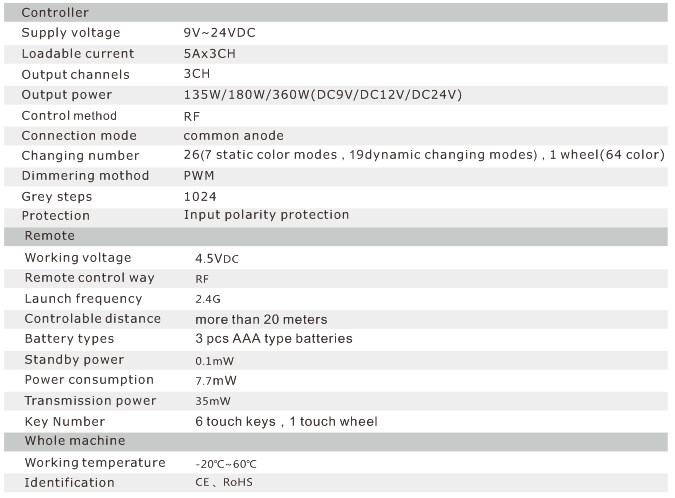

Product Specification
Features of Touch RGB controller
1. Capacitance and wireless touch technology no mechanical wear overcoming the lifespan problems caused by Physical buttons.
2. Visible color wheel touched by finger then What you see is What you get.
3. Auto adaptation of 9-24V DC working voltage and with input polarity protection function.
4. Adopt advanced PWM ,control technology ,gradual change gralscale up to 1024 levels ,change effect smooth,no flick.
5. High power dimmer control MOS tube with stable and reliable performance, strong.power-drive ability with max. 15A of 3 channels.
6. Wireless RF control, free direction and long distance, more than 20 m.
7. Adopt 2.4G wireless remote control technology, support use configuration one-for-one, one-for many,
many-for-one method.
8. Support independent control, uniform control and simultaneously control, buzzer remind when remote
control.
9. with brightness memory function.
10. Novelty and elegant appreance, especially fit for home and commecial occation.
Applications

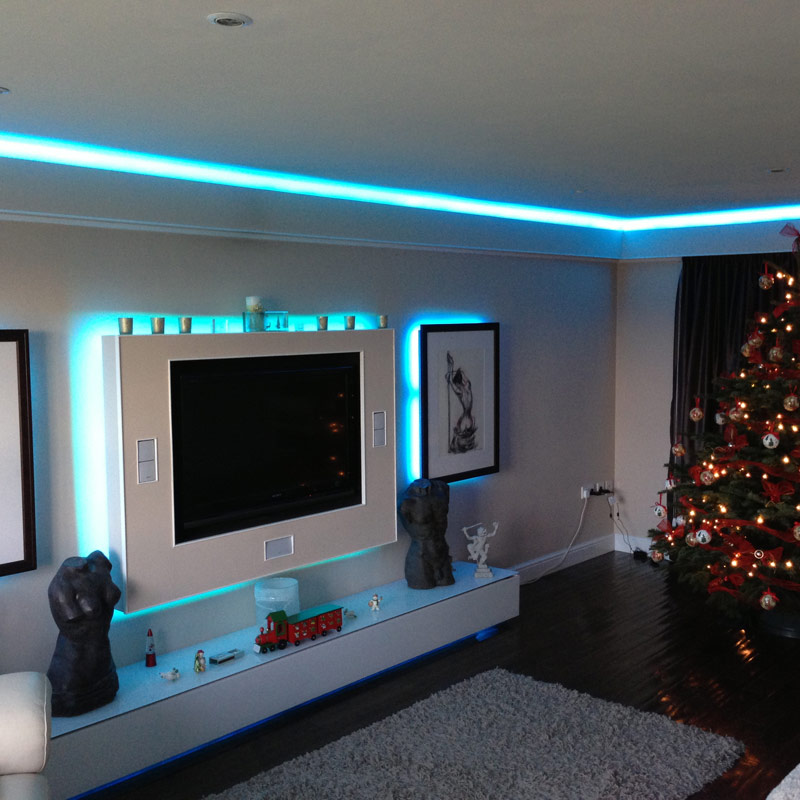

Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Connection Diagram
Safety
Supply voltage of this product is 9~24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
Note
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing
Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the strips have to connect with an Amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications

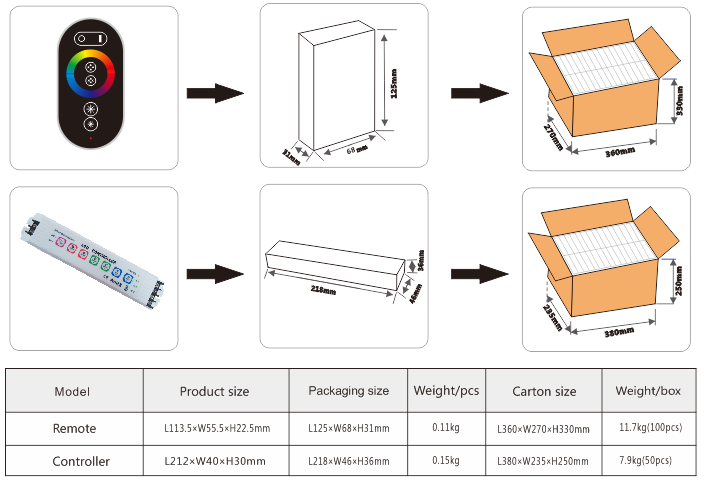

Package including

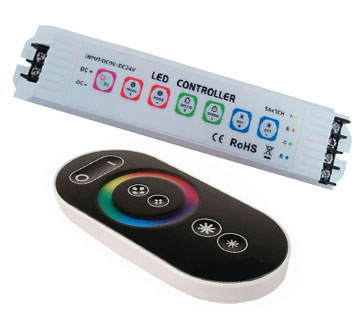

1 x 15A RGB LED Remote Controller

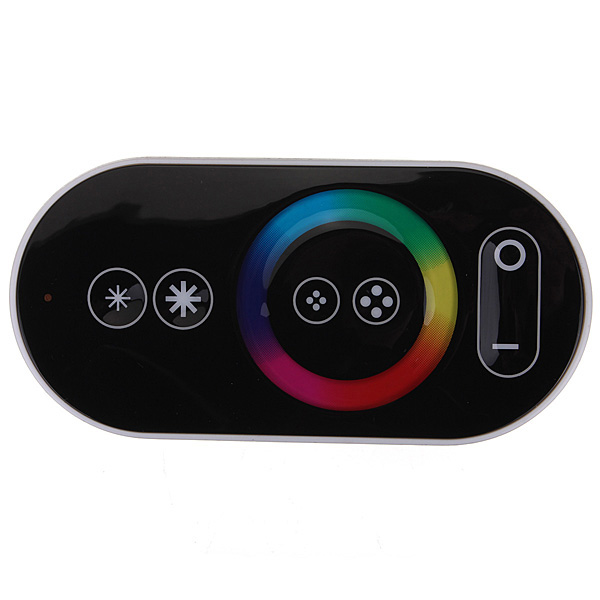

1 x RF Touch Remote Control
