Special Price: $40.98 $32.9820% off

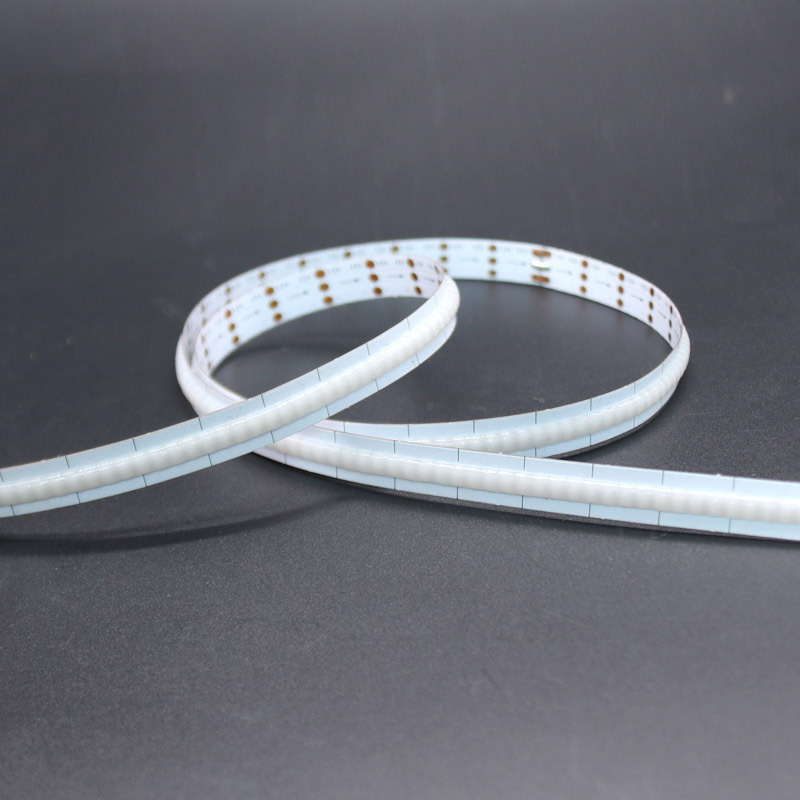

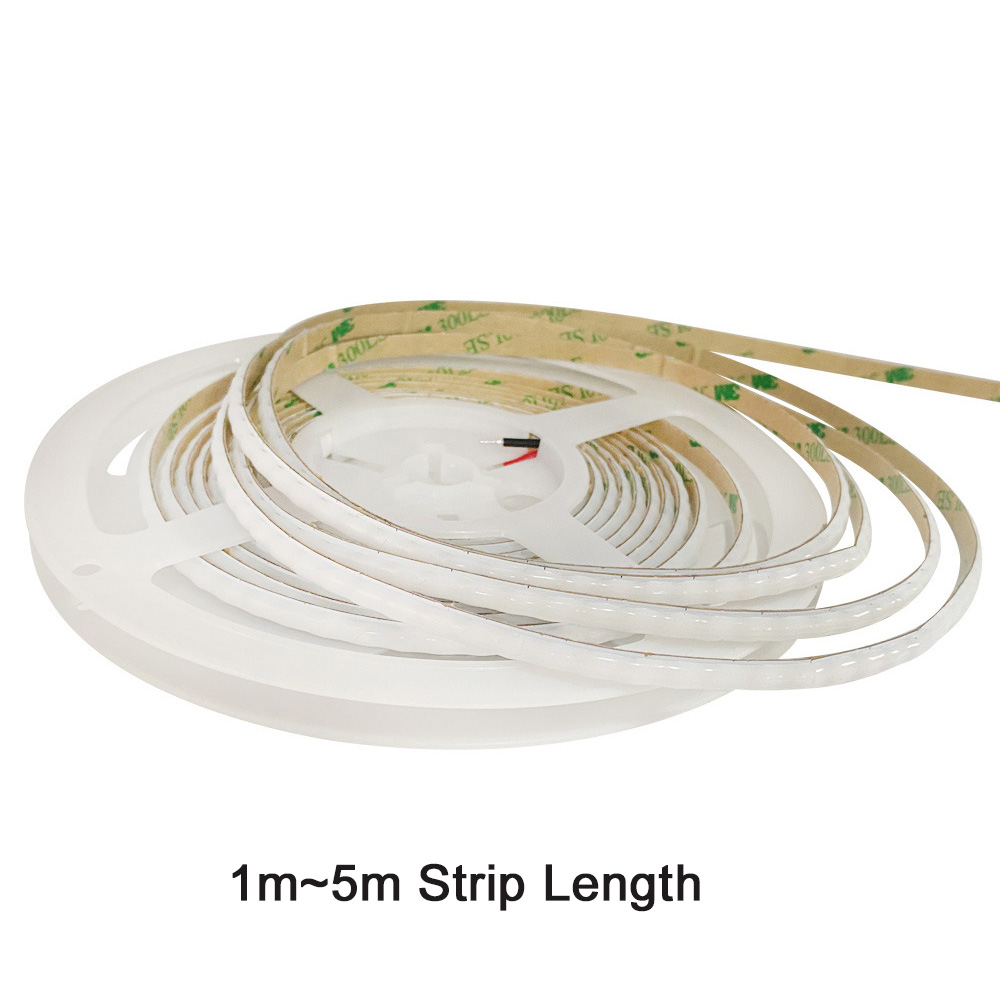

WS2812B addressable COB LED strip light can be purchased in 1m/3.28ft or 5m/16.4Ft reel. COB LED strips are also called chip-on-board LED strips, COB LEDs combined with COB chips and fluorescent film LED chips are directly packaged on the PCB.

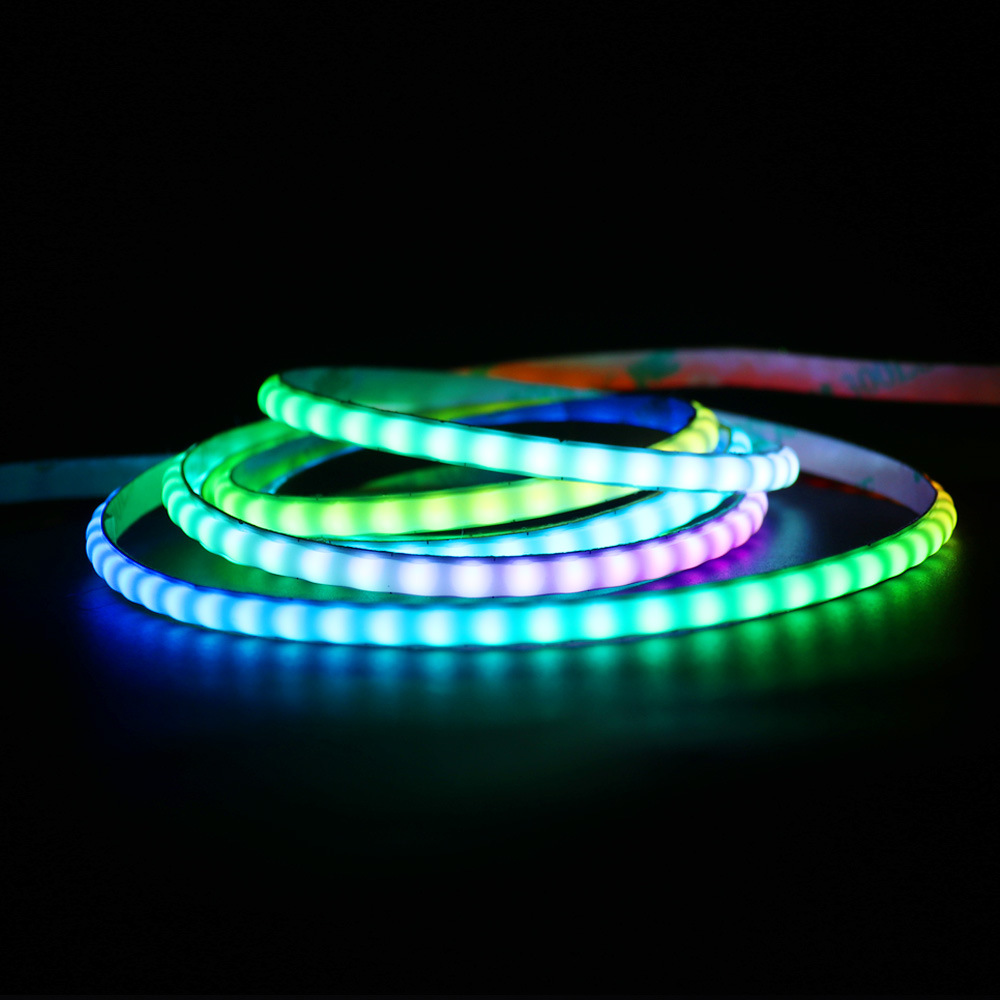

LED density can reach 160 chips per meter, every chip is controlled by a WS2812B IC, compatible with SPI LED controller to output 16 million color changes, dynamic color tracking and static arbitrary adjustment to control the color change speed and brightness of the LED light strip, to meet your most extreme demands
Addressable COB LED strip supports DC5V low voltage input, safe and efficient; every 1m/3.28Ft color chasing LED strip reel 320 chips/m is twice as bright as the 160 chips/m per reel, but the maximum running length of 160 chips/m increase, the voltage drop of 2m/16.4Ft drops significantly, with good color rendering.

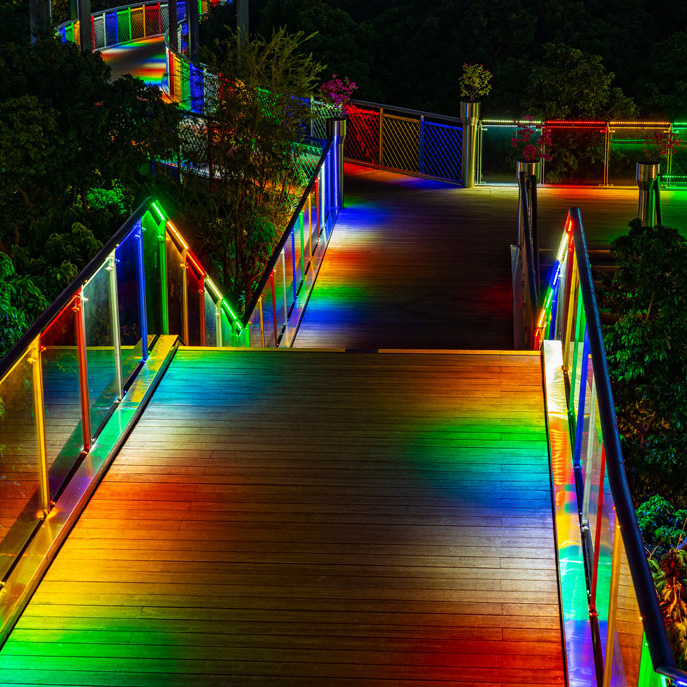

This addressable LED light strip uses high-quality double-sided PCB, high oxidation resistance and high temperature resistance. For outdoor environmental lighting, we have developed an IP67 waterproof LED light strip that can withstand sprays and splashes from all directions. It cannot be immersed in water, but it can withstand various factors.
Product Feature:
Compared with ordinary COB LED strip light, it can control LED brightness and color chasing speed to produce dynamic effects such as running water, and the entire roll can almost achieve no light spot. It is suitable for channel lights and landscape layout lighting.
Compared with DC12V addressable COB, the width is narrower, the voltage drop is smaller than 320Chips/m addressable COB LED strip, and the maximum operating length is longer.
|
• 160 chips/m high density
• 5mm or 2.7mm super narrow
• WS2812B IC control
• DC5V low input voltage.
• 16 million color changes
• The whole roll without light spot
• IP67 waterproof available
• 3.28/6.56Ft per roll by sales
• Full color addressable RGB
• Compatiable with most of SPI LED controllers
|
COB Flexible led strip light specification
Standards and Certifications
Product Specification
LED Strip Type: WS2812B DreamColor
LED Chip: SMD1022 Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Chips Quantity: 160 Chips per meter (3.28 ft)
Lifespan: 50,000+hours
Warantty: 3 years
Input Voltage: DC5V
Dimensions: L100cm(39.4 in ) x W0.5cm(0.2 in ) x H0.12cm(0.05 in )

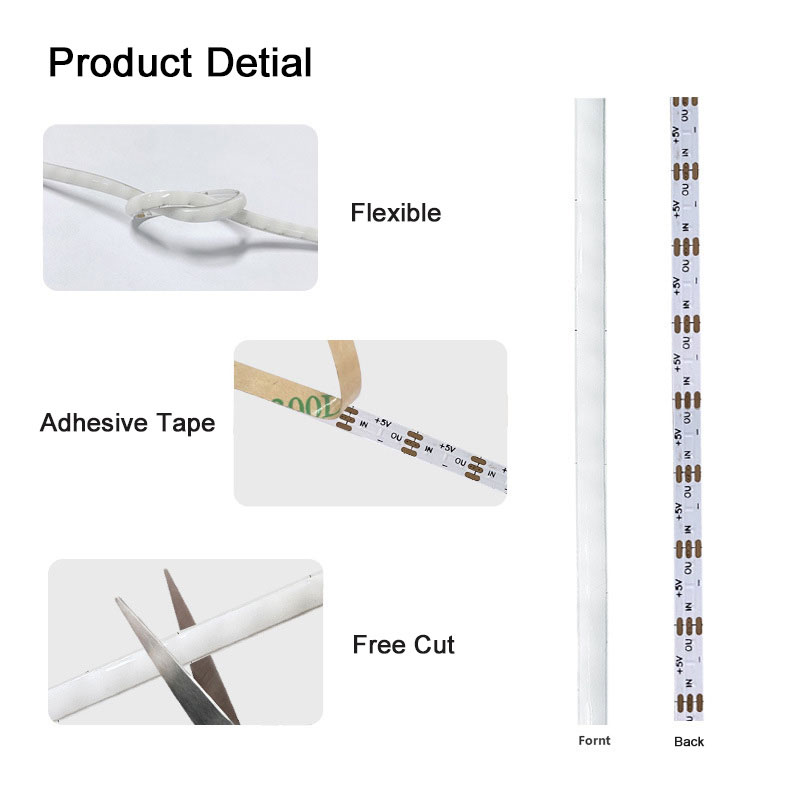

Cut Length: 10mm/1cm
Working Power: 20W/m for 160LEDs/m; 7.5W/m for 100LEDs/m, 12W for 2.7mm
Lamp Luminous Flux(lm): 2-3 lumens/ LED
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 180 degree
Water Proof: Non-Waterproof IP20, Waterproof IP67
To avoid the power load, the power of LED power supply is 1.2 times of the power of LED strip light
Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
When the length of LED strip light over 5m/16.4Ft, you need to supply power at two ends
How to choose the suitable LED power supply?
|
Indoor |
Outdoor |
|
|
1m/3.28Ft |
||
|
5m/16.4Ft |
2pcs * PSPS-5V-10A |
2pcs * LPV-60-5 |
If you purchase the MW UL-Listed LED power supply, we will send you an AC plug.
If the LED controller is far away from the LED power supply, you can purchase the non-waterproof LED extension wire or waterproof LED extension wire.
How to choose the LED controller?
| LED Controller | Function |
| SP107E LED controller | Bluetooth smartphone APP control. |
| SP108E | WIFI APP control, 4 output channel support 2048pixels |
| SP602E | max output 4 channels, can connect to 4pcs LED strip light |
| Magic Home&RF Alexa LED controller | APP/RF/Amazon Alexa/Google Assistant control |
If you want to use the LED controller in the outdoor environment, you can purchase an extra waterproof box

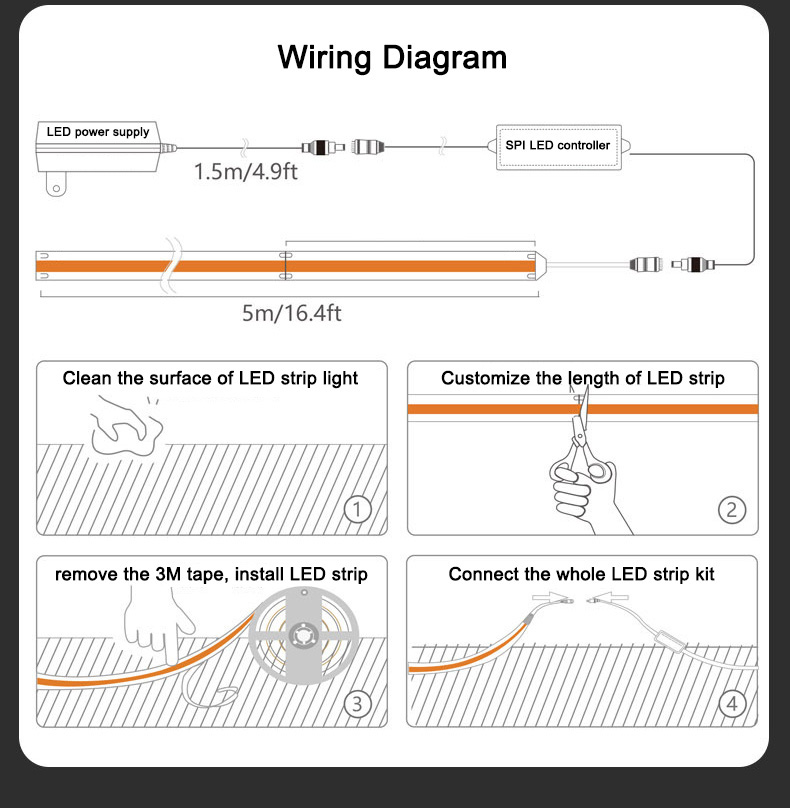

How to wire this addressable COB LED strip light?
