Special Price: $4.99
Square silicone led strip diffuser for 10mm led strip lighting, the led strip lighting is illuminated through the silicone diffuser surface, smooth the dot led light. Made of food grade silicone material, this silicone led channel is flexible and outdoor waterproof, does not change yellow or crack, has superior performance of ozone resistance, voltage resistance, cold resistance, high or low temperature resistance, suitable for outdoor lighting decorations.
Silicone led diffuser tube is mainly matched with single color or color changing LED strip lights to make LED neon lights, is widely used in decorative lighting and neon sign lighting, which are deeply loved by customers.

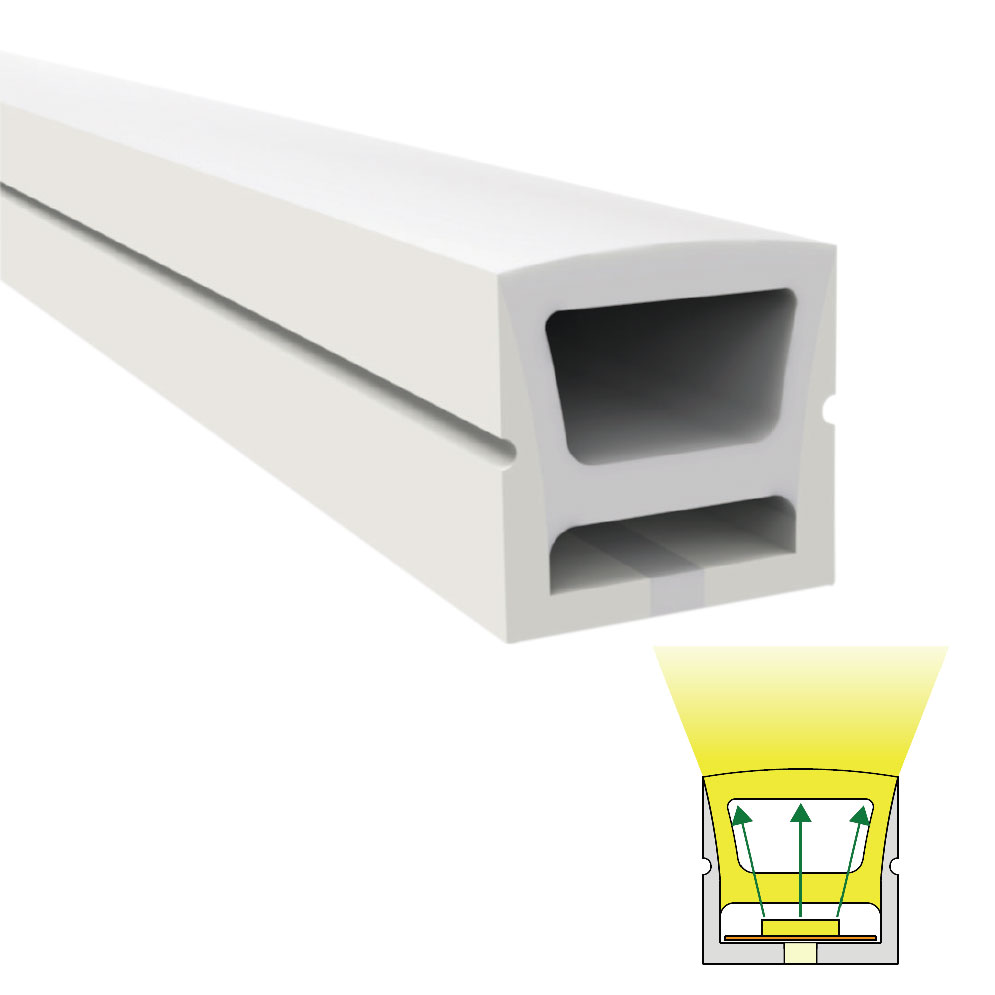

| Lighting Direction: | Top-emitting |
| Tube Material: | Food-grade Silicone |

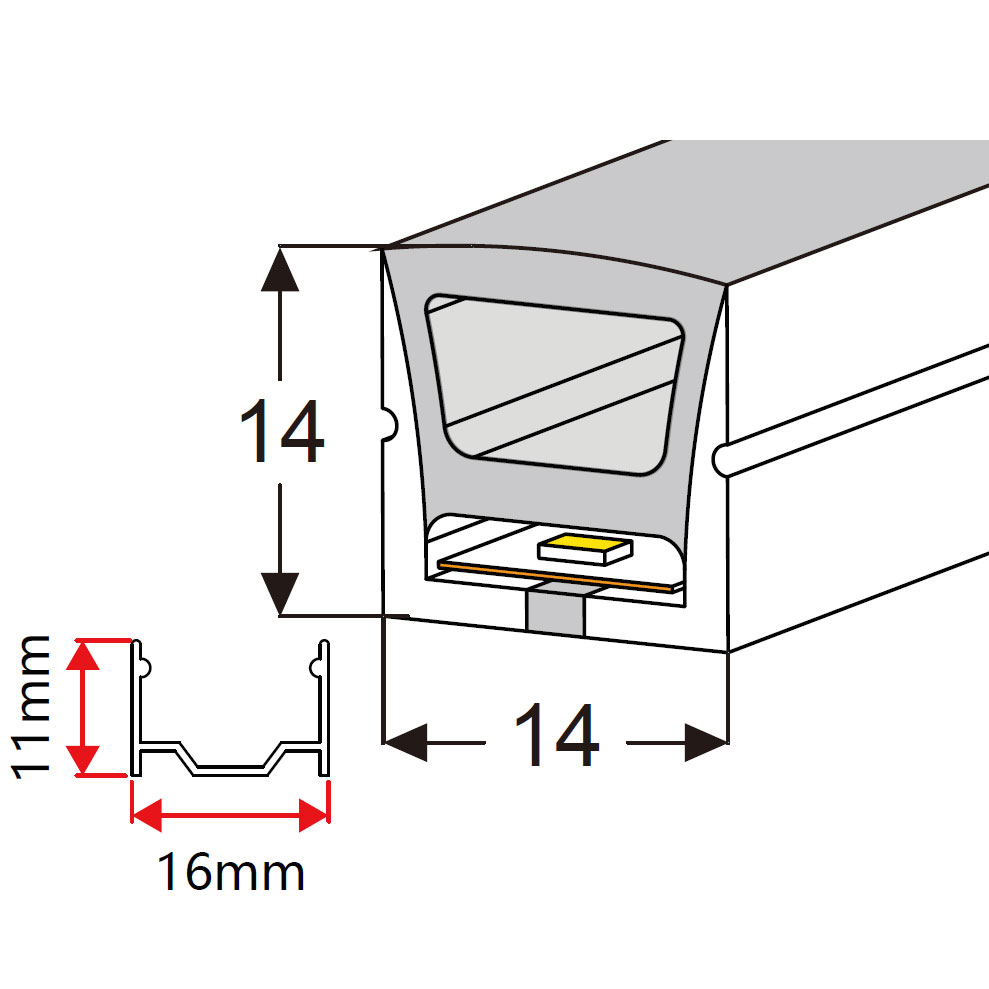

| External Height: | 14mm/0.55in |
| External Width: | 14mm/0.55in |
| Max LED Strip Width: | 0.39" (10mm) |
| Available LED Strip Type: | Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip |
| Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
| Beam Angle: | 120° |

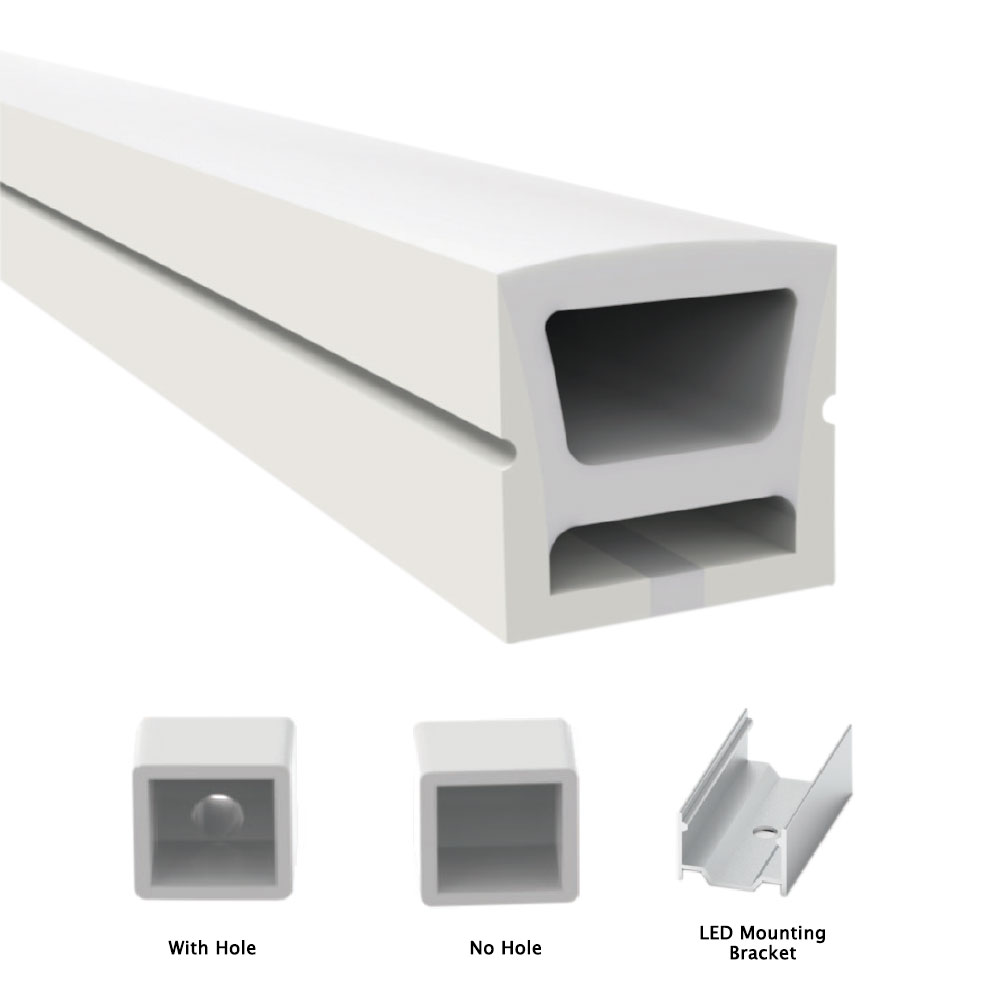

| Accessories: | End Caps (come with), Mounting clips (Please choose in the "Kit" option) |
| Waterproof Rating: | IP67 |
| UV Resistant: | Yes |
| Working Temperature: | -50°C to 200°C |
| LED Neon Light Knowledge Source: |
Note:
The product does not include led light strips.
If you buy our LED strips at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.
If you insist on completing the production of neon lights by yourself, you can read: How To Put A Flexible LED Strip Light Into A Silicoen Tube?
We are not responsible for any damage caused by your own operation!
Flex LED Neon Tube Installation:
There are three installation methods for neon silicone tubes, one is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.
The second is to put the flex led neon tube into the aluminum channel, this installation method is suitable for linear lighting projects.
And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
Using Application:
LED neon tube with Single color/CCT/RGB/RGBW/RGBCCT/Addressable LED strip has wide applicability. It can be applied to the following scenes.
1.Building outline lighting
2.Hotel lighting project
3.Bridge lighting project
4.Cultural tourism town lighting project
5.City park lighting project
6.Festival atmosphere decoration project
7.Airport lighting project, etc.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
