Rotary Panel LED RF Remote(CR2032 Battery) T1-KB

Model: T1-KB
Rotary Panel LED RF Remote(CR2032 Battery) T1-KB
  • Rotary Panel LED RF Remote(CR2032 Battery) T1-KB
  • Rotary Panel LED RF Remote(CR2032 Battery) T1-KB

Select Specifications:

Select Mask Color:

$18.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
100-9
$18.98
10-99
$18.60
100-199
$18.03
200+
$17.27
* Discounts may vary based on options above
Qty: -+Min:  100
*Mixed OFF

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Features

     Rotary glass panel RF remote, apply to a single color, dual color, or RGB LED controller.

    ● Rotate the knob to change RGB color, color temperature, or brightness,

     support long press or twice click operation.

    ● Each remote can match one or more receivers.

    ● CR2032 battery powered.

    ● White & Black glass panel available.



    Technical Parameters

    Input and Output

    Output signal: RF(2.4GHz)

    Working voltage: 3VDC(CR2032)

    Working current: <5mA

    Standby current: <10μA

    Standby time: 1 year

    Remote distance: 30m(Barrier-free space)



    T1-KBPDF



    Standards and Certifications

    CE FCC  RoHS ISA SGS ISO  warranty-5-year


    W

    Safety and EMC

    EMC standard (EMC): EN301 489,EN 62479

    Safety standard(LVD): EN60950

    Radio Equipment(RED): EN300 328

    Certification: CE,EMC,LVD,RED

    Warranty

     Warranty: 5 years



    Safety information

    1. Read all instructions carefully before you begin this installation.

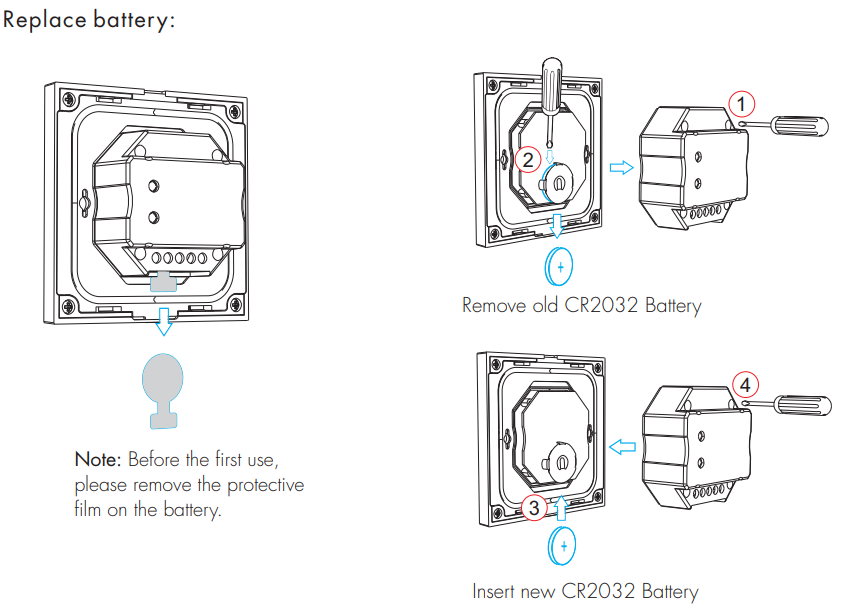

    2. When installing the battery, pay attention to the battery's positive and negative polarity.

     A long time without the remote control, remove the battery.

     When remote distance becomes smaller and insensitive, replace the battery.

    3. If no response from the receiver, please re-match the remote.

    4. Gently handle remote, beware of falling.

    5. For indoor and dry location use only.



    Match Remote Control (two-match ways)

    End-user can choose a suitable match/delete ways. Two options are offered for selection:



    Use the controller’s Match key

    Match:

    Short press match key, immediately push the knob. The LED indicator fast flash a few times means match is successful.



    Delete:

    Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.



    Use Power Restart

    Match:

    Switch off the power, then switch on power again, immediately push the knob 3 times. The light blinks 3 times means match is successful.

    Delete:

    Switch off the power, then switch on power again, immediately push the knob 5 times. The light blinks 5 times means all matched remotes were deleted.
