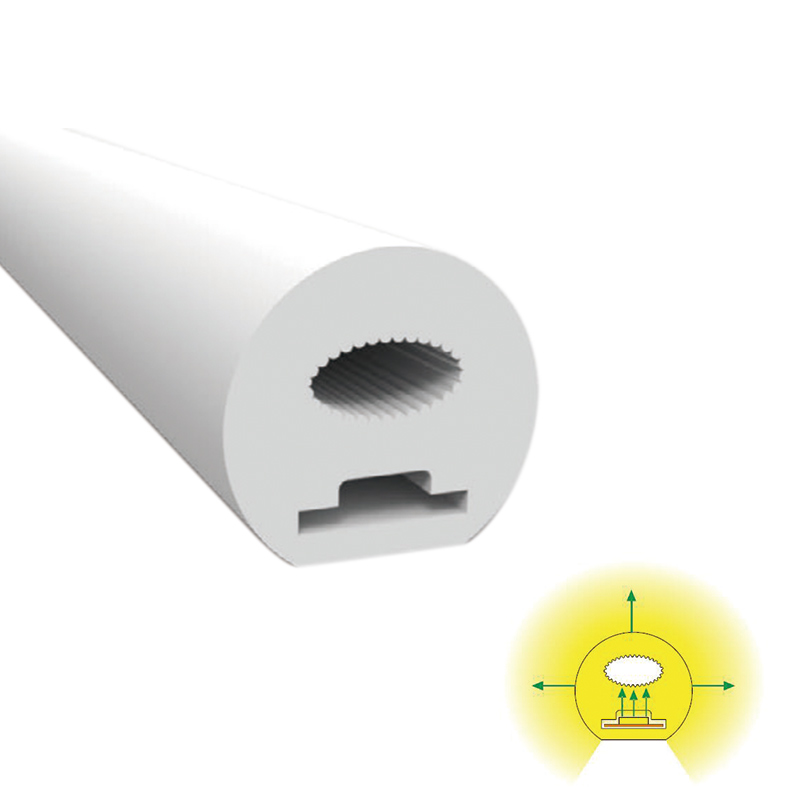

Round Flexible Silicone LED Light Strip Diffuser Channel 270° Round Emitting Φ20mm
Related Products
Round Flexible Silicone...
$9.99
DC5V 3-IN-1 RGB 5050SMD...
$23.98
High CRI 90 White Color...
$29.98 $12.9857% off-5M-150-LEDs.jpg "WS2815 Individually Addressable Dream Color RGB LED Strip 12V")
WS2815 Individually...
$30.00 $17.9840% off
RGB+W+WW 5050+2835 Multi...
$19.98
GS8208 RGB Color Chasing...
$37.98
DC5V 5050SMD Flexible LED...
$17.98-
Special Price: $9.99
20*20mm size round silicone led channel for 10mm led strip, has great flexibility, and it is best for neon sign design with led strip lights which are available in various light colors.
What is a LED neon tube?

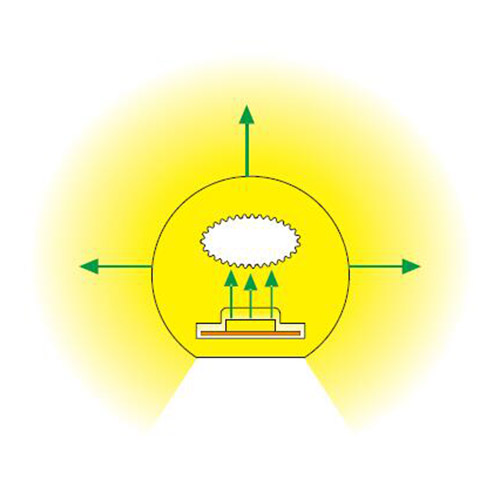

LED flexible neon tube is also known as two-color tube, the product structure is mainly divided into shading surface and diffusion surface, the light refracted from the light source through the conduction of silicone diffusion to produce the ultimate lighting effect which is more artistic and practical than traditional LED neon lights. The LED flexible neon tube has two main functions, the first is that the light-emitting angle is large, the perfect combination of high-density or ultra-dense and bright LED light strips and the LED flexible neon tube can almost achieve the effect without light spots; the second is similar to SMD5050/5630/5730 and other LEDs, generating high heat and poor heat dissipation of the LED itself, by matching the LED flexible neon tube can be a good solution to its heat dissipation problem and increase the sustainable time of the LED strip.
Flexible LED Neon Tube Feature:
LED flexible neon tube is mainly matched with LED strip to achieve good lighting effect, and is widely used in decorative lighting and sign lighting now. LED neon tube is non-toxic and tasteless; it is made of high quality PVC material, does not change yellow or crack, waterproof grade is IP67 and above; it has superior performance of ozone resistance, voltage resistance, cold resistance, high or low temperature resistance, and the neon tube has good light transmittance and a large light-emitting angle (up to 360 degrees). LED neon lights are usually matched with LED strips to make LED neon lights, with low power consumption, long lifespan, high cost performance and easy installation, which are deeply loved by customers.
| Max LED Strip Width: | 0.39" (10mm) |
| Tube Material: | Food-grade Silicone |
| Lighting Direction: | Top-emitting |
| External Width: | 20mm/0.79" |
| External Height: | 20mm/0.79" |
| Available LED Strip Type: | Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip |
| Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
| Beam Angle: | 270° |
| Accessories: | End Caps (come with), Mounting clips (Please choose in the "Kit" option) |
| Waterproof Rating: | IP67 |
| UV Resistant: | Yes |
| Working Temperature: | -50°C to 200°C |
| LED Neon Light Knowledge Source: |
Note:
The product does not include led light strips.
If you buy our LED strips at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.
If you insist on completing the production of neon lights by yourself, you can read: How To Put A Flexible LED Strip Light Into A Silicoen Tube?
We are not responsible for any damage caused by your own operation!
Flex LED Neon Tube Installation:
There are three installation methods for neon silicone tubes, one is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.
The second is to put the flex led neon tube into the aluminum channel, this installation method is suitable for linear lighting projects.
And the third is to use flexible profiles for curved path lighting, which has great bending freedom.

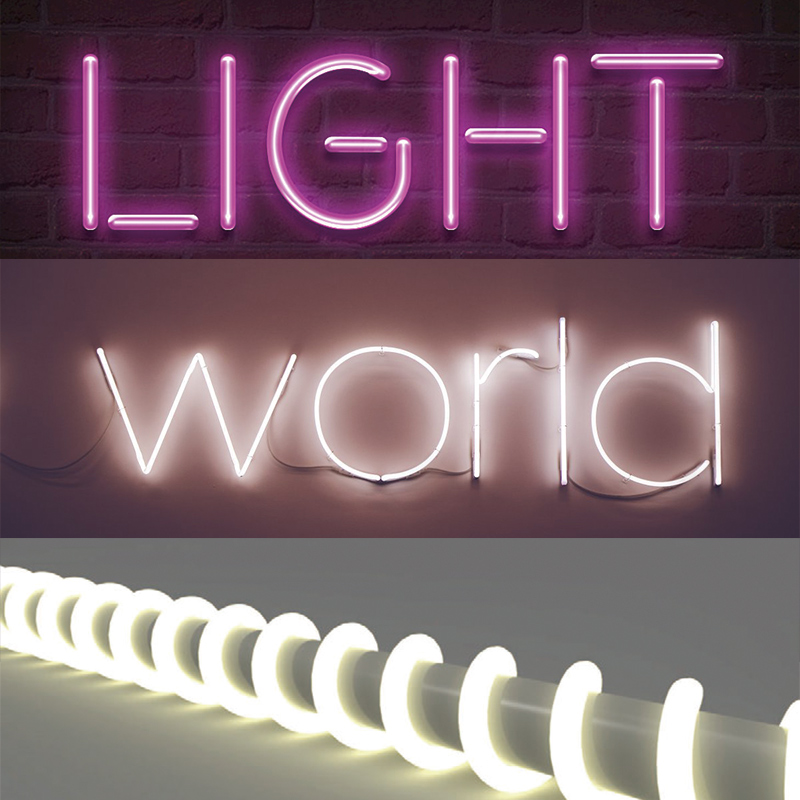

Using Application:
LED neon tube with Single color/CCT/RGB/RGBW/RGBCCT/Addressable LED strip has wide applicability. It can be applied to the following scenes.
1.Building outline lighting
2.Hotel lighting project
3.Bridge lighting project
4.Cultural tourism town lighting project
5.City park lighting project
6.Festival atmosphere decoration project
7.Airport lighting project, etc.
