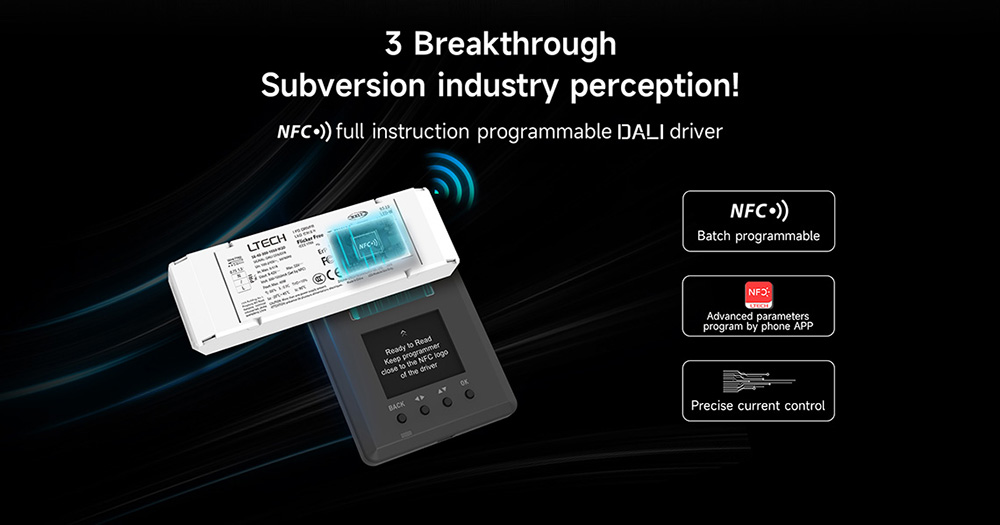

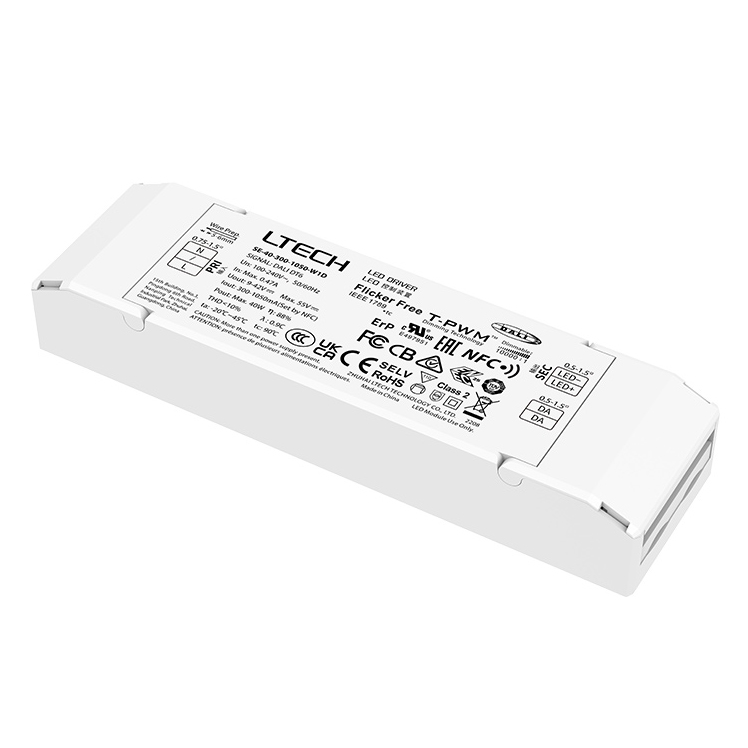

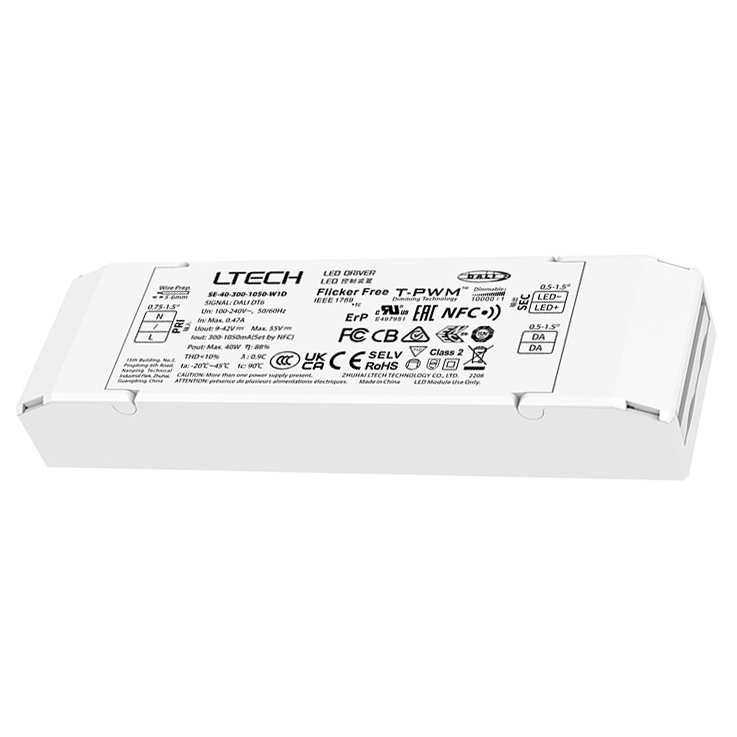

SE-40-300-1050-W1D 40W 300-1050mA NFC CC DALI DT6 LED driver
Related Products
SE-40-300-1050-W1D 40W...
$28.98

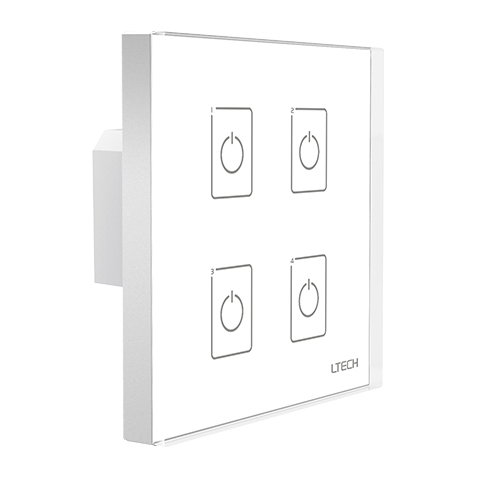

DALI touch panel EDA4 For...
$46.99
DALI knob panel E6-DA1
$37.99
DALI Dimmer DA4 -...
$46.99-
Special Price: $28.98
Product Feature:
Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials.

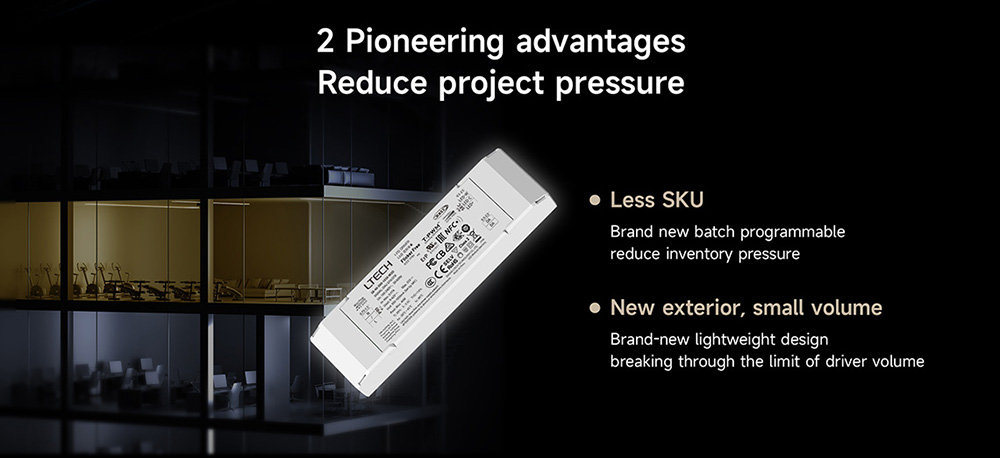

Ultra small, thin and lightweight, screwless end cap.
Set the output current down to 1mA.
DALI bus standard IEC62386-101, 102, 207.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM™ dimming technology allows quality and high-end lighting.
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU’s ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs due to poor contact.
Overheat, over voltage, overload, short circuit protection and automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).
SE-40-300-1050-W1D PDF
Technical Specs
Output Type: Constant Current
Dimming Interface: DALI DT6
Dimming Range: 0-100%, down to 0.1%
DC Input voltage: 120-300Vdc
AC Input voltage: 100-240Vac
Input Voltage: 115Vac/230Vac
Frequency: 50/60Hz
Input Current: ≤0.45A/115Vac, ≤0.22A/230Vac
Leakage Current: Max. 0.5mA
Output voltage: 9-42VDC
Maximum output voltage: ≤55V
Output Current Range: 300-1050mA
Output power: 2.7W-40W
PWM Frequency: 3600Hz
Current Accuracy: ±5%
Efficiency: 88%
working temperature: ta: -20 ~ 45°C tc: 90°C
Dimension: 142×40×23mm(L×W×H)
