Special Price: $166.98

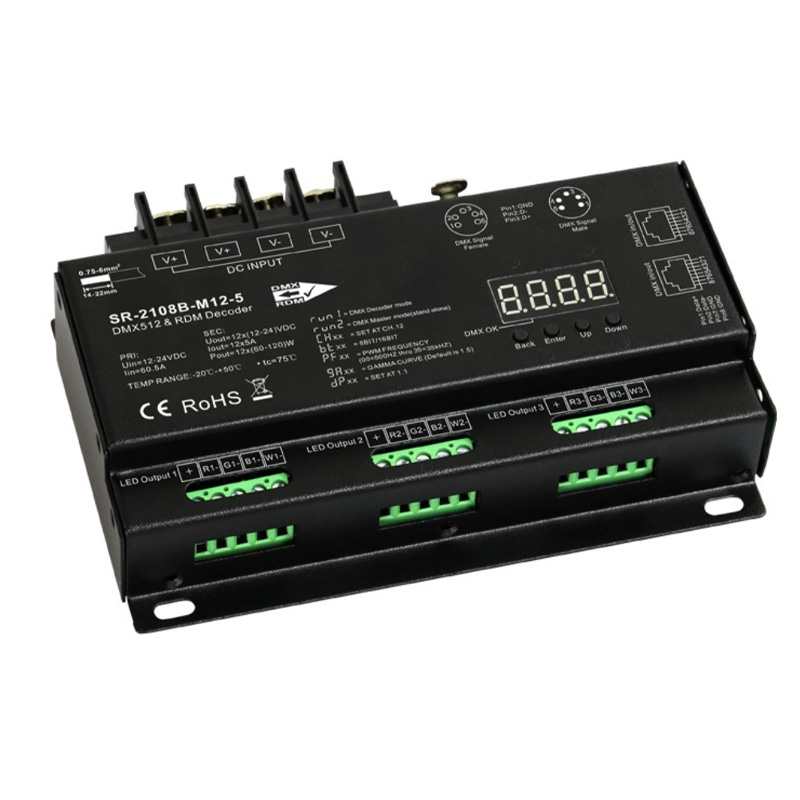

The SR-2108B-M12 industrial grade 12 channel DMX512 RDM decoder controller is equipped with both DMX decoder and DMX master function. In master mode, the LED strip DMX controller is capable of controlling the brightness of each output channel from 0% to 100% and running 4 different chase effects with 9 levels of chase speed.
Under the DMX decoding mode, this LED lights DMX control decoder supports user to adjust the brightness of each output channel, the master brightness of all output channels, and the flicker effects.
The 12 channel DMX controller supports the latest DMX512, DMX512(1990), DMX512-A and RDM V1.0 (E1.20 - 2006 ESTA Standard) protocols. The digital DMX controller also features a range of DMX signal inputs and outputs ports, including XLR, RJ45, and screw-type DMX ports for easy connection to DMX devices.
The LED tape DMX control decoder has 12 PWM output channels and the number of DMX channels can be set to 1CH or 12CH, providing 10 selectable PWM output frequencies ranging from 500 Hz to 35 kHz. The DMX control decoders 'RDM function supports the DMX controller console to detect and display decoder information and set DMX addresses. User can set the DMX address, number of output channels, PWM output resolution, PWM output frequency, gamma curve dimming value, and DMX decoding mode through the digital display and pushbuttons of this LED tube DMX control decoder. These features of the LED RGB DMX controller allow users to precisely control the brightness, color, and effect of the light.
SR-2108B-M12 Manual Download
Product Specification
| Product Type: | SR-2108B-M12 |
| Input Voltage: | 12-24VDC |
| Output Current: | 12CH, 5A/CH |
| Output Power: | 12x(60-120)W |
| Remarks： | Constant voltage |
|
Dimension (mm):
|
L99x W165x H38mm (L3.89x W6.49''xH1.49'')
|
| Weight: |
1.3kg
|
| Remarks: |
XLR 3/5pin
|

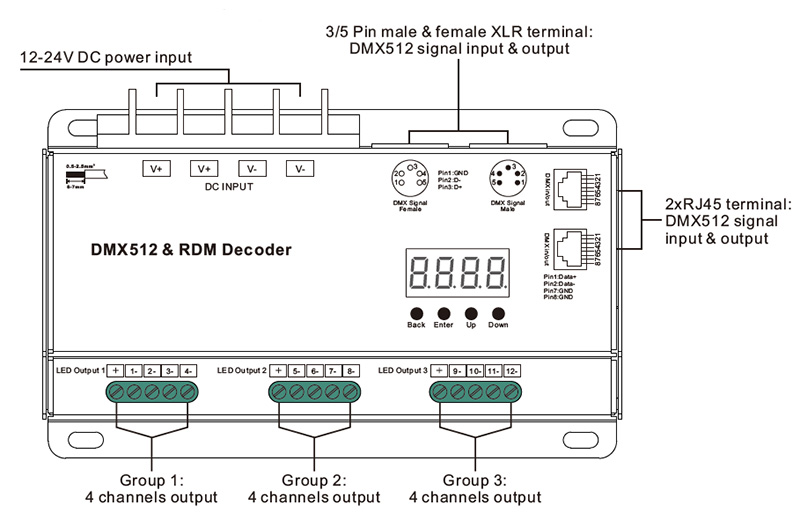

Function Introduction

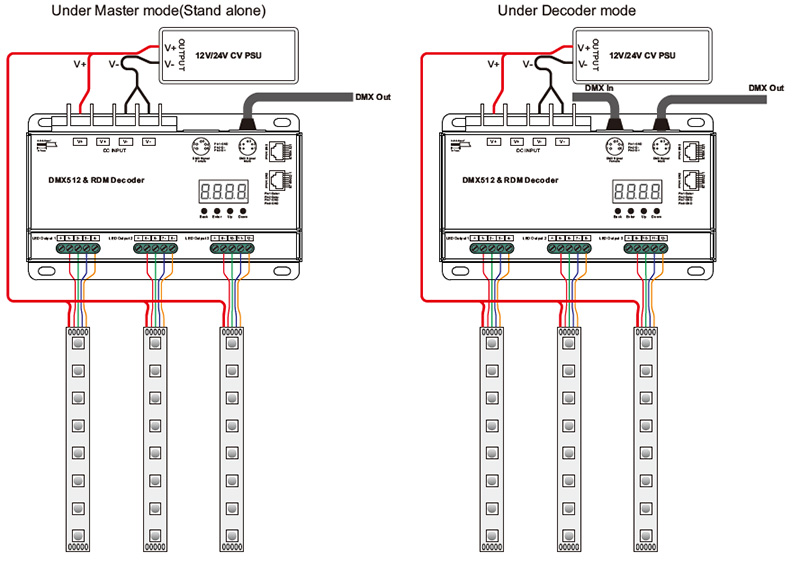

Wiring Diagram
