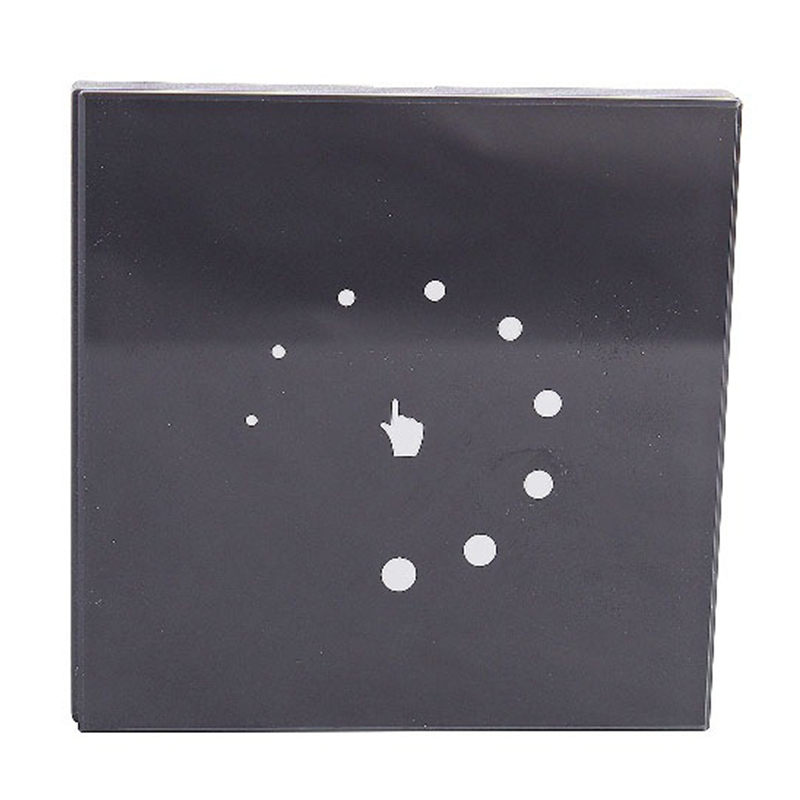

TM04 DC12V-24V Waterproof Hand Touch Dimming Controller
Related Products
TM04 DC12V-24V Waterproof...
$13.98
Mean Well LRS-350-24 ...
$50.00 $45.988% off
Single Row Narrow...
$42.98 $20.9851% off
Single Row DC24V High...
$32.98
DC12/24V Max 24A 8A3CH ,...
$19.99 $13.9830% off
Super Flexible Series...
$34.98 $17.9849% off-
Special Price: $13.98
Summarization
Touch on dimmers is a level 256 can realize the light of high-grade controller. The glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. Users can according to actual needs, will light moves to a proper brightness.
Sorry to tell you TM04 has been discontinued, you may use the TM06 instead.
Standards and Certifications

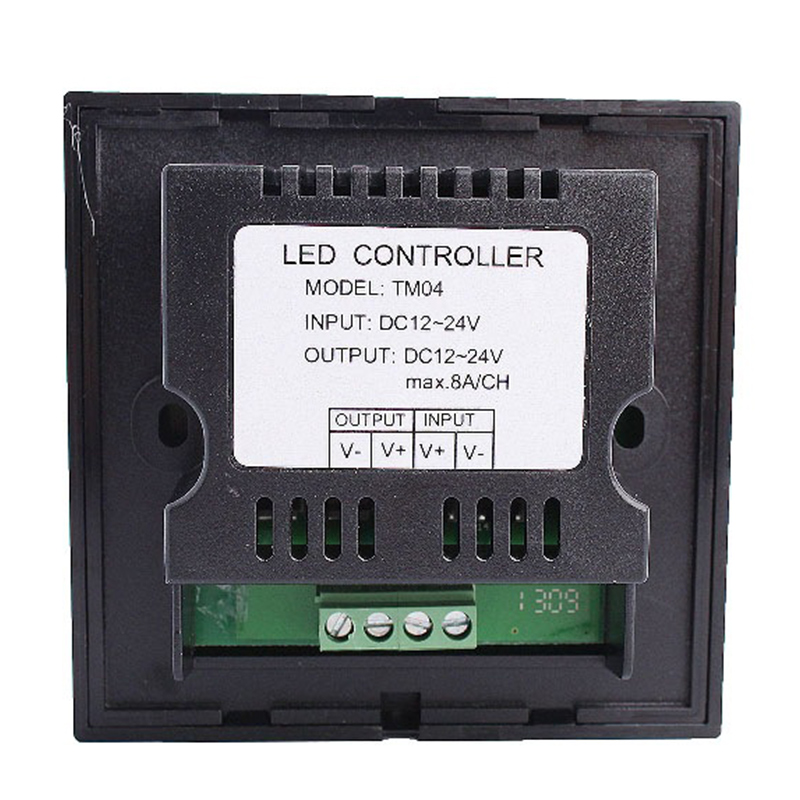

Technical Parameters
Working Temperature: -20-60 °C
Supply Voltage: DC12~24V
Output: 1 channels
Connection Mode: common anode
External Dimension: L86 Χ W86 Χ H36mm
Packing Size: L90Χ W90 Χ H40 mm
Net Weight: 125g
Gross Weight: 195g
Static Power: <1W
Output Current: <8A
Output Power: 12V<96W,,24V<192W
Specifications Download

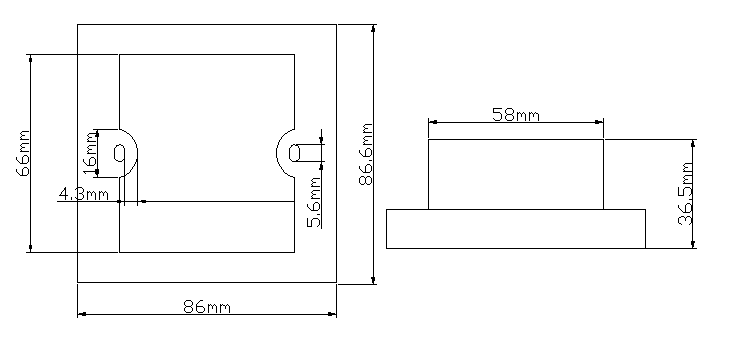

External Dimension
Typical Application
Installation Method
1. Open the touch panel

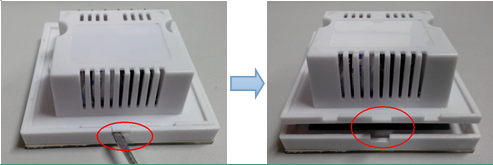

1.1.gently pry gaps in touch panel with a screwdriver, and then you can slowly remove the panel, as shown below

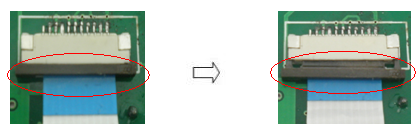

1.2.remove the cable. Pull the locking of the wiring seat, and then you can slowly remove the cable, as shown below:

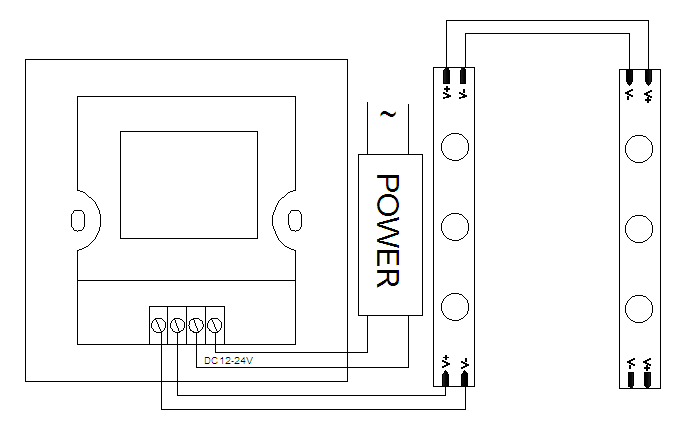

2 Wiring:Wiring accord to typical application circuits,please refer to the typical application circuit.
3 Install the switch base:As below,install the touch controller on the cassette in the wall after wiring,then fight screw to fix it,install the base on the wall at last.
4. Cover touch panel:Wiring accord to step one,Lock tight the cable hasp,cover the touch panel.
Remark
1 Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2 The supply voltage of controller ranges in DC12V~DC24V, it may burn out the controller once exceed the voltage ranges.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
